eclat "Onyx 24" 2017 BMX Crank - Bolt Drive (12/2013)
Archive: This product is no longer available.
View current Cranks range
View current Cranks range
| Brand | eclat | |
| Released | 11.12.2013 | |
| Sold until | 04.05.2018 | |
| Status | archived | |
| Variants Color | length
|
|
|
| Weight | 0.83kg / 1.83lbs | |
| Product ID | 6017 |

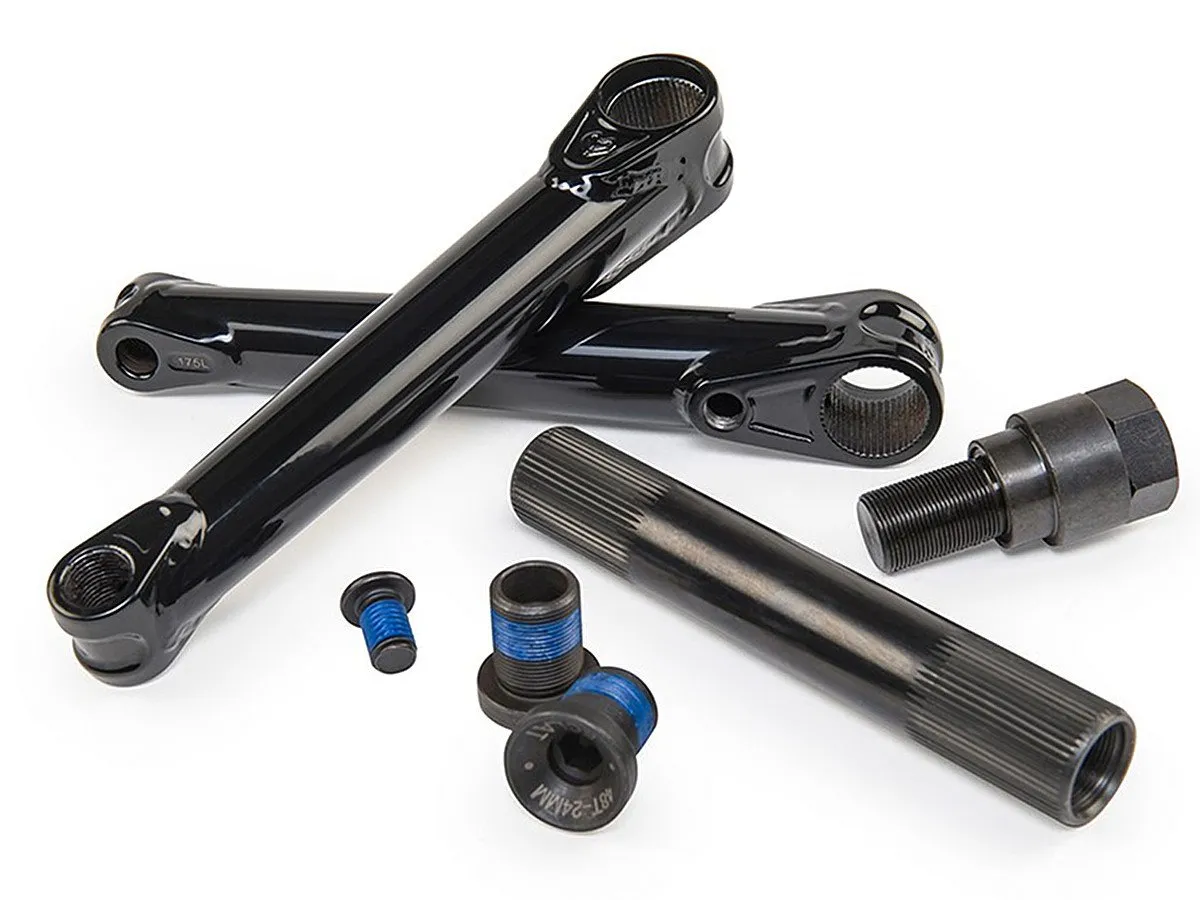

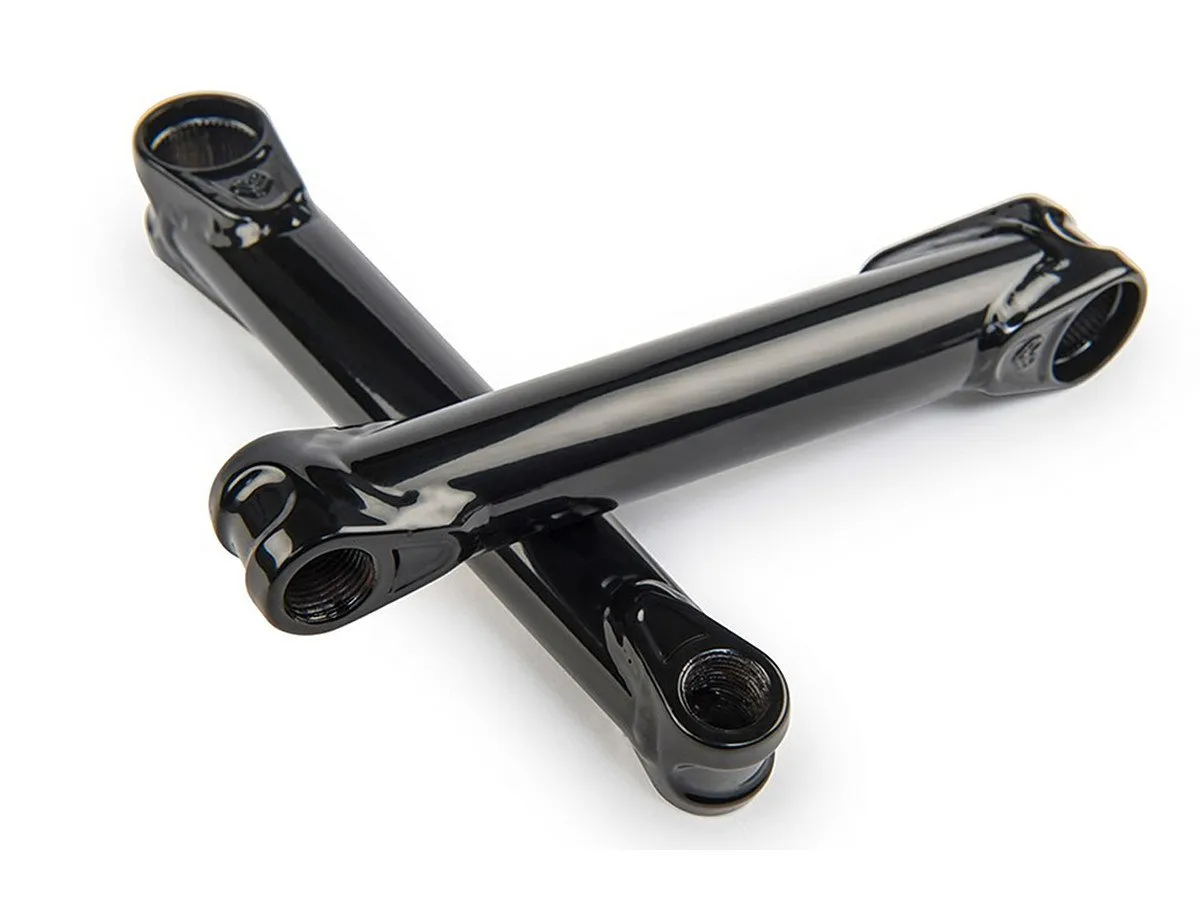

The eclat "Onyx 24" 2017 BMX Crank - Bolt Drive is thanks to its modern, fully heat treated investment cast manufacturing technology, but also because of its 24mm CrMo hollow axle a very high quality and strong 3-pc. crankset. The eclat "Onyx 24" 2017 BMX Crank - Bolt Drive comes with sprocket mounts on both crank arms and is compatible to regular but also to Spline drive sprockets, which are designed for crank spindles with a diameter of 24mm.
Facts: eclat "Onyx 24" 2017 BMX Crank - Bolt Drive
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 170mm
- Spindle Diameter: 24mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
Bolt-Drive (25T or larger): right (RHD) and left (LHD) (selectable as Option)
Spline-Drive: right (RHD) and left (LHD) | right when Bolt-Drive left, left when Bolt-Drive right - Pedal Threat: for 9/16" pedals
- Spindle Bolt: 2x bolts (18x1mm, 24mm Axle) with 8mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Extras: completely surround welded axle and pedal jacks, includes assembly tool
