eclat "Teck V2" Front Hub (08/2011)
View current Front Hubs range
| Brand | eclat | |
| Released | 02.08.2011 | |
| Sold until | 18.09.2020 | |
| Status | archived | |
| Variants Color
|
|
|
| Weight | 0.28kg / 0.62lbs | |
| Product ID | 2428 |

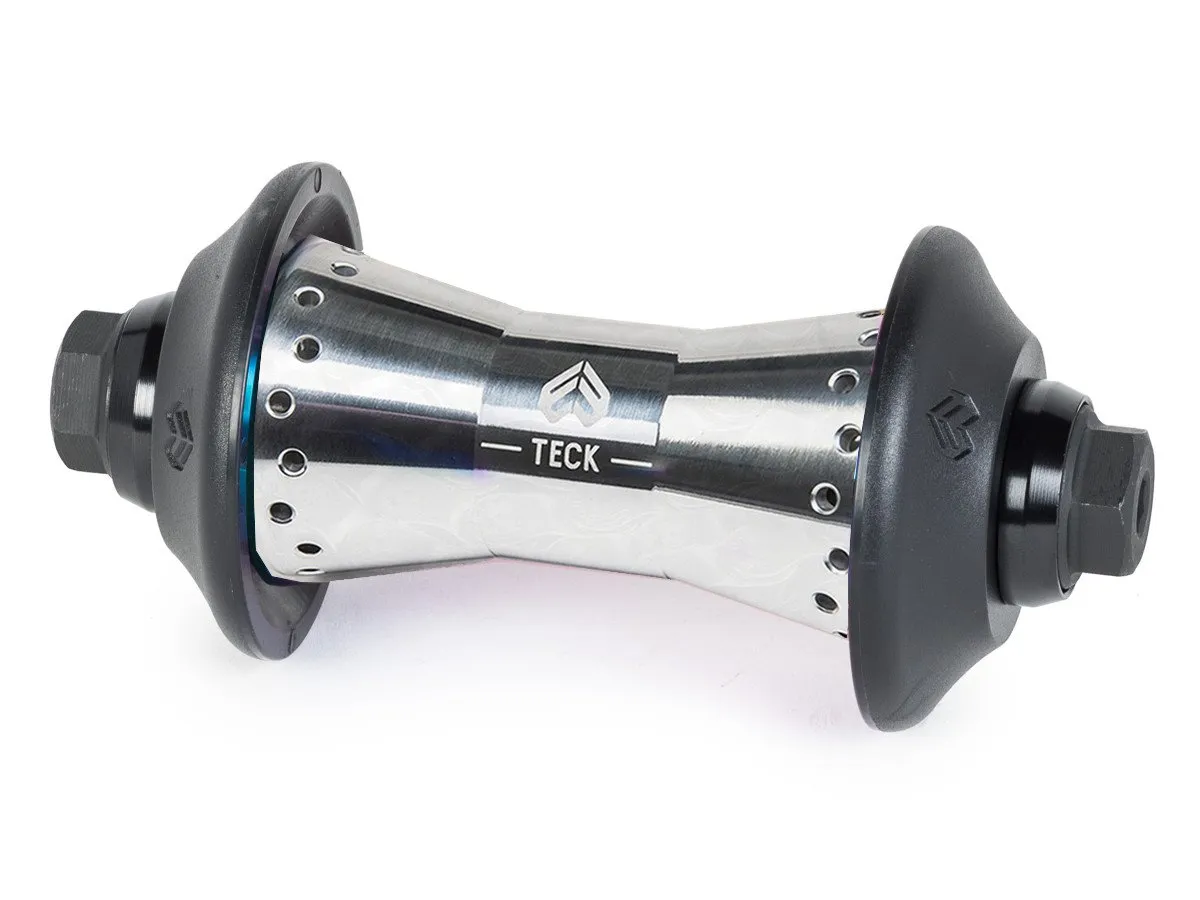

The peculiarity of this
eclat "Teck V2" Front Hub
is located in its CNC machined 6061-T6 aluminum hub body which offers less of a target for the spokes and flange sides while grinding. To lace this
eclat "Teck V2" Front Hub
you need normal spokes with a length of 192mm and the arrangement of the flange holes result in a stable 4-cross spoke pattern. The female axle of the
eclat "Teck V2" Front Hub
is made of lightweight 7075 aluminum and a additionally used Helicoil thread insert prevents cross threading. Two high quality steel bearings ensure best rolling characteristics and the separately available eclat "Teck" Front Hubguard protects the spokes of this innovative crafted high end hub.
This eclat "Teck V2" Front Hub includes longer (35mm) CrMo Bolts to accommodate plastic pegs and for a stronger female bolt setup.
Facts: eclat "Teck V2" Front Hub
- Material: 6061-T6 aluminium shell
- Axle: 7075 alloy, 10mm
- Holes: 36H
- FlangelessMaterial:
Shell: 6061-T6 aluminium, 36H
Axle: 14mm Female, 7075 aluminium, with inserted helicoil threats
Cones: Aluminium, threadless
Bolts: CrMo, 10mm (metric threat), head for 17mm wrench or nut - Bearing: 2 xsealed bearings
- Flange Diameter: 33mm
- Extras: incl. 2x eclat "Teck" Front Hubguard
- Info: Lacing this hub requires normal spokes with arround 192mm length and the arrangement of the flange holes resulting in a stable 4-cross spoke pattern
