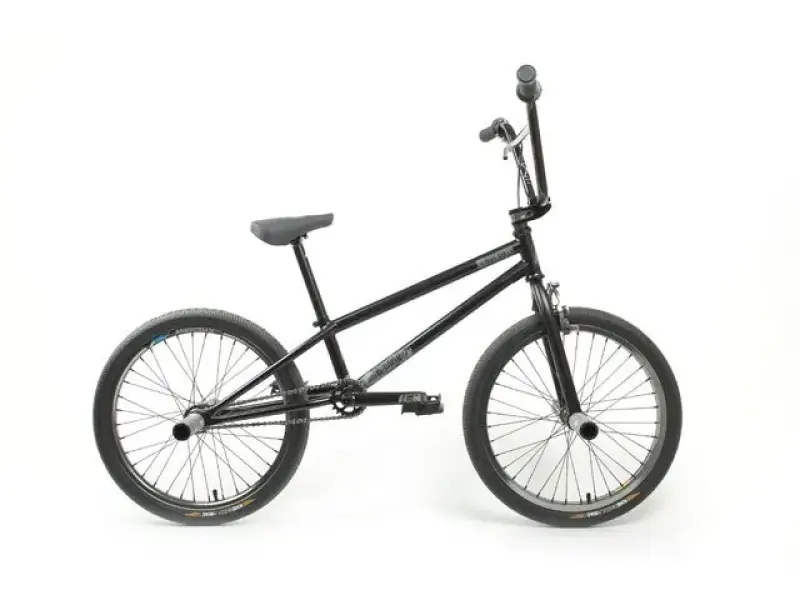

KHEbikes "A-Damn" 2014 BMX Bike (06/2013)
Archive: This product is no longer available.
View current BMX High End range
View current BMX High End range
| Brand | KHE Bikes | |
| Released | 04.06.2013 | |
| Sold until | 02.02.2016 | |
| Status | archived | |
| Variants Color | Top Tube Length
|
|
|
| Weight | 8.9kg / 19.62lbs | |
| Product ID | 5218 |
The Adam Kun signature KHEbikes "A-Damn" 2014 BMX Bike is built around with the finest parts available. The KHEbikes "A-Damn" 2014 BMX Bike features the Adam Kun pro frame with exclusive parts of KHEbikes and PRISM. This bike is officially approved by Adam Kun.
Facts: KHEbikes "A-Damn" 2014 BMX Bike
- BMX Frame: Adam Kun Pro Model, 100% Japan Sanko CrMo, heat treated Headtube, Euro-BB, lasercut 10 mm dropouts, fluted seat tube, integrated seatclamp, no U-brake sockets!!
Top Tube (TT): 19.0"
Chain Stay (CS): 12.8“
Head Tube (HA): 74.5"
Seat Tube (SA): 71"
BB Height: 47mm from centerline - BMX Fork: 100% 4130 CrMo, double-butted and tapered legs, zero offset
- BMX Bar: KHE "Arsenic" 4130 CrMo, multi-butted
Height: 8.75"
Width: 28.75"
Backsweep: 10"
Upsweep: 3" - Grips: KHE
- Stem: KHE, CNC, Topload, offset 53mm, 33mm high
- Headset: integrated, sealed bearings
- Gyro: not includet!
- Brake Lever: KHE, Alloy
- Brake: KHE "PRO brake", with "bush" bearings, frontbrake only!!
- Bottom Bracket: Euro-BB, KHE "Affix" Bush Euro BB
- Pedals: KHE "Stimulatorz"
- Chain: FSC Chain
- Sprocket: KHE "Rotor" 20 teeth alloy
- Crank: KHE "Erlkönig" 160mm fluted CrMo arms
- Hub (front): "Greyhound" Front hub, female, 36H
- Hub (rear): KHE "Greyhound" Flat Freecoaster, female
Driver: 9t. - Rim (front): KHE "BigO" rim, 36h.
- Rim (rear): "BigV" rim, 36h.
- Seat: KHE "Watanabe"
- Seat Post: KHE "Prismatic"
- Seat Clamp: inegrated
- Tire (front): KHE "MAC1" foldable
Width: 1.75" - Tire (rear): KHE "MAC1" foldable
Width: 1.75" - Pegs: 4x KHE "Alchemy" plastic pegs with griptape
