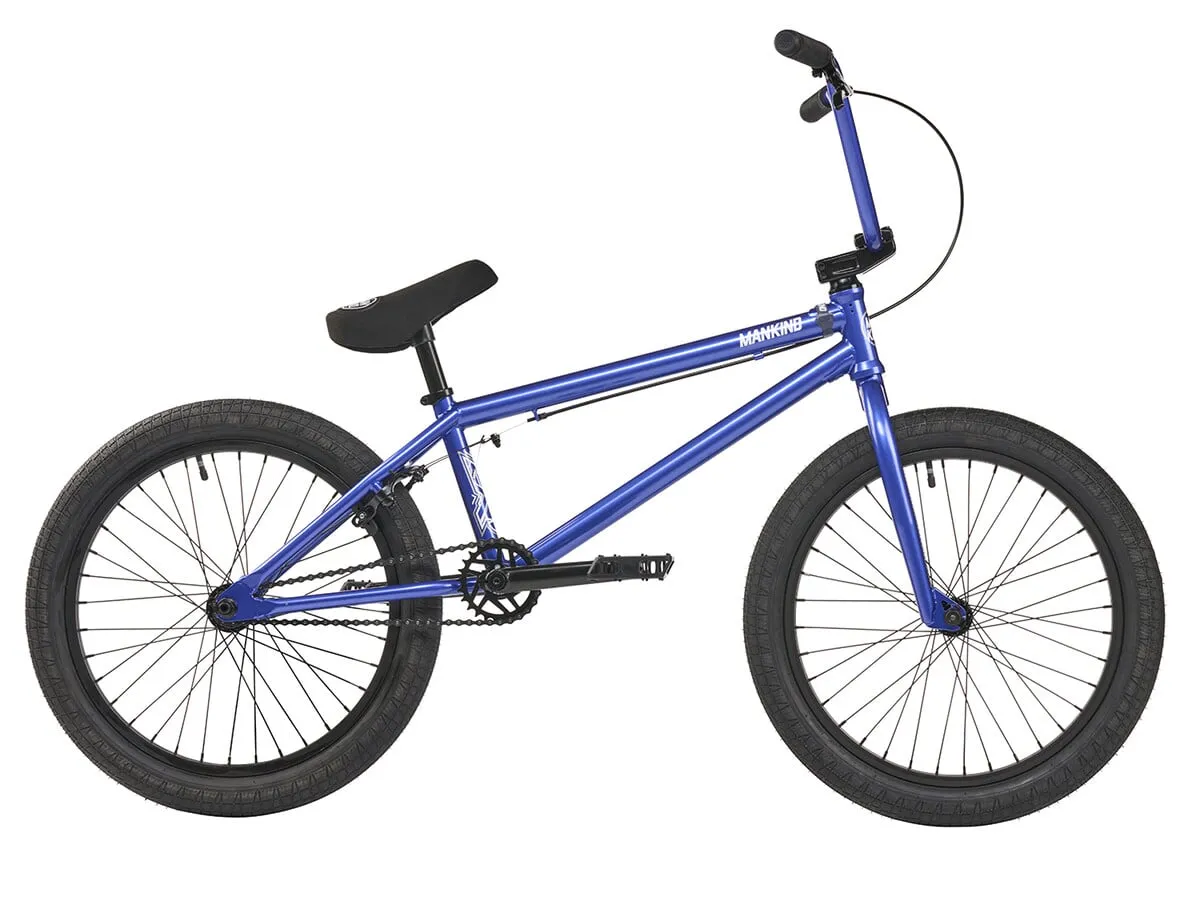

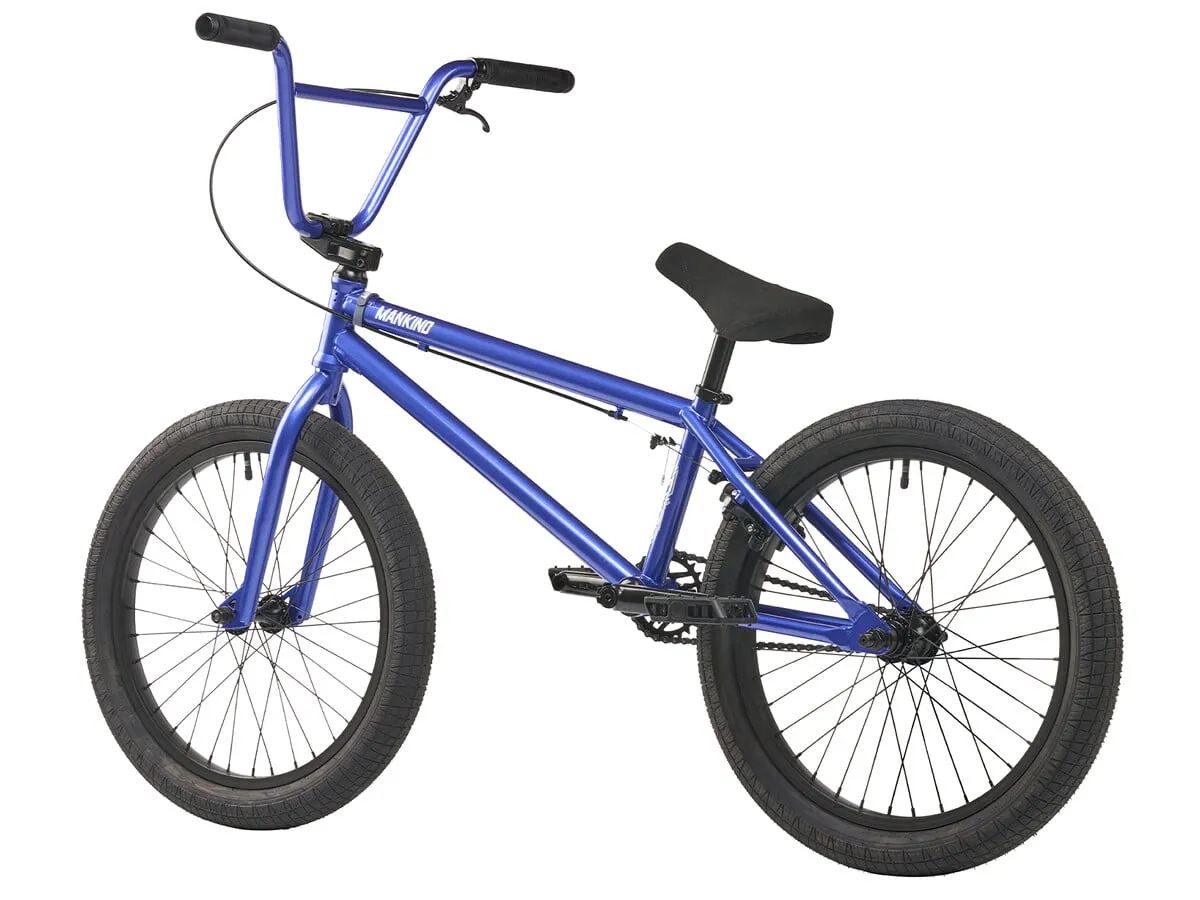

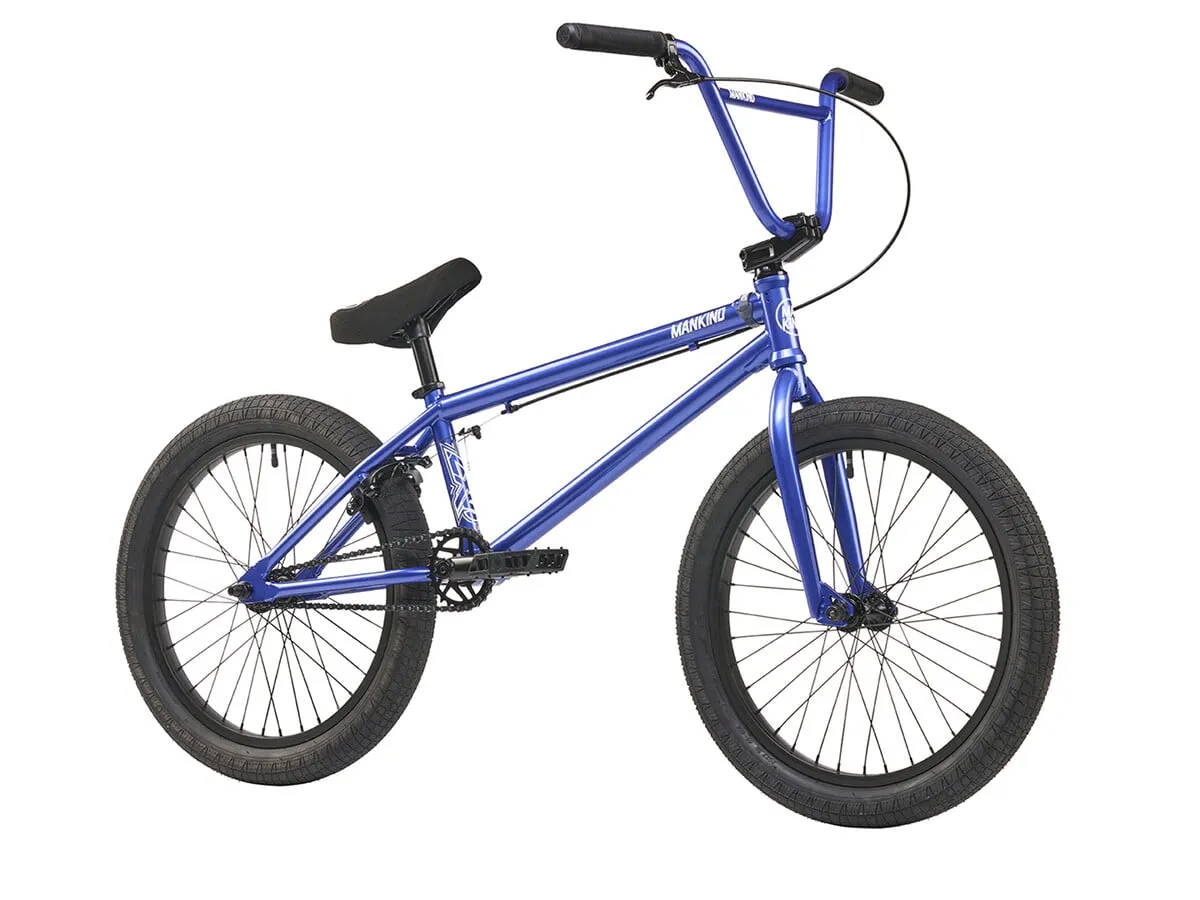

Mankind Bike Co. "NXS 20" BMX Bike - Gloss Metallic Blue
-
Weight : 10.7kg / 23.59lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 23702
The Mankind Bike Co. "NXS 20" BMX Bike - Gloss Metallic Blue is a entry level BMX complete bike, perfect to get the first tricks and jumps at the skatepark done and with the 20.5" toptube (TT) aimed to BMX rider from approx. 160cm. The Mankind Bike Co. "NXS 20" BMX Bike - Gloss Metallic Blue combines great looks with amazing specs! It comes with a sealed integrated headset, sealed Mid BB and a fully sealed cassette hub which will keep the maintaince low. Connect with the NXS 20" to begin your journey into the world of BMX! Mankind Control alloy stem with 50mm reach, Chromoly 3-Piece cranks and Mankind Control steel 25t sprocket.
Facts: Mankind Bike Co. "NXS 20" BMX Bike - Gloss Metallic Blue
- Wheel Size: 20"
- BMX Frame: 1020 HiTen, Gusset at top- and downtube, welded U-brake sockets, Integrated headset, Mid BB
- Top Tube (TT): 20.5"
- Chain Stay (CS): 13.25"
- Head Tube (HA): 75°
- Seattube (SA): 71°
- BB-High (BB): 11.5"
- Standover (SO: 8.5" - BMX Fork: 1020 HiTen, 1-1/8", 1-piece steerer, tapered legs, 28mm offset
- BMX Bar: 1020 HiTen, 2-piece
- Height: 8.75"
- Width: 28.5"
- Backsweep: 12°
- Upsweep: 2°
- Clamping Diameter: 22.2mm - Grips: Mankind "Control" grips, rubber, plastic barends

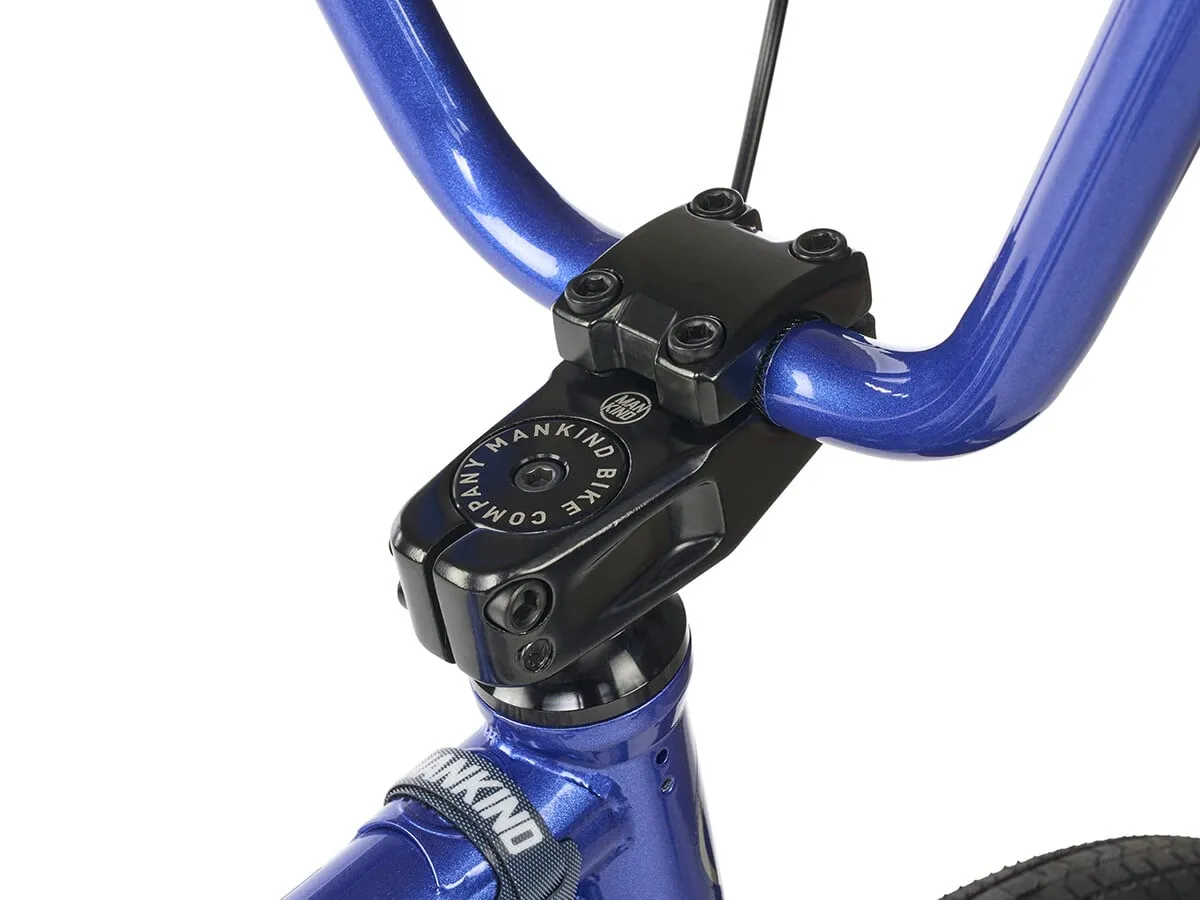

- Stem: Mankind "Control", topload, aluminum, 50mm reach
- Headset: Mankind "Control", 1-1/8" integrated, sealed bearing (SB)
- Gyro: -
- Gyro compatible: Yes
- Brake Lever: aluminum, 2-finger

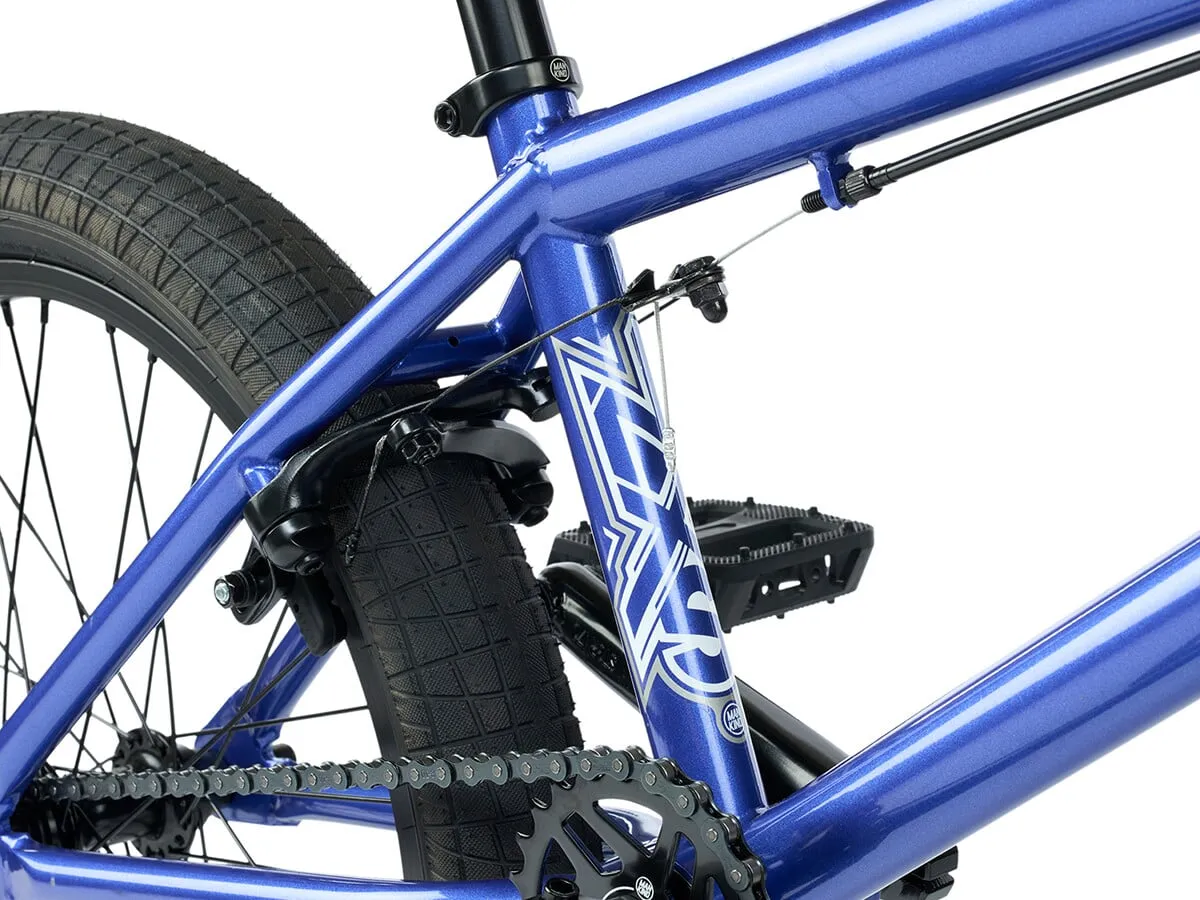

- Brake: U-brake, aluminum, rear

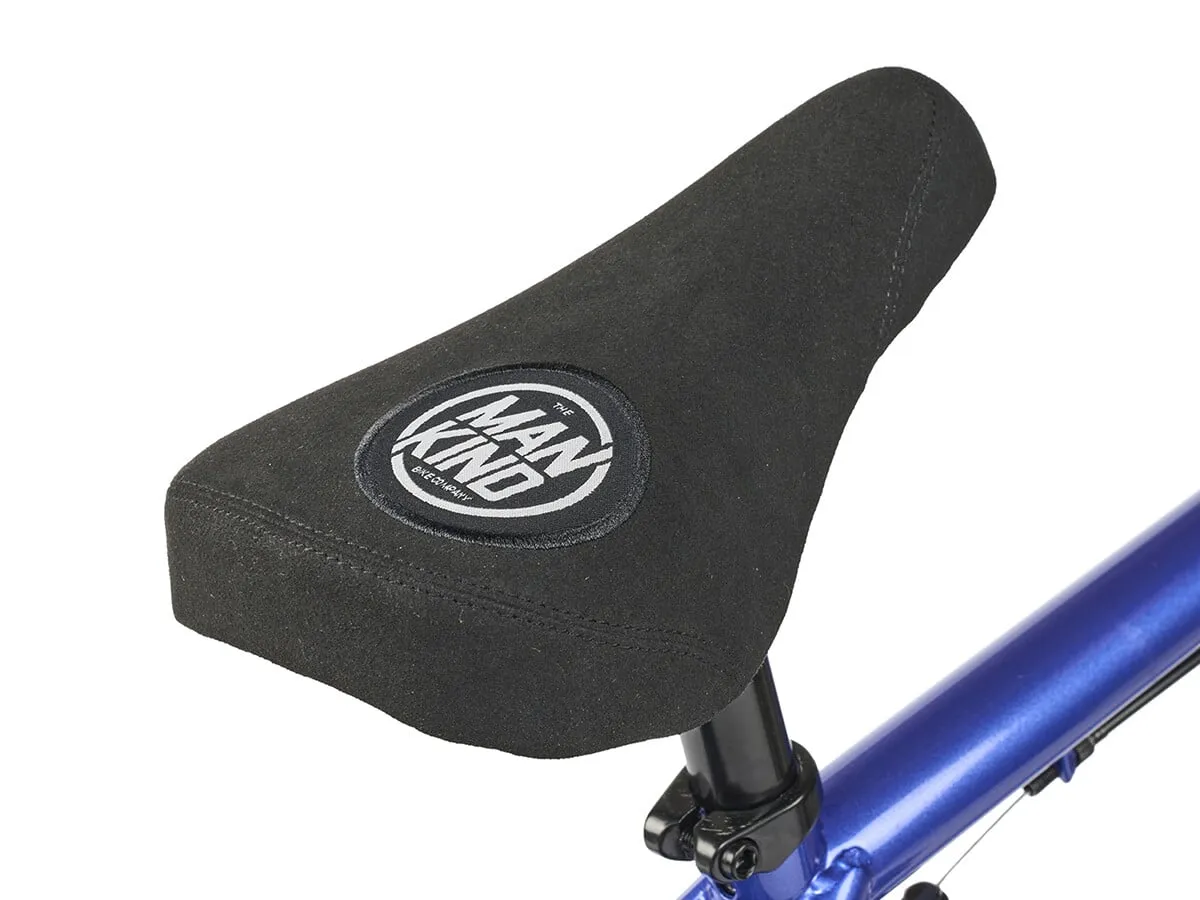

- Seat: Mankind "NXS Mid" Seat/Post Combo, mid padded
- Seat Post: Seat/Post Combo, aluminum
- Seat Clamp: Mankind "Control", aluminum
- Pedals: Plattform, plastic
- Chain: PYC "410"

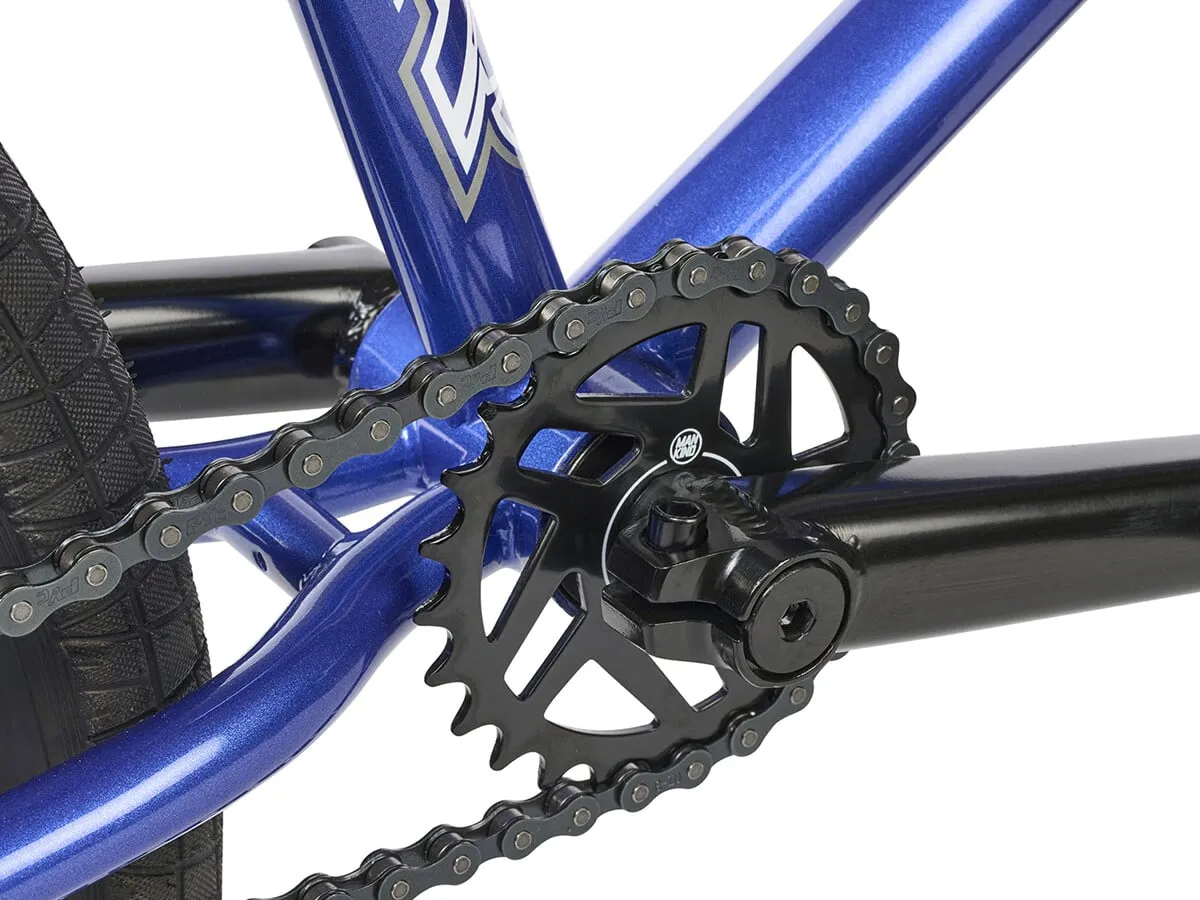

- Sprocket: Mankind "Control Steel", Steel, 25T
- Crank: CrMo, 3-pieces, 8 spline 19mm spindel, 170mm
- Bottom Bracket: Mid BB, 19mm, sealed bearing (SB)
- Hub (front): Aluminum shell, 10mm (3/8") male CrMo axle, loose ball (LB), 36H
- Hub (rear): Mankind "Control" Cassette hub, 14mm CrMo male axle, sealed bearing (SB), 36H
- Driver: 9T, sealed bearing (SB) - Rim (front): 20", 6061 aluminum, single wall, 36H
- Rim (rear): 20", 6061 aluminum, single wall, 36H
- Tire (front): Park/Street BMX tire
- Width: 20" x 2.3" (60 PSI) - Tire (rear): Park/Street BMX tire
- Width: 20" x 2.3" (60 PSI) - Pegs: -
- Delivery: The BMX bike comes pre-assembled in a box. For final assembly, only the handlebar, front wheel, pedals, and saddle need to be installed. Tools are not included.
- Usage: BMX Freestyle – designed for tricks, jumps, and fun in the skatepark or on the pump track.
