KHEbikes "Evo 0.1" 2014 BMX Bike (06/2013)
Archive: This product is no longer available.
View current BMX Middle Class range
View current BMX Middle Class range
| Brand | KHE Bikes | |
| Released | 04.06.2013 | |
| Sold until | 26.10.2015 | |
| Status | archived | |
| Variants Color | Top Tube Length
|
|
|
| Weight | 11.2kg / 24.69lbs | |
| Product ID | 5224 |

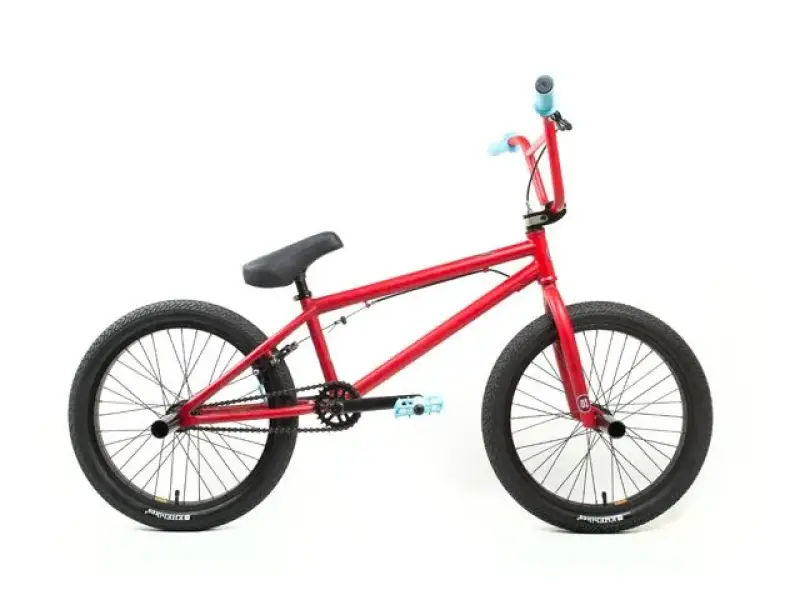

The KHEbikes "Evo 0.1" 2014 BMX Bike is a great advanced bike with PRISM and KHEbikes parts. It comes in bright red with the new affix rotor system. The KHEbikes "Evo 0.1" 2014 BMX Bike will sweeten your life!
Facts: KHEbikes "Evo 0.1" 2014 BMX Bike
- BMX Frame: 100% 4130 CrMo
Top Tube (TT): 20.7"
Chain Stay (CS): 13.5"
Head Tube (HA): 75° - BMX Fork: KHE "Evo" Fork, 100% 4130 CrMo, tapered legs, 10mm dropouts
- BMX Bar: KHE "Evo" Bar, 100% 4130 CrMo
Height: 8.25"
Width: 27.5" - Grips: KHE "MVP" Grips
- Stem: KHE "Prism" Stem, Topload, Affix
- Headset: integrated, 1 1/8"
- Gyro: KHE "Affix" Gyro
- Brake: U-Brake, rear brake with KHE "Affix" Gyro
- Bottom Bracket: KHE "Prism" MidBB, sealed bearing
- Pedals: KHE "Prism" Pedals, plastic
- Chain: 1/2" x 1/8"
- Sprocket: 25T
- Crank: KHE "Prism" Kurbel, 4130 CrMo, 175mm, 8 spline
- Hub (front): KHE "MVP" Female Hub, sealed bearing, 36H
- Hub (rear): KHE "MVP" Cassette Hub, fully sealed bearing, 36H
Driver: 9T - Rim (front): Alienation "PBR" Rim, 36H
- Rim (rear): Alienation "Blacksheep" Rim, 36H
- Seat-/Seatpost-Combo: KHE "MVP" Combo
- Tires: KHE "MVP" Tires
Width: 2.35" - Pegs: KHE "Prism" Pegs, steel
