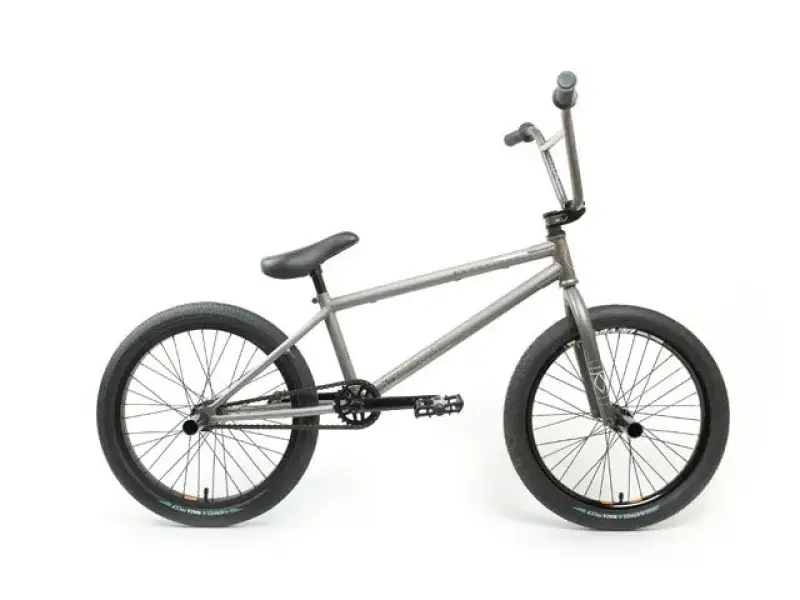

KHEbikes "Le Navire" 2014 BMX Bike (06/2013)
Archive: This product is no longer available.
View current BMX High End range
View current BMX High End range
| Brand | KHE Bikes | |
| Released | 04.06.2013 | |
| Sold until | 31.01.2015 | |
| Status | archived | |
| Variants Color | Top Tube Length
|
|
|
| Weight | 9.4kg / 20.72lbs | |
| Product ID | 5219 |
These days, modern BMX demands more than just durability. To fit all the needs for every kind of riding, the KHEbkes "Le Navire" 2014 BMX Bike is shipped brakeless, but with a frame and fork ready for our AFFIX Rotor system (included!) to fit your style, no matter where you ride. The KHEbkes "Le Navire" 2014 BMX Bike is just an awesome bike!
Facts: KHEbikes "Le Navire" 2014 BMX Bike
- BMX Frame: 100% 4130 CrMo, heat-treated
Top Tube (TT): 21.1"
Chain Stay (CS): 13.5"
Head Tube (HA): 75° - BMX Fork: KHE "Arsenic" Fork, 100% 4130 CrMo, tapered legs, double-butted
- BMX Bar: KHE "Arsenic" Bar, 100% 4130 CrMo, multi-butted
Height: 8.75"
Width: 28.75" - Grips: KHE "Shola" Grips
- Stem: KHE "TL" Stem, CNC'd, Topload
- Headset: integrated, 1 1/8"
- Gyro: KHE "Affix" Gyro
- Brake: U-Brake, rear brake with KHE "Affix" Gyro
- Bottom Bracket: KHE "Prism" MidBB, sealed bearing
- Pedals: KHE "Prism" Pedals, plastic
- Chain: KHE "Halflink" Chain, Hollowpins
- Sprocket: 25T, Spline-Drive
- Crank: KHE "MVP" Crank, 4130 CrMo arms, 175mm, 48 splines
- Hub (front): KHE "MVP" Female Hub, 36H
- Hub (rear): KHE "MVP" Female Cassette Hub, sealed bearing, 36H
- Rim (front): Alienation "Deviant" Rim, 36H
- Rim (rear): Alienation "Blacksheep" Rim, 36H
- Seat-/Seatpost-Combo: KHE "MVP" Combo
- Tires: KHE "MAC2" Tires
- Pegs: KHE "Aeon" Pegs, CrMo, 14mm
- Kevin Guerdner Signature
