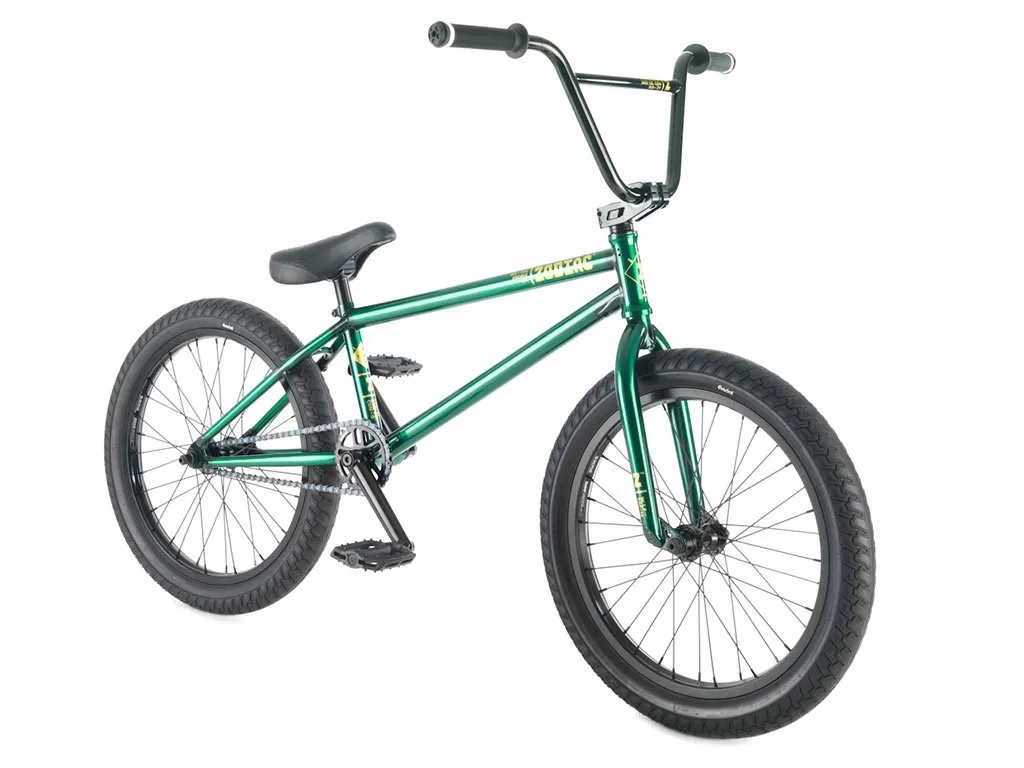

wethepeople "Zodiac" 2015 BMX Bike (07/2014)
View current BMX High End range
| Brand | wethepeople | |
| Released | 31.07.2014 | |
| Sold until | 20.03.2017 | |
| Status | archived | |
| Variants Color | Top Tube Length
|
|
|
| Weight | 11.8kg / 26.01lbs | |
| Product ID | 6902 |
The wethepeople "Zodiac" 2015 BMX Bike is a high end BMX complete bike at a very good price-performance ratio. Here you will get a 20.75" long as well as high rised allround BMX bike with frame, fork and handlebar setup made of 100% CrMo quality and equipped with high quality parts from SaltPlus. The highlight of the wethepeople "Zodiac" 2015 BMX Bike is a top modern drive unit consisting of a RHD/LHD compatible splinedrive crankset connected to a SDS-cassette hub which guarantees you maximum flexibility to build up your preferred setup. But also the usage of equipment like a CNC machined toploader stem, a high and wide handlebar, doublewalled rims, removable brakehardware and a fat padded Pivotal seat combo are offering you a invariably pro-level quality equipment to the smallest detail.
Facts: wethepeople "Zodiac" 2015 BMX Bike
- BMX Frame: 100% 4130 CrMo, tappered seattube and chainstays, integrated headset, chaintensioners and seatclamp, removable brakehardware, Mid-BB
Top Tube (TT): 20.75"
Chain Stay (CS): 13.4"
Head Tube (HA): 75.5°
Seattube (SA): 71°
BB-High (BB): 11.6"
Standover (SO): 8.5" - BMX Fork: SaltPlus "Magic", 100% 4130 CrMo Sanko Tubing, CNC machined steerer tube, invest cast dropouts
- BMX Bar: 2-pc., 100% 4130 CrMo
Height: 8.8"
Width: 29"
Backsweep: 12°
Upsweep: 2.5° - Grips: WTP "Hilt"
- Stem: SaltPlus "Center V2", Toploader, CNC machined 6061-T6 aluminium, 50mm offset
- Headset: Salt "Echo", integrated headset, sealed bearing
- Gyro: -
- Brake Lever: SaltPlus "Geo", aluminium, with locking hinge
- Brake: Salt "Moto" U-brake with SaltPlus "Propeller" brakepads, éclat "Unit" Slic brake cable
- Seat: éclat "OZ", Pivotal, fat padded
- Seat Post: Salt "AM", Pivotal, aluminium
- Seat Clamp: Integrated

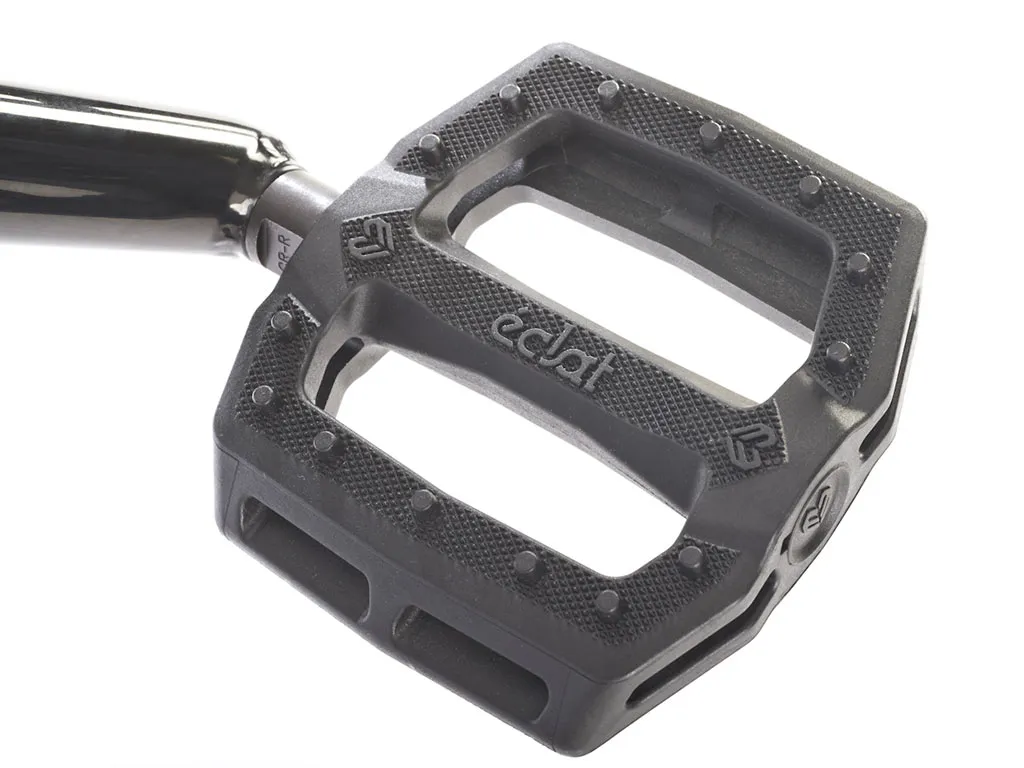

- Pedals: éclat "Slash", Nylon-Fiberglass
- Chain: éclat "Diesel"

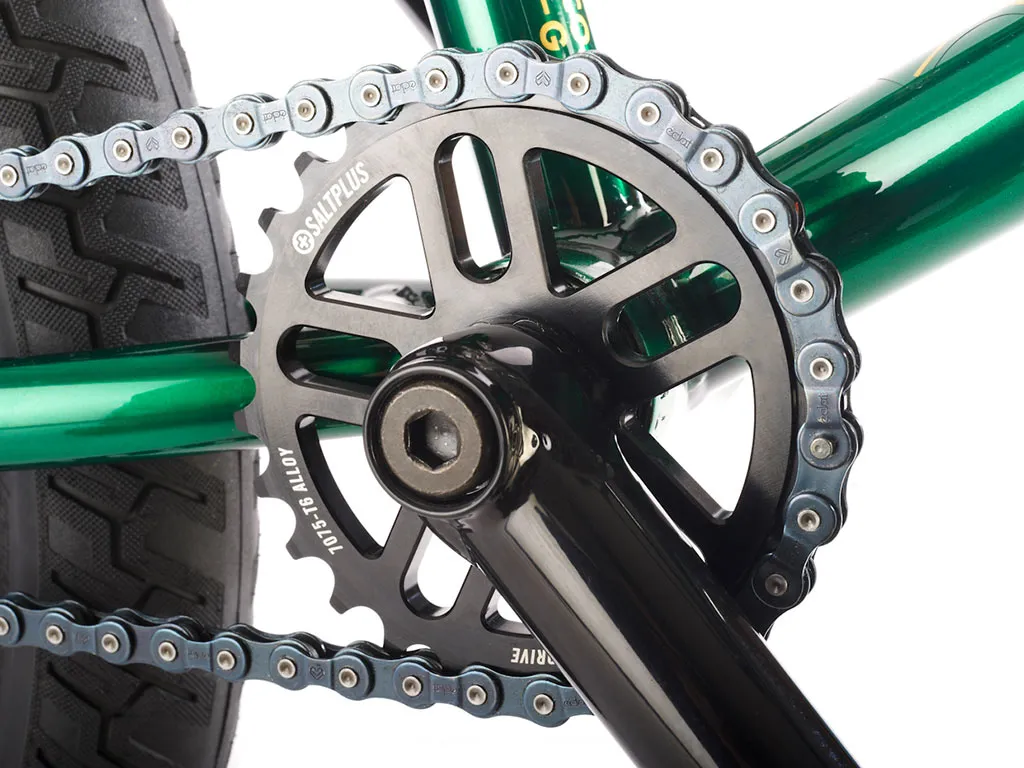

- Sprocket: SaltPlus "5 Star", splinedrive, 4130 CrMo, heat treated, laser cut, 27T
- Crank: SaltPlus "Pro48", 4130 CrMo, 3-pc., 4130 CrMo, 170mm tubular crankarm length, LHD/RHD, 48 splined CrMo hollow axle
- Bottom Bracket: Salt, Mid-BB, sealed bearing
- Hub (front): SaltPlus "Trapez", aluminium, sealed bearing, 10mm (3/8") female axle, 36H

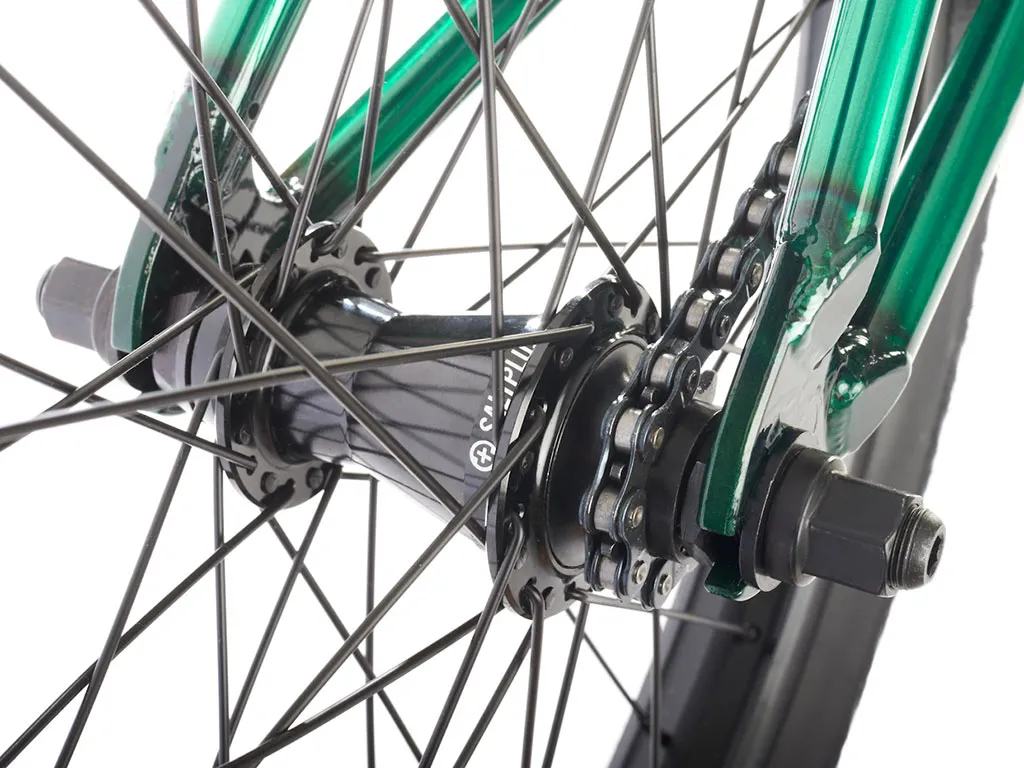

- Hub (rear): SaltPlus "Trapez" SDS cassettehub, sealed bearing, 14mm hollow axle, 36H
Driver: 9T, LDH/RHD switch drive - Rim (front): SaltPlus "Summit", doublewall, straight, 36H
- Rim (rear): SaltPlus "Mesa", doublewall, straight, weldet, 36H
- Tire (front): éclat "Ridgestone"
Width: 2.4" - Tire (rear): éclat "Ridgestone"
Width: 2.3"
