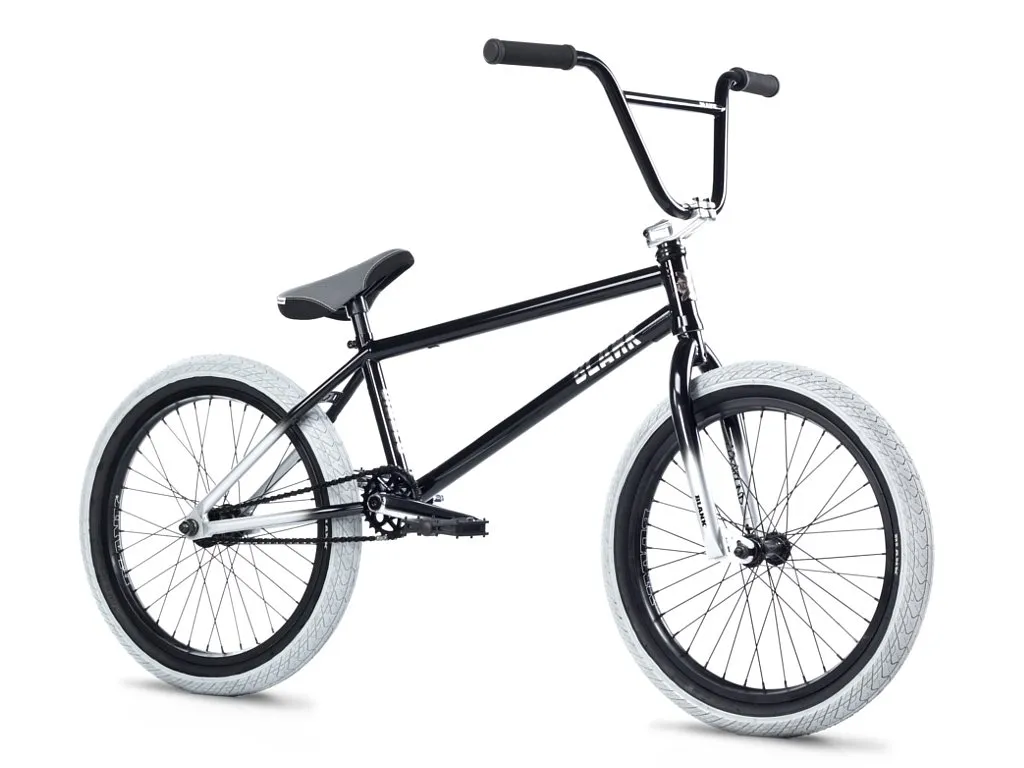

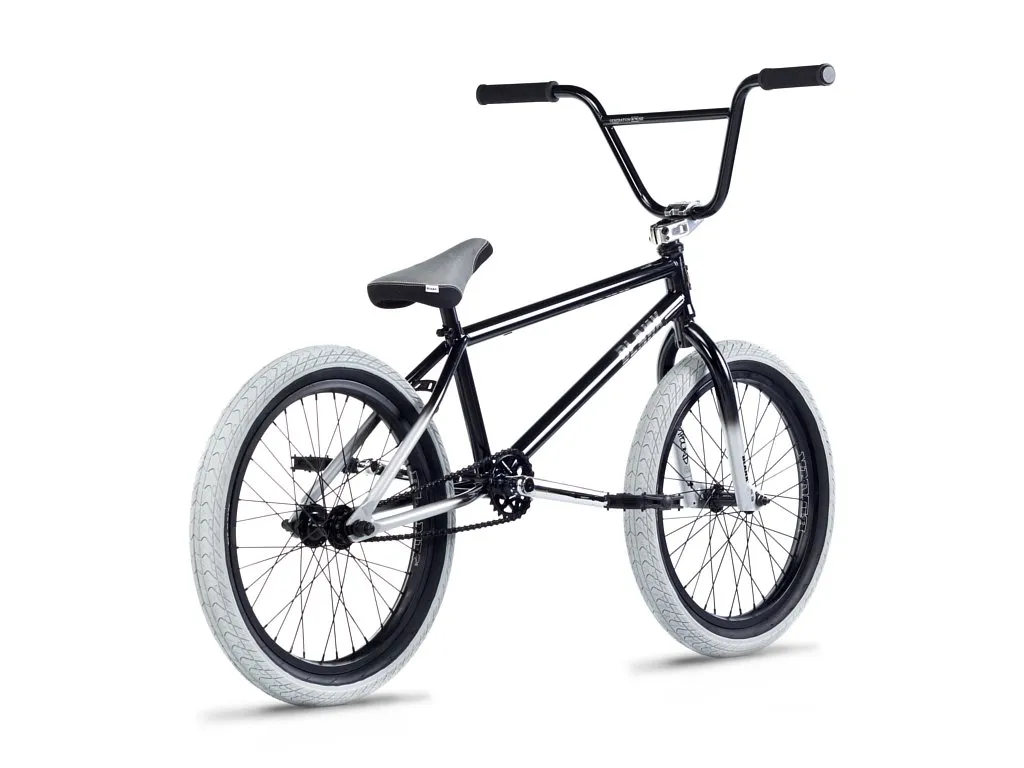

BLANK Bikes "Diablo" 2016 BMX Bike - Gloss Two Tone Black (07/2015)
View current BMX Middle Class range
| Brand | BLANK Bikes | |
| Released | 29.07.2015 | |
| Sold until | 30.07.2016 | |
| Status | archived | |
| Variants Color | Top Tube Length
|
|
|
| Weight | 10.6kg / 23.37lbs | |
| Product ID | 8913 |
This BLANK Bikes "Diablo" 2016 BMX Bike - Gloss Two Tone Black is a low cost mid-class BMX complete bike which is aimed to advanced riders who appreciate stability and good quality attachments. The frame has maintubes made of 4130 CrMo and includes an integrated headset (sealed bearing), integrated seat clamp, Mid BB (sealed bearing) and removable U-brake sockets which is today's standard on modern BMX frames and which makes installation, adjustment and maintance easy. The fork has a 4130 CrMo steerer and the handlebar of this mid-class BMX bike is made of 100% 4130 CrMo. This BLANK Bikes "Diablo" 2016 BMX Bike - Gloss Two Tone Black offers you with a 3-pc. CrMo crank, fully sealed hubs, headset and bottom bracket good quality and modern facilities but also a clean tailored look which corresponds to the current trend. The BLANK Bikes "Diablo" 2016 BMX Bike - Gloss Two Tone Black will be delivered with pre-installed brake equipment.
Facts: BLANK Bikes "Diablo" 2016 BMX Bike - Gloss Two Tone Black
- BMX Frame: Head tube, top tube and down tube 4130 CrMo, 1020 HiTen, Mid BB, integrated headset, removable U-brake sockets, integrated seat clamp
Top Tube (TT): 20.85"
Chain Stay (CS): -
Head Tube (HA): -
Seat Tube (SA): -

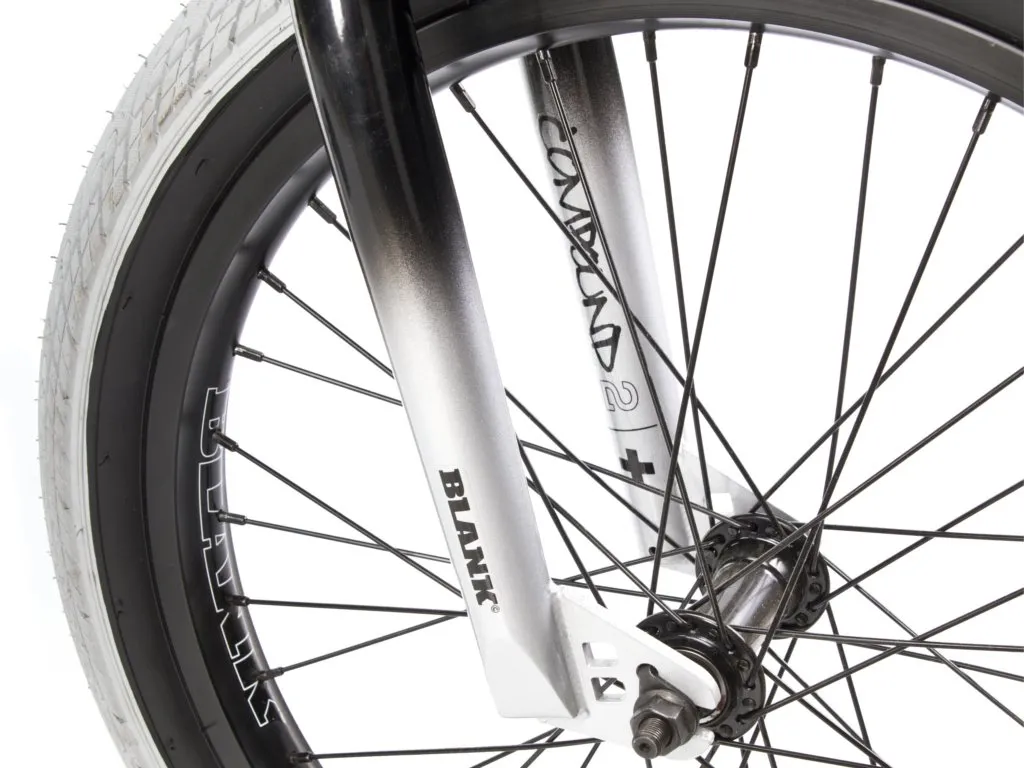

BB Height: - - BMX Fork: Blank "Compound-2 Plus", 4130 CrMo steerer, tappered 1020 HiTen legs
- BMX Bar: Blank, HiTen, 2-tlg.
Height: 8.75"
Width: -
Backsweep: -
Upsweep: - - Grips: Blank "Mushroom", rubber, no flange

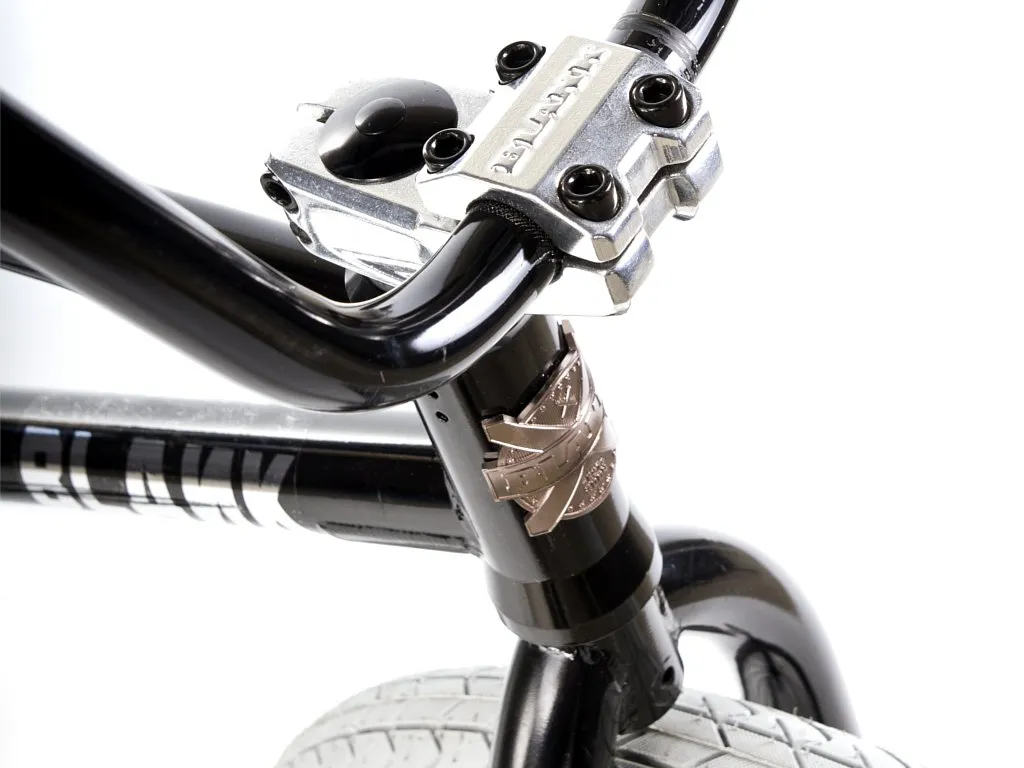

- Stem: Blank "High Rise" toploader, aluminium, 55mm reach
- Headset: Integrated, sealed bearing
- Gyro: -
- Brake Lever: Aluminium, hinged
- Brake Cable: Slic
- Brake: U-brake "990", aluminium

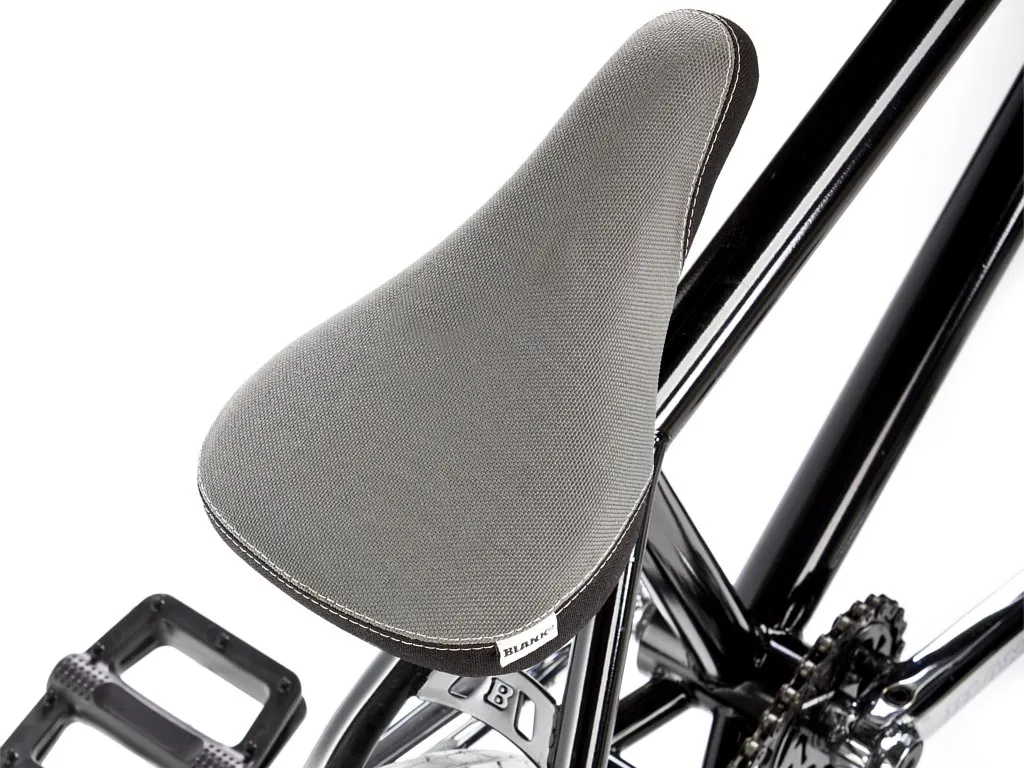

- Seat: Blank "Classic", combo, padded, canvas cover
- Seat Post: Blank, combo
- Seat Clamp: Integrated
- Pedals: Blank "Slim", plastic
- Chain: Z410, nickel

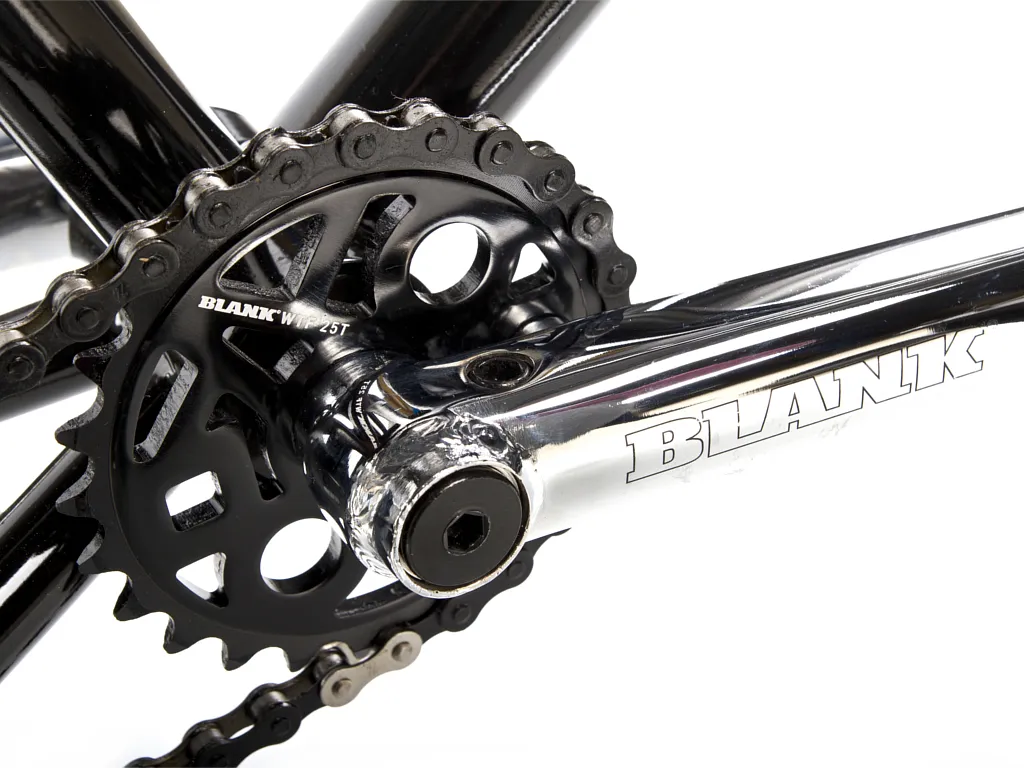

- Sprocket: Blank "WTF", aluminium, 25T
- Crank: 3-pc., CrMo, 8 spline spindle, ICS, 175mm
- Bottom Bracket: US BB, loose ball
- Hub (front): Loose ball, 10mm (3/8") sealed bearing, 36H
- Hub (rear): Cassette hub, 14mm CrMo axle, sealed bearing, 36H
Driver: 9T - Rim (front): Blank, aluminium, 36H
- Rim (rear): Blank, aluminium, 36H
- Tire (front): Innova
Width: 20" X 2.25" - Tire (rear): Innova
Width: 20" X 2.25"
