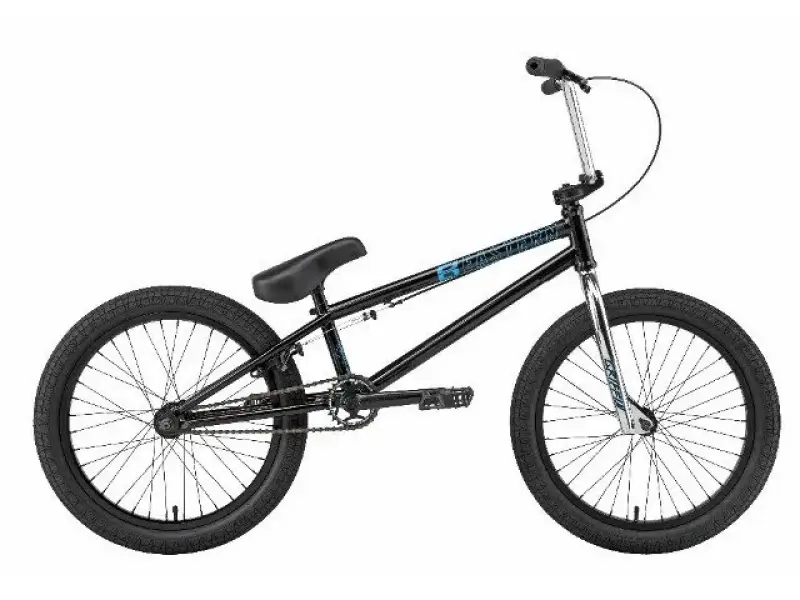

Eastern Bikes "Griffin" 2014 BMX Bike (08/2013)
Archive: This product is no longer available.
View current BMX Beginner range
View current BMX Beginner range
| Brand | Eastern Bikes | ||
| Released | 21.08.2013 | ||
| Sold until | N/A | ||
| Status | archived | ||
| Variants Color | Top Tube Length
|
|
||
| Weight | 11.93kg / 26.30lbs | ||
| Product ID | 5601 |

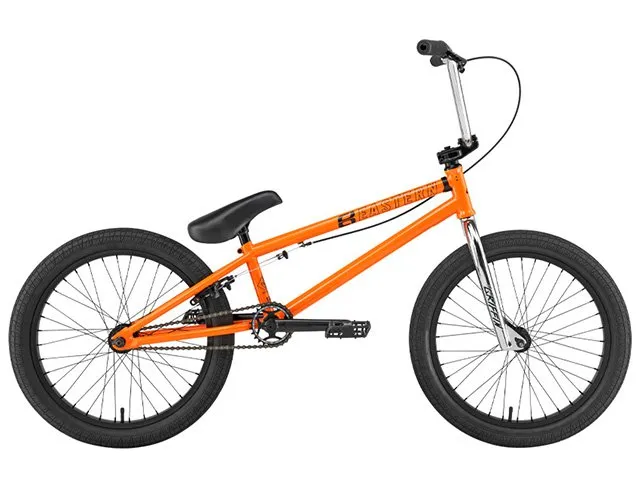

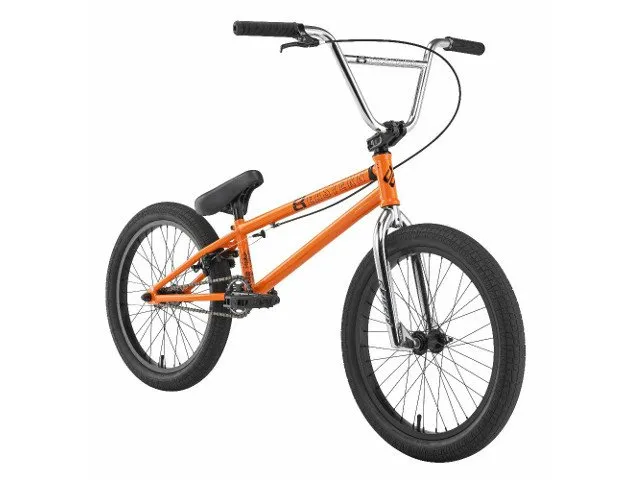

The Eastern Bikes "Griffin" 2014 BMX Bike comes with a modern and flat frame which is perfect for skatepark tricks. You can get the Eastern Bikes "Griffin" 2014 BMX Bike in black or orange with grat parts and a rear brake. This bike needs you!
Facts: Eastern Bikes "Griffin" 2014 BMX Bike

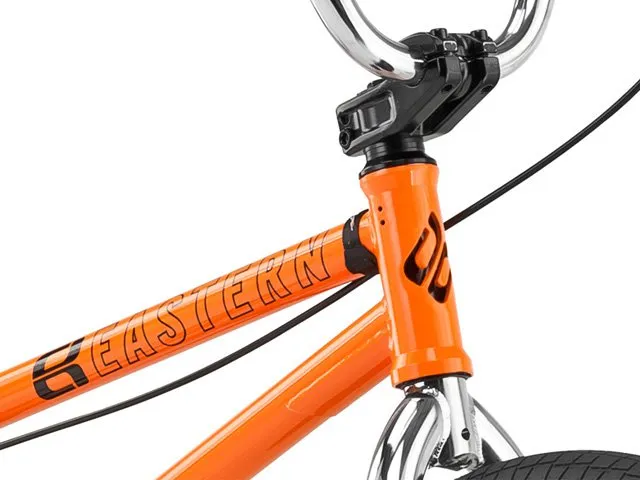

- BMX Frame: 1020 Hi-Ten steel, cut out EB logo on headtube
Top Tube (TT): 20.5"
Chain Stay (CS): 13.5"-13.75"
Head Tube (HA): 75°
Seat Tube (SA): 71°
BB Height: 7.2" - BMX Fork: Eastern "Griffin" Fork, 1020 Hi-Ten steel, 35mm offset
- BMX Bar: 1020 Hi-Ten steel
Height: 8.5"
Width: 28.5"
Backsweep: 12°
Upsweep: 1° - Grips: Eastern "Riblet" Grips
- Stem: Forged alloy, toploader
- Headset: Internal headset, sealed bearings, 45°/45°
- Gyro: -
- Brake Lever: Forged alloy
- Brake: U-Brake, forged alloy, rear
- Bottom Bracket: Mid-BB
- Pedals: Nylon
- Chain: KMC Z510

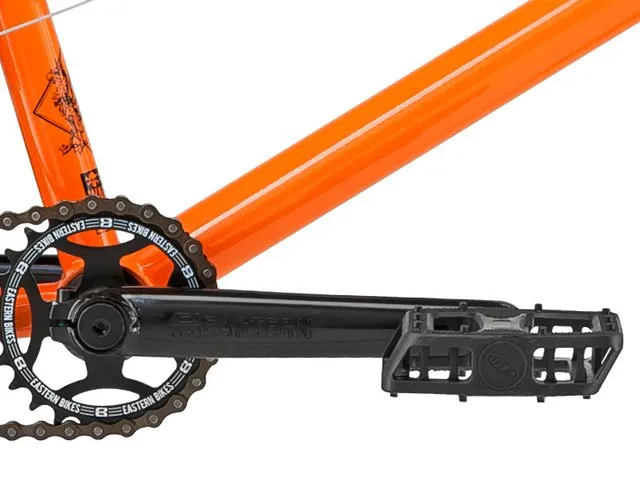

- Crank: Heat-treated CrMo, 3-piece, 8-spline spindle
- Sprocket: Eastern "Phorcys" Sprocket, 25T, steel

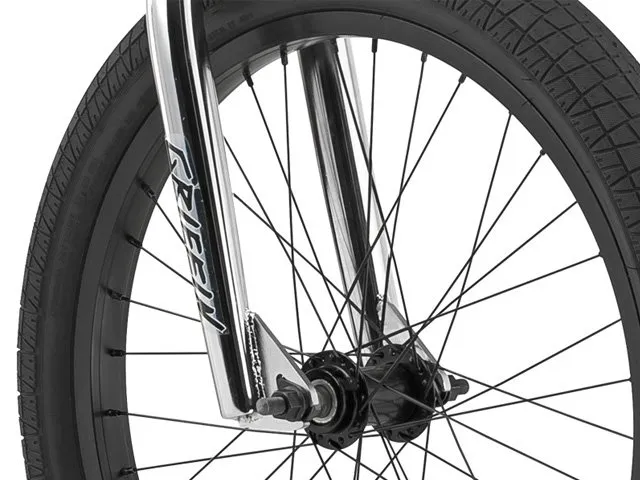

- Hub (front): Sealed bearing, hole alloy shell, 3/8" chromoly axle
- Hub (rear): Cassette hub, forged alloy shell, 14mm chromoly axle, 5 sealed bearings
Driver: 9T Driver - Rim (front): Alloy, 36H
- Rim (rear): Alloy, 36H, double wall

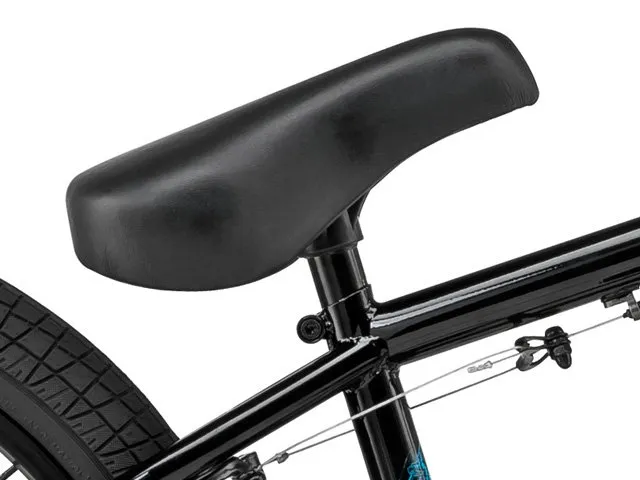

- Seat: Eastern seat/seatpost combo
- Seat Post: Integrated in seat
- Seat Clamp: Integrated in frame
- Tire (front): Multi-Surface
Width: 2.25" - Tire (rear): Multi-Surface
Width: 2.25" - Pegs: 2 steel pegs
