KHE Bikes "Triple Threat Affix" BMX Frame (07/2015)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | KHE Bikes | |
| Released | 07.07.2015 | |
| Sold until | N/A | |
| Status | archived | |
| Variants Color | Brake Mounts | Top Tube Length
|
|
|
| Weight | 2kg / 4.41lbs | |
| Product ID | 8793 |

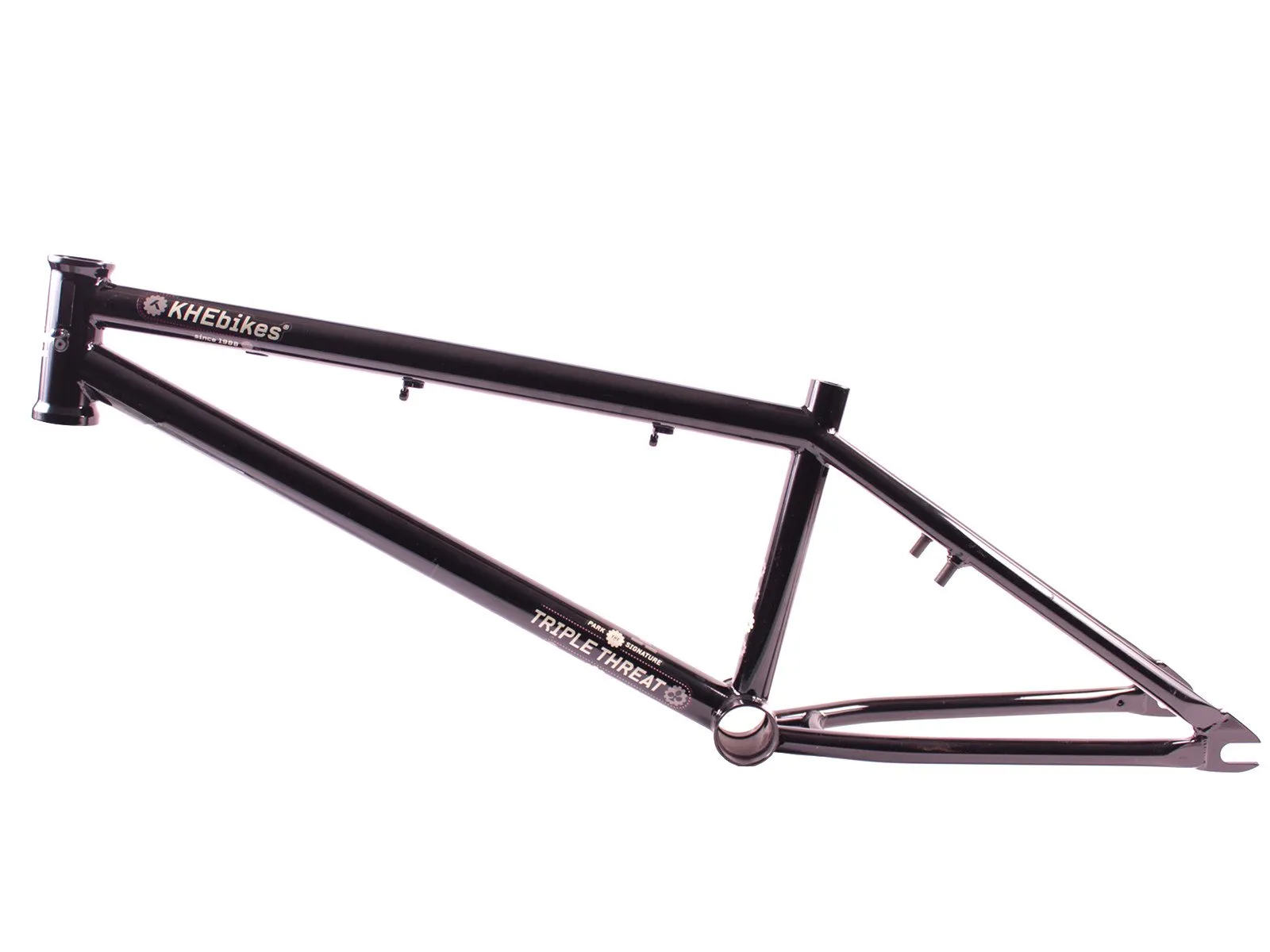

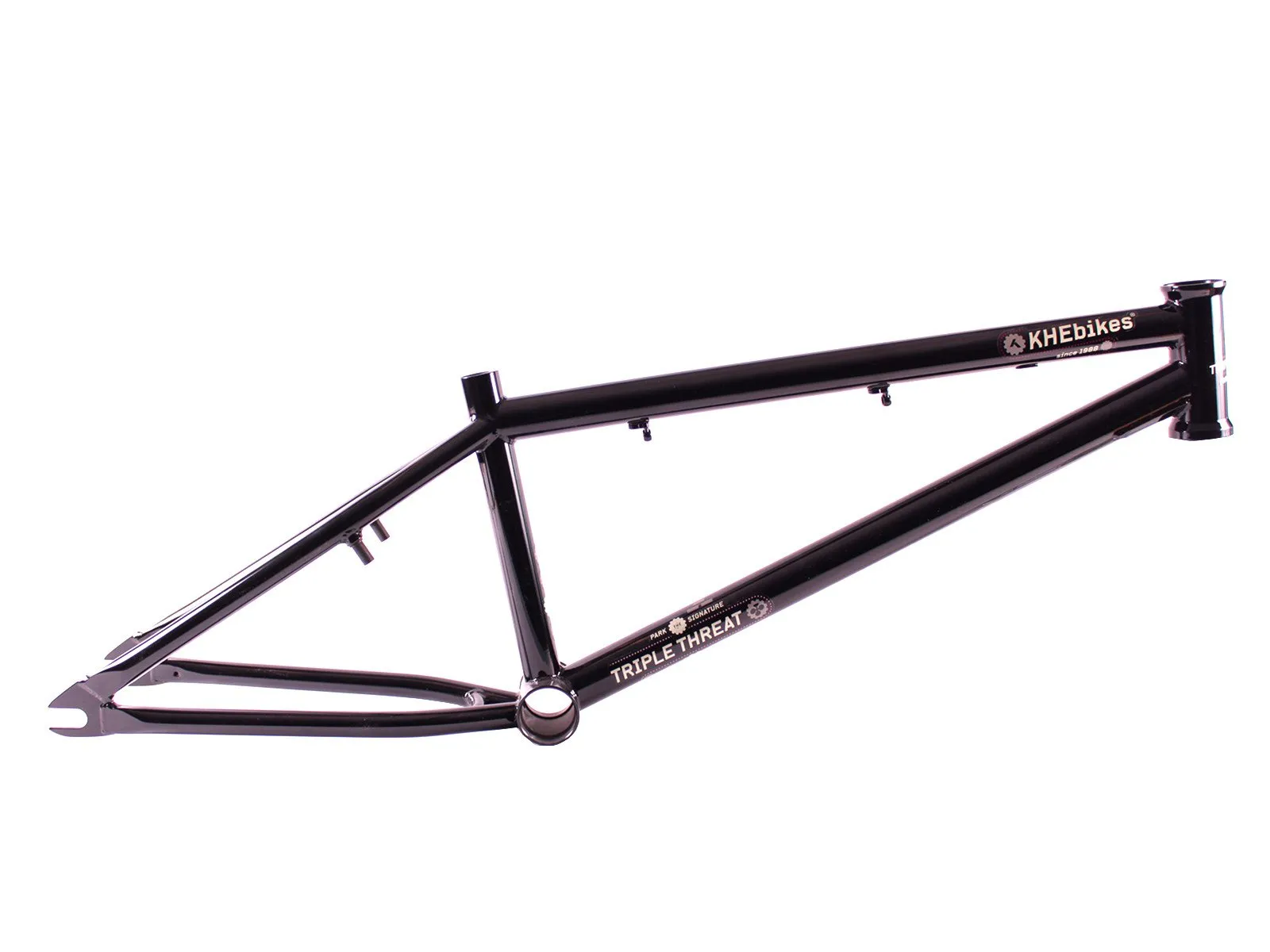

The KHE Bikes "Triple Threat Affix" BMX Frame is a lightweight BMX Park frame and come with a Affix Gyros compatible headtube.
Facts: KHE Bikes "Triple Threat Affix" BMX Frame
- Material: 100% 4130 CrMo, heat treated, down tube gussets, tappered chainstays, integrated headseat, removable brake hardware, Mid BB
- Geometry:
Top Tube (TT): 20.6"
Chain Stay (CS): 13.3"
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
BB Height: -
Standover Height: 8.5" - Seat Clamp: without
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 14mm slots
- Chain Tensioners: without
- Brakemounts: removable, included with delivery
- Extras: Head tube for Affix-Gyro
