Mankind Bike Co. "Getaway" BMX Frame (08/2016)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | Mankind Bike Co. | ||
| Released | 18.08.2016 | ||
| Sold until | 26.11.2018 | ||
| Status | archived | ||
| Variants Color | Brake Mounts | Top Tube Length
|
|
||
| Weight | 2.1kg / 4.63lbs | ||
| Product ID | 10440 |
The

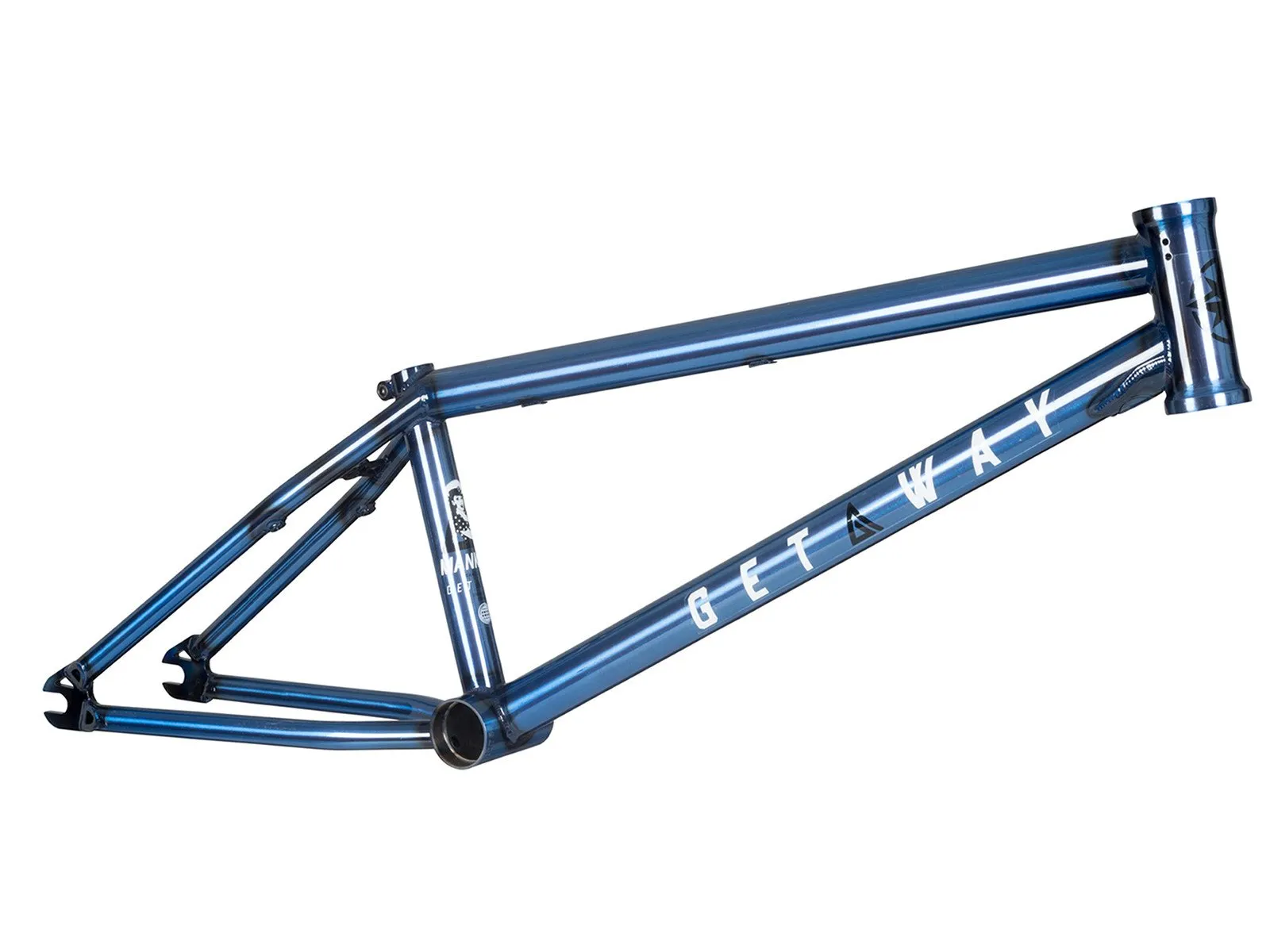

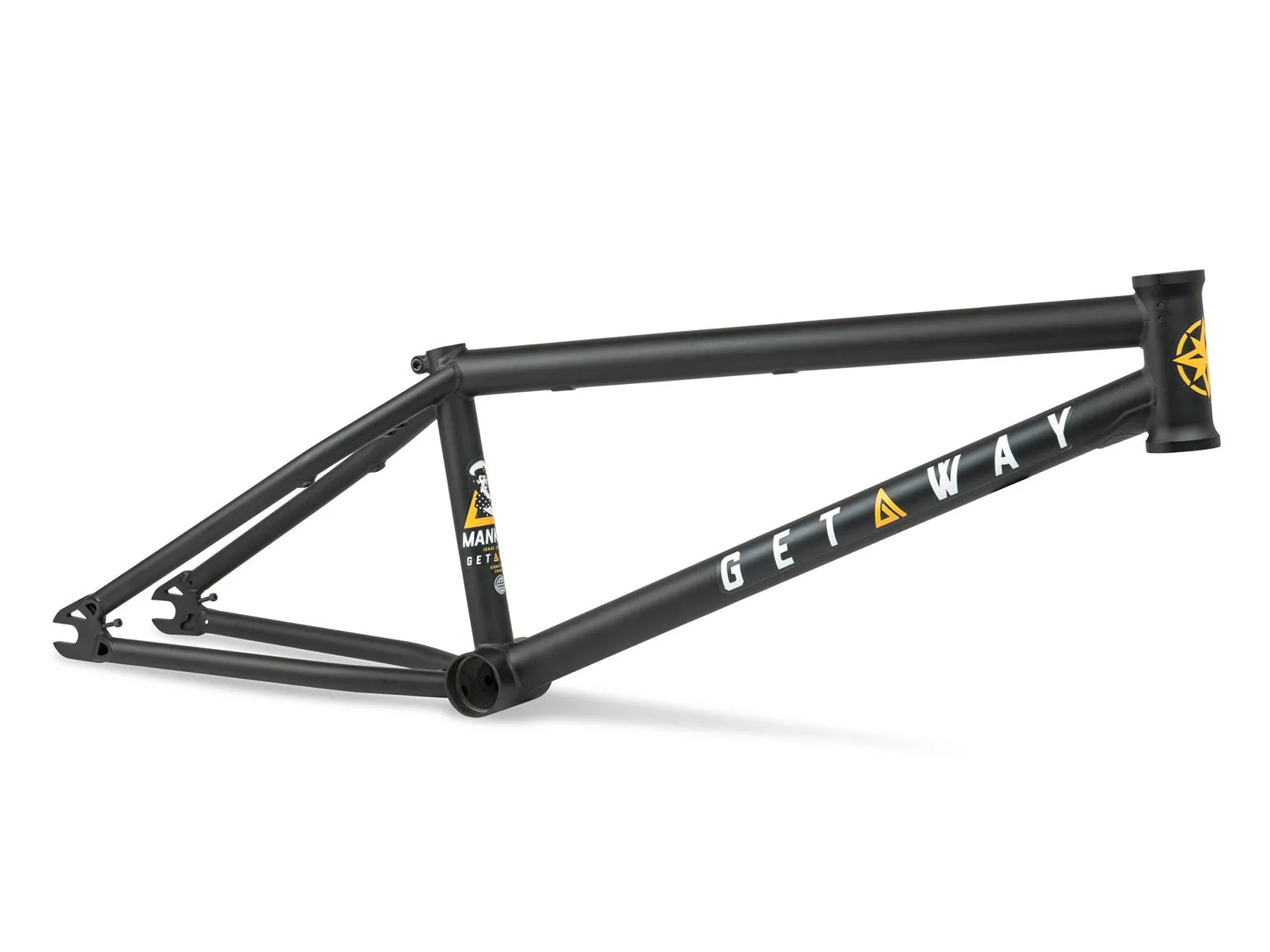

Mankind Bike Co. "Getaway" BMX Frame
is Isaac Lesser's signature BMX frame and is suitable for riding any terrain, whether your cruising though some trails, grinding a hand rail or blasting a quarterpipe at the local skatepark. The
Mankind Bike Co. "Getaway" BMX Frame
is perfect for any type of rider. It features a 75.0° head angle, stand over at 8.5", 13.2" CS and 11.5" BB height, custom mankind DT gusset and full chromoly dropouts with integrated chain tensioners to keep you chain tight. All the features you need to build a bike ready to ride anything that is in front of you.
Facts: Mankind Bike Co. "Getaway" BMX Frame
- Wheel Size: 20"

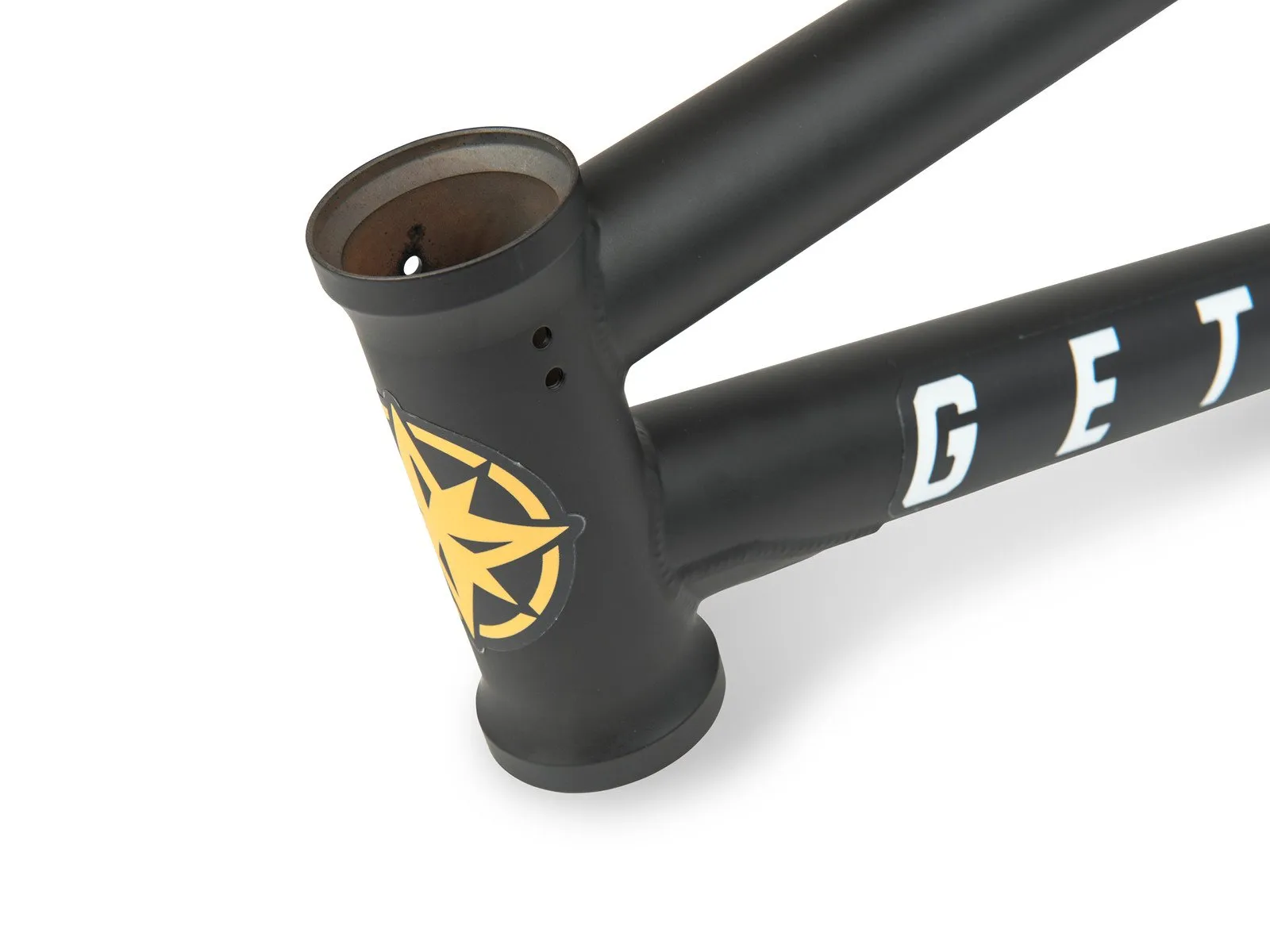

- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, integrated seatclamp, integrated chain tensioners
- Geometry:
Top Tube (TT): 21.0"
Chain Stay (CS): 13.2"
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
BB Height: 11.5"

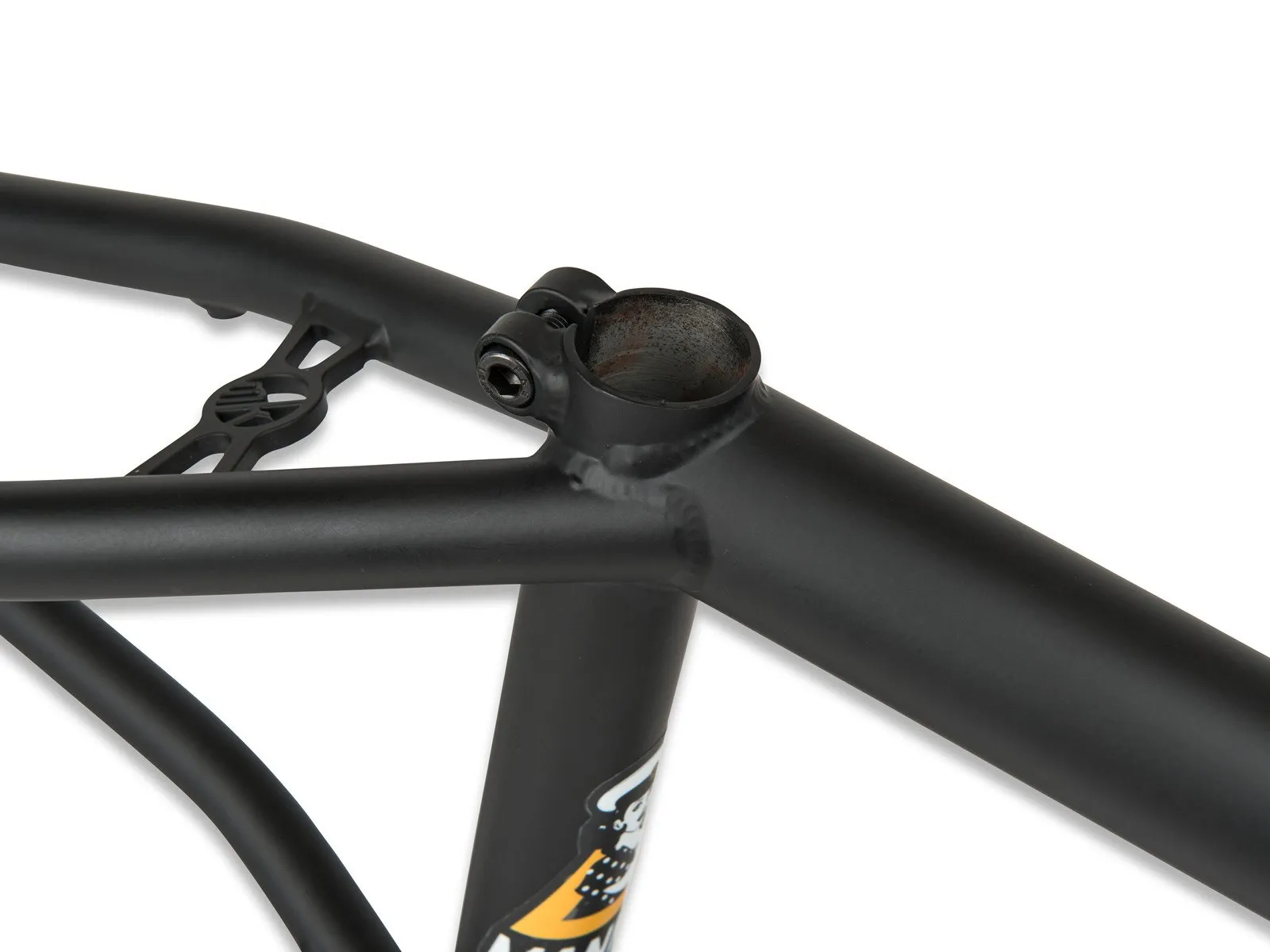

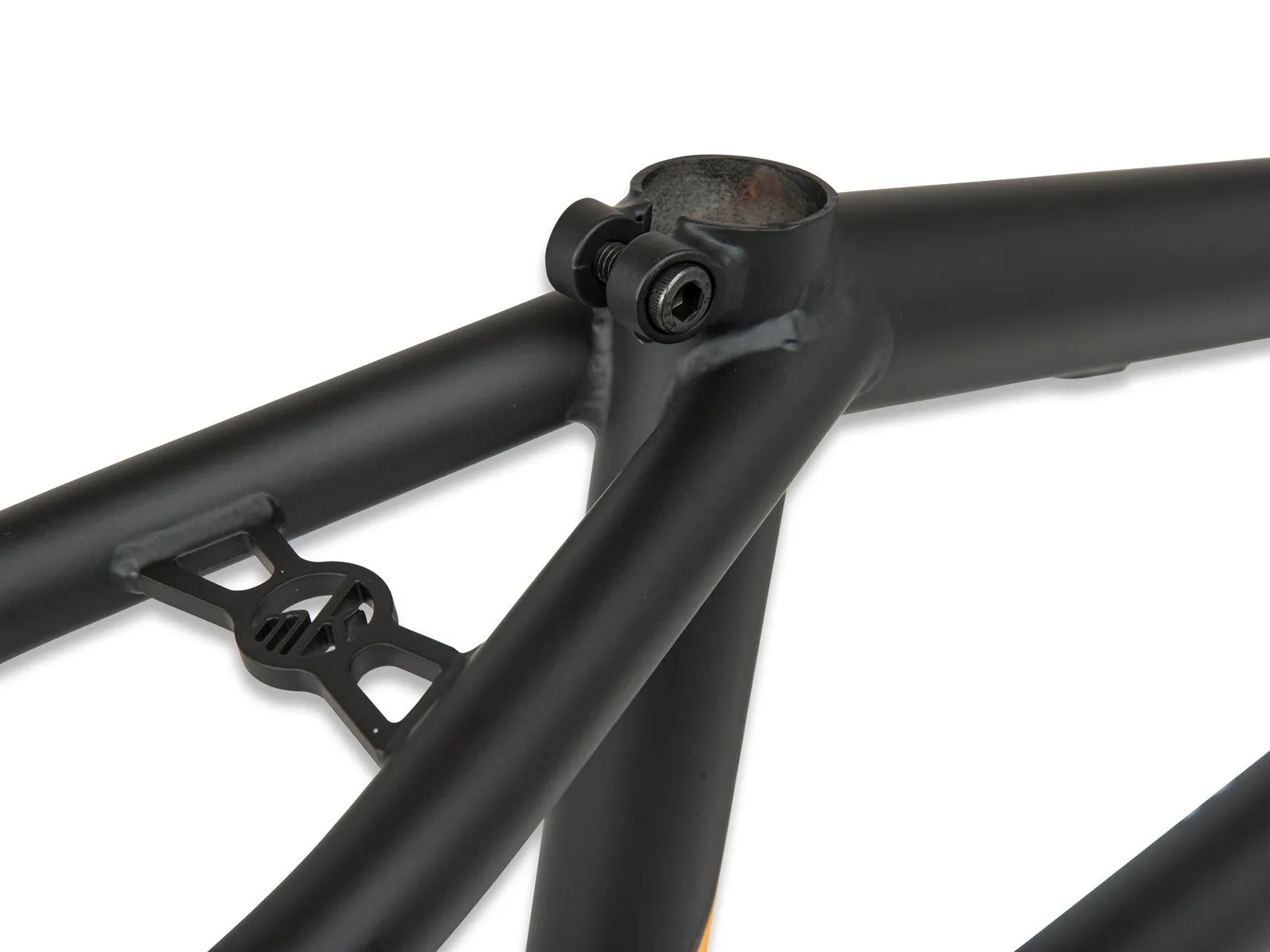

Standover Height (SO): 8.5" - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm

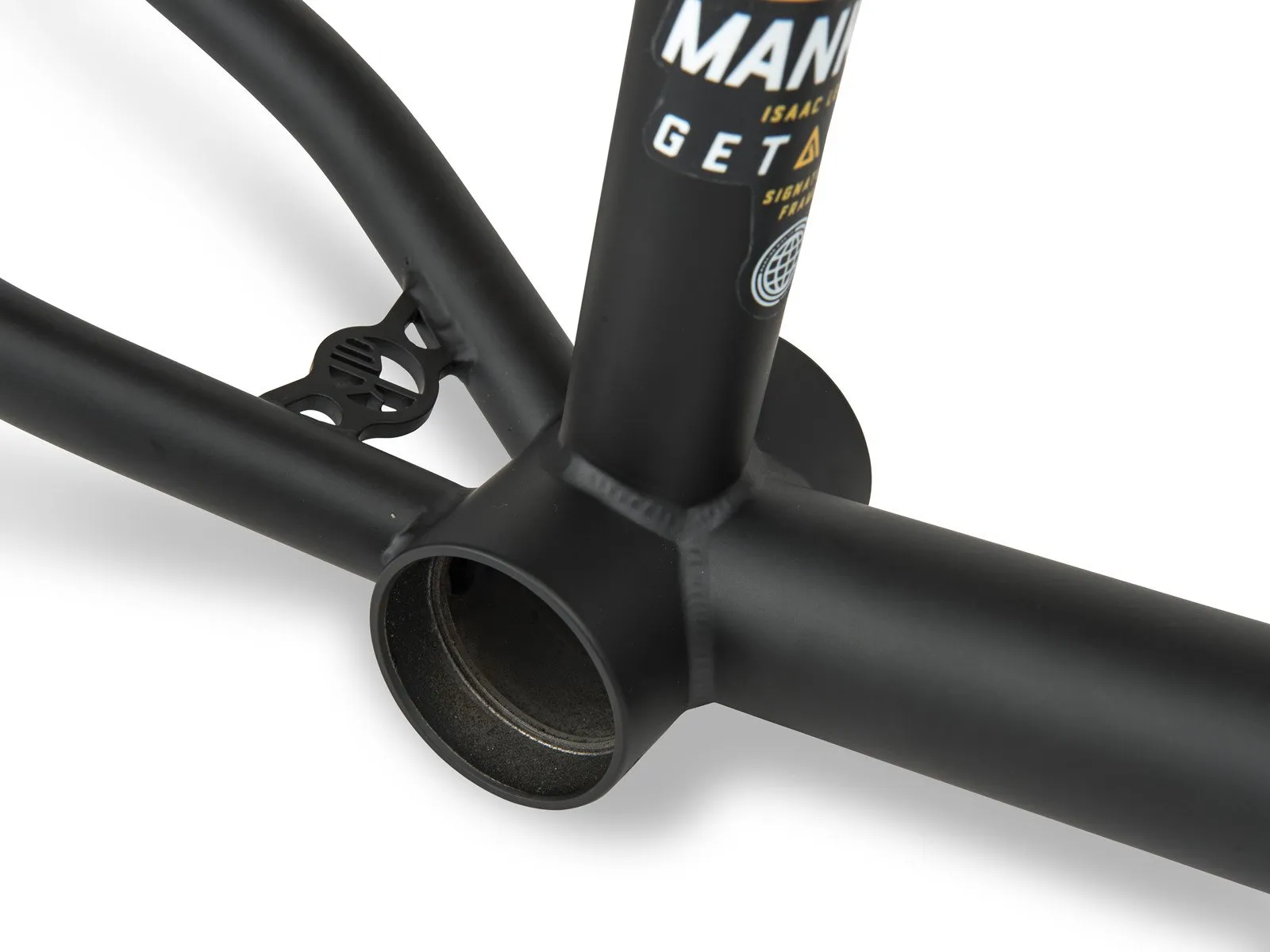

- Bottom Bracket: Mid BB, heat treated, CNC machined

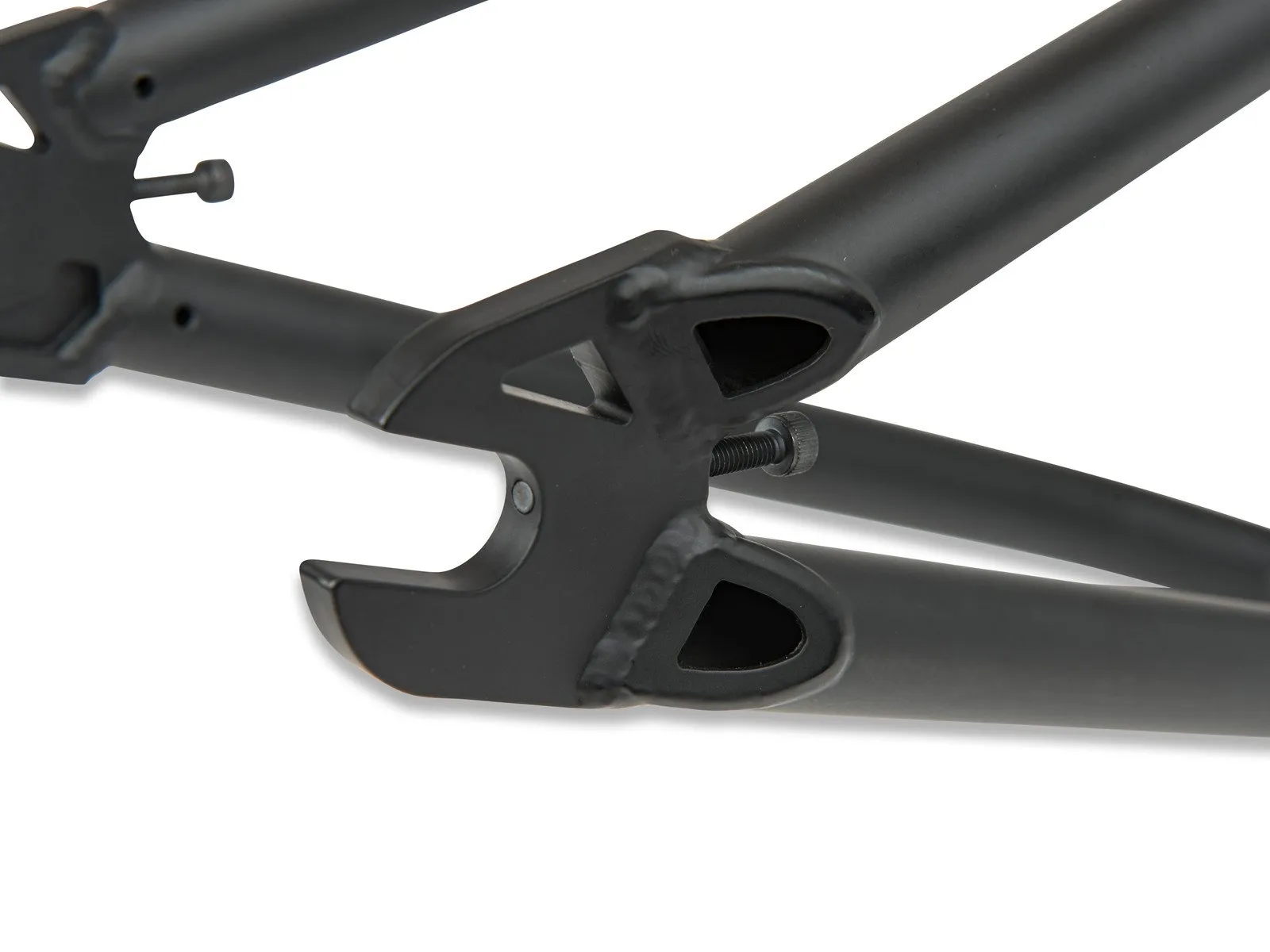

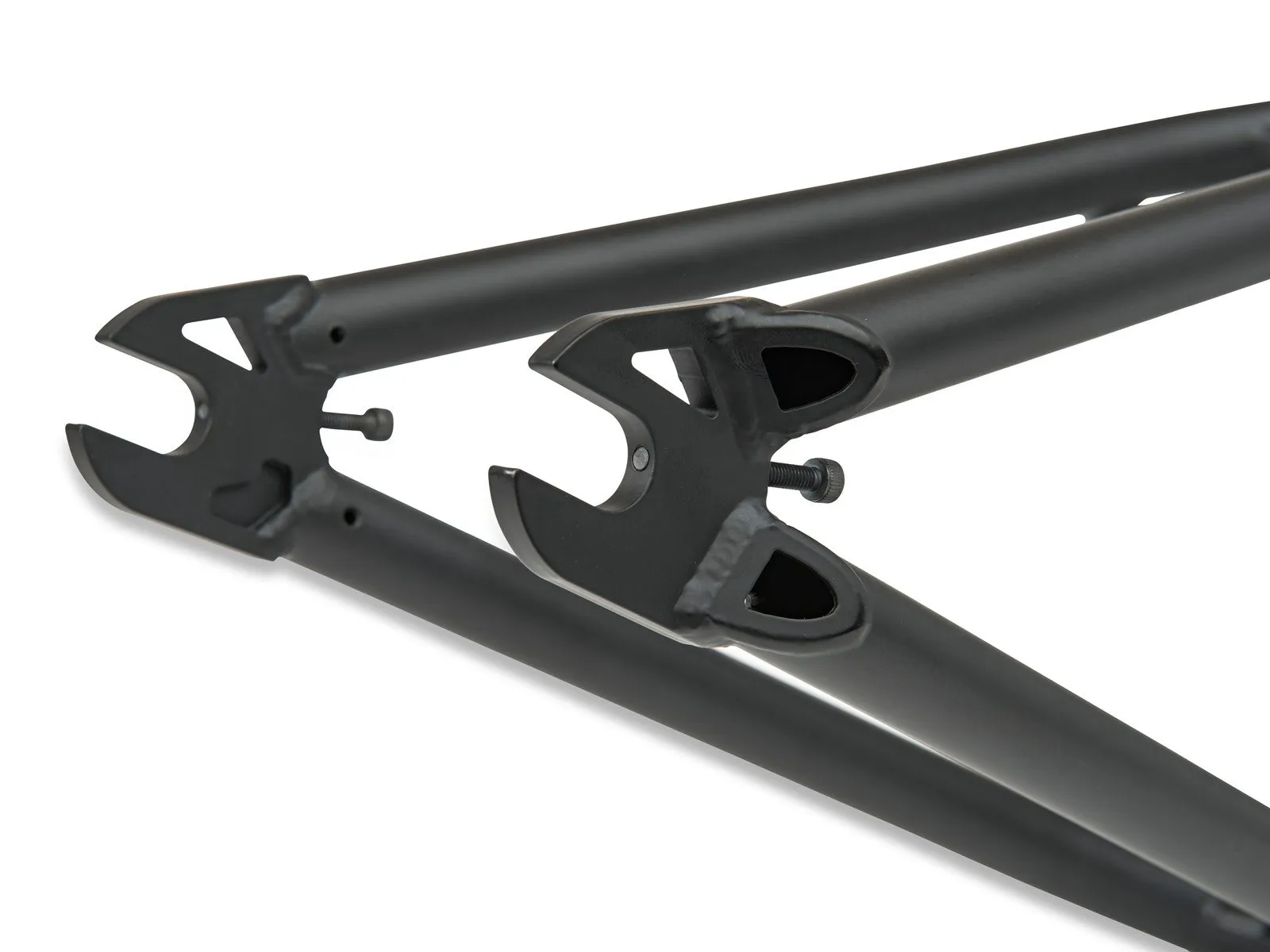

- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brakemounts: removable, M8 (not included)
- Extras: Isaac Lesser Signature frame, Wide rear end for fat 2.4" tires
- Model Year: 2017
