Kuoppa Gomez Bikes "Soulrider" BMX Frame (09/2016)
Archive: This product is no longer available.
View current BMX Frames range
View current BMX Frames range
| Brand | Kuoppa Gomez Bikes | |
| Released | 27.09.2016 | |
| Sold until | 27.05.2018 | |
| Status | archived | |
| Variants Color | Brake Mounts | Top Tube Length
|
|
|
| Weight | 1.9kg / 4.19lbs | |
| Product ID | 10608 |
The

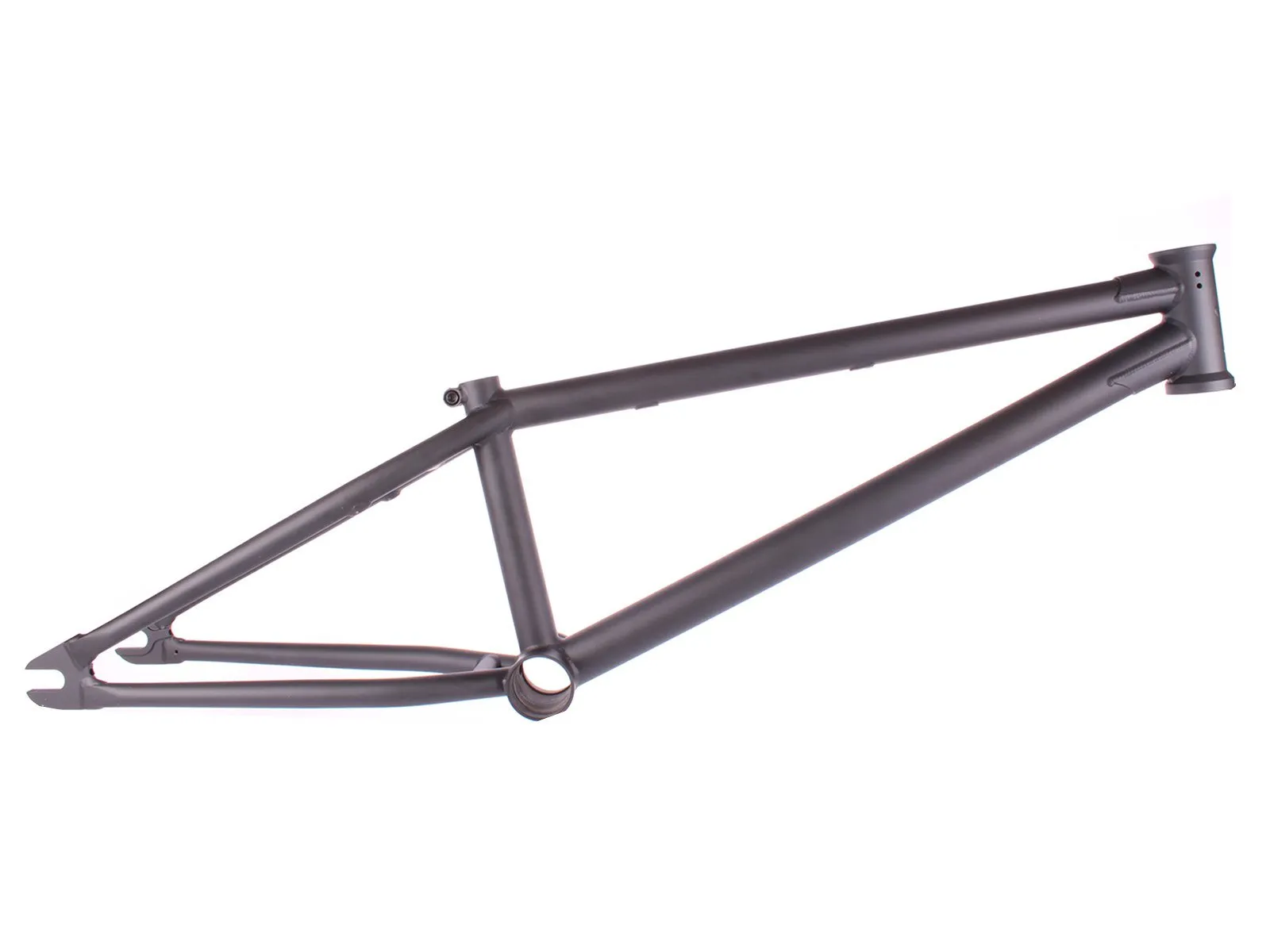

Kuoppa Gomez Bikes "Soulrider" BMX Frame
is the signature BMX frame of BMX Flatland legends Viki Gomez and Martti Kuoppa.
The geometrie of the
Kuoppa Gomez Bikes "Soulrider" BMX Frame
fits to current needs of modern BMX Flatland ridin and comes with a BMX Flatland specific geometry like the short top tube and the BB height of 15.73".
Facts: Kuoppa Gomez Bikes "Soulrider" BMX Frame

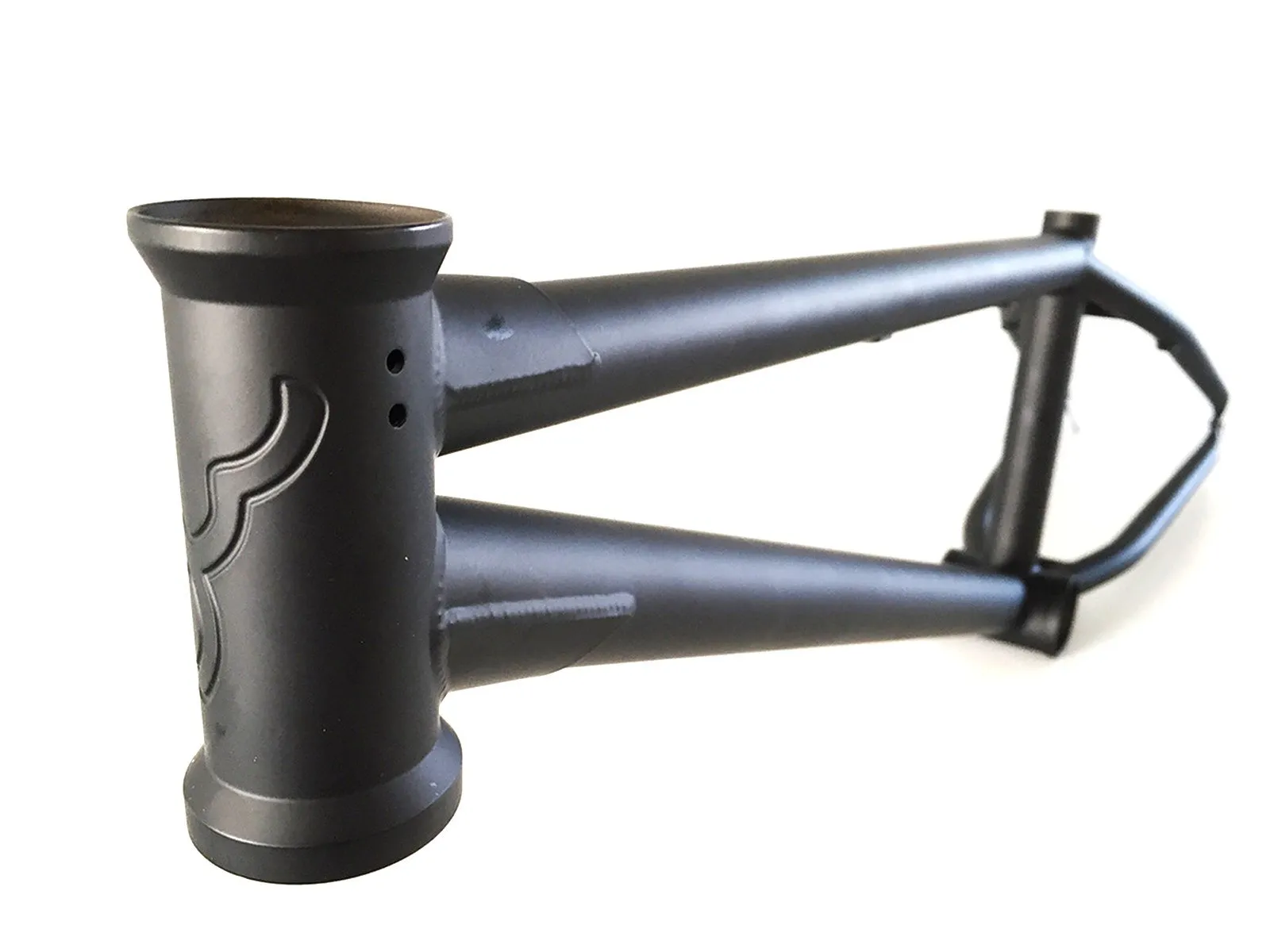

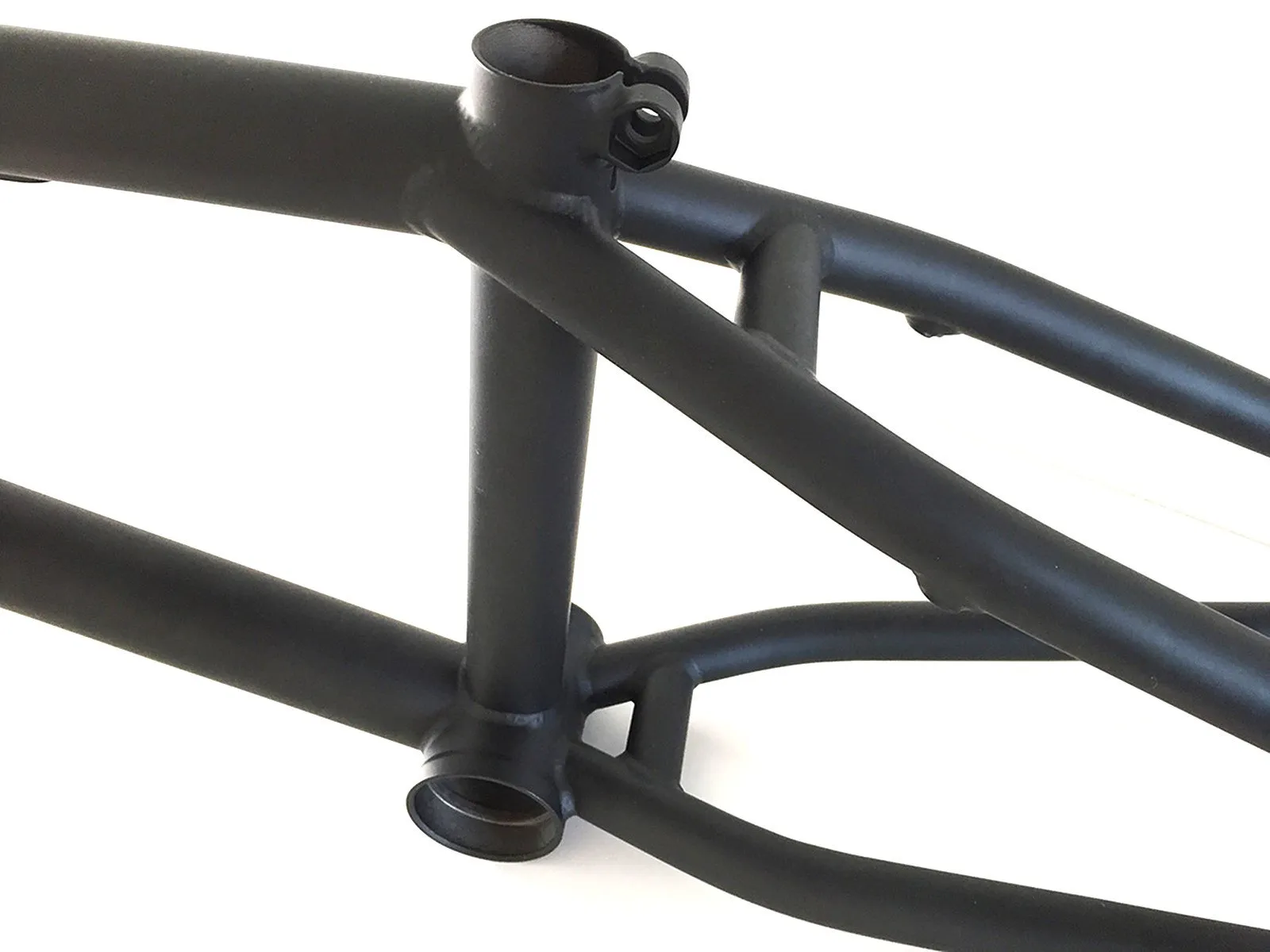

- Material: 100% 4130 CrMo, heat treated, top tube and down tube gusset, tappered chainstays, integrated headseat, integrated seatclamp, integrated chain tensioners, Mid BB
- Geometry:
- Top Tube (TT): 18.9"
- Chain Stay (CS): 12.8" (18.9" TT), 13" (19.5" TT)
- Head Tube Angle (HA): 75°
- Seat Tube Angle (SA): 71°
- BB Height: 15.73" - Bottom Bracket: Mid BB

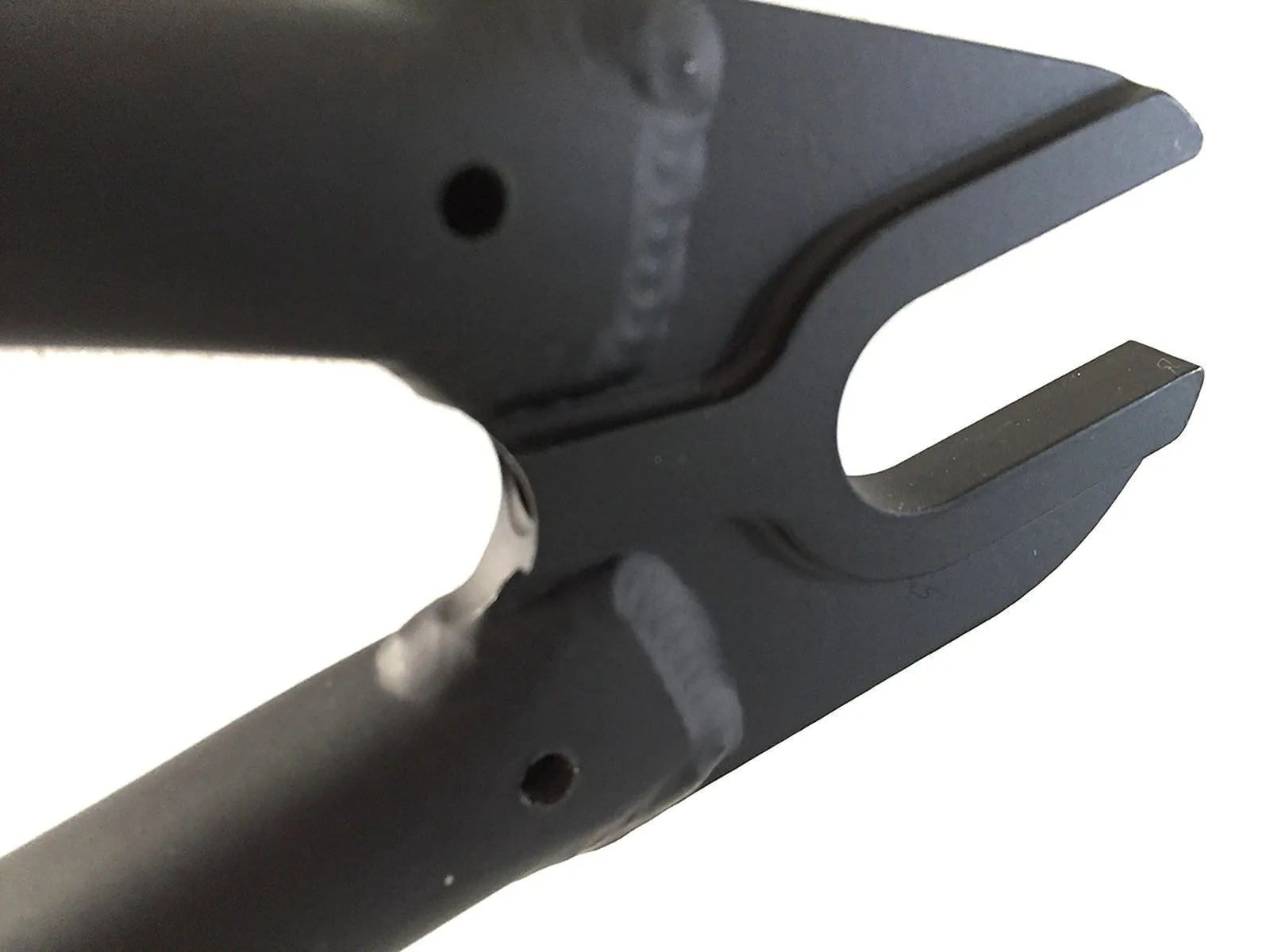

- Dropouts: 4130 CrMo, 5mm thick, 14mm slots
- Brakemounts: removable, M8
- Extras: Viki Gomez and Martti Kuoppa Signature frame
- Weight: 1.9kg
