Mankind Bike Co. "Action" 2014 BMX Frame (09/2013)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | Mankind Bike Co. | |||||||||||||||
| Released | 16.09.2013 | |||||||||||||||
| Sold until | 22.09.2015 | |||||||||||||||
| Status | archived | |||||||||||||||
| Variants Color | Brake Mounts | Top Tube Length
|
|
|||||||||||||||
| Weight | 2.1kg / 4.63lbs | |||||||||||||||
| Product ID | 5822 |
The

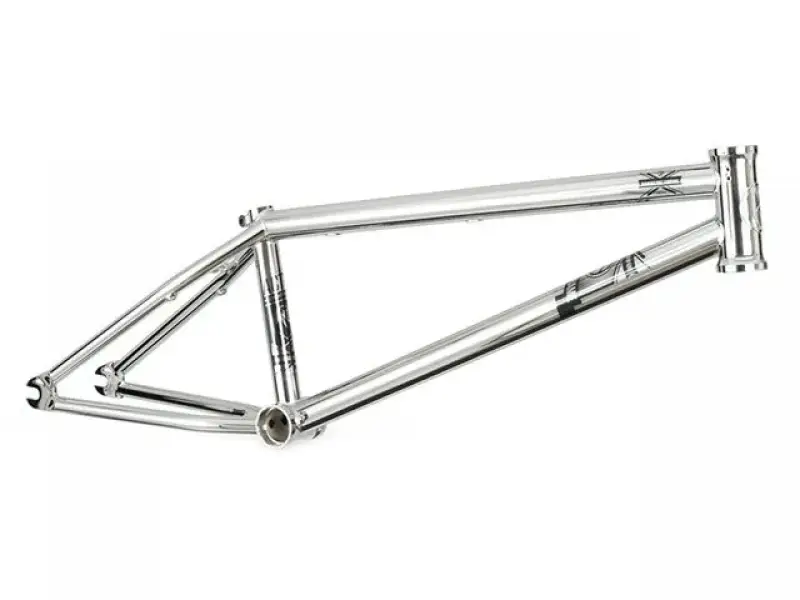

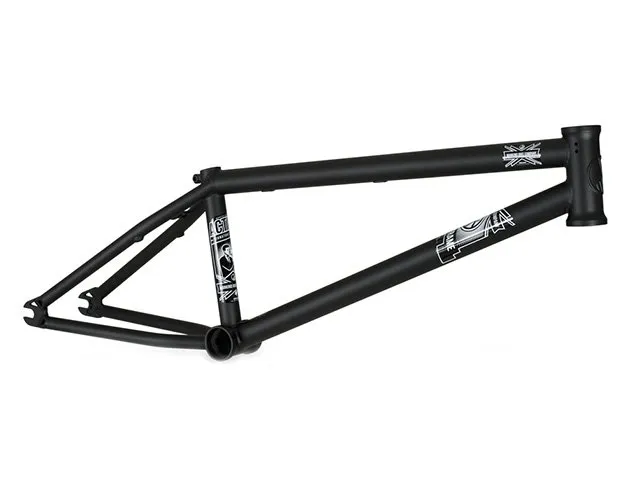

Mankind Bike Co. "Action" 2014 BMX Frame
is Björn Magers Signature Frame with a completely redesigned geometry to provide a quicker responding. To allow usage of really thick tires the chainstays of the
Mankind Bike Co. "Action" 2014 BMX Frame
got widened. With heat treatment, removable brake hardware and an integrated seatclamp no whishes remain unfulfilled .
Facts: Mankind Bike Co. "Action" 2014 BMX Frame
- Material: 100% 4130 Sanko Japanese CrMo
- Geometry:
- Top Tube (TT): 20.5", 20.75" or 21.0"
- Chain Stay (CS): 13.5"
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- BB Height: 11.6"
- Standover Height: 8.5" - Bottom Bracket: Mid BB, heat treated
- Dropouts: 14mm, 5mm thick, laser cut, heat treated
- Chainstays accept tires in 2.3"
- Extras: Removable brake hardware
