Mankind Bike Co. "Early Bird" BMX Frame (08/2016)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | Mankind Bike Co. | |
| Released | 18.08.2016 | |
| Sold until | 12.07.2020 | |
| Status | archived | |
| Variants Color | Brake Mounts | Top Tube Length
|
|
|
| Weight | 2.15kg / 4.74lbs | |
| Product ID | 10439 |
The

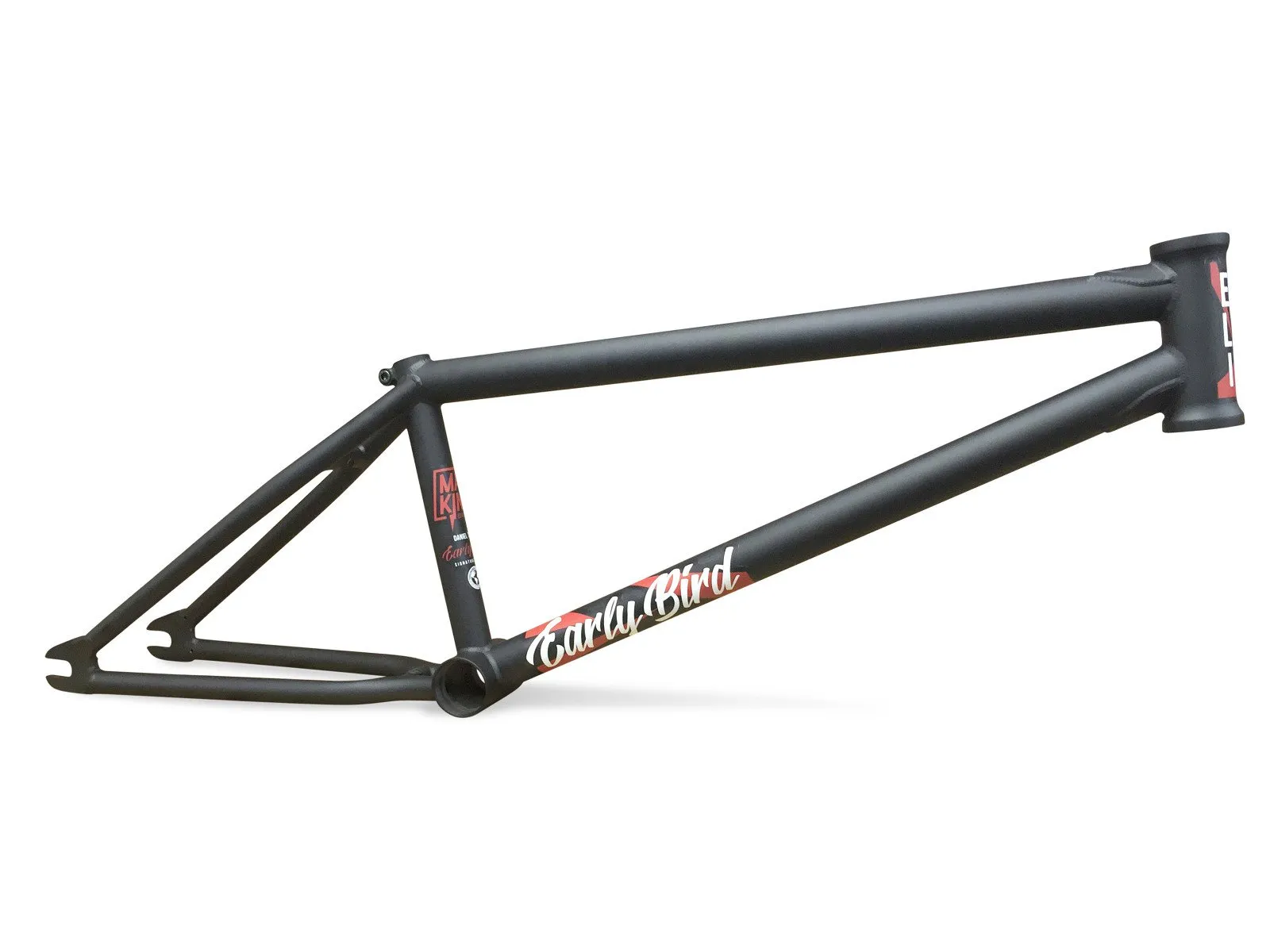

Mankind Bike Co. "Early Bird" BMX Frame
is Daniel Tünte's signature BMX frame and is a super tech street frame, which Mankind worked on with Daniel throughout 2015 to make it fit his highly technical & contemporary riding style. The
Mankind Bike Co. "Early Bird" BMX Frame
features a quick and responsive geometry with 75.5° HT, 13.3 CS and 11.75° BB height. Custom TT and DT gussets, custom CS and SS Bridges and 6mm CrMo dropouts.
Facts: Mankind Bike Co. "Early Bird" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, integrated seatclamp
- Geometry:
Top Tube (TT): 20.8"
Chain Stay (CS): 13.3"
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
BB Height: 11.75"
Standover Height (SO): 9" - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB, heat treated, CNC machined
- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: without
- Brakemounts: without (Brakeless)
- Extras: Daniel Tünte Signature frame, Wide rear end for fat 2.4" tires
- Model Year: 2017
