Subrosa Bikes "Thunderbeast" BMX Frame (03/2014)
View current Frames range
| Brand | Subrosa Bikes | |
| Released | 04.03.2014 | |
| Sold until | 26.06.2015 | |
| Status | archived | |
| Variants Color | Brake Mounts | Top Tube Length
|
|
|
| Weight | 2.2kg / 4.85lbs | |
| Product ID | 6339 |

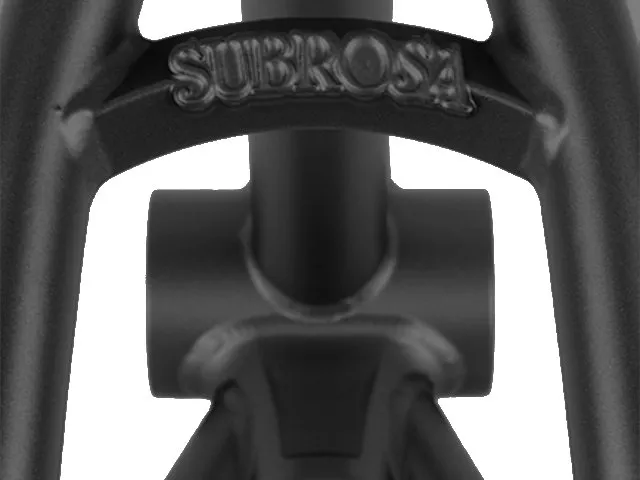

The Subrosa Bikes "Thunderbeast" BMX Frame is the signature model of Scott Ditchburn. The frame is designed for uncompromising hard street riding and was meticulously designed and made strong by Subrosa. The Subrosa Bikes "Thunderbeast" BMX Frame is made from 100% CrMo and equipped with double butted and ovalized tubes. The down tubes of the the rear triangle are extra thick to stand the strain while grinding. The curved investment cast seat stay bridge and the wishbone tube combined with 6mm dropouts results in a extremely stable rear end. To ensure maximum stability even in the front the top and down tube at the head tube area was also equipped with gussets. To give the Subrosa Bikes "Thunderbeast" BMX Frame not only maximum stability but also maximum style, all gussets at the frame are provided with Subrosa logos.
Facts: Subrosa Bikes "Thunderbeast" BMX Frame
- Material: 4130 CrMo, partially heat treated, double butted top tube and down tube, ovalized down tube and thicker chain stays, investment cast wishbone and seat stay bridge, top and down tube gussets with logo, removable brake hardware, integrated seat clamp
- Geometry:
Top Tube (TT): 20.75"
Chain Stay (CS): 13.5" - 13.75"
Head Tube Angle (HA): 75°, heat treated
Seat Tube Angle (SA): 69°
BB Height: 11.6"
Standover Height: 9.0" - Bottom Bracket: Mid BB, heat treated

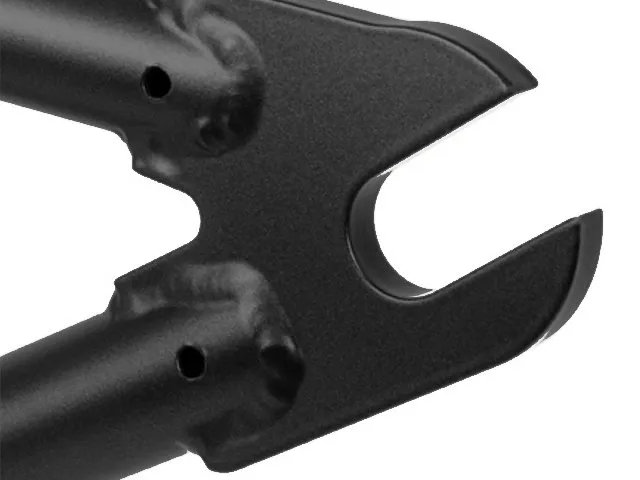

- Dropouts: 14mm, laser cut, heat treated, 6mm thick, for 34mm pegs
- Extras: Scott Ditchburn signature model
