wethepeople "Awake" 2016 BMX Frame (02/2016)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | wethepeople |
| Released | 27.02.2016 |
| Sold until | N/A |
| Status | archived |
| Weight | 2.41kg / 5.31lbs |
| Product ID | 9817 |
The

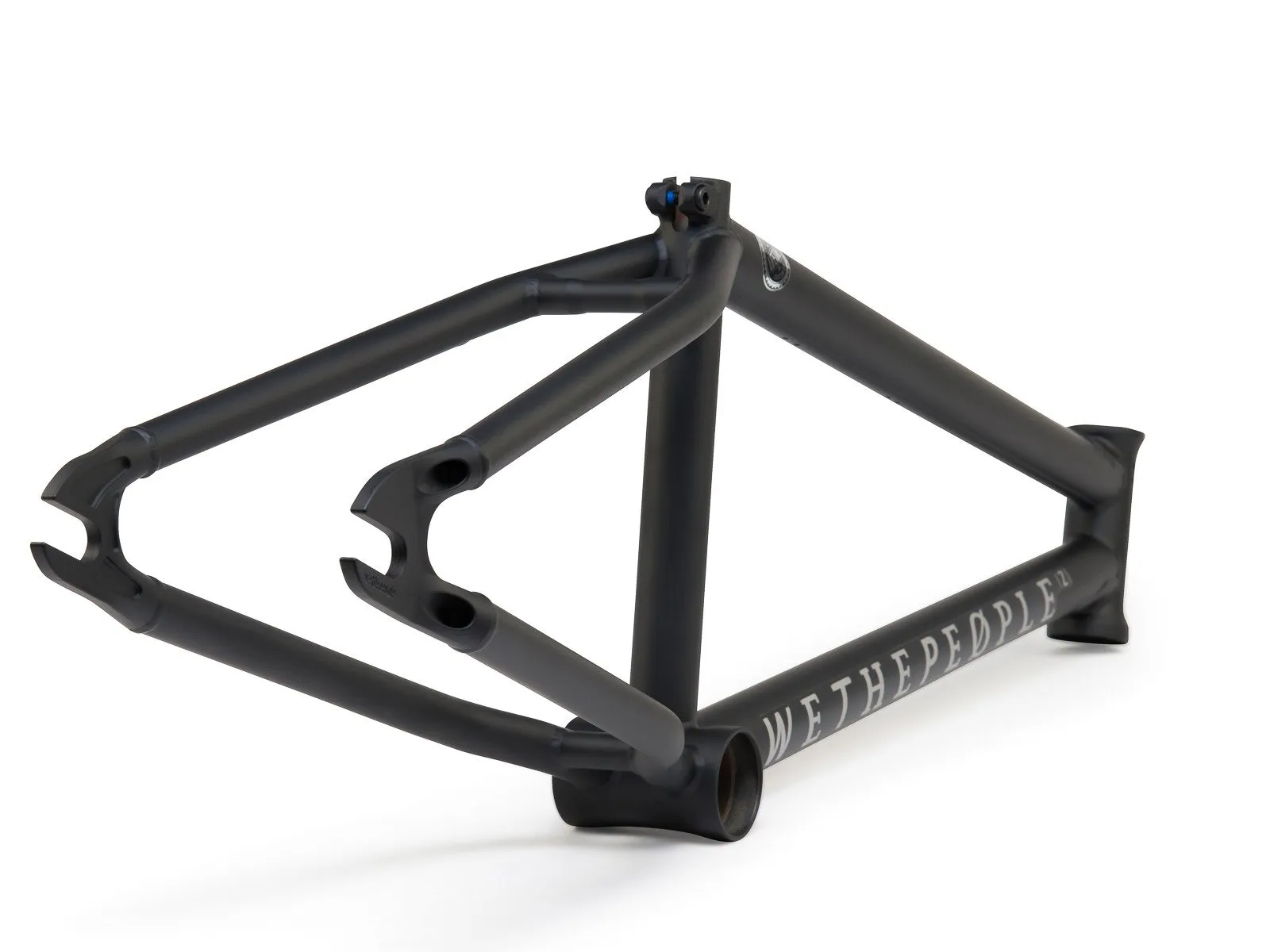

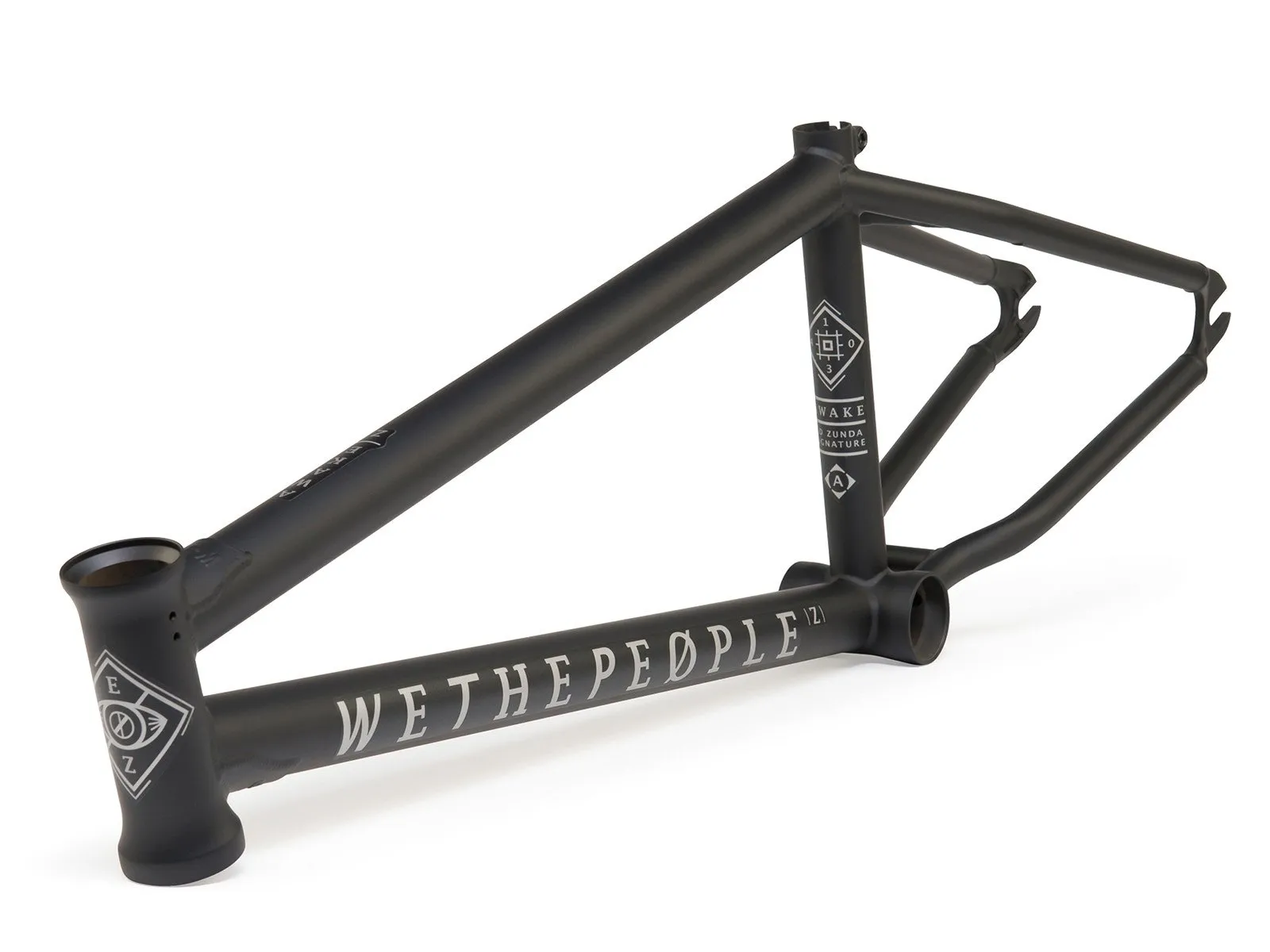

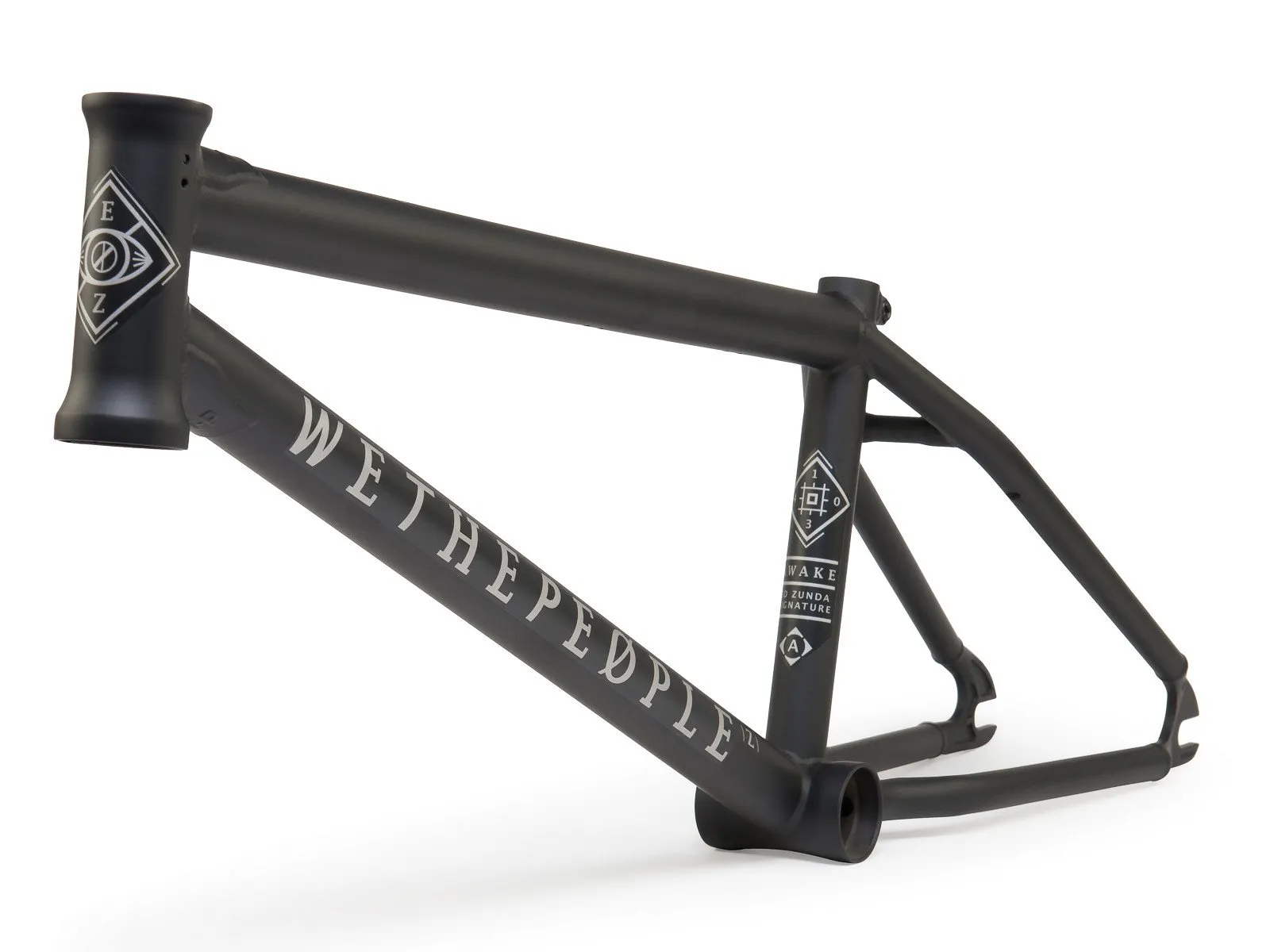

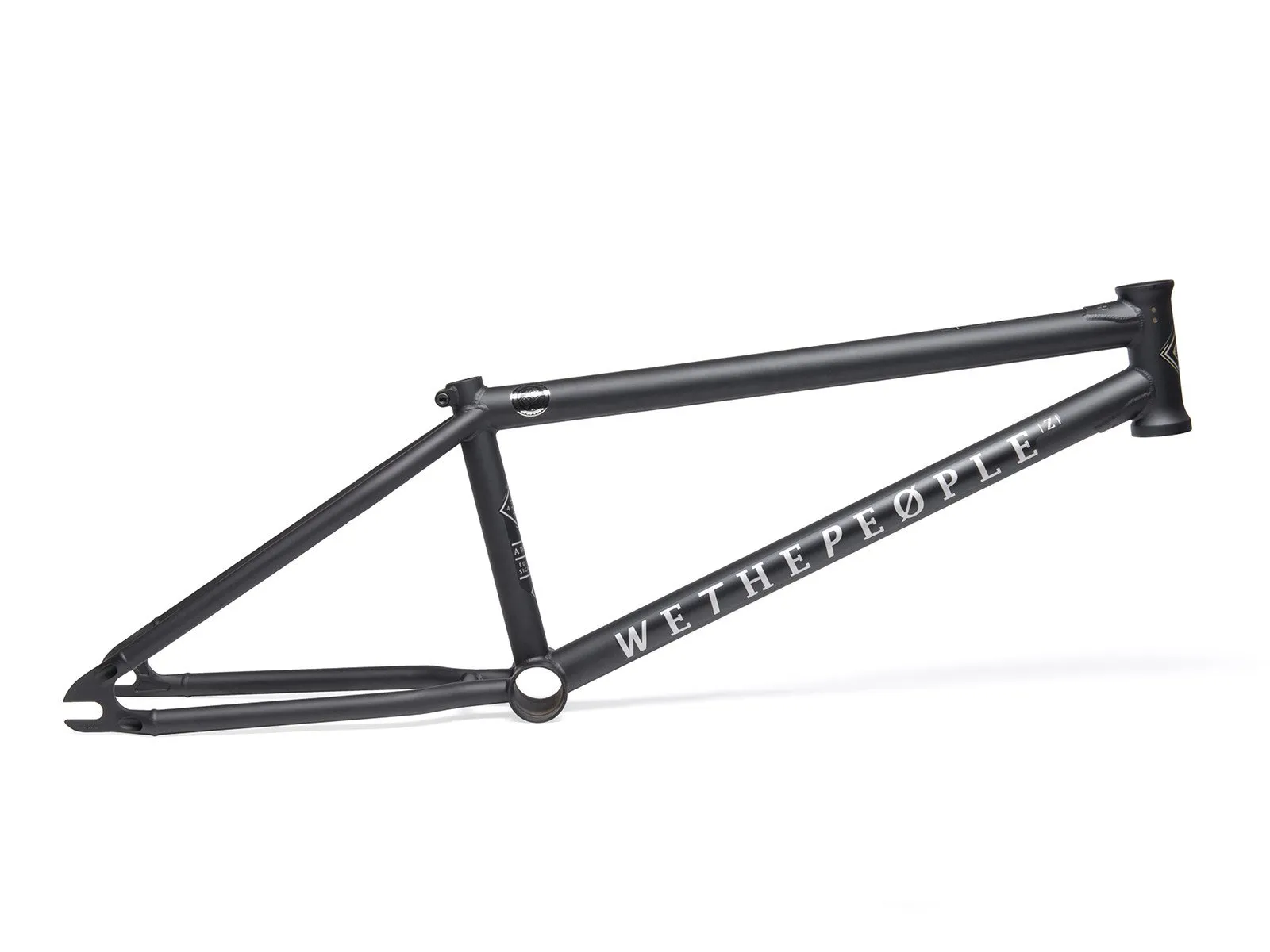

wethepeople "Awake" 2016 BMX Frame
is Ed Zunda's signature frame and is a very responsive BMX Street Frame. The Geometry fits perfect for his technical riding. The frame comes wie a short rear end (13", slamed) and a steeper 75.5 Degree Headtube.
The
wethepeople "Awake" 2016 BMX Frame
is made by 4130 CrMo and comes with removable brakehardware and integrated seat clamp.
Facts: wethepeople "Awake" 2016 BMX Frame
- Material: Japanese seamless 4130 crmo tubing, butted tubes, TT and DT with gusset
- Geometry:
- Top Tube (TT): 20.85"
- Chain Stay (CS): 13" (slammed) - 13.25" (with 25 - 9 gearing)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 70.5°
- BB Height: 11.75"
- Standover Height: 8.75" - Bottom Bracket: Mid BB, 74mm wide, CNC machined, heat treated
- Dropouts: CNC machined, heat treated, 6mm thick, 14mm
- Extras: Removable brakehardware, integrated seatclamp, rearend designed for 2.4" tires
