wethepeople "Envy" 2016 BMX Frame (02/2016)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | wethepeople | |
| Released | 27.02.2016 | |
| Sold until | 31.05.2016 | |
| Status | archived | |
| Variants Color | Brake Mounts | Top Tube Length
|
|
|
| Weight | 2.34kg / 5.16lbs | |
| Product ID | 9821 |

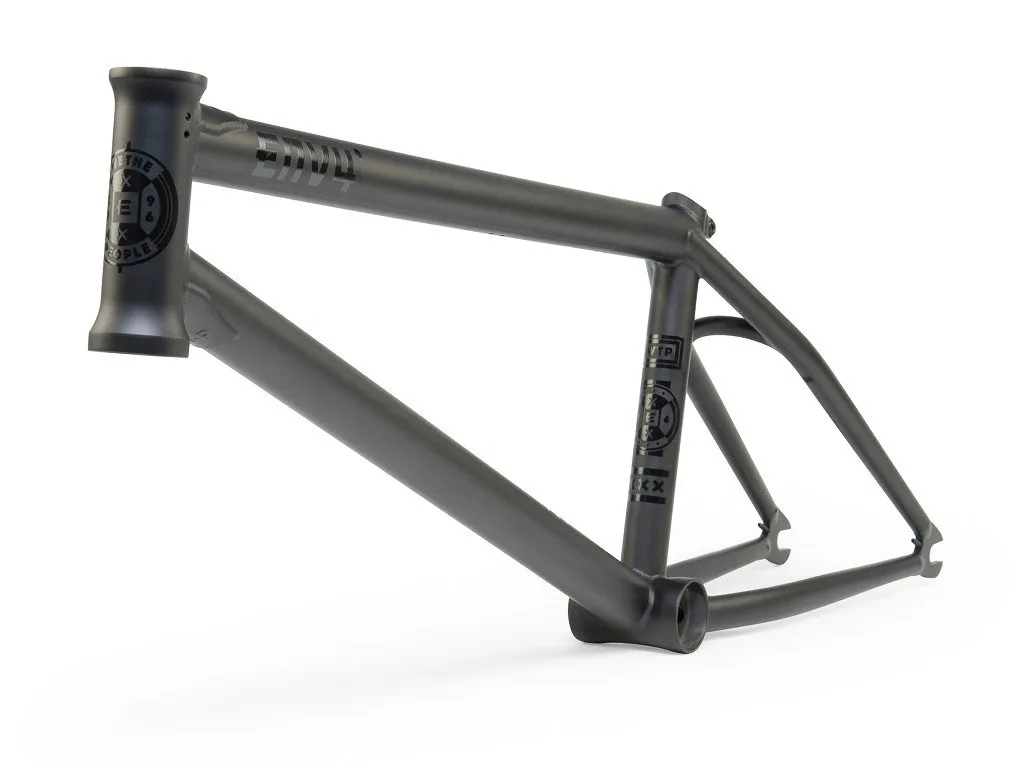

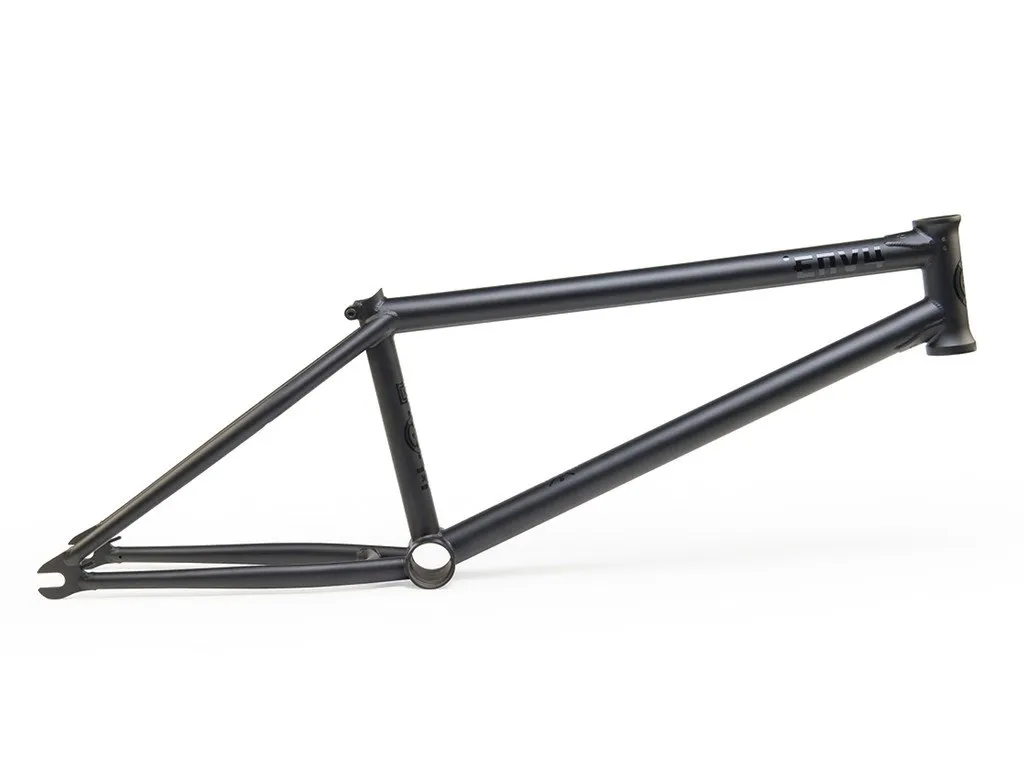

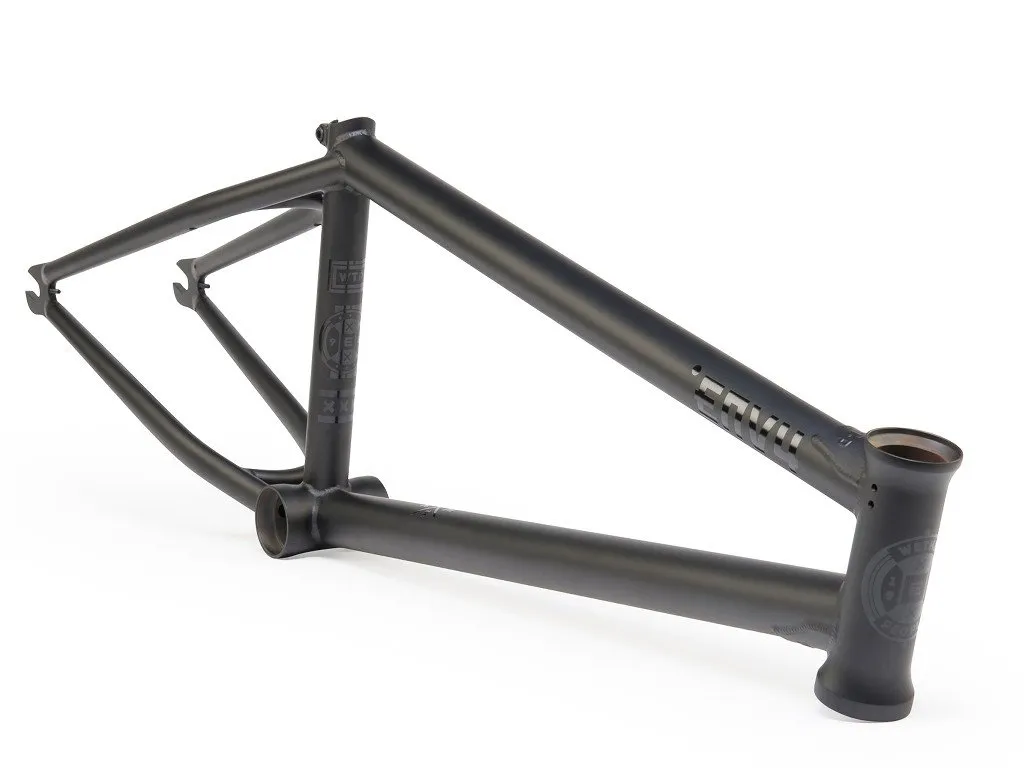

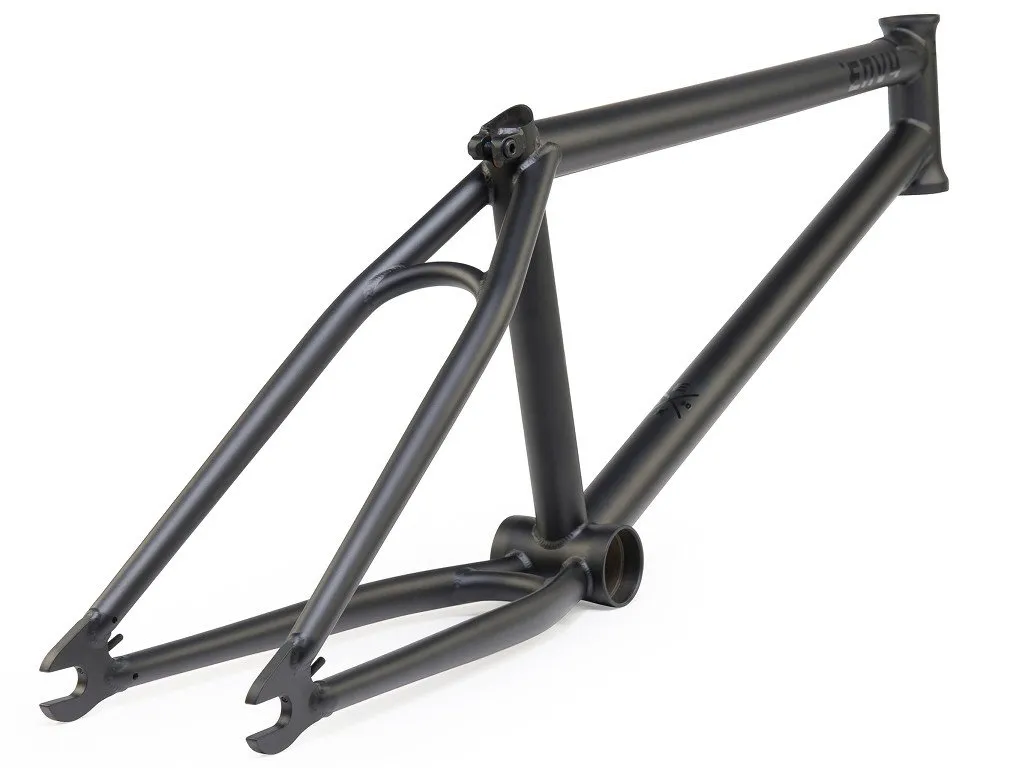

The wethepeople "Envy" 2016 BMX Frame is the BMX Frame of the Highend wethepeople "Envy" 2016 BMX Bike. The wethepeople "Envy" 2016 BMX Frame is made from best quality, partially heat treated 100% 4130 CrMo and boasts some great features including a taller 127mm headtube, a new taller 9.125" stand over height and super clean and minimal dropouts with integrated chain tensioners.
Facts: wethepeople "Envy" 2016 BMX Frame
- Material: Japanese seamless 4130 crmo tubing, butted tubes, TT and DT with gusset
- Geometry:
Top Tube (TT): 20.6"
Chain Stay (CS): 13.38" (slammed) - 13.55" (with 25 - 9 gearing)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 70.5°
BB Height: 11.75"
Standover Height: 9.12" - Bottom Bracket: Mid BB, 74mm wide, CNC machined, heat treated
- Dropouts: CNC machined, heat treated, 6mm thick, 14mm
- Extras: Removable brakehardware, integrated seatclamp, rearend designed for 2.4" tires
