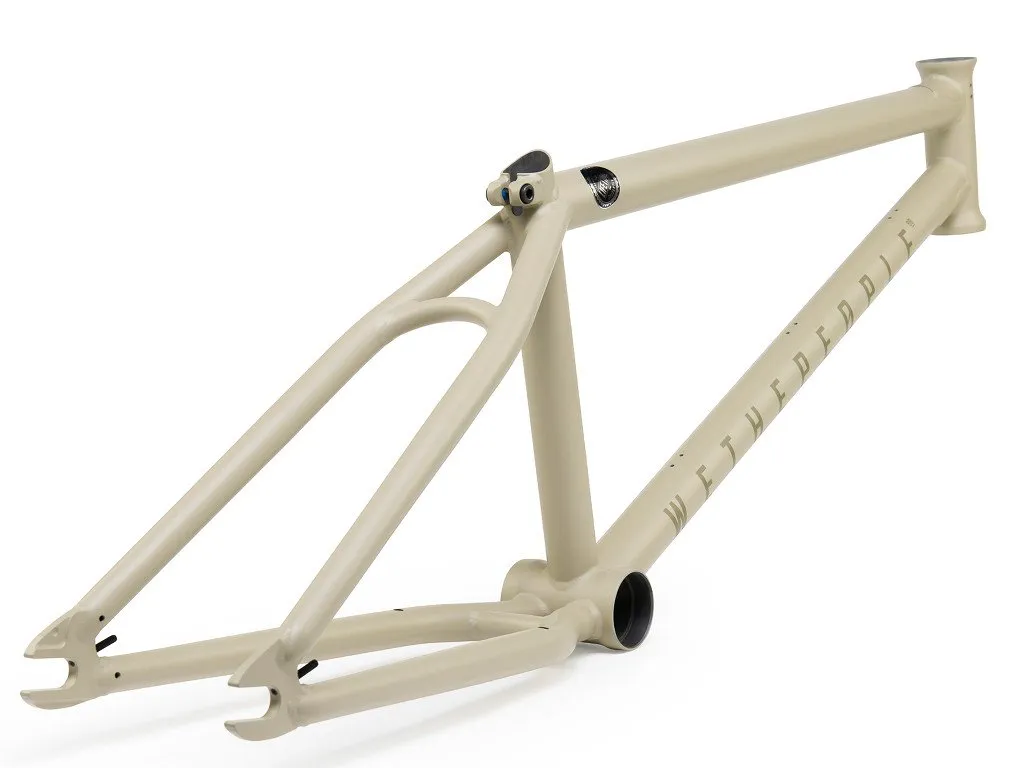

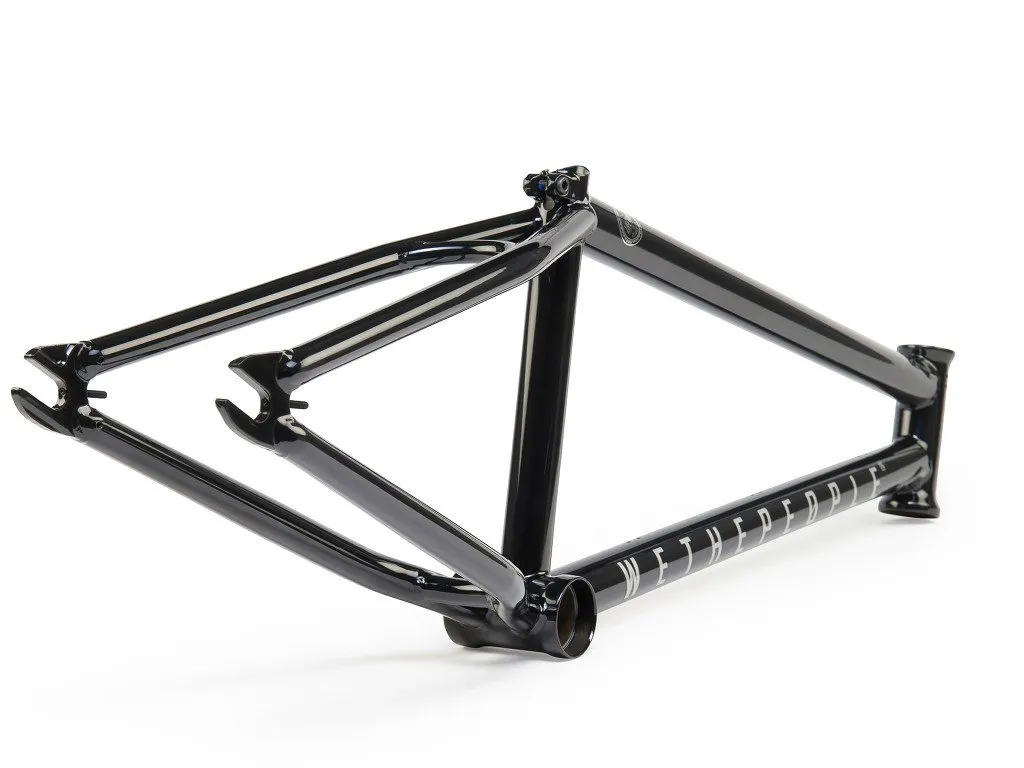

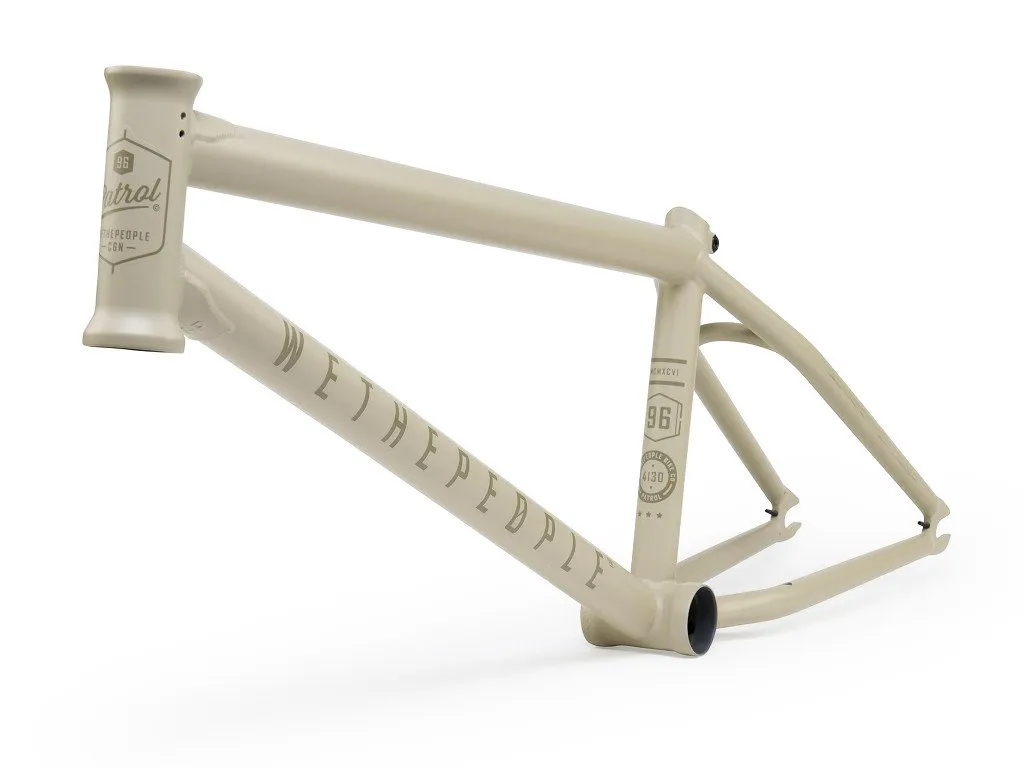

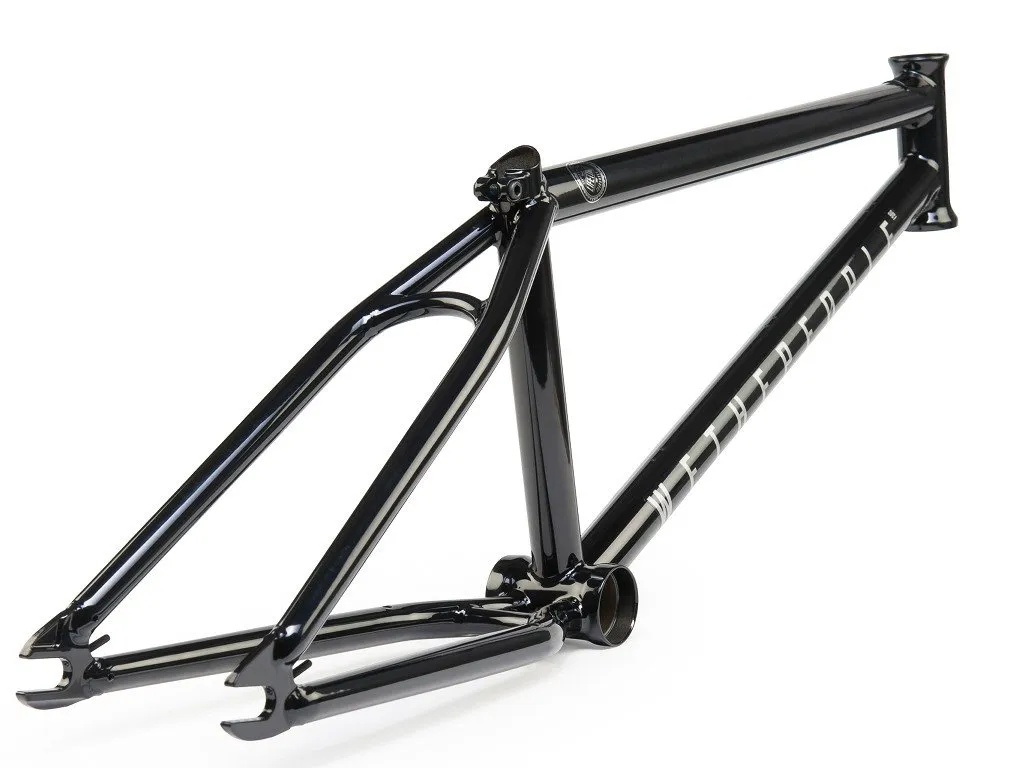

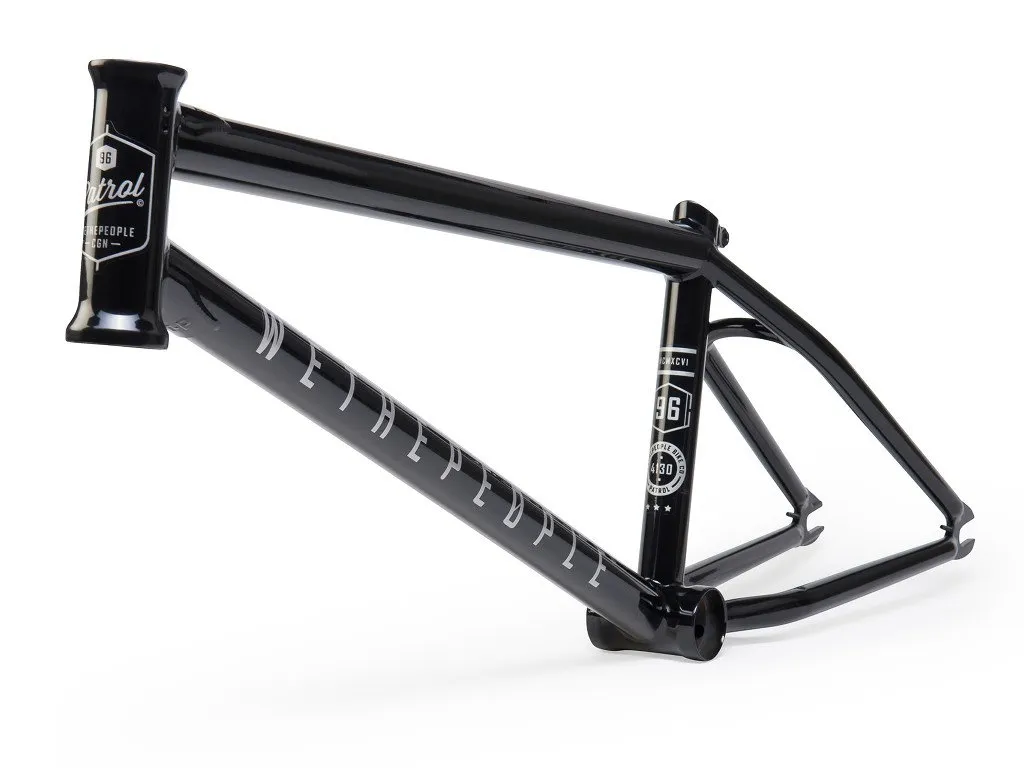

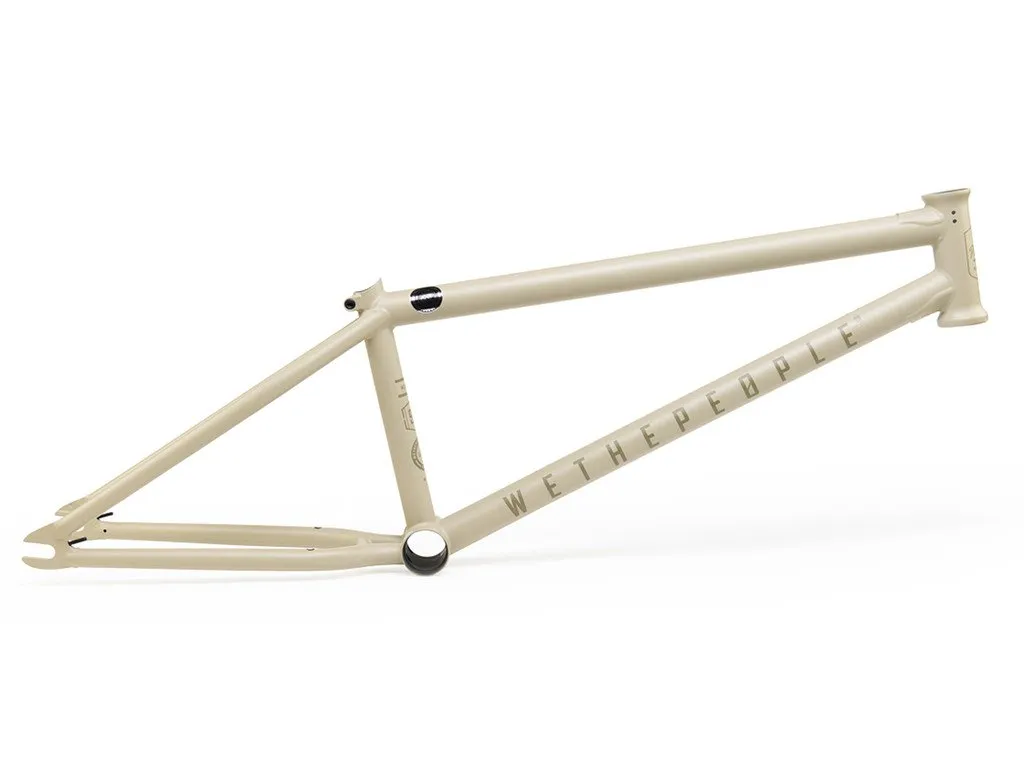

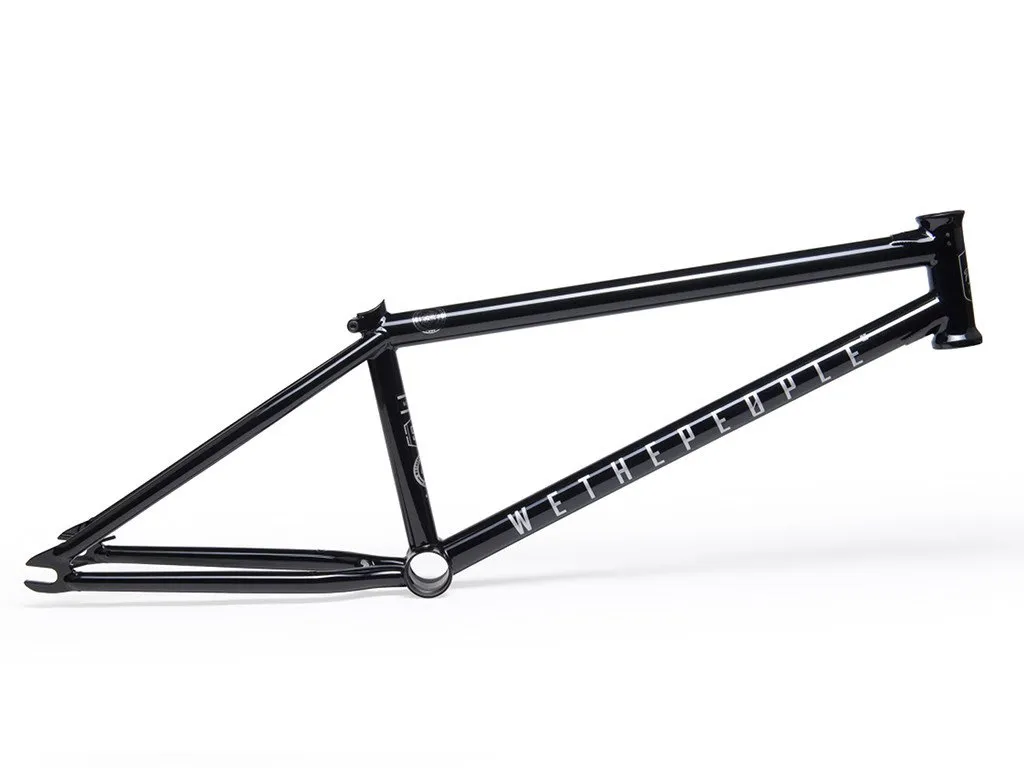

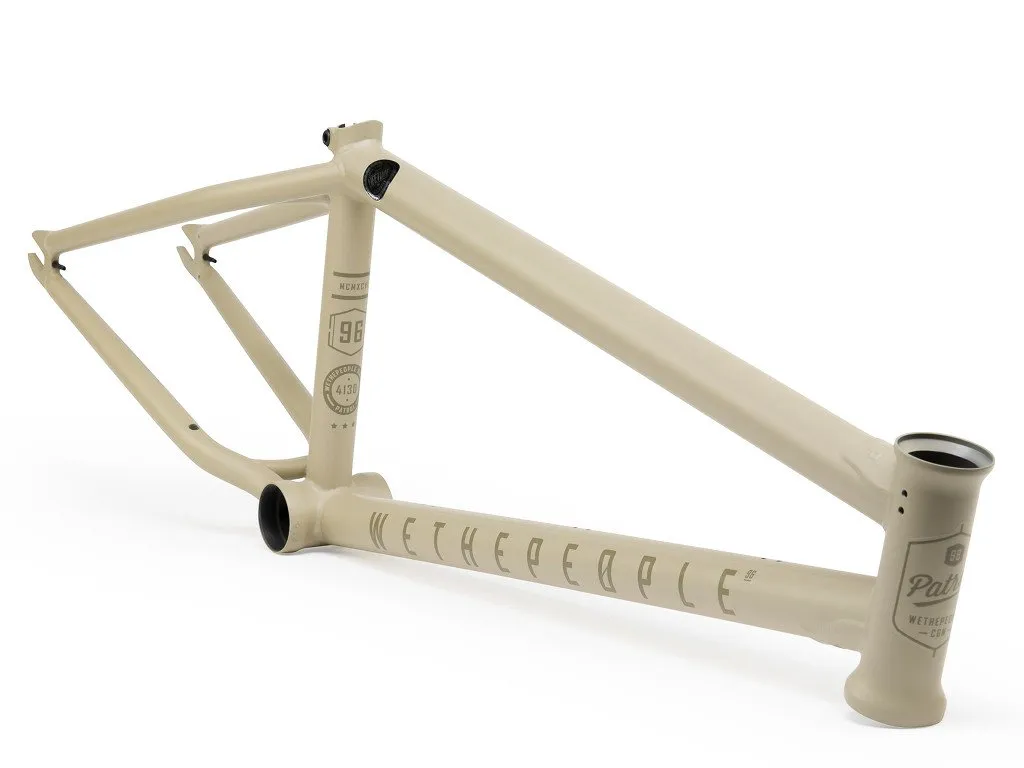

wethepeople "Patrol" 2016 BMX Frame (02/2016)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | wethepeople |
| Released | 27.02.2016 |
| Sold until | 06.12.2016 |
| Status | archived |
| Weight | 2.2kg / 4.85lbs |
| Product ID | 9822 |
The new "Patrol" Range is a whole sub-brand of wethepeople which is heavily influenced from the trails and concrete park riding. The full line features a frame, fork and handlebar as well as stem, sprocket and barends. The wethepeople "Patrol" 2016 BMX Frame is designed to be run with a larger 28-9 gearing and with chainstay located brakemounts. The wethepeople "Patrol" 2016 BMX Frame pairs up a classic and satble geometry which is optimzed for trails and concret bowl riding.
Facts: wethepeople "Patrol" 2016 BMX Frame
- Material: Japanese seamless 4130 crmo tubing, butted tubes, TT and DT with gusset
- Geometry:
Top Tube (TT): 21.15" or 21.5"
Chain Stay (CS): 13.75" (with 28 - 9 gearing)
Head Tube Angle (HA): 74.25°
Seat Tube Angle (SA): 71°
BB Height: 11.5"
Standover Height: 8.9" - Bottom Bracket: Mid BB, 74mm wide, CNC machined, heat treated
- Dropouts: CNC machined, heat treated, 5mm thick, 14mm
- Extras: Removable brakehardware, integrated seatclamp, rearend designed for 2.3" tires, brakemounts located at chainstay
