wethepeople "Patron" 2013 BMX Frame (12/2012)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | wethepeople | |
| Released | 17.12.2012 | |
| Sold until | 19.12.2012 | |
| Status | archived | |
| Variants Color | Top Tube Length
|
|
|
| Weight | 2.25kg / 4.96lbs | |
| Product ID | 4409 |
The wethepeople "Patron" 2013 BMX Frame is an elegant frame that combines smooth and graceful designs with up to the minute technical ideas. The wethepeople "Patron" 2013 BMX Frame is made to shred the streets, it has everything a modern street rider is looking for.
Facts: wethepeople "Patron" 2013 BMX Frame
- Material: butted, japanese seamless 4130 CrMo tubing
- Geometry:
Top Tube (TT): 20.35"
Chain Stay (CS): 13.21" (20.35" TT), 13.44" (20.75" TT, 21.15" TT)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 70.5°
BB Height: 11.7"

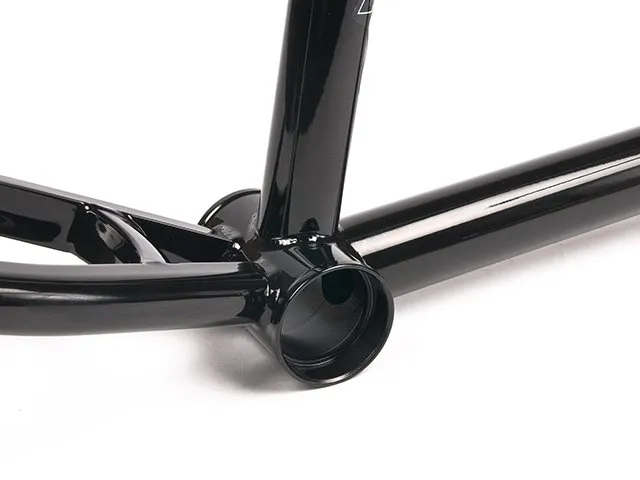

Standover Height: 8.5" - Bottom Bracket: Mid BB, 73mm width, CNC machined

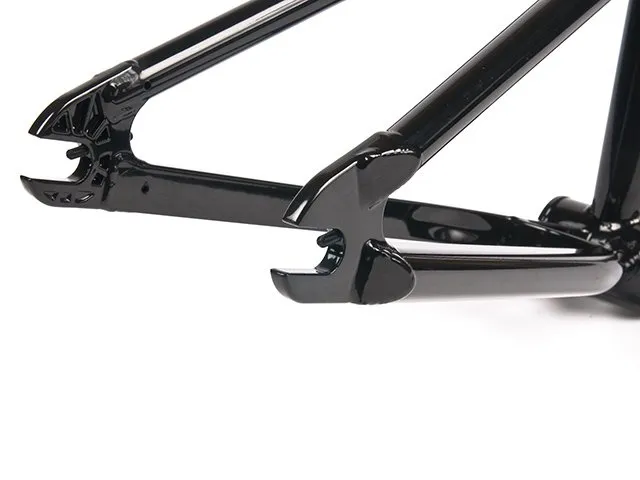

- Dropouts: invested casted, 7mm, 4130 CrMo, integrated chain tensioner
- Extras: investment cast seat clamp, integrated chain tensioner, CNC machined heat tube & heat-treated, removable brake mounts & cable guide, single butted down and top tube, tapered down tube
