wethepeople "The Dawn" 2013 BMX Frame (12/2012)
Archive: This product is no longer available.
View current Frames range
View current Frames range
| Brand | wethepeople | ||||
| Released | 15.12.2012 | ||||
| Sold until | 03.06.2013 | ||||
| Status | archived | ||||
| Variants Color | Top Tube Length
|
|
||||
| Weight | 2.27kg / 5.00lbs | ||||
| Product ID | 4407 |

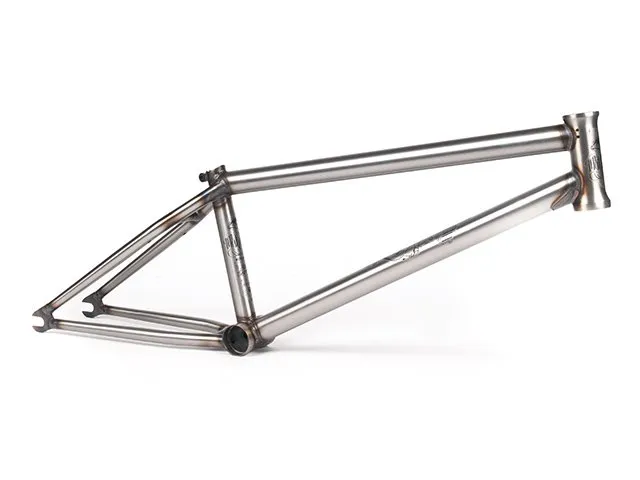

Back in June 2011 wethepeople began working with Maxime on his very own signature frame, the wethepeople "The Dawn" 2013 BMX Frame. The brief was to create s super slim frame with attention to detail and quality. Finally the wethepeople "The Dawn" 2013 BMX Frame is completely connected to him when he rides.
Facts: wethepeople "The Dawn" 2013 BMX Frame
- Material: butted, japanese seamless 4130 CrMo tubing
- Geometry:
Top Tube (TT): 20.8" or 21.1"
Chain Stay (CS): 13.2"
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
BB Height: 11.5"

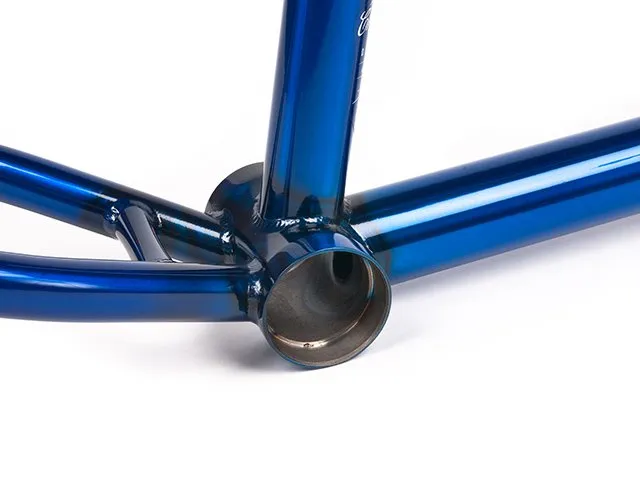

Standover Height: 8.35" - Bottom Bracket: Mid BB, 73mm width, CNC machined, heat-treated

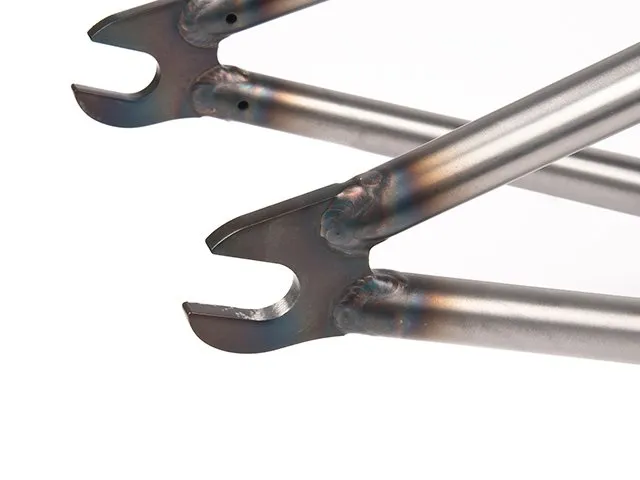

- Dropouts: 5mm thick, 4130 CrMo, laser cutted

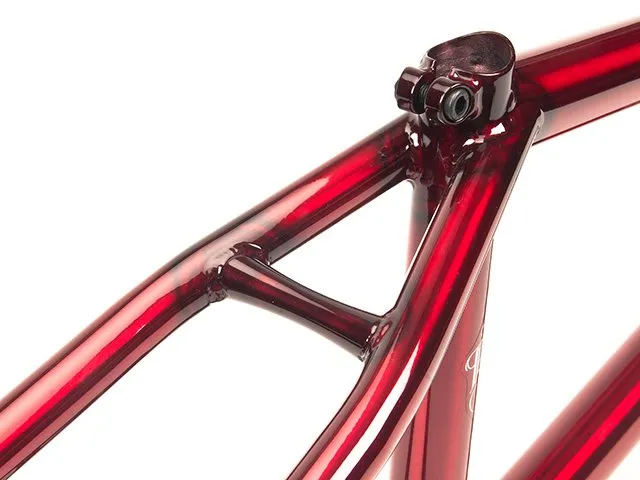

- Extras: CNC'd seat and chain stay bridge, removable brake mounts & cable guide, investment cast gusset, single butted down & top tube
