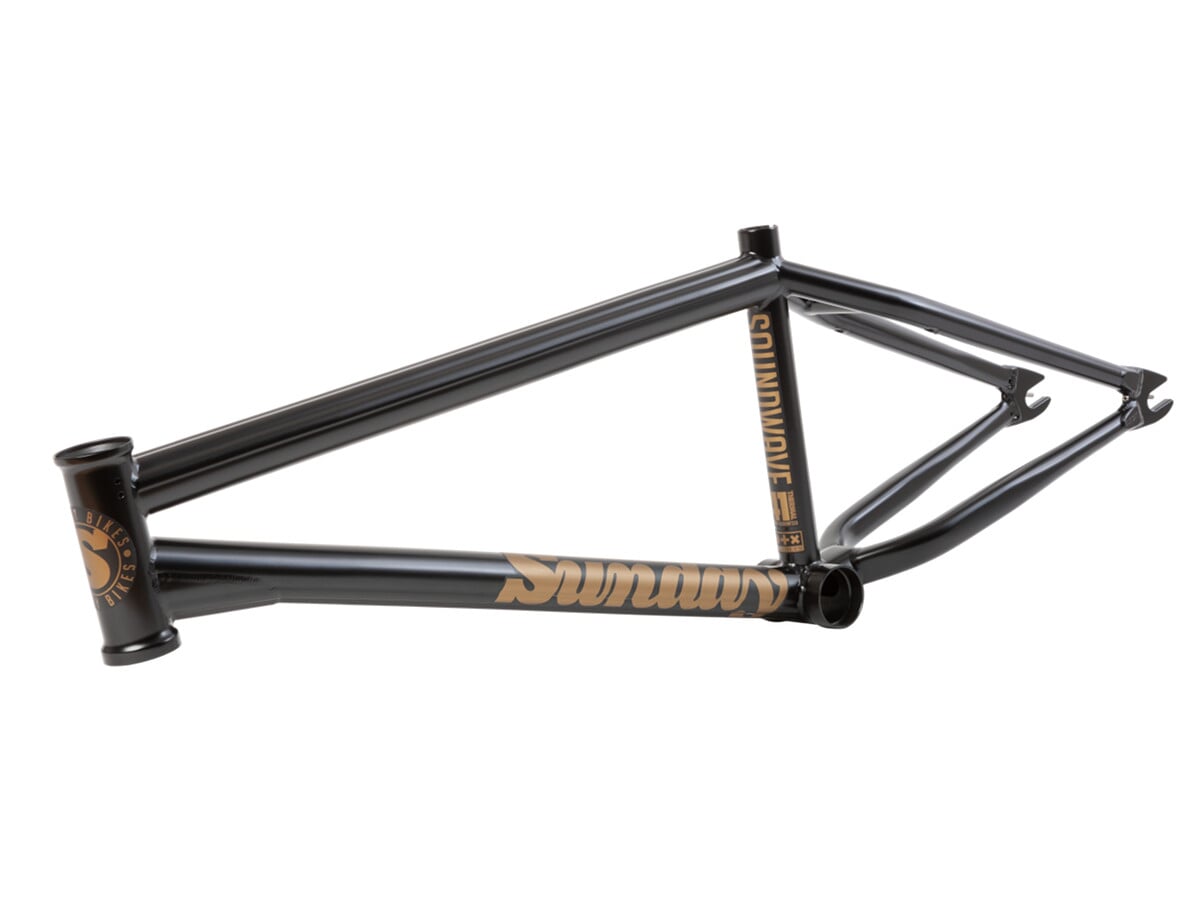

Sunday Bikes "Soundwave V3" 2023 BMX Frame

from 378.11 EUR

Color | Brake Mounts | Top Tube Length
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
  • Weight : 2.22kg / 4.89lbs
  • Packaging Unit: 1 Piece
  • Product ID (PID): 19482

The Sunday Bikes "Soundwave V3" 2023 BMX Frame is already a classic and available since 2007 and has since continuously developed and refined. The 2021 version of the Sunday Bikes "Soundwave V3" 2023 BMX Frame, is the most advanced frame design that Sunday offers. Loaded with features like proven hollow dropouts, integrated chain tensioners, Wave down tube and top tube, cable channel guide, angled removable brake mounts, "Director" style wishbone, post-weld machining of the BB & HT, and full 41-Thermal post weld heat-treating throughout.

Facts: Sunday Bikes "Soundwave V3" 2023 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, 41 Thermal heat treating, down tube gussets, Wave top and down tube, butted tubes, tapered chainstays, integrated headset
  • Geometry:
    Top Tube Length (TT): 20.75", 21.0" or 21.25"
    Chainstay Length (CS): 13.2" (33.53cm) - 13.5" (34.29cm)
    Head Tube Angle (HA): 75°
    Seat Tube Angle (SA): 71°
    Bottom Bracket Height: 11.5" (29.21cm)
    Standover Height (SO): 9" (22.86cm)
  • Seat Clamp: without
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: hollow 8mm thick dropouts, 14mm slots
  • Chain Tensioners: integrated
  • Brake Type: U-Brake
  • Brakemounts: with (screwable, M8)
  • Brakemounts included with delivery: Yes
  • Gyro compatible: Yes
  • Features: Wave top and down tube, wide rear end for fat 2.4" tires
