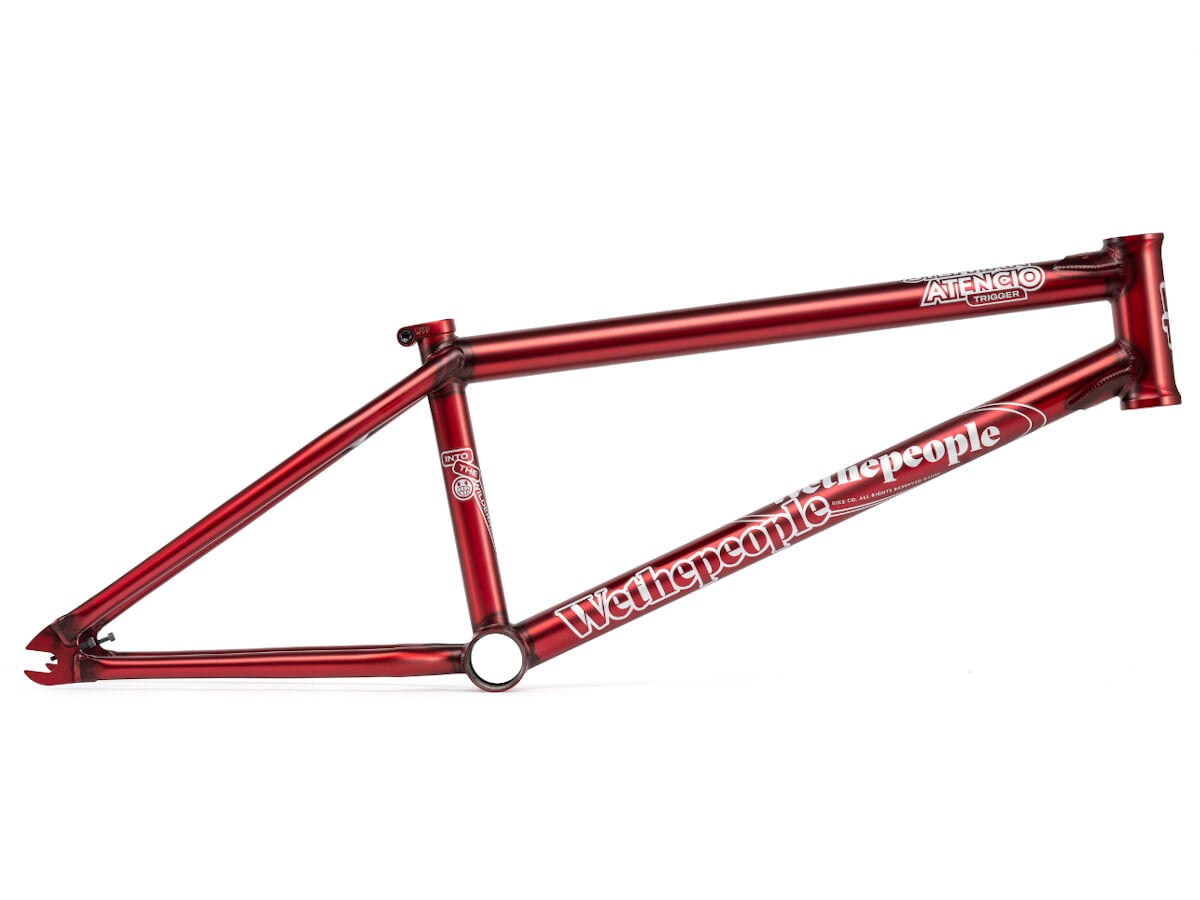

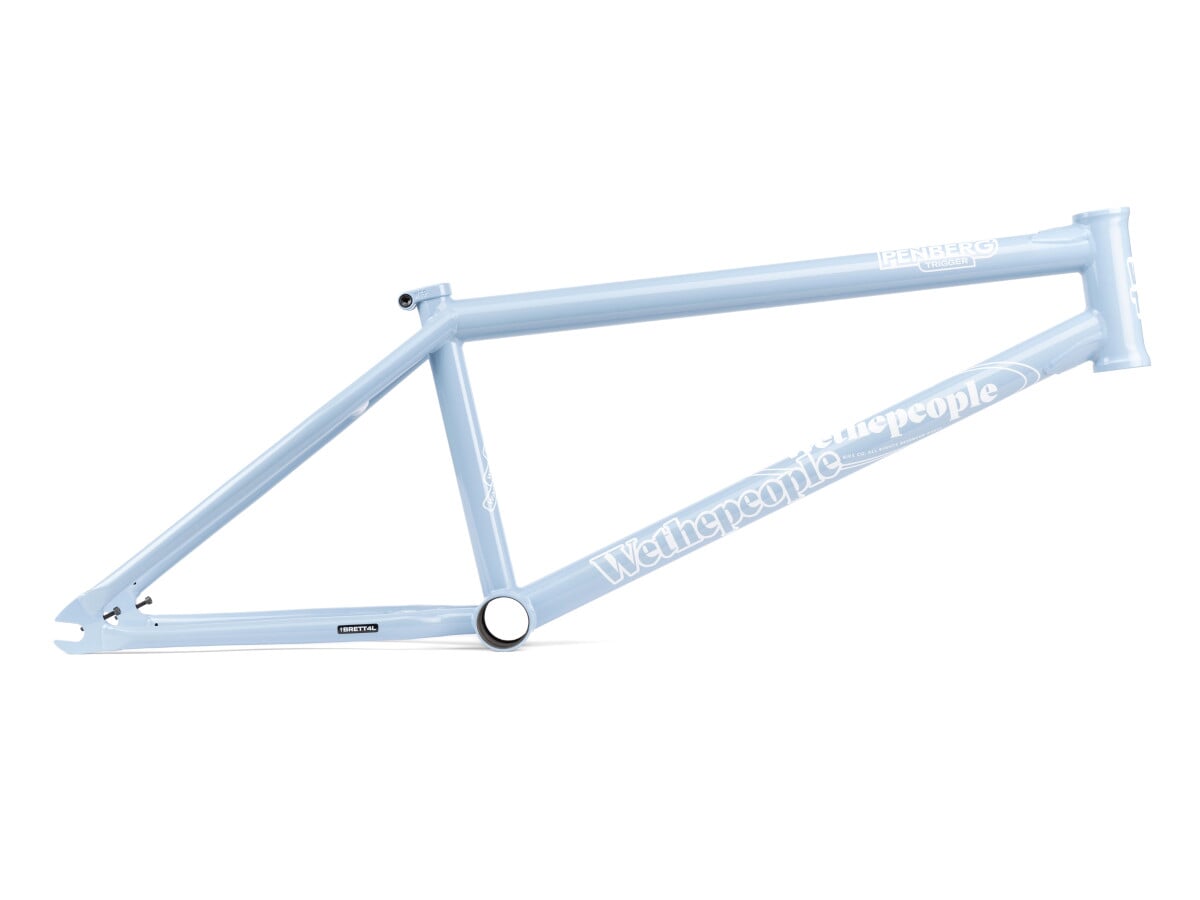

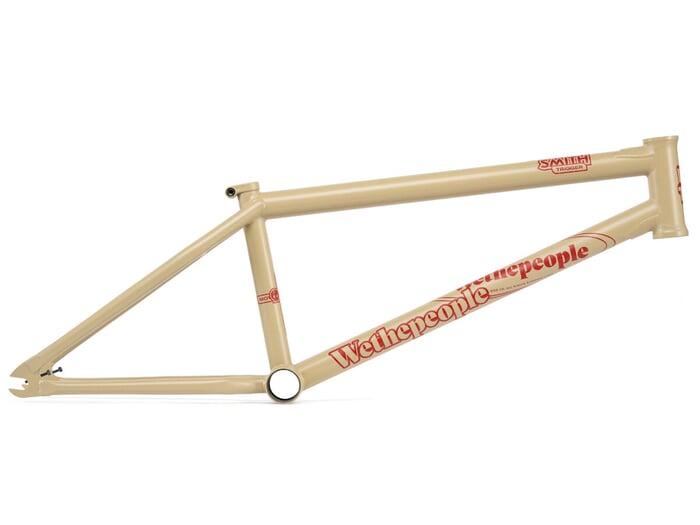

wethepeople "Trigger" 2023 BMX Frame
- Weight : 2.36kg / 5.20lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 24868
The wethepeople "Trigger" 2023 BMX Frame was designed by the wethepeople AM team, comes with a short rear triangle of 12.7" and a steep 75.75° head tube angle. The wethepeople "Trigger" 2023 BMX Frame comes without brake sockets or cable holder holes (brakeless) and has a very "clean" overall look.
Facts: wethepeople "Trigger" 2023 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 Japanese CrMo, top tube and down tube gussets, butted tubes, integrated headset, integrated seatclamp, offset thickness dent resistant chainstays and mid bb for grind resistance
- Geometry:
Top Tube Length (TT): 20.5", 20.75", 21.0" or 21.25"
Chainstay Length (CS): 12.7" - 13" (20.5" & 20.75"), 12.95" - 13" (21"), 13.2" - 13.5" (21.25")
Head Tube Angle (HA): 75.75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 8.75" (20.5"), 9"(20.75"), 9.3" (21"), 9.6"(21.25") - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6mm thick, 14mm slots, CNC machined, 4130 CrMo
- Chain Tensioners: without
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: super steep 75.75 degree headtube, wide rear end for fat 2.4" tires, designed by wethepeople AM team
- Model Year: 2023
