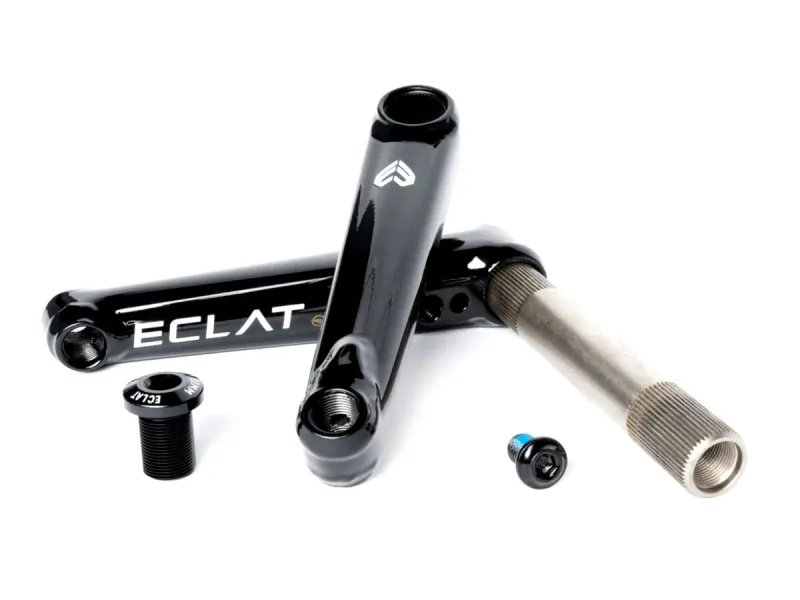

eclat "TibiaXLT" BMX Crank
- Weight : 0.93kg / 2.05lbs
- Packaging Unit: 1 Set
- Product ID (PID): 26986
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/eclat-tibiaxlt-bmx-crank-p-26986
Printed: 11/19/2026
Printed: 11/19/2026
The
eclat "TibiaXLT" BMX Crank
utilizes a lighter 3-piece arm design, ultra-hollow spindle and 7075-T6 alloy screws to keep weight to a minimum while maintaining the classic tibial profile and legendary strength.
The molded pedal pad and ankle-friendly design make the
eclat "TibiaXLT" BMX Crank
became a hit with Felix Prangenberg, Jordan Godwin and the rest of the crew.
Facts: eclat "TibiaXLT" BMX Crank
- Material Crank Arms: 4130 CrMo, heat treated, tubular
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 152mm, 160mm, 165mm or 175mm
- Spindle Diameter: 22mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
- Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
- Bolt-Drive (25T or larger): right (RHD) and left (LHD)
- Spline-Drive: right (RHD) and left (LHD) - Pedal Threat: for 9/16" pedals
- Spindle Bolt: 1x bolt (15x1mm, 22mm Axle) with 8mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Extras: 150g lighter than normal tibia crank, double welding system, 3-piece construction with cast pedal hub gusset, ankle-friendly profile, installation tool included
- Recommended for: Street, Park or Trails
- Model Year: 2024
