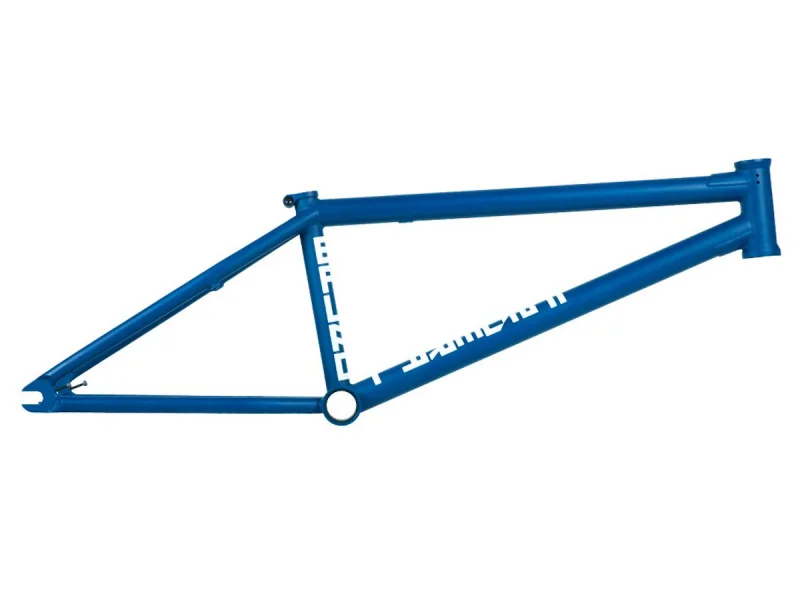

Federal Bikes "Bruno" 2020 BMX Frame
-
Weight : 2.25kg / 4.96lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 18719
The Federal Bikes "Bruno" 2020 BMX Frame is the signature BMX frame of German BMX Pro Bruno Hoffmann and is made by 100% 4130 CrMo. The Federal Bikes "Bruno" 2020 BMX Frame has been completely redesigned to include 6.5mm investment cast dropouts (with chain tensioners) and investment cast chain, seat stay bridges with the raised Federal logo and an engraved Federal logo on the head tube. The Federal Bikes "Bruno" 2020 BMX Frame also updated the frame to feature the new Federal investment cast seat clamp as well as increasing the stand over height from 8.9" to 9". The Federal Bikes "Bruno" 2020 BMX Frame has new graphics designed by Rich Forne.
Facts: Federal Bikes "Bruno" 2020 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, tappered chainstays, integrated headseat, integrated seatclamp (investment cast), Mid BB, investment cast dropouts
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 13.6" (34.54cm) - 13.9" (35.31cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.8" (29.97cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Bruno Hoffmann Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2020
