Fiend BMX "Segment 3pc" BMX Crank
-
Weight : 1.04kg / 2.29lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 11474

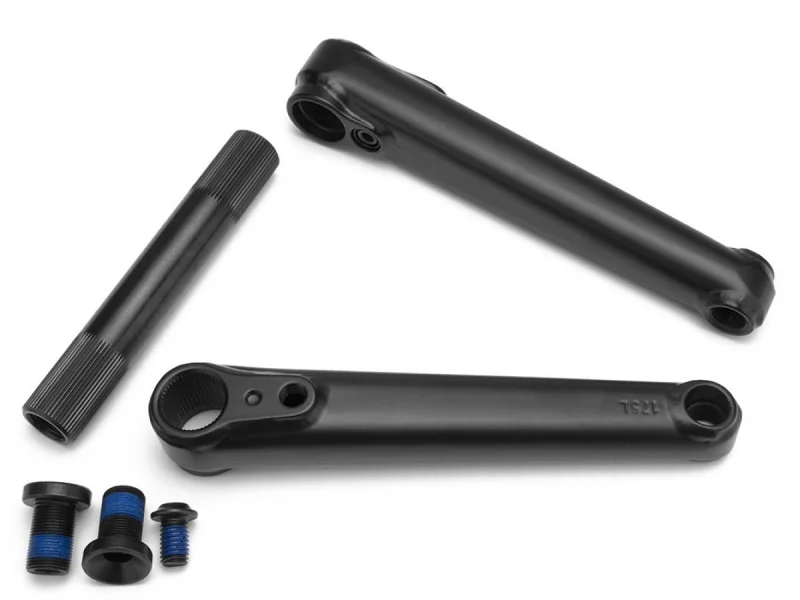

The Fiend BMX "Segment 3pc" BMX Crank is equipped with a Wedge-system (wedging technique) and a easy to install/remove 3-pc. crankset (installation tool not required) with a 22mm CrMo hollow spindle and because of its modern, fully heat treated manufacturing technology very strong and light weight, too. The crank arms of the Fiend BMX "Segment 3pc" BMX Crank have a rectangular shape with rounded edges and the areas of the spindle and the pedal hole are fully welded around to ensure maximum strength. By tightening or loosening the into the crank arm installed 5mm allen bolt a wedge mechanism at the inside of the crank arm is controlled which presses against the spindle and ensuring a snug fit of the crank arm on the spindle. The Fiend BMX "Segment 3pc" BMX Crank comes with regular sprocket mounts on both crank arms (25T) which makes it RHD/LHD compatible.
Facts: Fiend BMX "Segment 3pc" BMX Crank
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 160mm, 165mm, 170mm or 175mm
- Spindle Diameter: 22mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
Bolt-Drive (25T or larger): right (RHD) and left (LHD)
Spline-Drive: right (RHD) and left (LHD) - Pedal Threat: for 9/16" pedals
- Spindle Bolt: 2x bolts (15x1mm, 22mm Axle) with 6mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Extras: internal wedge system to ease installation, completely surround welded axle and pedal jacks, rectangular flattened arms
- Recommended for: Street, Park or Trails
- Model Year: 2017
