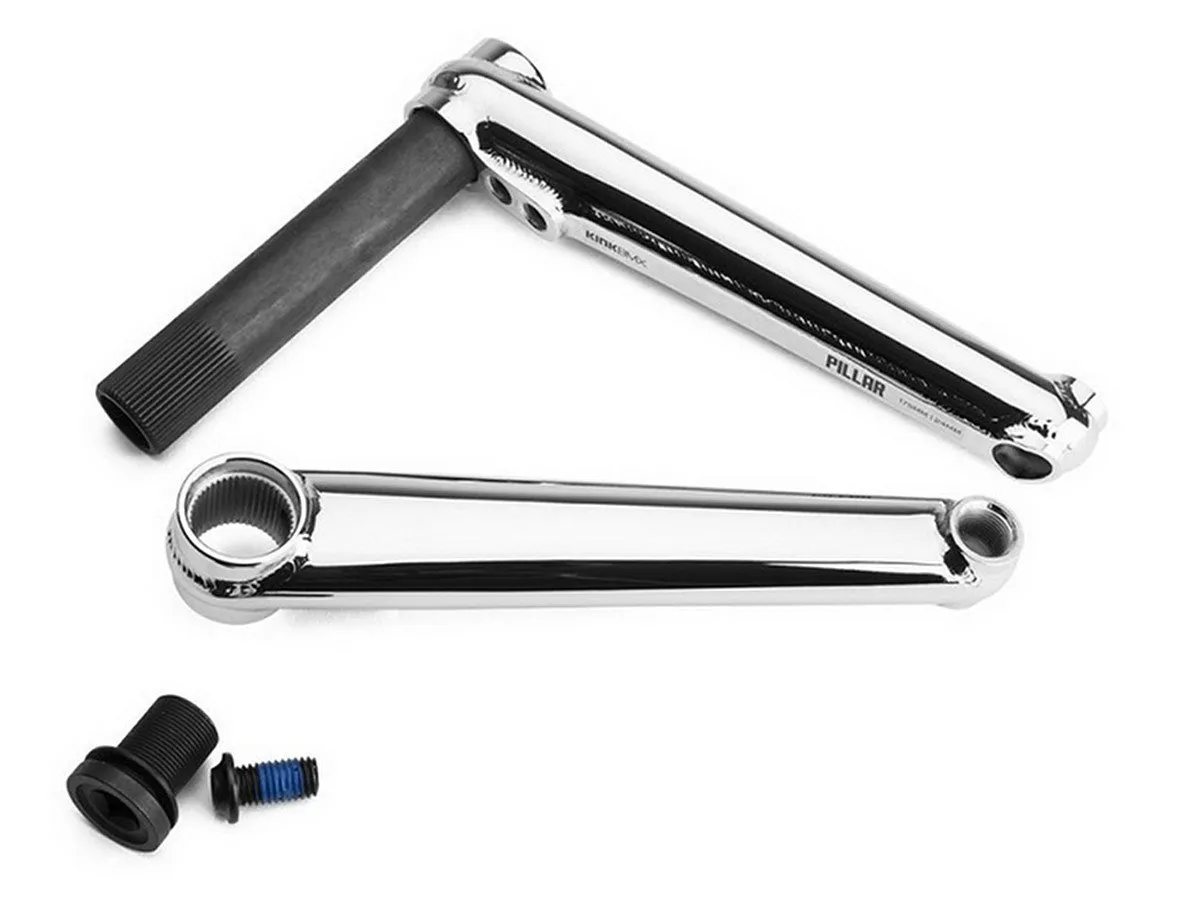

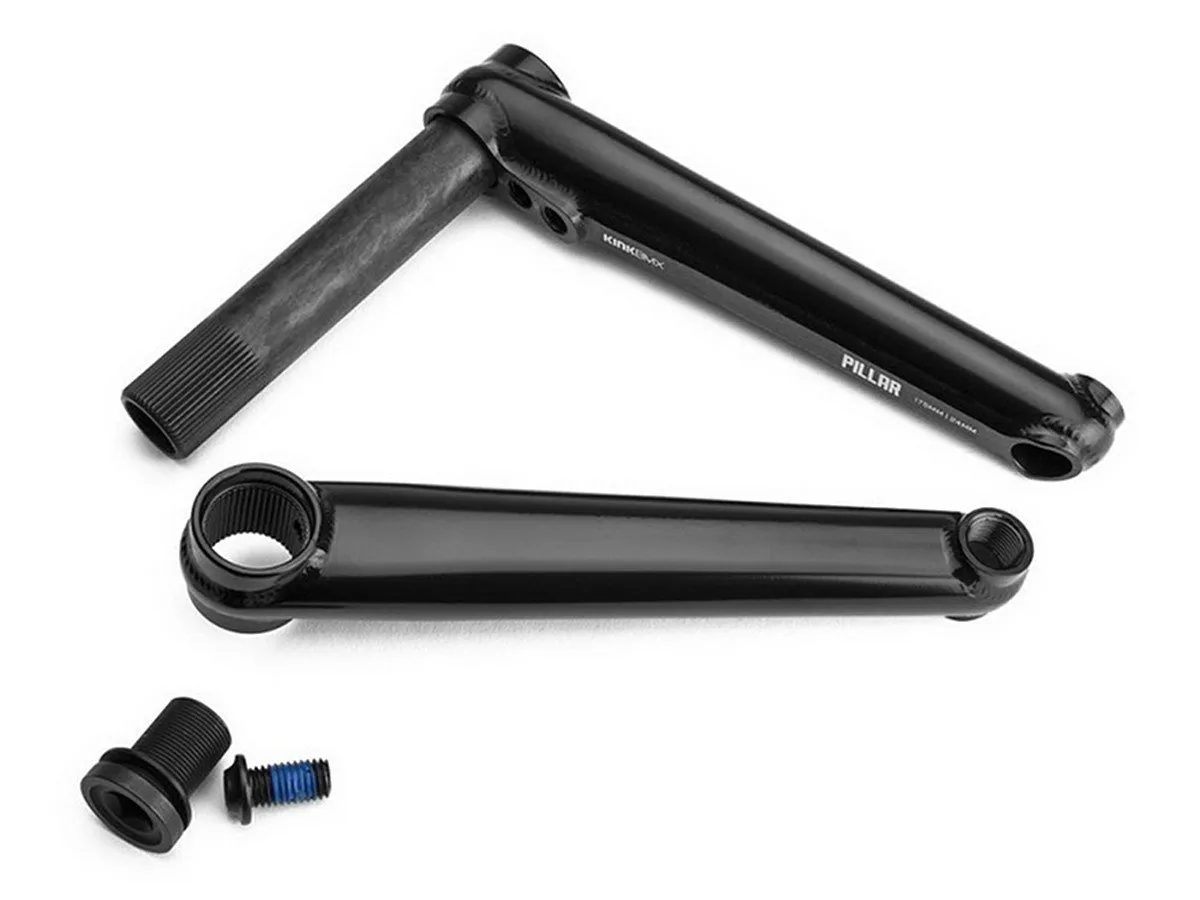

Kink Bikes "Pillar 22mm" BMX Crank

209.95 EUR

[incl. 19% VAT excl. shipping]
Color
lenght
Qty.

With this Kink Bikes "Pillar 22mm" BMX Crank threw thy guys an awesome new crank on the BMX market. This Kink Bikes "Pillar 22mm" BMX Crank is not only light it is also really solid because of the additional backplate on every crank arm and the hollow 22mm axle. The crank is RHD and LHD compatible.

Facts: Kink Bikes "Pillar 22mm" BMX Crank

  • Material Crank Arms: 4130 CrMo, heat treated
  • Material Crank Spindle: 4130 CrMo, heat treated, hollow
  • Crank-Type: 2-piece
  • Crank Arm Length: 170mm or 175mm (selectable as an option)
  • Spindle Diameter: 22mm
  • Spindle-Type: 48-Spline
  • possible Sprocket Mount by:
    Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
    Bolt-Drive (25T or larger): right (RHD) and left (LHD)
    Spline-Drive: right (RHD) and left (LHD)
  • Pedal Threat: for 9/16" pedals

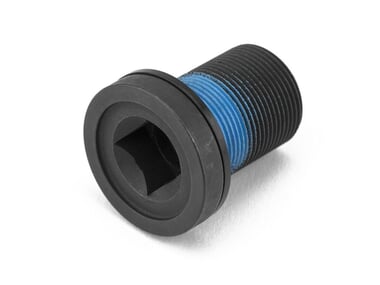

  • Spindle Bolt: 1x bolts (15x1mm, 22mm Axle) with 6mm allen key
  • Sprocket Bolt: 1x bolt (10x1.5mm)(Standard), 1x bolt (8x1.25mm)(Micro-Drive)
  • Extras: completely surround welded axle and pedal jacks, rectangular flattened arms
  • Recommended for: Street, Park or Trails


  • Weight (in kg): 0.82
  • Weight (in lbs): 1.81
  •
  • Packaging Unit: 1 Set
  •
  • Product ID (PID): 2417
