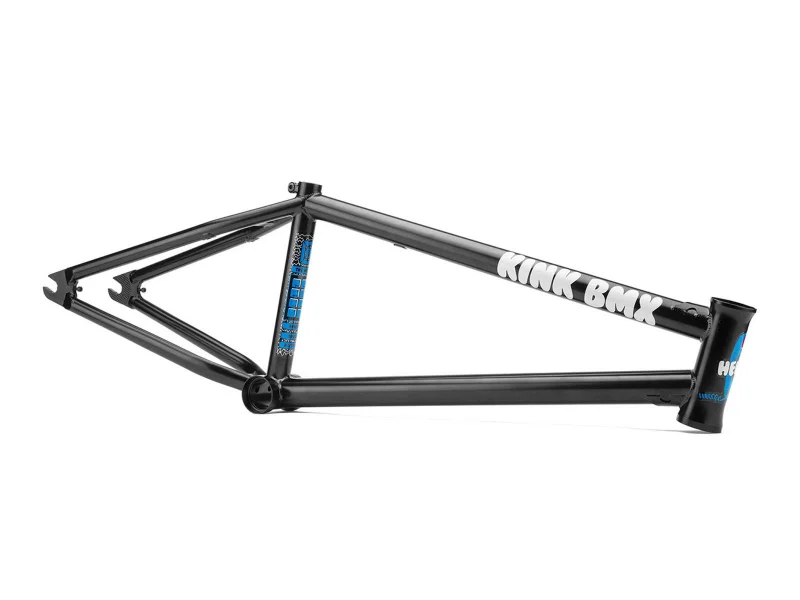

Kink Bikes "Williams" BMX Frame
-
Weight : 2.21kg / 4.87lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 16247
The Kink Bikes "Williams" BMX Frame is Nathan Williams signature frame. The Kink Bikes "Williams" BMX Frame was designed after Nathan's preferances and comes with a steeper 75.5-degree headtube which is responsive. The short 12.75" chainstay length makes the frame nimble without compromising on tire clearance; fitting up to 2.5" tires.
Facts: Kink Bikes "Williams" BMX Frame
- Wheel Size: 20"
- Material: 100% Seamless Sanko 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 12.75" (32.39cm) - 13.25" (33.65cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Anti-Slip Interior Dropout Knurling, 14mm, integrated chain tensioners
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Wide rear end for fat 2.5" tires, CNC’d Seatstay Bridge with Kink Badge Inlay
- Model Year: 2020
