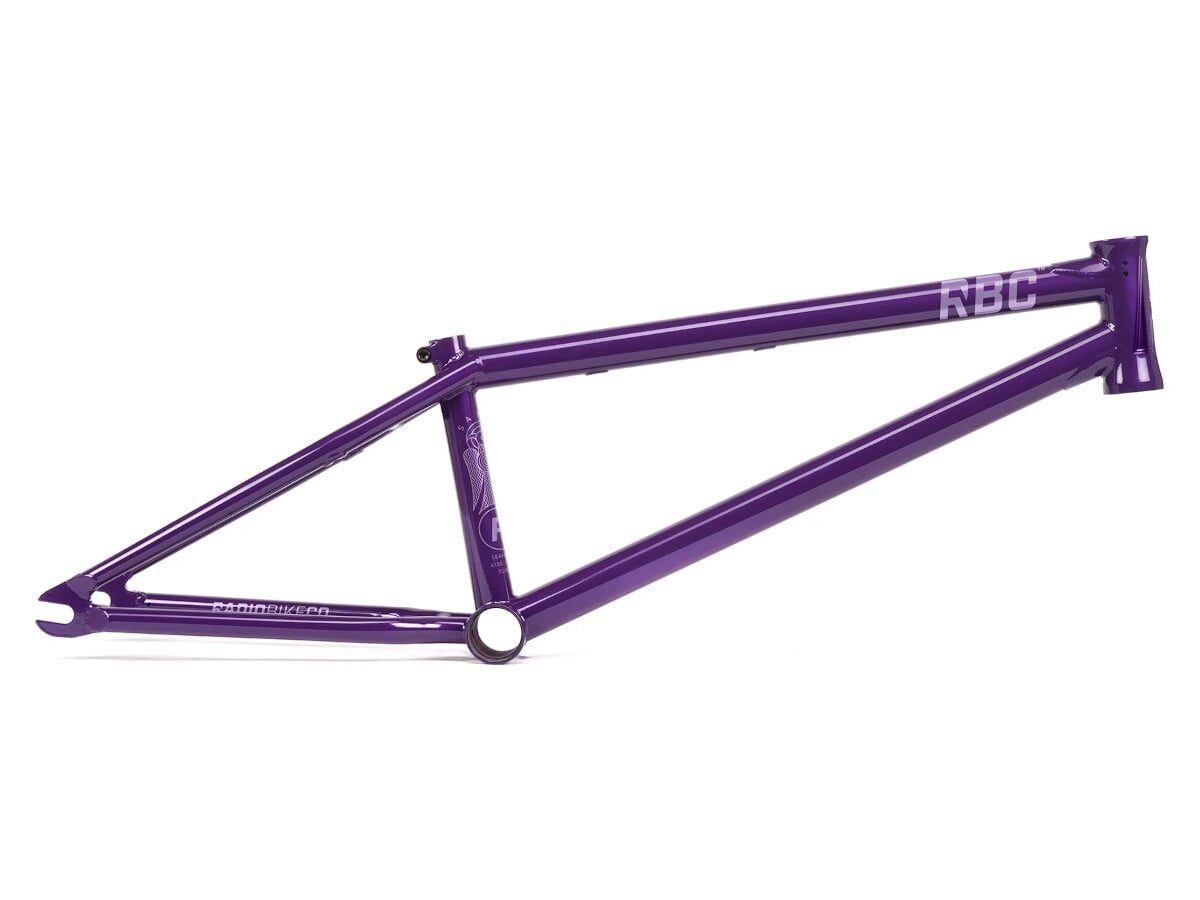

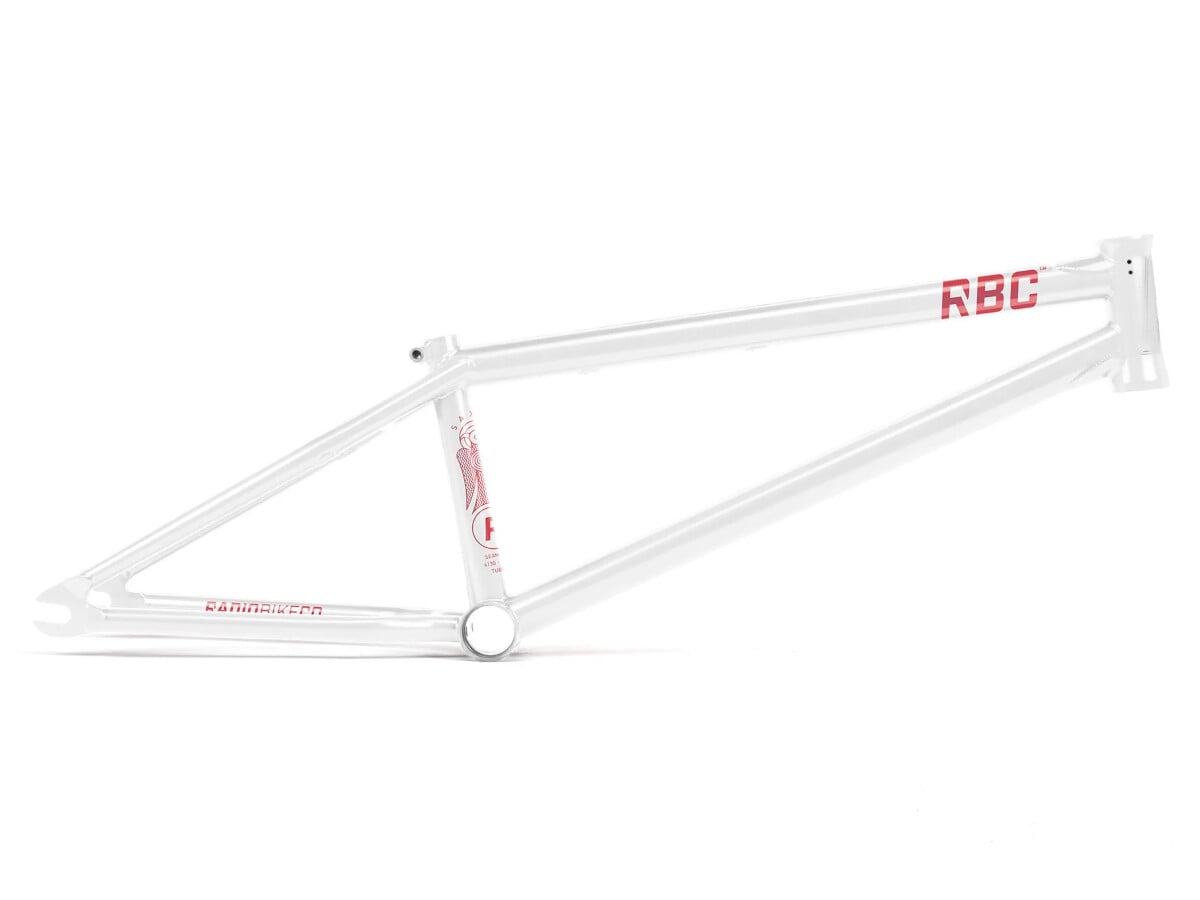

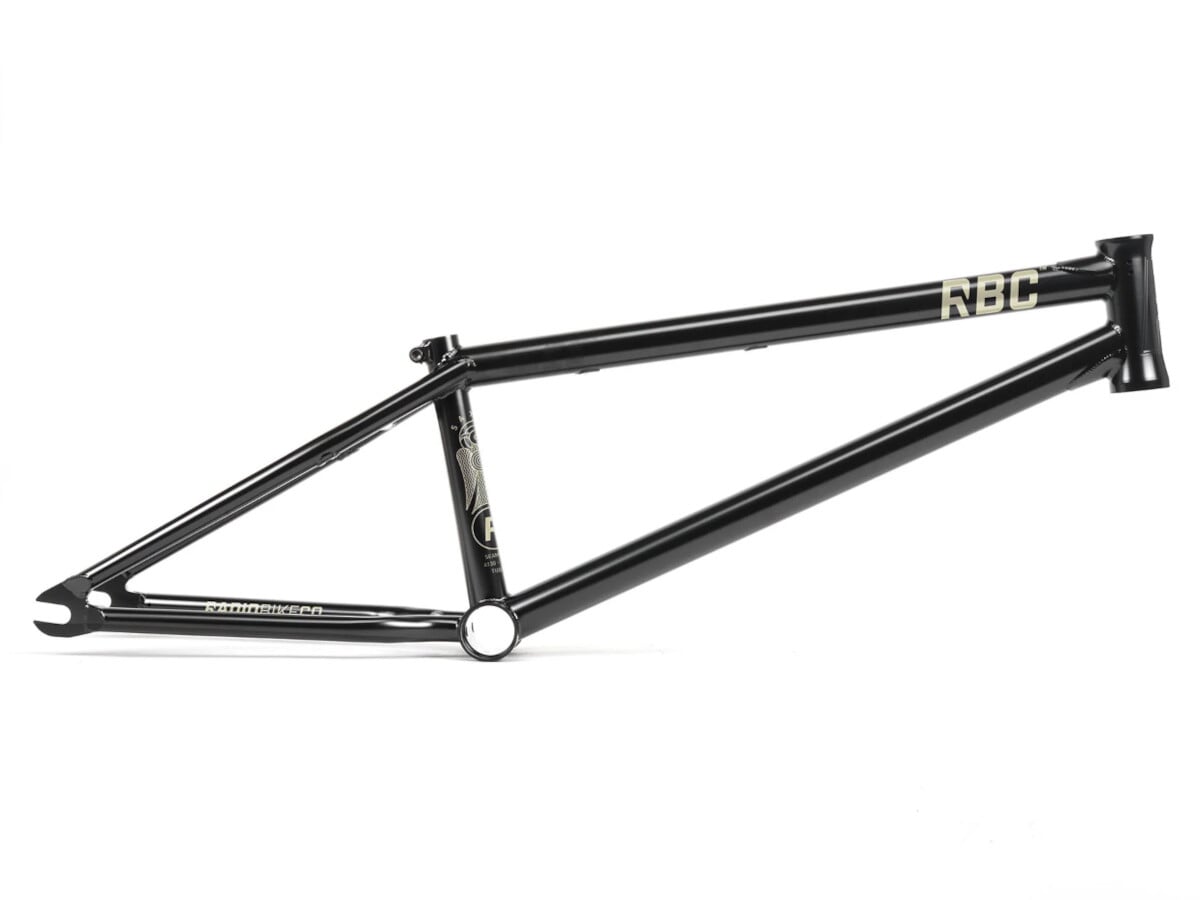

Radio Bikes "Saxon" BMX Frame
-
Weight : 2.22kg / 4.89lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29100
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Radio Bikes "Saxon" BMX Frame
features a smooth hourglass style headtube and minimal dropouts, and the unique seat tube design gives your feet more room to pinch during tabletops and tailwhips.
The
Radio Bikes "Saxon" BMX Frame
is made for the modern-day skatepark shredder featuring a super short 12.75″ chainstay and 8″ stand over height keeping it nimble, whilst the lower 11.5″ bottom bracket and 75-degree headtube keep the frame stable whilst blasting transitions.
Facts: Radio Bikes "Saxon" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, Mid BB
- Geometry:
- Top Tube Length (TT): 20.4" or 20.8"
- Chainstay Length (CS): 12.5" (31.75cm) - 13.25" (33.65cm)
- Head Tube Angle (HA): 75°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.6" (29.46cm)
- Standover Height (SO): 8" (20.32cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: wide rear end for fat 2.4" tires
- Model Year: 2025
