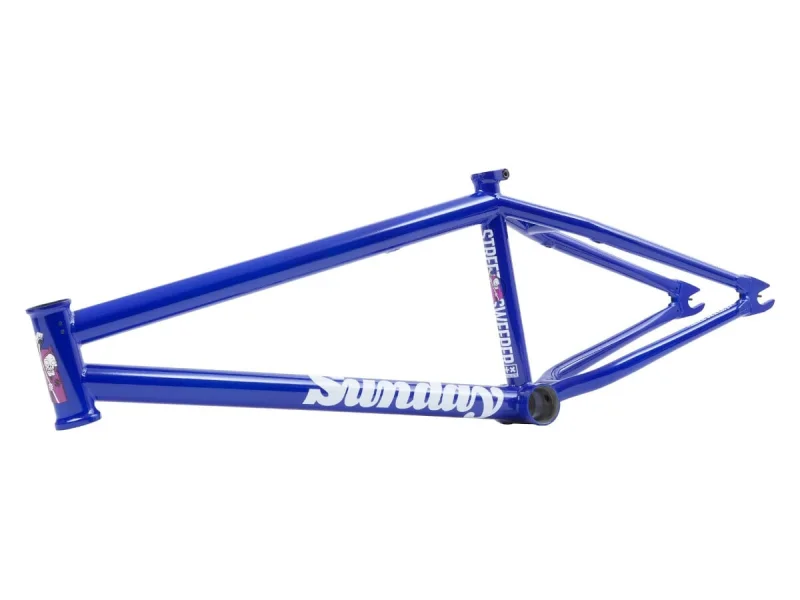

Sunday Bikes "Street Sweeper" 2023 BMX Frame
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 24960
The Sunday Bikes "Street Sweeper" 2023 BMX Frame is the signature BMX frame of BMX Pro Jake Seeley. The Sunday Bikes "Street Sweeper" 2023 BMX Frame comes with a short chain stay of 12.7" - 13" and a headtube angle of 75.25° so it's very interesting for ridin' in da streets!
Facts: Sunday Bikes "Street Sweeper" 2023 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, butted tubes, tapered chainstays, integrated headset, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 20.75" or 21.0"
Chainstay Length (CS): 12.7" (32.26cm) - 13" (33cm)
Head Tube Angle (HA): 75.25°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 8.8" (22.35cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Jake Seeley Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2023
