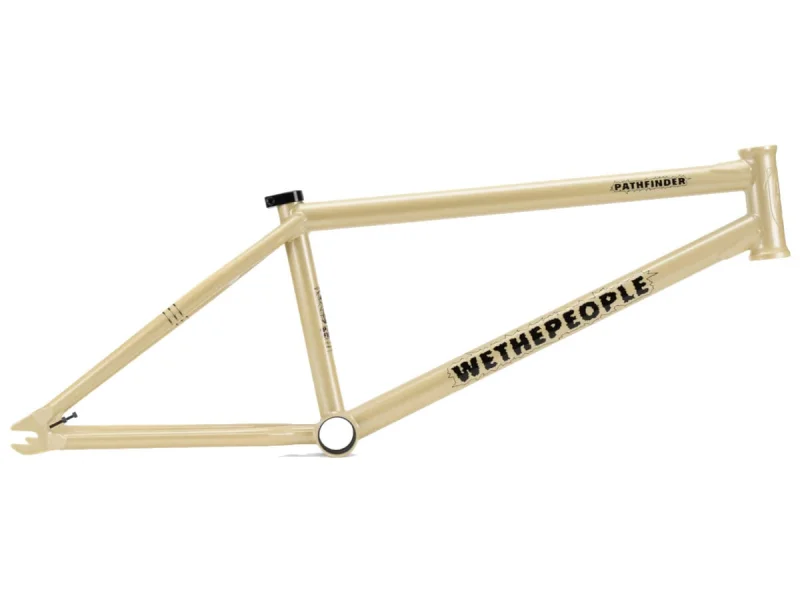

wethepeople "Pathfinder" BMX Frame
-
Weight : 2.36kg / 5.20lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 24830
The wethepeople "Pathfinder" BMX Frame is the signature frame of Felix Prangenberg and uses "new school street inspired" responsive geometry with a ground breaking new offset thickness chain stay and bottom bracket sheel, to strengthen the frame in areas susceptible to grind damage. Now boasting a longer 12.9" - 13.5" chainstay, taller Standover height of 9.666" and some fresh new graphics. Furthermore the wethepeople "Pathfinder" BMX Frame includes a integrated seat clamp, wider rear triangle for a 2.4" tire and has no brake hardware holes (brakeless) for a very clean and modern look.
Facts: wethepeople "Pathfinder" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 Japanese CrMo, top tube and down tube gussets, butted tubes, integrated headset, integrated seatclamp, offset thickness dent resistant chainstays and mid bb for grind resistance
- Geometry:
Top Tube Length (TT): 20.5", 20.75" or 21.0"
Chainstay Length (CS): 12.9" (32.77cm) - 13.5" (34.29cm)
Head Tube Angle (HA): 76°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 9.666" (24.55cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6mm thick, 14mm slots, CNC machined, 4130 CrMo
- Chain Tensioners: without
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Felix Prangenberg Signature, extruded offset thickness dent resistant chainstays, super strong offset thickness bottom bracket shell, super steep 76 degree headtube, wide rear end for fat 2.4" tires
- Model Year: 2023
