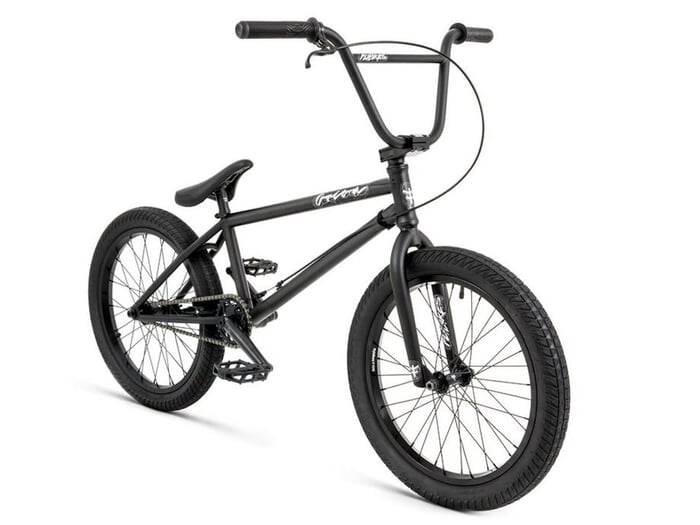

Flybikes "Orion" 2023 BMX Bike - Flat Black | RHD

672.23 EUR

Color | Top Tube Length
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight (in kg): 11.4
  • Weight (in lbs): 25.13
  • Packaging Unit: 1 Piece
  • Product ID (PID): 25333

The Flybikes "Orion" 2023 BMX Bike - Flat Black | RHD provides 100% 4130 CrMo quality at frame, fork and handle bar, high quality parts of Flybikes and Trebol and a solid allround geometry which will work for skatepark, trails and street. The Flybikes "Orion" 2023 BMX Bike - Flat Black | RHD is equipped with a CNC machined Flybikes "Volcano" Topload stem, a Trebol 3-piece CrMo crank set with CNC machined Flybikes "Tractor" sprocket (29T), a wheel set with fully sealed female front and cassette hub laced into stable Flybikes "Pyramide" double wall rims.

Facts: Flybikes "Orion" 2023 BMX Bike - Flat Black | RHD

  • Wheel Size: 20"
  • BMX Frame: 100% 4130 CrMo, top and down tube gusset, removable brake hardware, tapered chainstays, integrated headset, integrated seat clamp, integrated chain tensioners, Mid BB
    Top Tube (TT): 21.0"
    Chain Stay (CS): 13.7"
    Head Tube (HA): 75°
    Seat Tube (SA): 71°
    BB Height: 11.75"
    Standover: 9.25"
  • BMX Fork: 100% 4130 CrMo, 1-piece steerer, tappered legs, 32mm offset
  • BMX Bar: 100% 4130 CrMo, 2-piece
    Height: 9"
    Width: 29"
    Backsweep: 10°
    Upsweep: 2°
    Clamping Diameter: 22.2mm
  • Grips: Flybikes "Ruben V2" grips
  • Stem: Flybikes "Volcano TT", Topload, CNC machined 6061-T6 aluminum, 50mm reach
  • Headset: Trebol, integrated, sealed bearing
  • Brake Lever: Trebol, aluminum, 2-finger
  • Brake: Trebol "Springhanger", U-brake, aluminum
  • Gyro: -
  • Gyro compatible: Yes
  • Seat: Flybikes "Sierra V3", Tripod, slim padded
  • Seat Post: Flybikes, Tripod, aluminum
  • Seat Clamp: Integrated
  • Pedals: Flybikes "Ruben Graphite", plastic, 9/16“
  • Chain: KMC "510"
  • Sprocket: Flybikes "Tractor", CNC machined 7075 aluminum, 29T
  • Crank: Trebol, 3-piece, 100% CrMo, 175mm, RHD
  • Bottom Bracket: Mid BB, sealed bearing
  • Hub (front): Trebol "Bueno", sealed bearing, female axle with 10mm CrMo bolts, 36H
  • Hub (rear): Trebol "Bueno", cassette hub, RHD, 6061-T6 aluminum CNC body and cones, sealed bearing, female axle with 10mm CrMo bolts, 36H
    Driver: 9T, RHD, sealed bearing
  • Rim (front): Flybikes "Pyramide", double wall, 6061-T6 aluminum, 36H
  • Rim (rear): Flybikes "Pyramide", double wall, 6061-T6 aluminum, 36H
  • Tire (front): Flybikes "Ruben Ligera" BMX tire
    Width: 20" x 2.40"
  • Tire (rear): Flybikes "Ruben Rampera" BMX tire
    Width: 20" x 2.25"
  • Pegs: -
