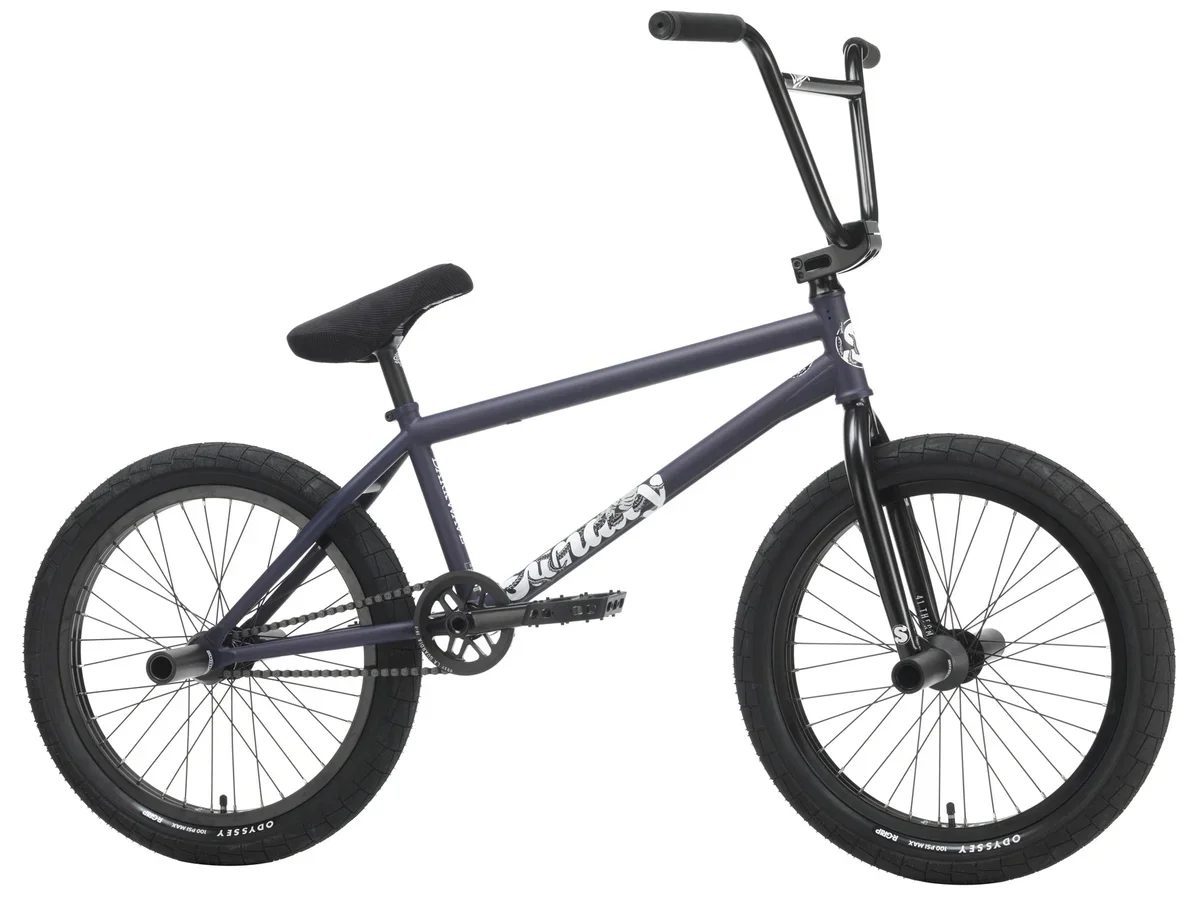

Sunday Bikes "Darkwave Authentic Raiford RHD" 2025 BMX Bike - Midnight Purple | Freecoaster | RHD
-
Weight : 11.4kg / 25.13lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29453
The
Sunday Bikes "Darkwave Authentic Raiford RHD" 2025 BMX Bike - Midnight Purple | Freecoaster | RHD
is the signature BMX bike of BMX Pro Broc Raiford and comes with 100% solid aftermarkt parts like Odyssey "Thunderbolt+" crank, Odyssey "Clutch Pro" freecoaster (RHD), Odyssey "Hazard Lite" rims, Sunday "Darkwave" frame, Sunday "Darkwave" fork or Odyssey "La Guardia Guard" sprocket. The
Sunday Bikes "Darkwave Authentic Raiford RHD" 2025 BMX Bike - Midnight Purple | Freecoaster | RHD
is made for riding BMX professionell and is
one of the best available BMX complete bike on the market.
This version of the
Sunday Bikes "Darkwave Authentic Raiford RHD" 2025 BMX Bike - Midnight Purple | Freecoaster | RHD
has the chain, sprocket and driver an the right side of the bike (RHD).

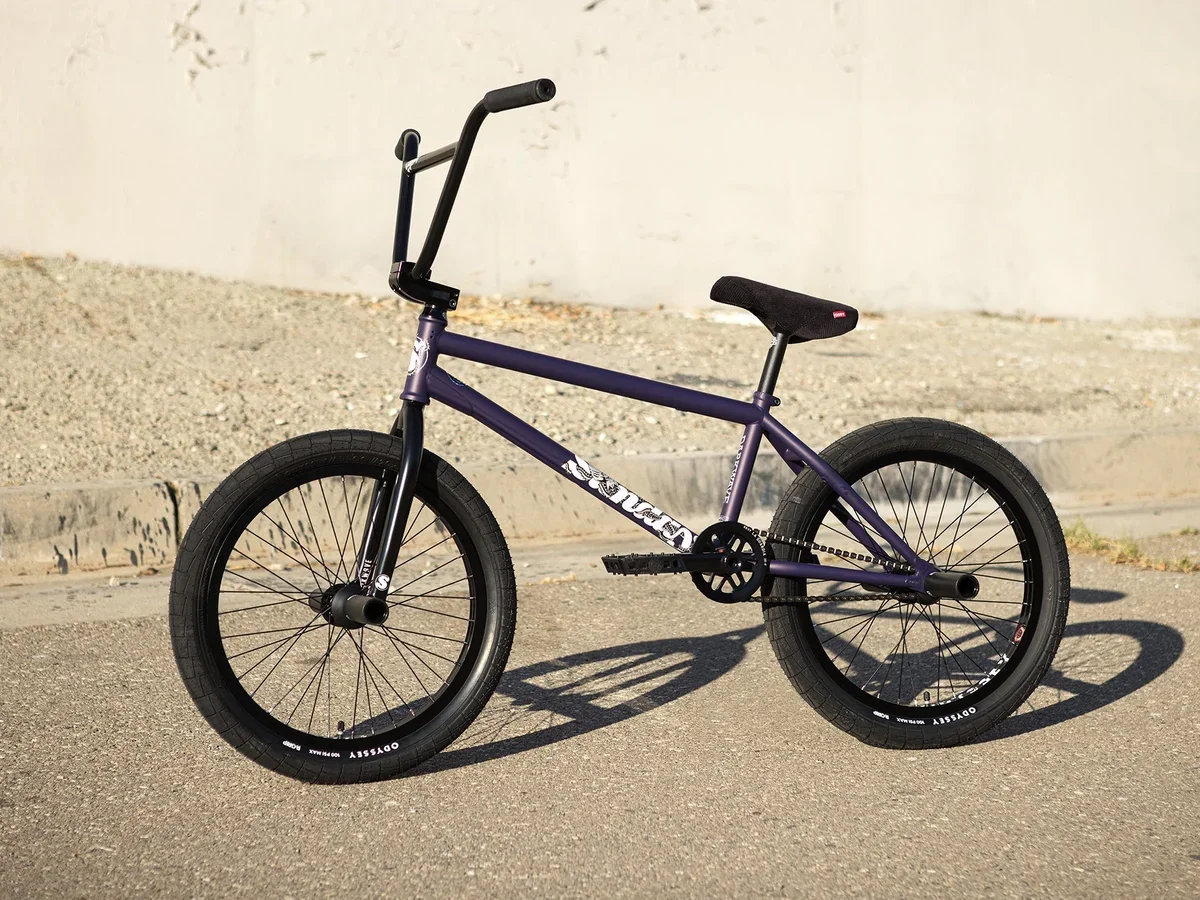

Note: The BMX bike comes with preassembled rear brake (U-Brake). In some pictures the bike is shown as LHD version, but the crank, chain, driver set is on the right side (RHD)
Facts: Sunday Bikes "Darkwave Authentic Raiford RHD" 2025 BMX Bike - Midnight Purple | Freecoaster | RHD
- Wheel Size: 20"
- BMX Frame: Sunday "Darkwave" frame, 100% 4130 CrMo, 41-Thermal integrated headset, Mid BB, down tube gusset, removable U-brake sockets, integrated chain tensioners, wave down tube
- Frame-Geometry:
- Top Tube (TT): 21.0"
- Chain Stay (CS): 13.25" - 13.5"
- Head Tube (HA): 75.25°
- Seat Tube (SA): 71°
- BB Height: 11.75"
- Standover: 9.25"
- Clamping Diameter: 22.2mm - BMX Fork: Sunday "Darkwave", 100% 4130 CrMo, 41-Thermal, 1-piece steerer, Sunday aluminum top bolt, M24, 28mm Reach

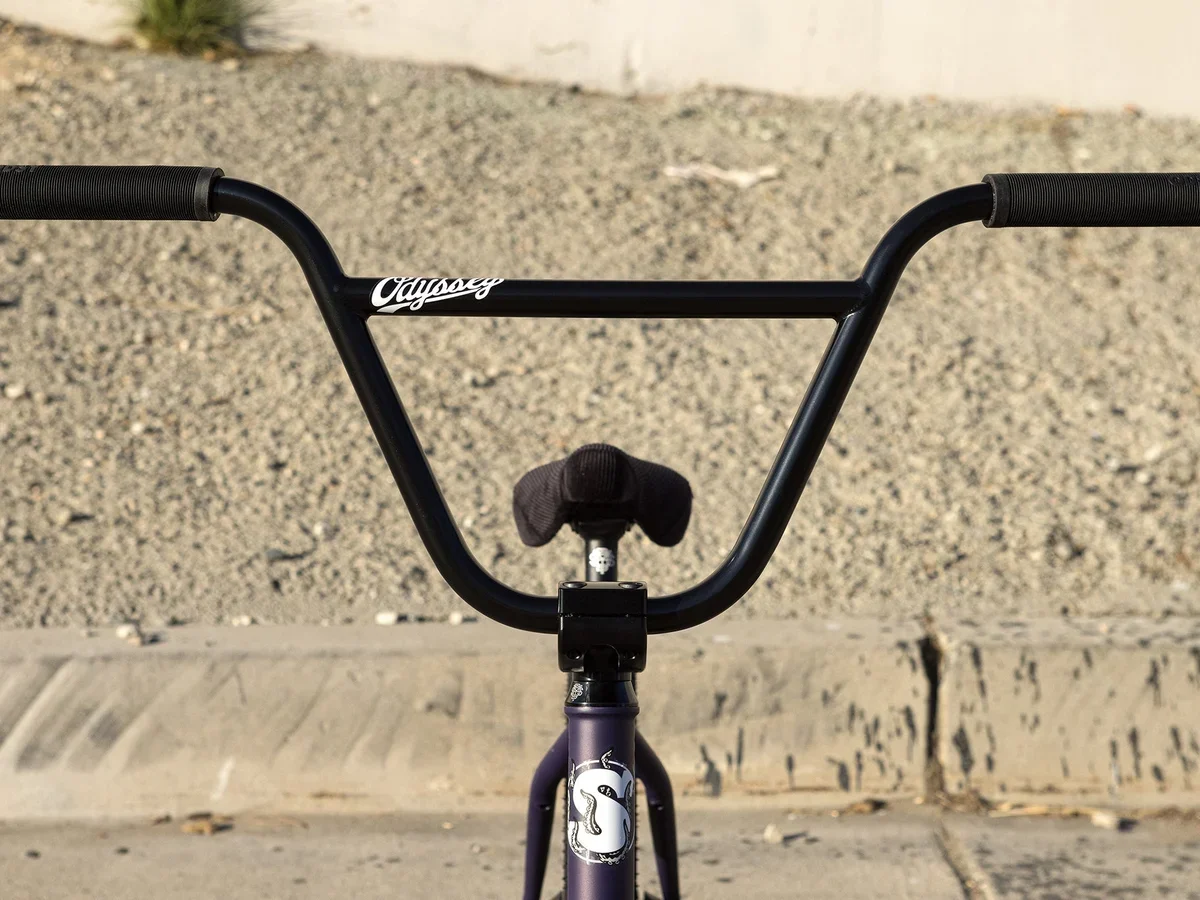

- BMX Bar: Odyssey "Broc" bar, 2-piece, 100% 4130 CrMo, 41-Thermal
- Height: 9.8"
- Width: 29"
- Backsweep: 10°
- Upsweep: 2° - Grips: Odyssey "Broc" Grips

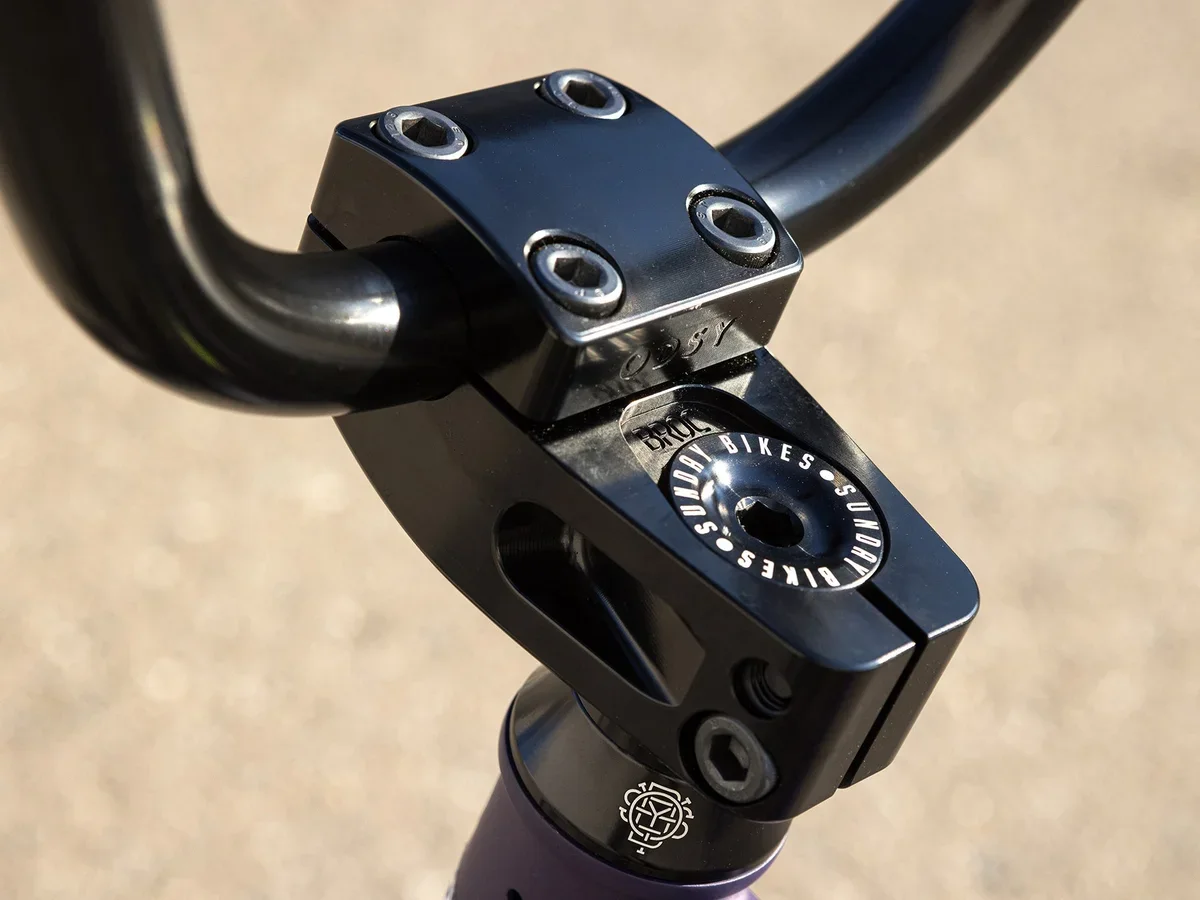

- Stem: Odyssey "Broc V2", Topload, aluminum, 50mm reach
- Headset: Sunday Integrated, integrated headset, sealed bearing, 1-1/8"
- Gyro: -
- Gyro compatible: Yes

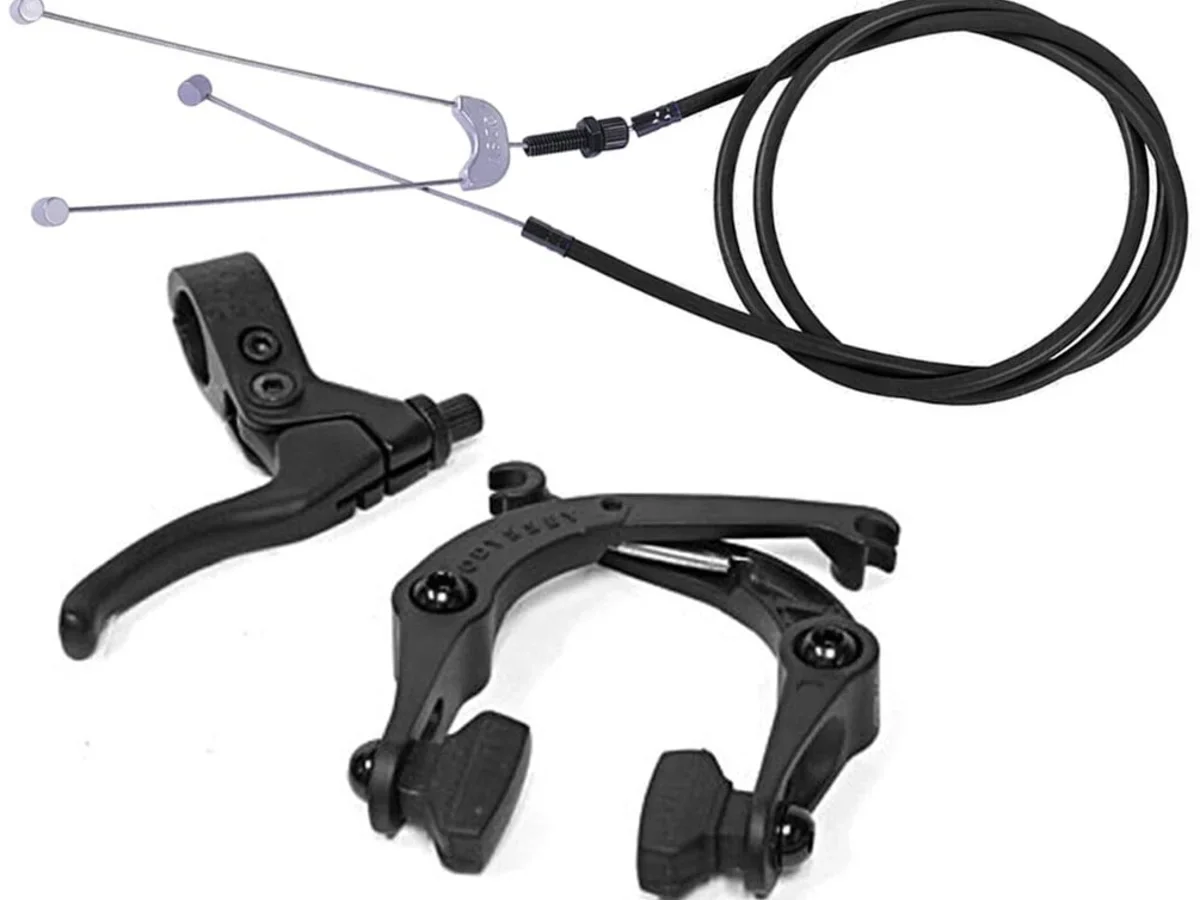

- Brake Lever: Odyssey "Springfield"
- Brakecable: Odyssey "Linear Quik Slic" Cable
- Brake: Odyssey "Springfield" U-brake

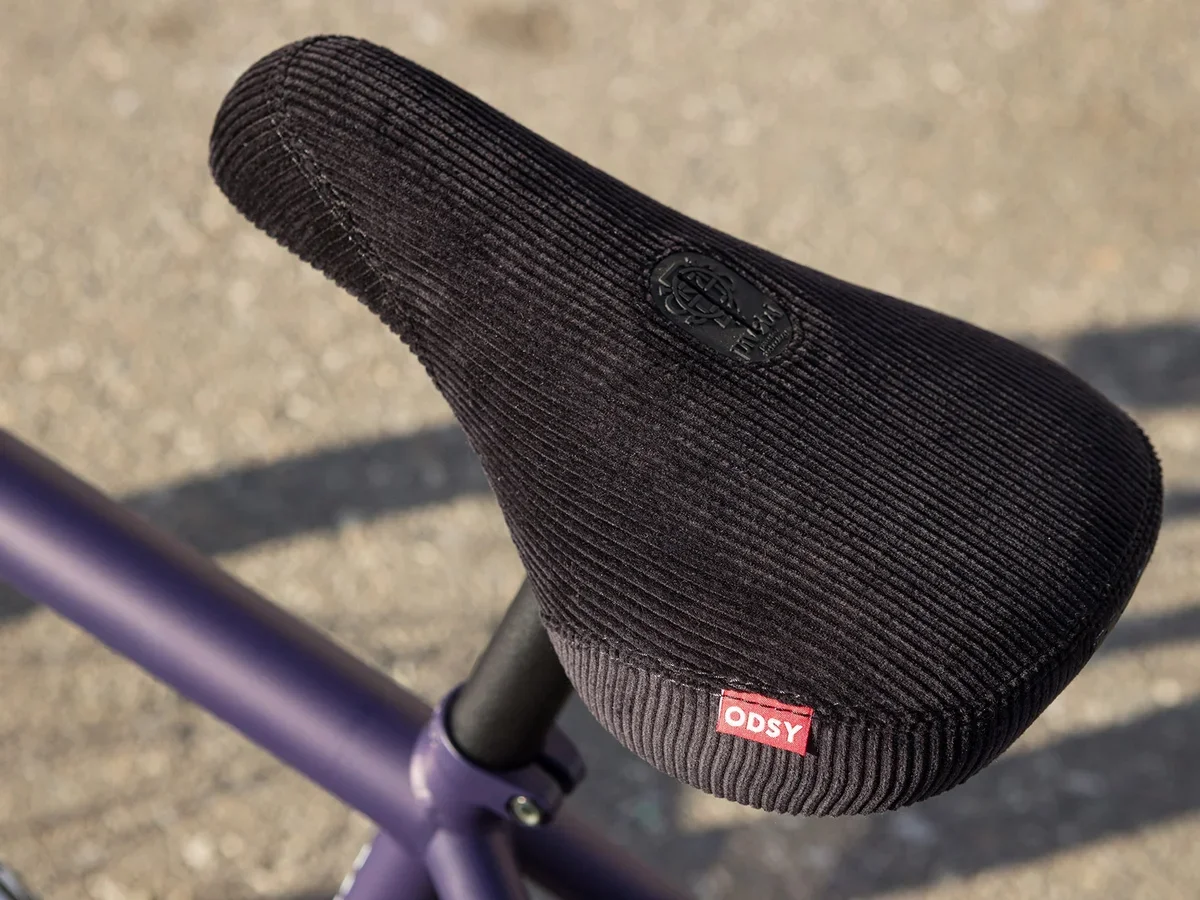

- Seat: Odyssey, Pivotal, padded
- Seat Post: Odyssey Pivotal, aluminum, 25.4mm, 200mm
- Seat Clamp: Sunday, aluminum
- Bottom Bracket: Mid BB, 22mm, sealed bearing

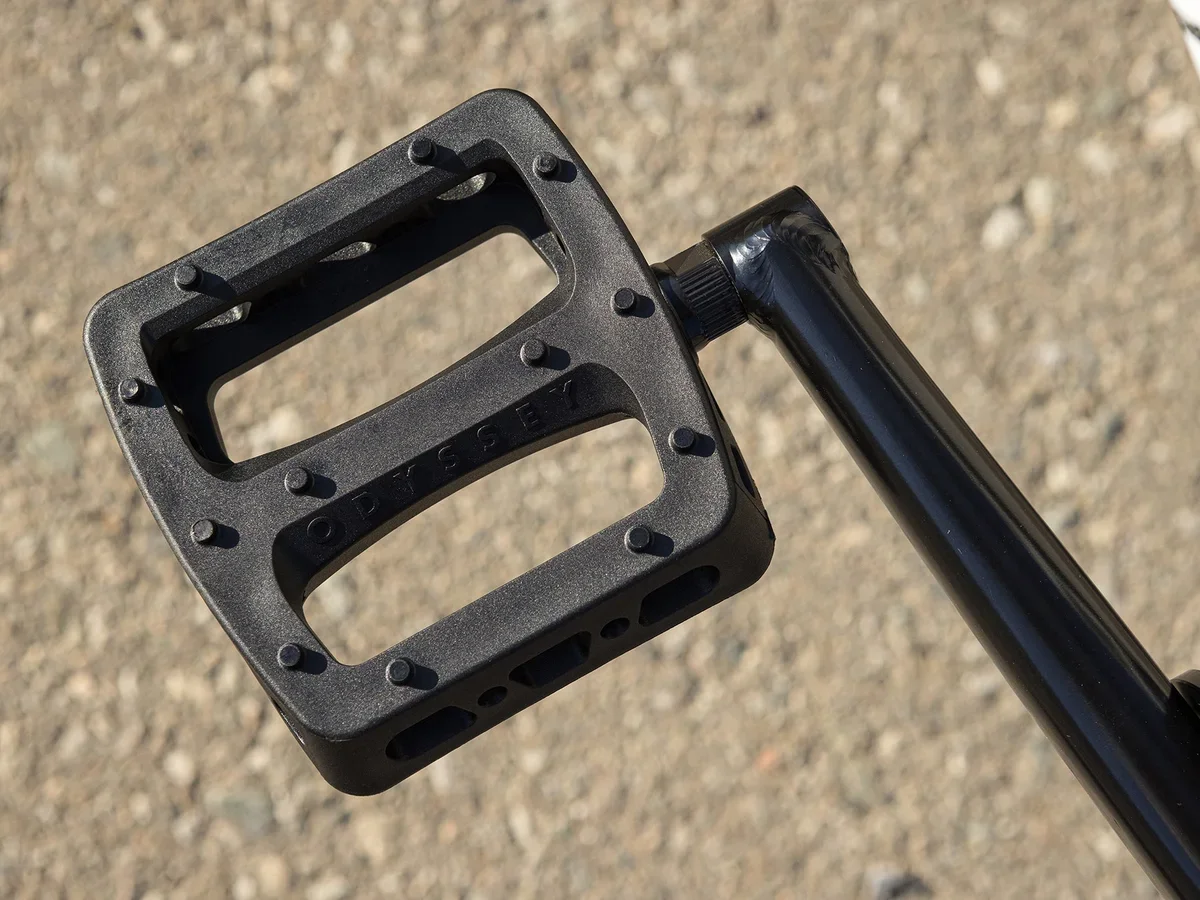

- Pedals: Odyssey "Twisted Pro", plastic
- Chain: Odyssey "Bluebird", Half-Link

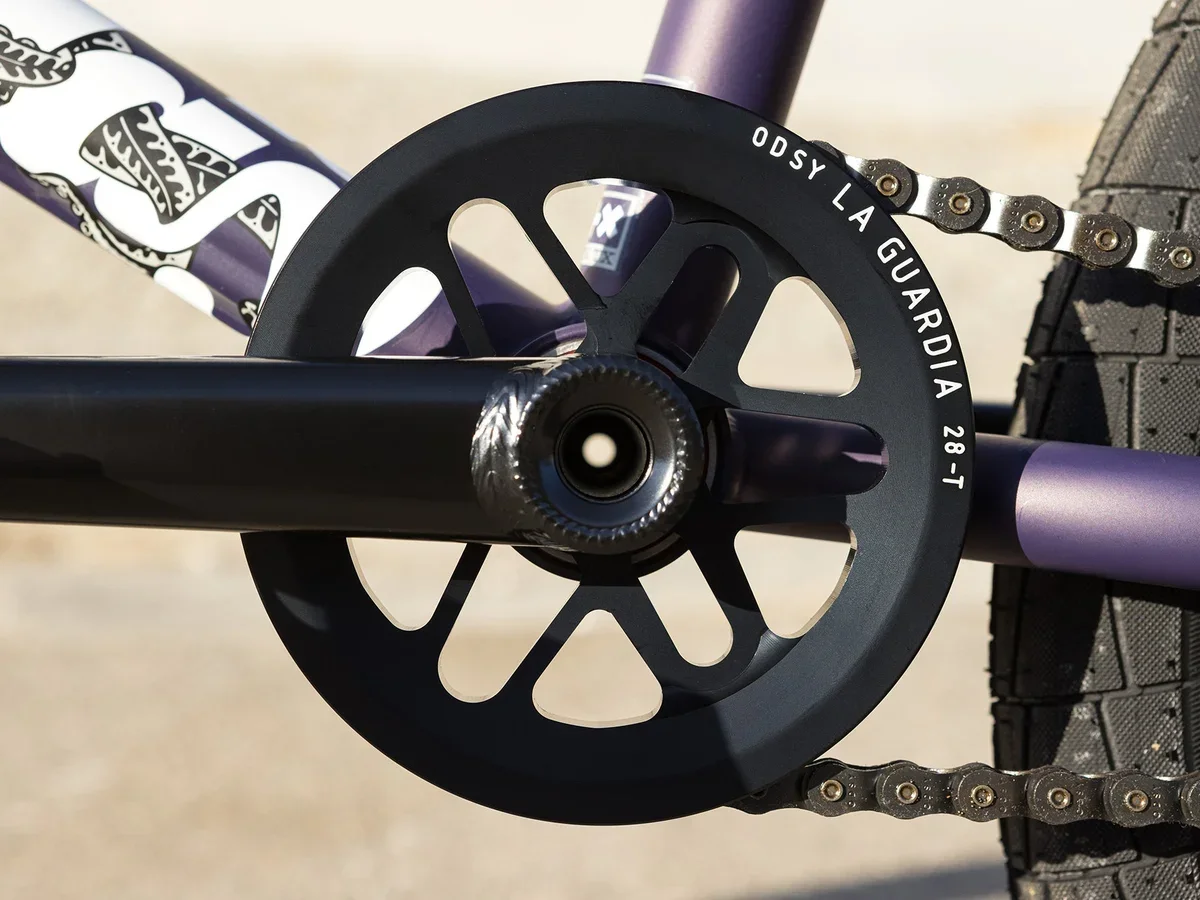

- Sprocket: Odyssey "La Guardia Guard", 6061 aluminum, CNC, 28T
- Crank: Odyssey "Thunderbolt+" RHD, CrMo, 3-piece, 170mm, 22mm axle
- Hub (front): Odyssey "Vandero Pro", sealed bearing, female axle with 10mm (3/8") CrMo bolts, 36H, incl. 2x Hubguard

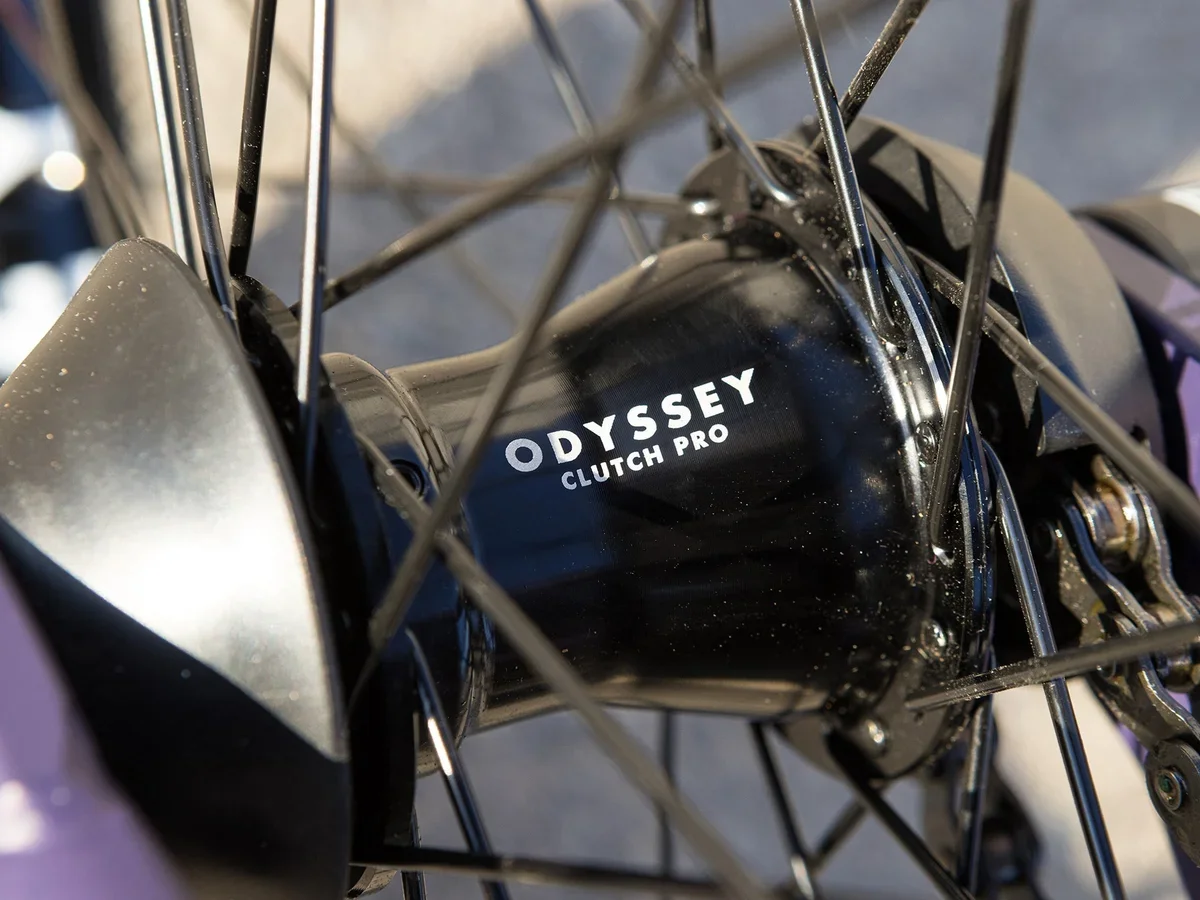

- Hub (rear): Odyssey "Clutch Pro" Freecoaster, Sealed Bearing, 14mm Female Bolts, 36H, incl. 1x NDS hubguard and 1x DS hubguard
- Driver: 9T RHD - Rim (front): Odyssey "Hazard Lite", aluminum, double wall, 36H
- Rim (rear): Odyssey "Hazard Lite", aluminum, double wall, 36H

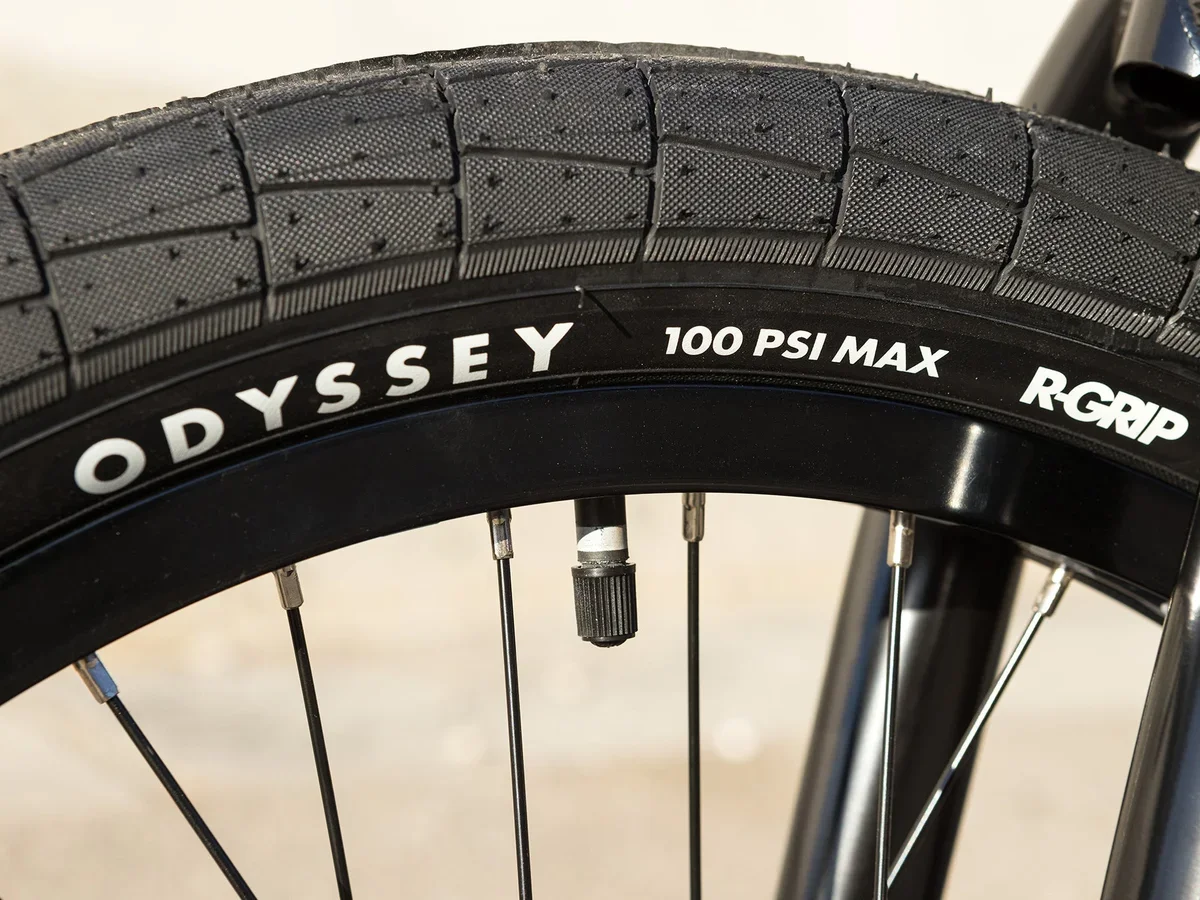

- Tire (front): Odyssey "Broc" BMX tire (100PSI)
- Width: 20" x 2.4" - Tire (rear): Odyssey "Broc" BMX tire (100PSI)
- Width: 20" x 2.4" - Pegs: 4x Sunday Seeley Peg 4.75"
- Delivery: The BMX bike comes pre-assembled in a box. For final assembly, only the handlebar, front wheel, pedals, and saddle need to be installed. Tools are not included.
- Usage: BMX Freestyle – designed for tricks, jumps, and fun in the skatepark or on the pump track.
