BSD "Acid V2" BMX Fork
-
Weight : 0.99kg / 2.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 9516
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
This

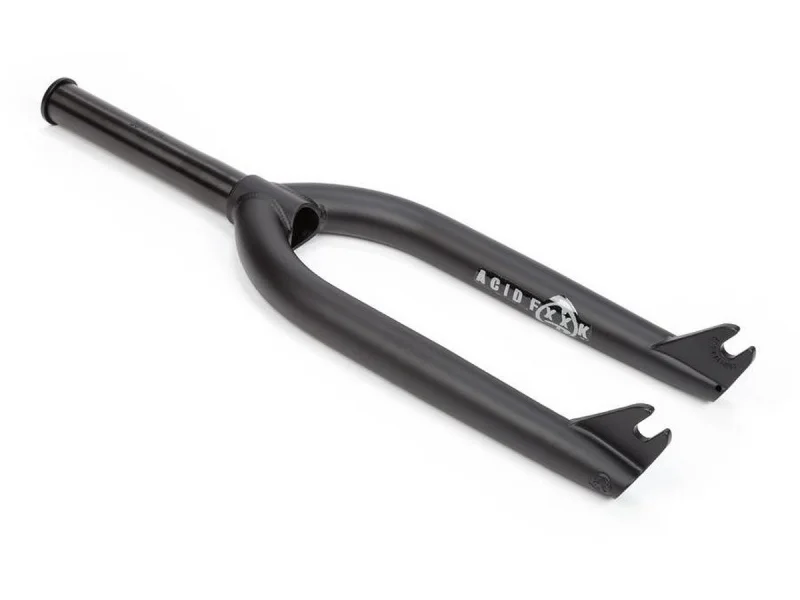

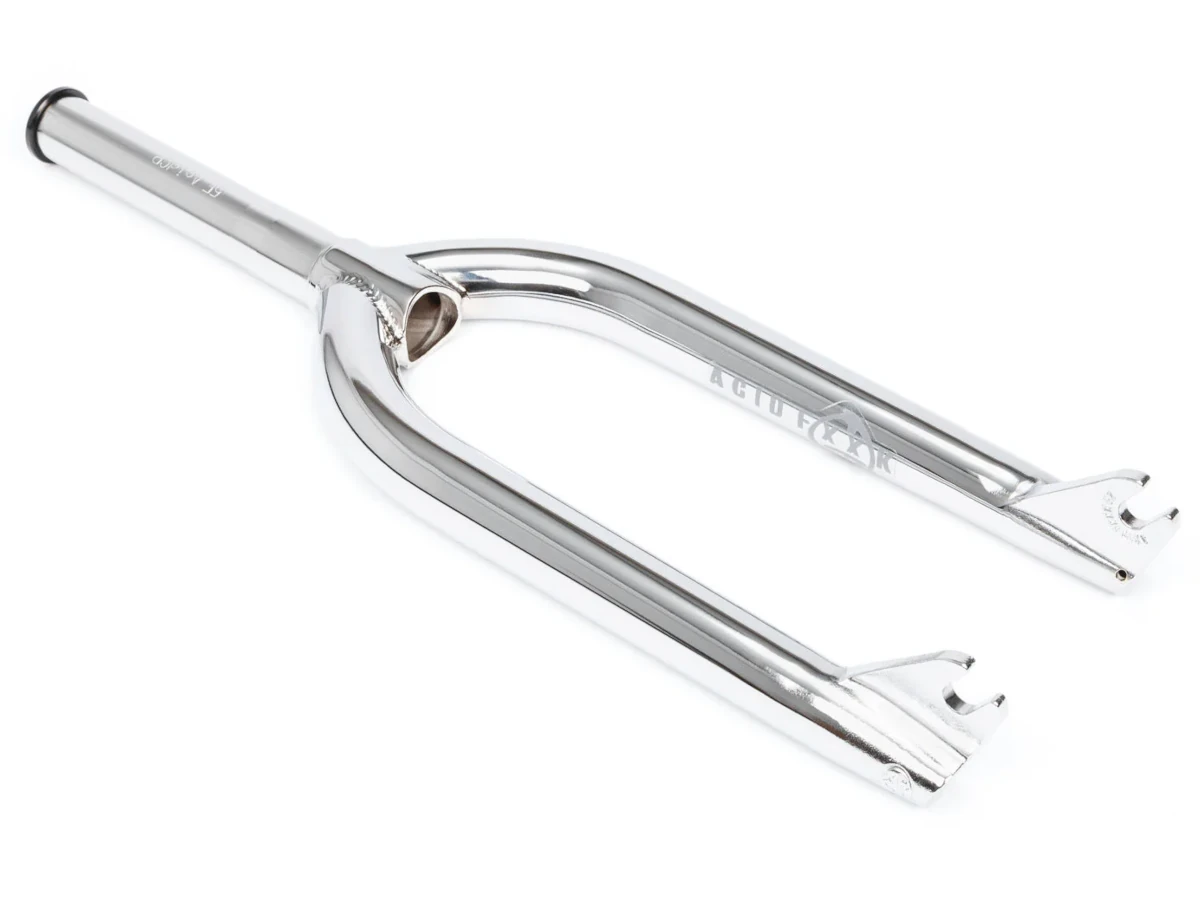

BSD "Acid V2" BMX Fork

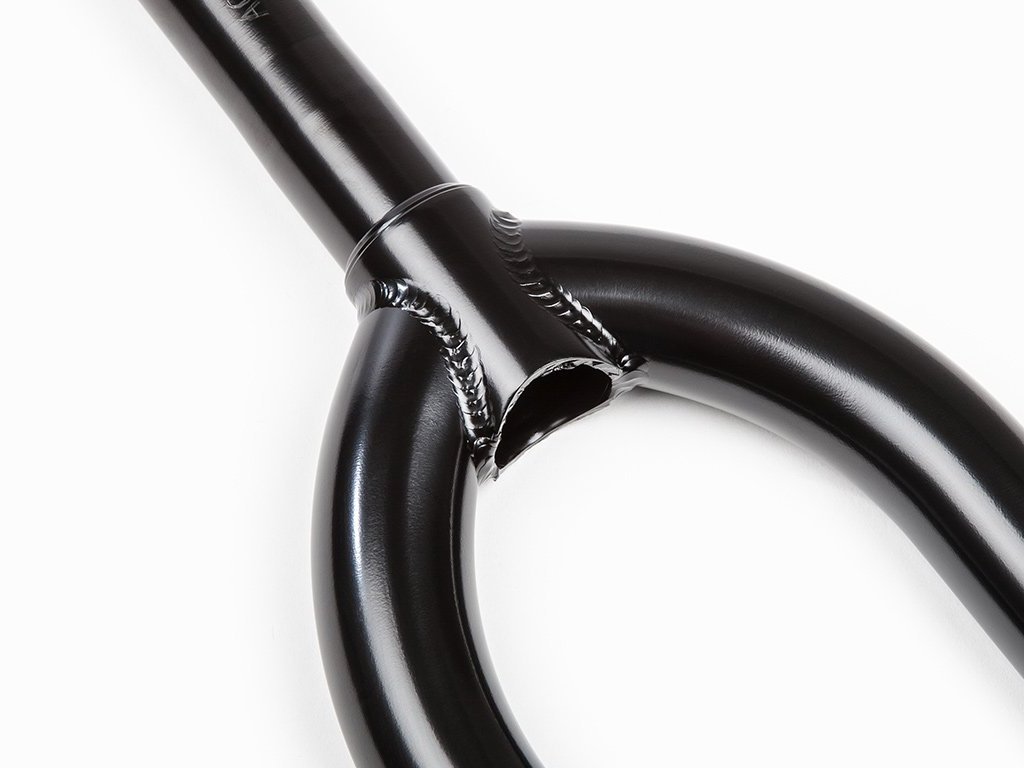

is a high quality and stable street fork which is made from heat treated 4130 CrMo. The 160mm long and CNC machined steerer is made of one piece and has an integrated bearing race which ensures minimal installation effort. The fork arms of the
BSD "Acid V2" BMX Fork
are butted and tapered downwards to the very stable 6mm thick investment cast dropouts which have a offset of 30mm. The design of this fork offers space for pegs but also for fat 2.4" tires and thanks to the selection of the best materials and modern manufacturing processes BSD provides you here with a very high quality and stable street fork including an aluminum top bolt.
Facts: BSD "Acid V2" BMX Fork
- Wheel Size: 20"
- Material: 4130 CrMo, heat treated
- Steerer Tube Diameter: 1-1/8" (28.6mm)
- Steerer Tube Length: 157mm
- Steerer Length: 157mm

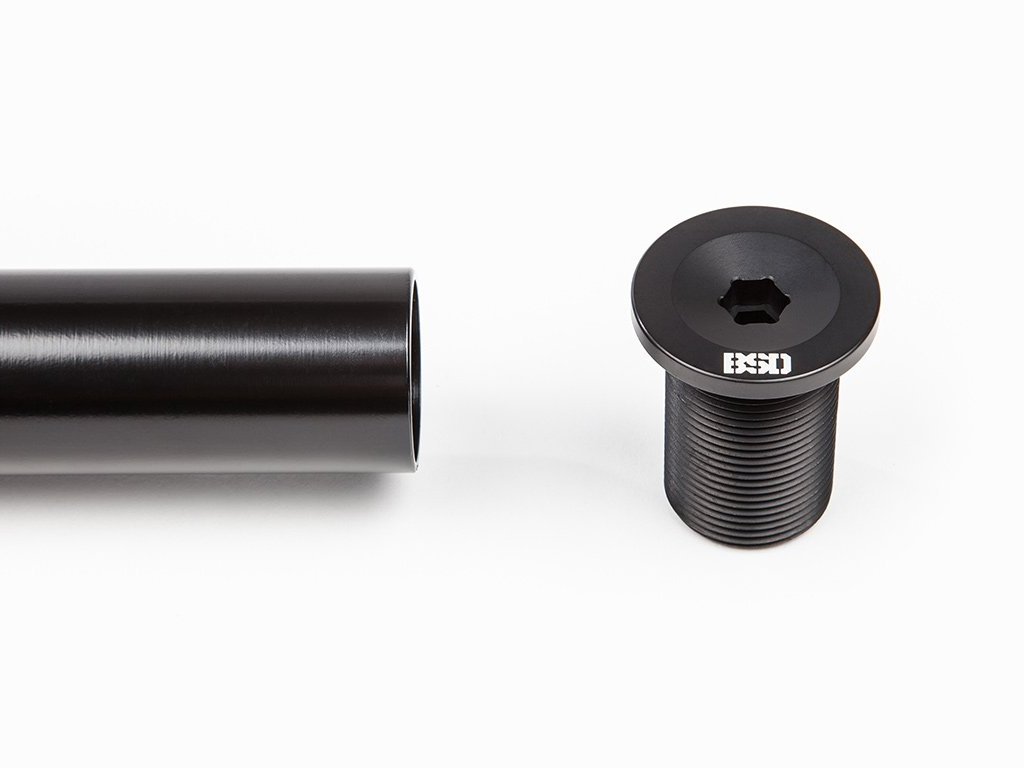

- Top Bolt: CNC machined aluminium Pre-load bolt with 6mm and 8mm allen key hole
- Dropouts: Investment cast, 6mm thick, 10mm axles
- Offset: 30mm
- Brake Mounts: without
- Bearing race: Integrated
- Recommended for: Street, Park or Trails
- U-Brake Sockets: Without
- Extras: CNC machined 1-pc. steerer, tapered fork legs, double butted tubes, designed for 2.4" inch wide tires
