Kink Bikes "Kinetic" Frame
-
Weight : 2.21kg / 4.87lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29436

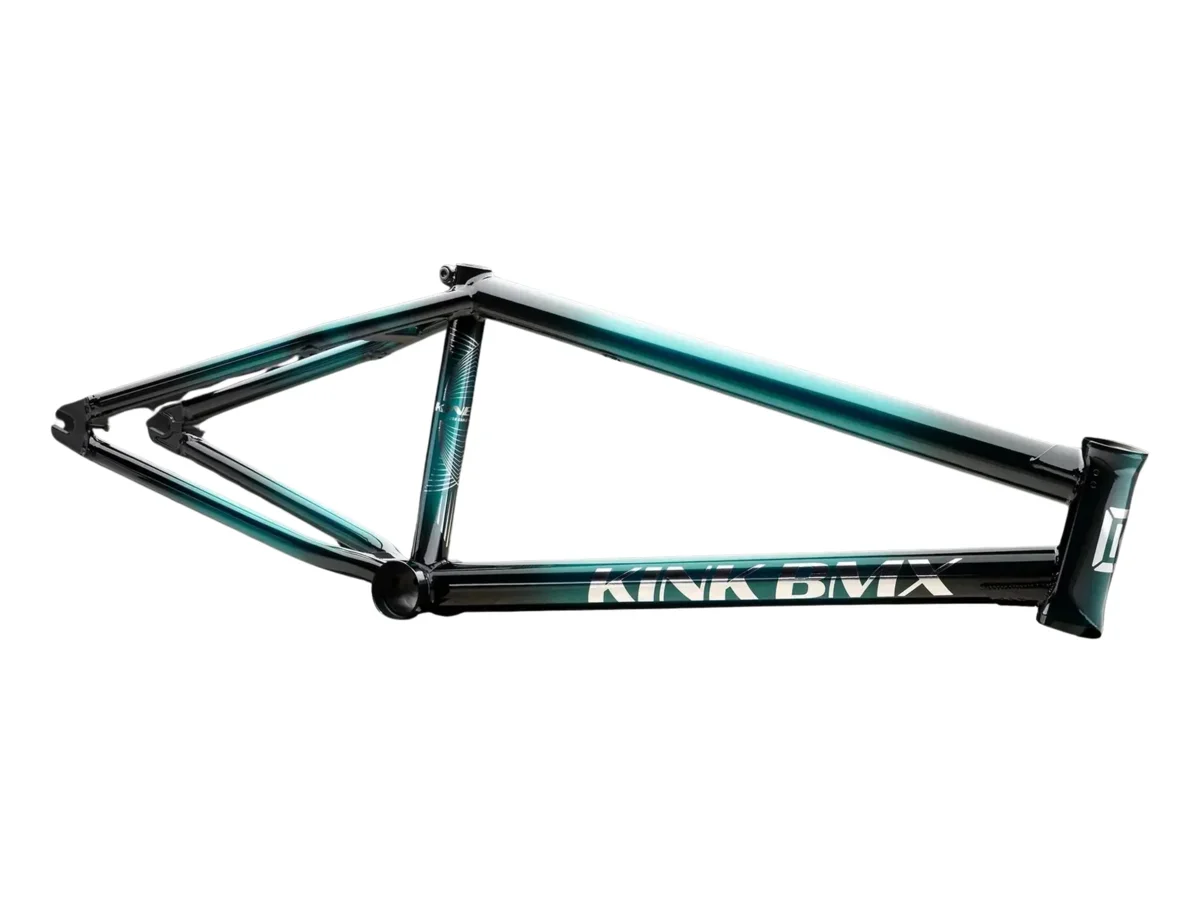

The Kink Bikes "Kinetic" Frame is Lewis Mills' signature frame and features an extremely short 12.75" rear triangle and a steep 75.5° head tube angle for maximum agility. Thanks to its robust 4130 CrMo construction and investment cast dropouts with integrated chain tensioners, the Kink Bikes "Kinetic" Frame is ready for the toughest sessions.
Facts: Kink Bikes "Kinetic" Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, Top Tube and Down Tube Gussets, butted tubing, tapered chainstays, integrated headset
- Geometry:
Top Tube length (TT): 20.75", 21.0" or 21.25"
Chainstay length (CS): 12.75" (Slammed)
Headtube length: 5"
Headtube angle (HA): 75.5°
Seattube angle (SA): 71°
Bottom Bracket height: 11.7"
Standover height (SO): 9" - Seat clamp: integrated
- Seat post diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment Cast, 6.5mm thick, 14mm axle slot
- Chain tensioners: integrated
- Brake type: U-Brake
- Brake mounts: removable
- Brake mounts included: No
- Rotor compatible: Yes
- Features: Lewis Mills Signature Frame, wide rear end for thick 2.4" tires
- Model Year: 2024
