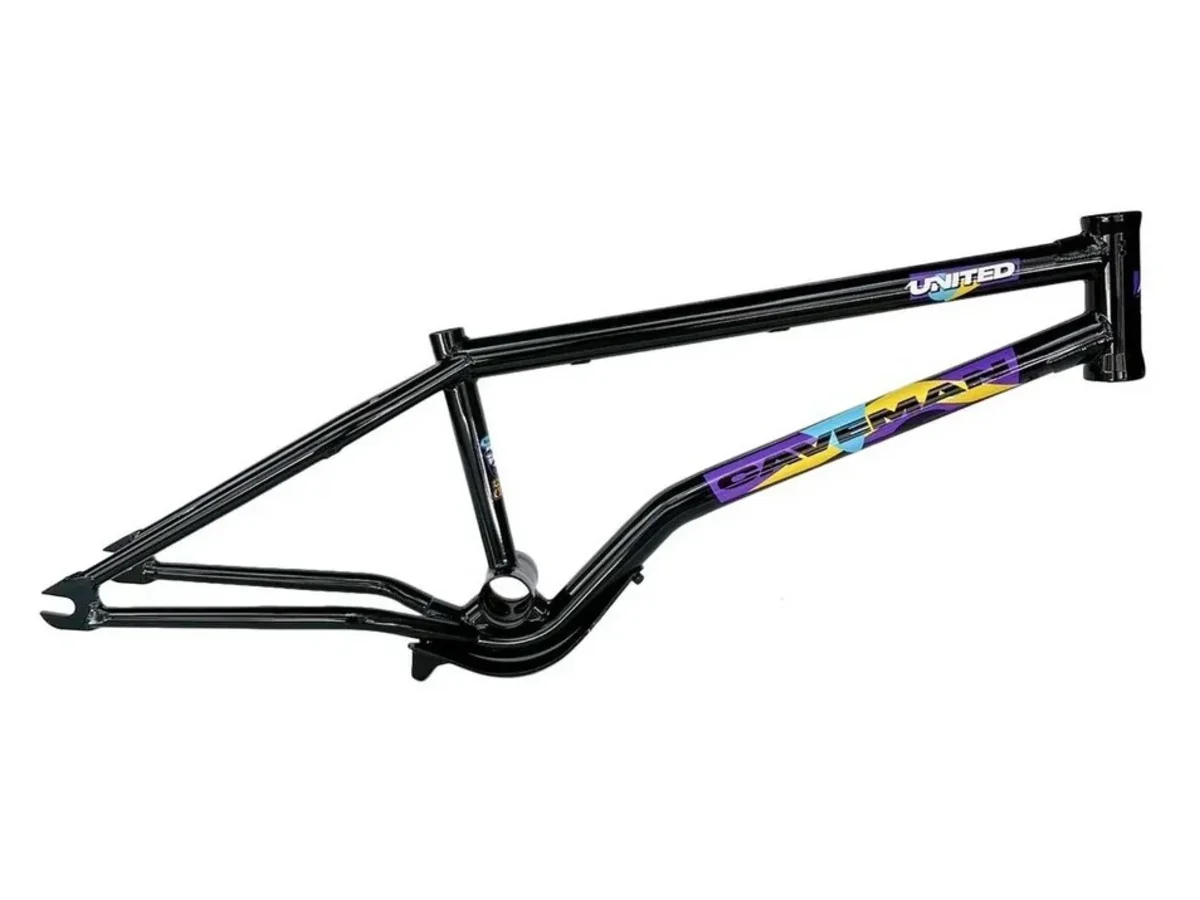

United Bikes "Caveman V3" BMX Frame
-
Weight : 2.72kg / 6lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 12875

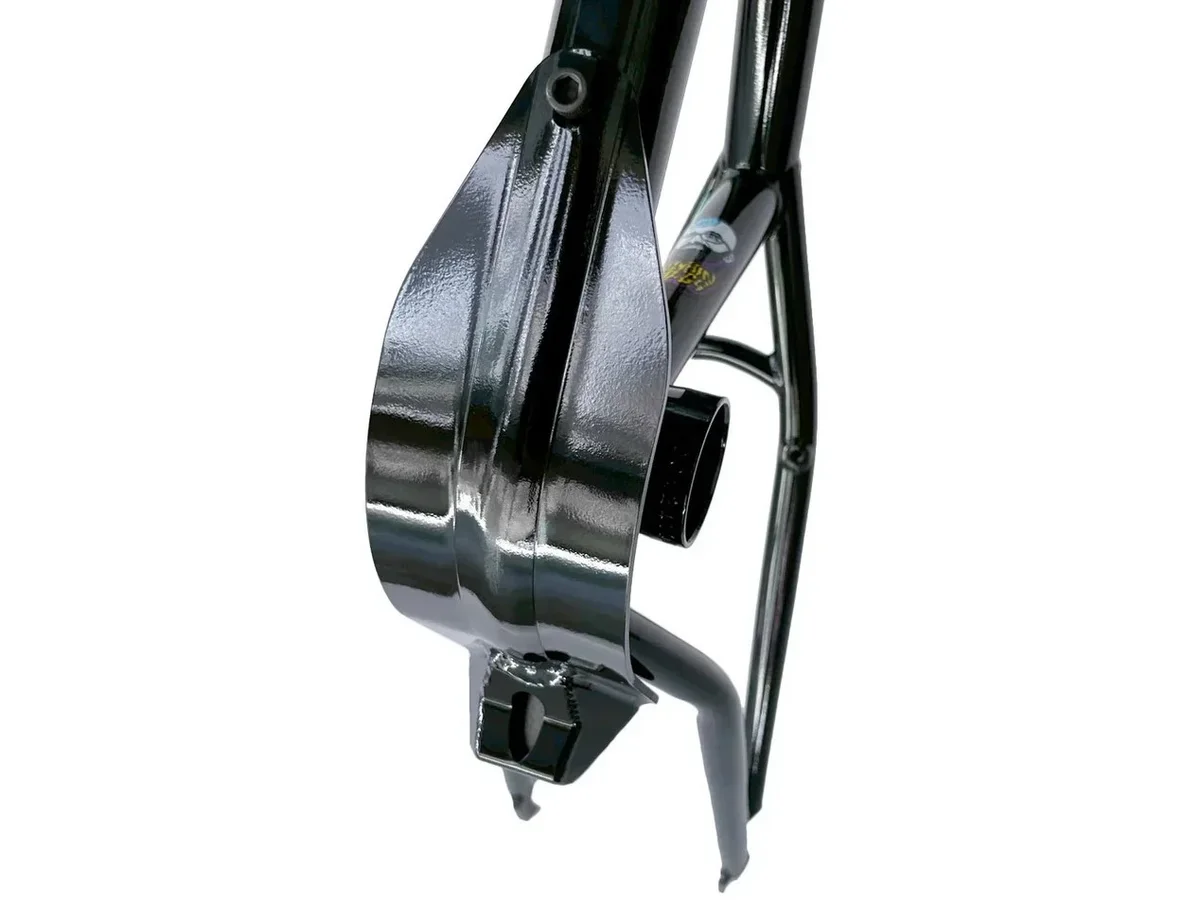

The United Bikes "Caveman V3" BMX Frame is Mike Escamillas signature frame featuring a bolt-on removable steel bashplate which offes opportunities for more tricks and protects the chain and cranks. The United Bikes "Caveman V3" BMX Frame is made of 4130 CrMo and features integrated upper and lower gussets.
Facts: United Bikes "Caveman V3" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top and down tube gussets, integrated headset
- Geometry:
Top Tube Length (TT): 20.8"
Chainstay Length (CS): 13.6" (34.54cm) - 14" (35.56cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 69°
Bottom Bracket Height: 11.8" (29.97cm)
Standover Height (SO): 8.8" (22.35cm) - Seat Clamp: without
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 5mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Mike "Rooftop" Escamilla Signature frame with bolt-on removable steel bashplate
- Model Year: 2024
