Federal Bikes "Jarvis V2" BMX Frame
- Weight : 2.5kg / 5.51lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 31856
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/federal-bikes-jarvis-v2-bmx-frame-p-31856
Printed: 11/02/2026
Printed: 11/02/2026
The

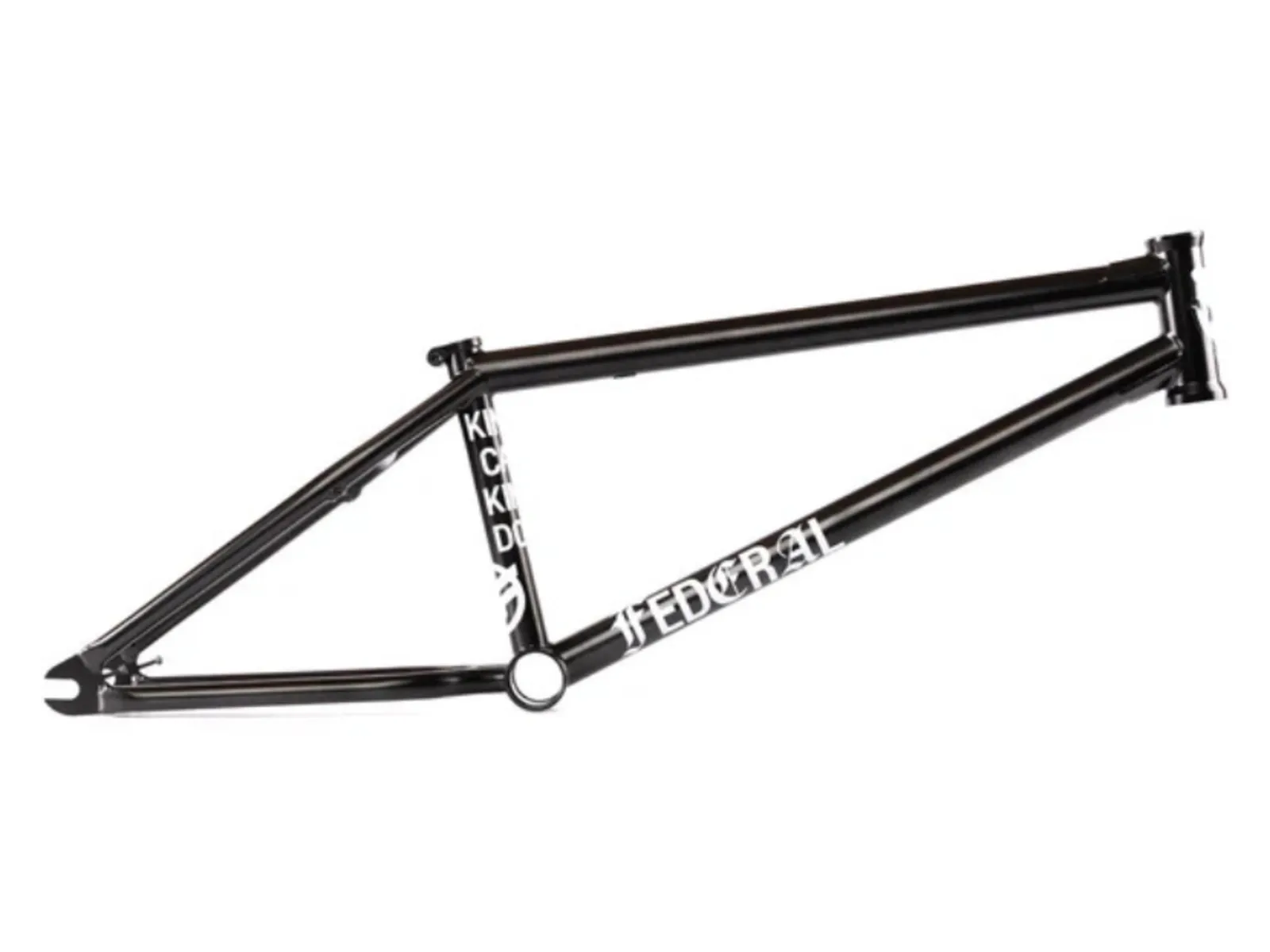

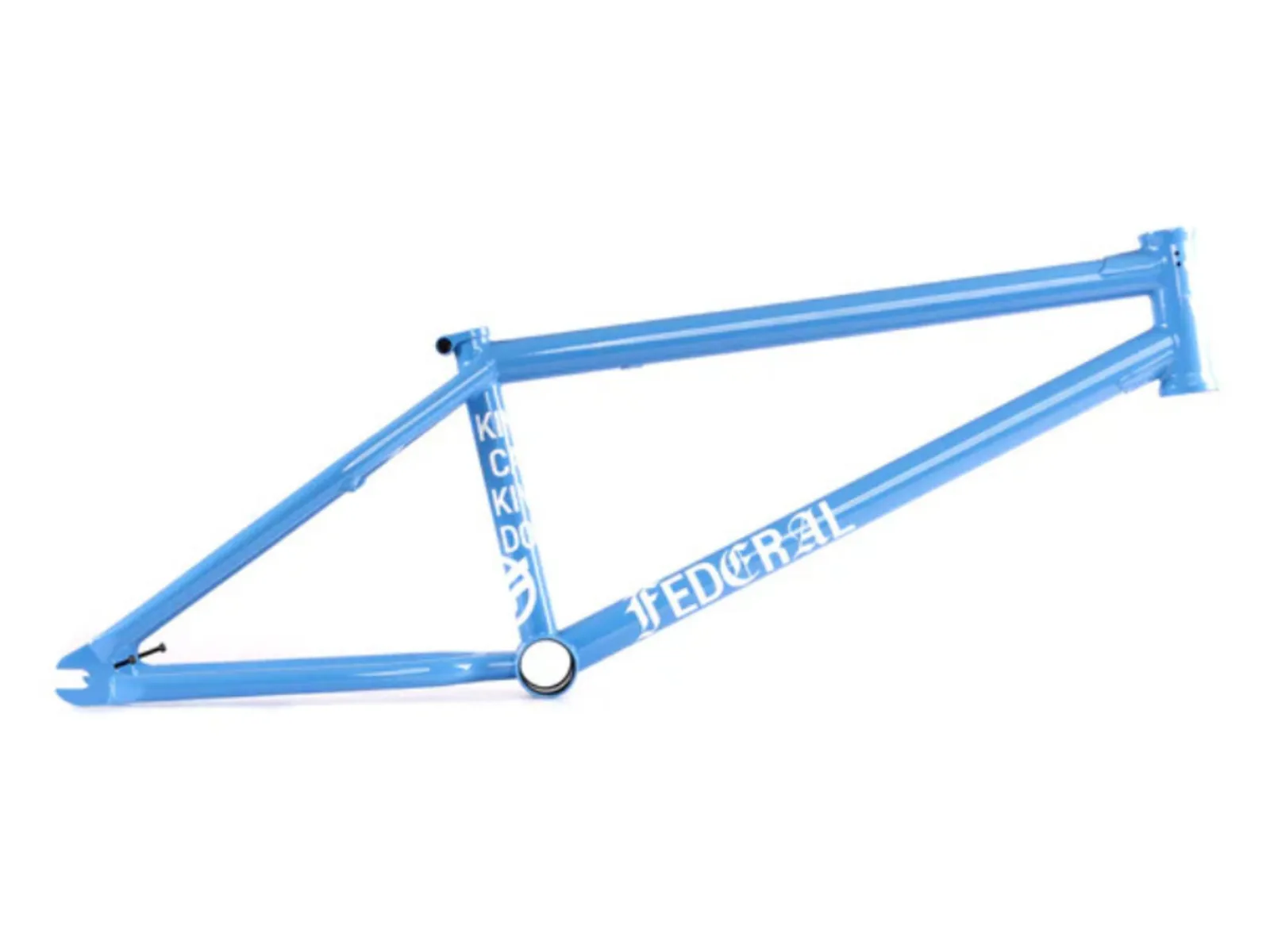

Federal Bikes "Jarvis V2" BMX Frame
is the second generation of Joe Jarvis' signature frame. Compared to the V1 it has been completely reworked: Federal drops the ICS2 wishbone and most of the investment cast parts, and stamped external gussets brace the top and down tube instead. That makes the frame lighter and more direct. Add integrated chain tensioners, an integrated seat clamp, removable brake mounts and gyro tabs, and graphics by Rich Forne. Joe wanted a no-frills frame that stays affordable for younger riders. Colour and top tube length are selectable as options.
Caution: The frame is delivered without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.
Caution: The frame is delivered without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.
Facts: Federal Bikes "Jarvis V2" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo (Sanko), stamped top tube and down tube gussets, integrated headset
- Geometry:
- Top Tube Length (TT): 20.5"
- Chainstay Length (CS): 13.15" (33.4cm) - 13.5" (34.29cm)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Bottom Bracket: Mid BB
- Dropouts: 14mm slots, integrated chain tensioners
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Joe Jarvis Signature frame, no ICS2 wishbone, stamped external gussets, graphics by Rich Forne
- Model Year: 2026
