Federal Bikes "Boyd V2" BMX Frame
- Weight : 2.6kg / 5.73lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 31855
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
The

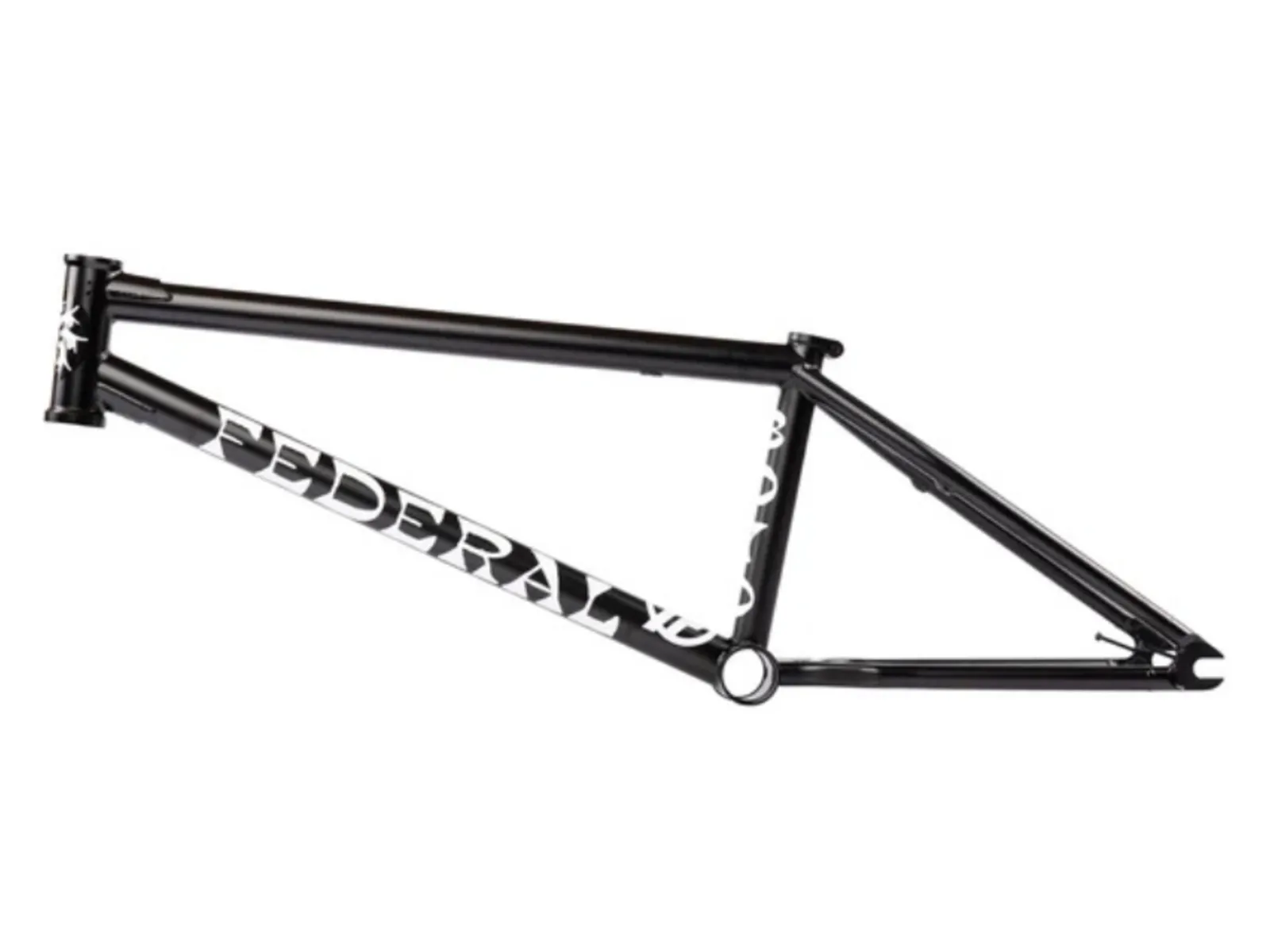

Federal Bikes "Boyd V2" BMX Frame
is the second generation of Boyd Hilder's signature frame, built for street. Federal gave the geometry a subtle update: at 9.2" standover the V2 has a taller, more aggressive stance and still rides fast and responsive. It comes with the ICS2 wishbone, investment cast dropouts with built-in chain tensioners, an integrated seat clamp, an ovalised down tube with a stamped gusset, top and bottom head tube gussets, removable brake mounts and gyro tabs, and graphics by Rich Forne. Colour and top tube length are selectable as options.
Caution: The frame is delivered without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.
Caution: The frame is delivered without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.
Facts: Federal Bikes "Boyd V2" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, ovalised down tube with stamped gusset, top and bottom head tube gussets, tapered seat stays, ICS2 wishbone, integrated headset
- Geometry:
- Top Tube Length (TT): 20.2", 20.7" or 21.5"
- Chainstay Length (CS): 13.4" (34.04cm) (slammed)
- Head Tube Angle (HA): 75.2°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 9.2" (23.39cm) - Seat Clamp: integrated investment cast
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 14mm slots, built-in chain tensioners
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Boyd Hilder Signature frame, ICS2 wishbone, seat stay bridge with "F" badge, graphics by Rich Forne
- Model Year: 2026
