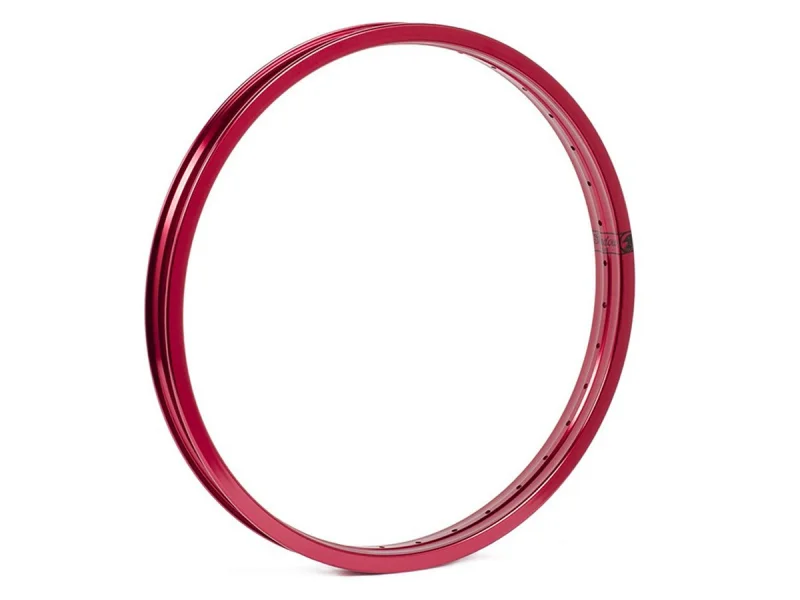

The Shadow Conspiracy "Truss" BMX Rim
The design of The Shadow Conspiracy "Truss" BMX Rim is focused around the same principles as modern bridge design in architecture. Considering the effects of compression as well as tension, The Shadow Conspiracy "Truss" BMX Rim is designed as a very rigid structure and one that transfers the load from a single point to a considerably wider area. These details create a stronger and more impact resistant rim to keep you rolling.
Facts: The Shadow Conspiracy "Truss" BMX Rim
- Wheel Size: 20"
- Material: 6061-T6 Aluminum, double wall, triple box section
- Seam: Welded
- Holes: 36H
- Widht: 38mm
- Height (Rim Wall): 15mm
- Rim Wall: Straight (compatible with brakes)
- Valve Hole Diamater: 8.5mm for schrader vlave
- Spoke Arrangement: Regular Laced
- Extras: increased Spoke Area to limit spoke pull through
- and increase the structural integrity
