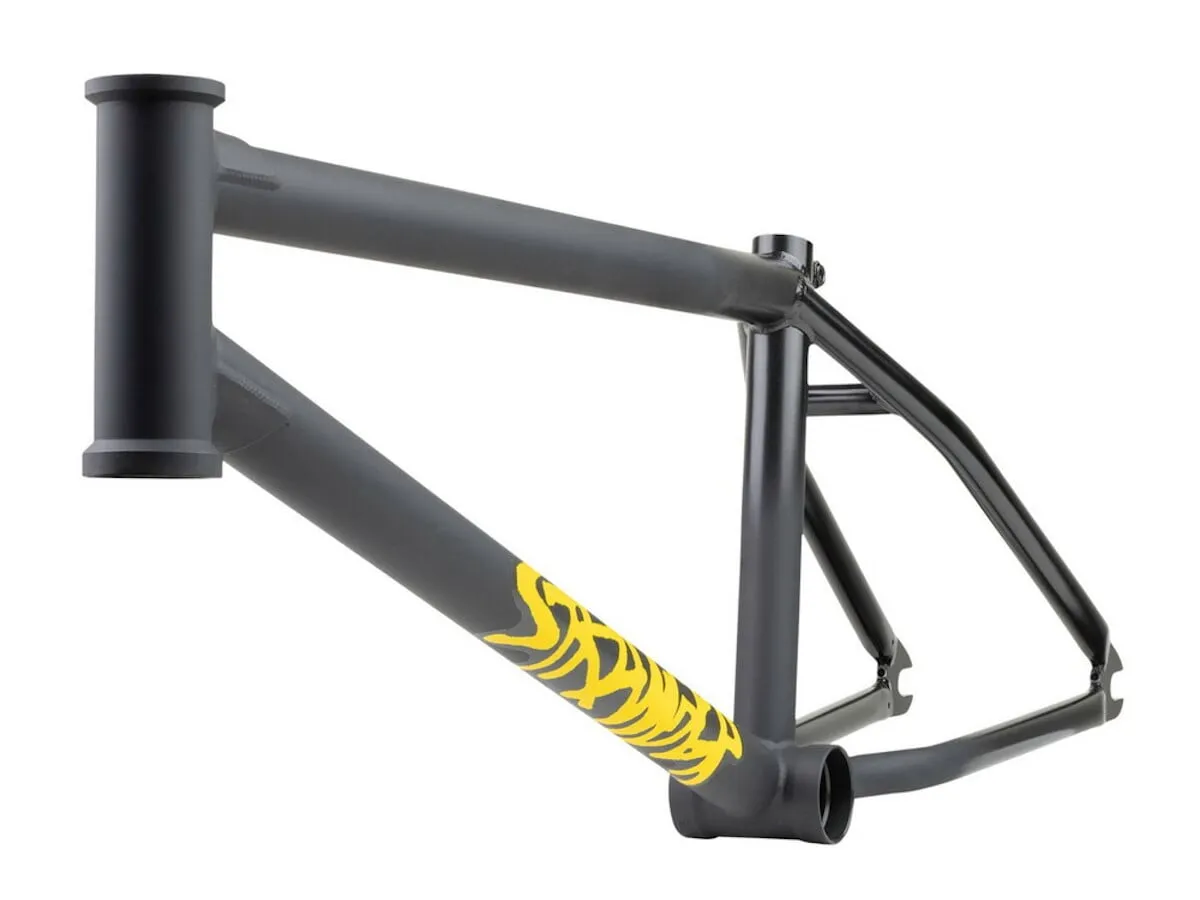

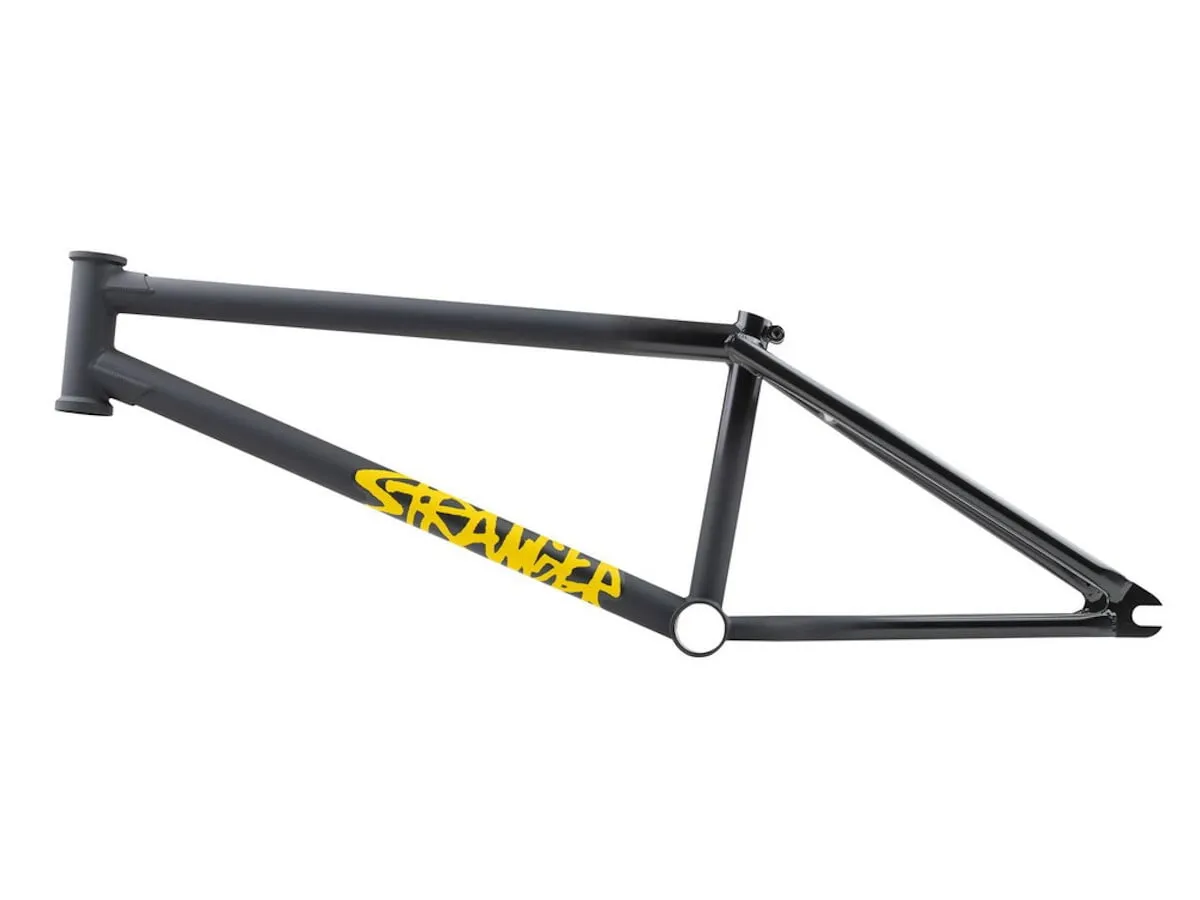

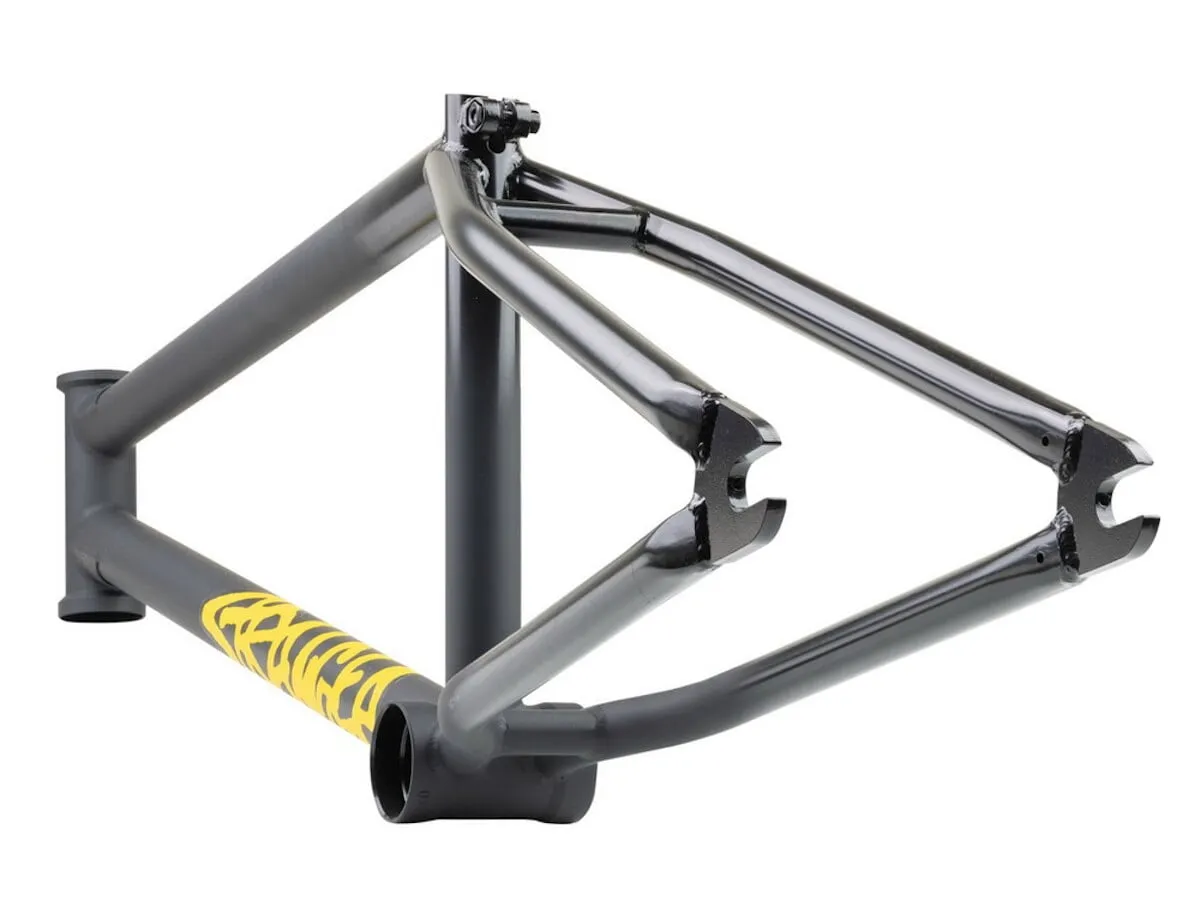

Stranger "Churchill" BMX Frame - Brakeless
-
Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 19621
The Stranger "Churchill" BMX Frame - Brakeless is Stevie Churchills signature frame which was designed after his preferances following a classic BMX Street geometry. The Stranger "Churchill" BMX Frame - Brakeless is a brakeless frame which makes it look clean.
Facts: Stranger "Churchill" BMX Frame - Brakeless
- Wheel Size: 20"

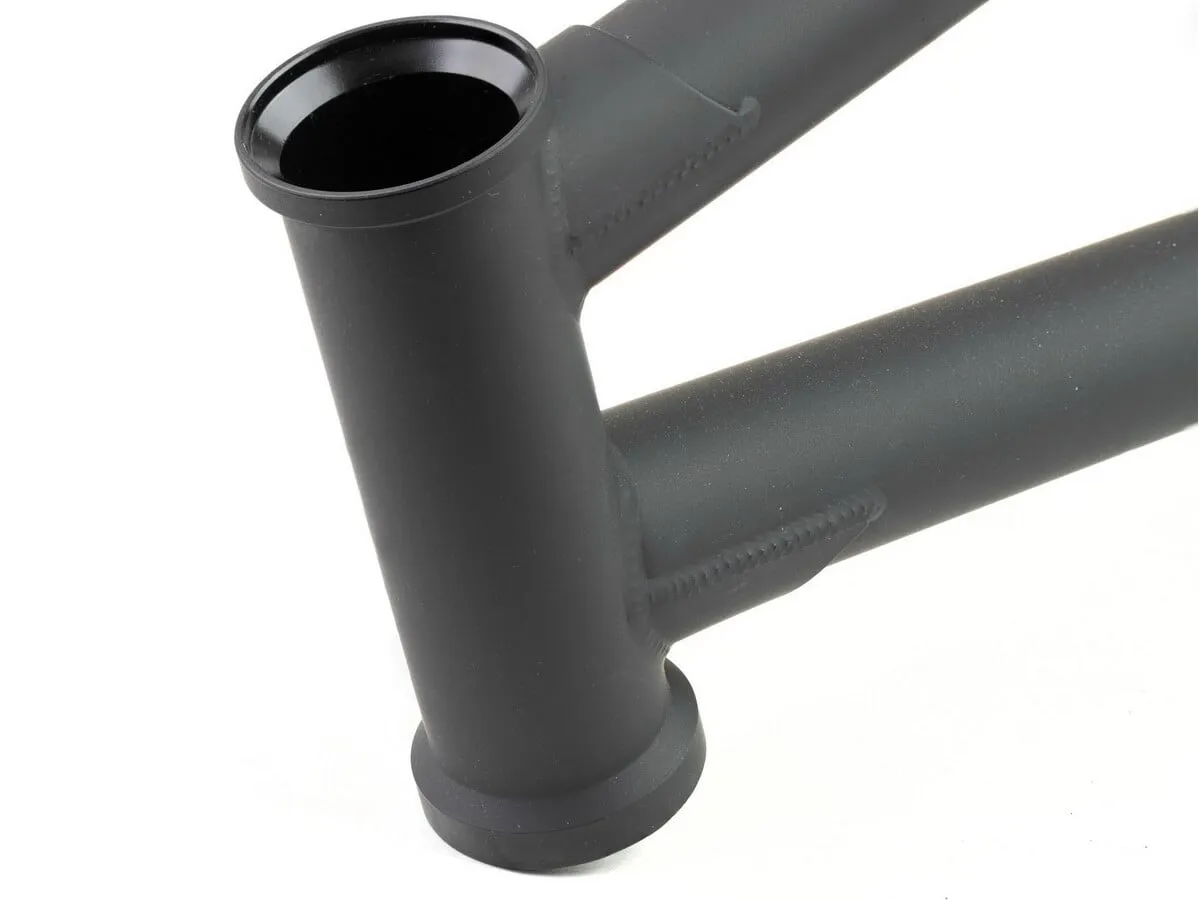

- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, integrated seatclamp
- Geometry:
Top Tube Length (TT): 20.6"
Chainstay Length (CS): 13.25" (33.65cm)abc - 13.5" (34.29cm)
Head Tube Angle (HA): 75.3°
Seat Tube Angle (SA): 70°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm

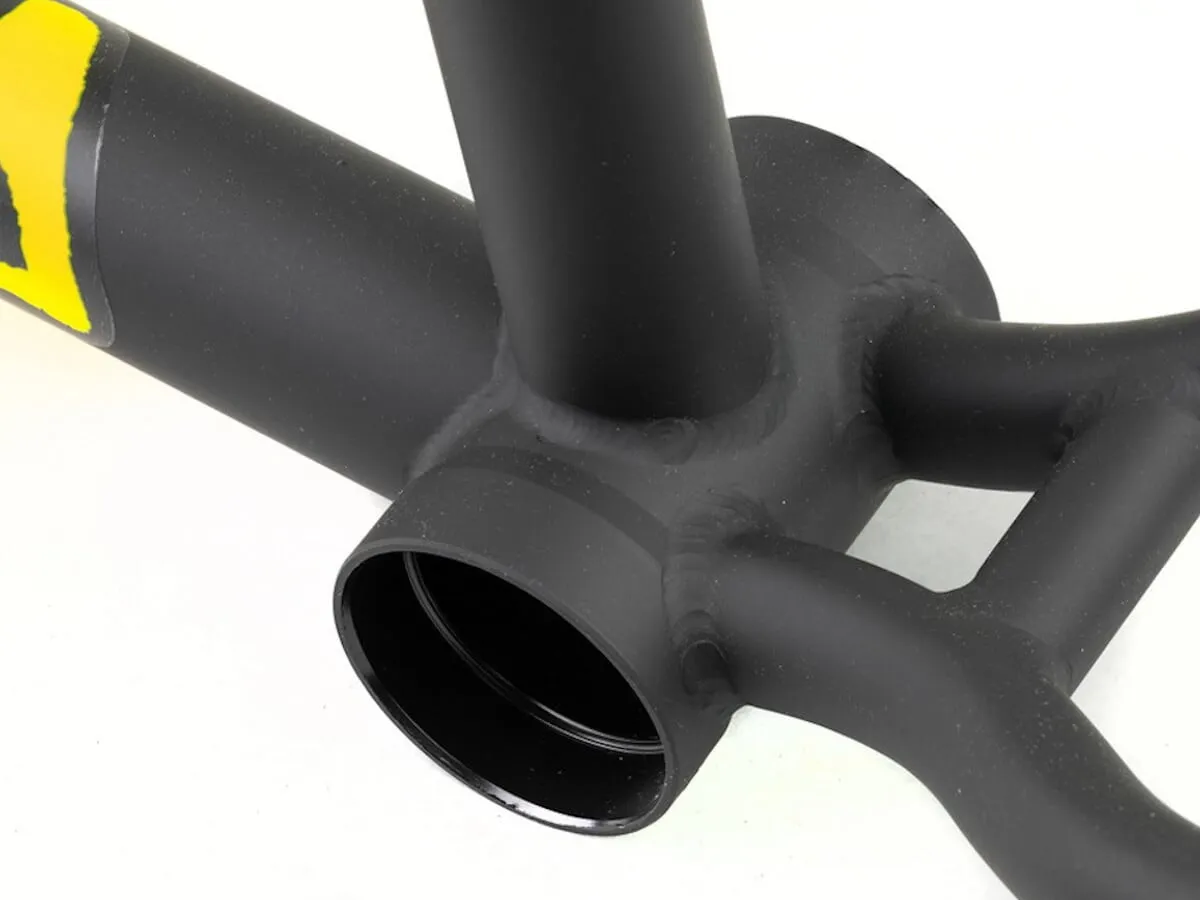

- Bottom Bracket: Mid BB

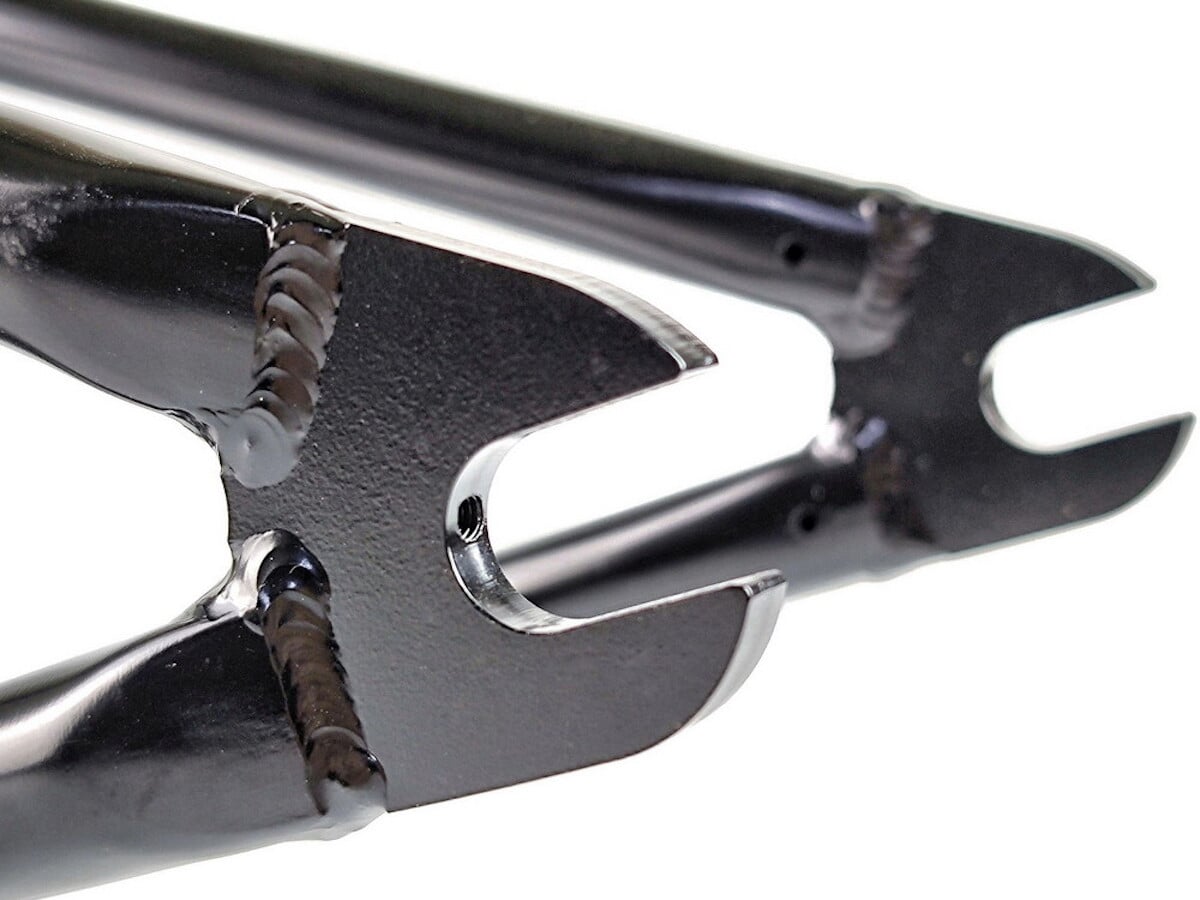

- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: without (brakeless)
- Brakemounts: without
- Gyro compatible: No
- Features: Stevie Churchill signature, wide rear end for fat 2.4" tires
- Model Year: 2020
