BSD "ALVX AF+" BMX Frame
-
Weight : 2.26kg / 4.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 24360

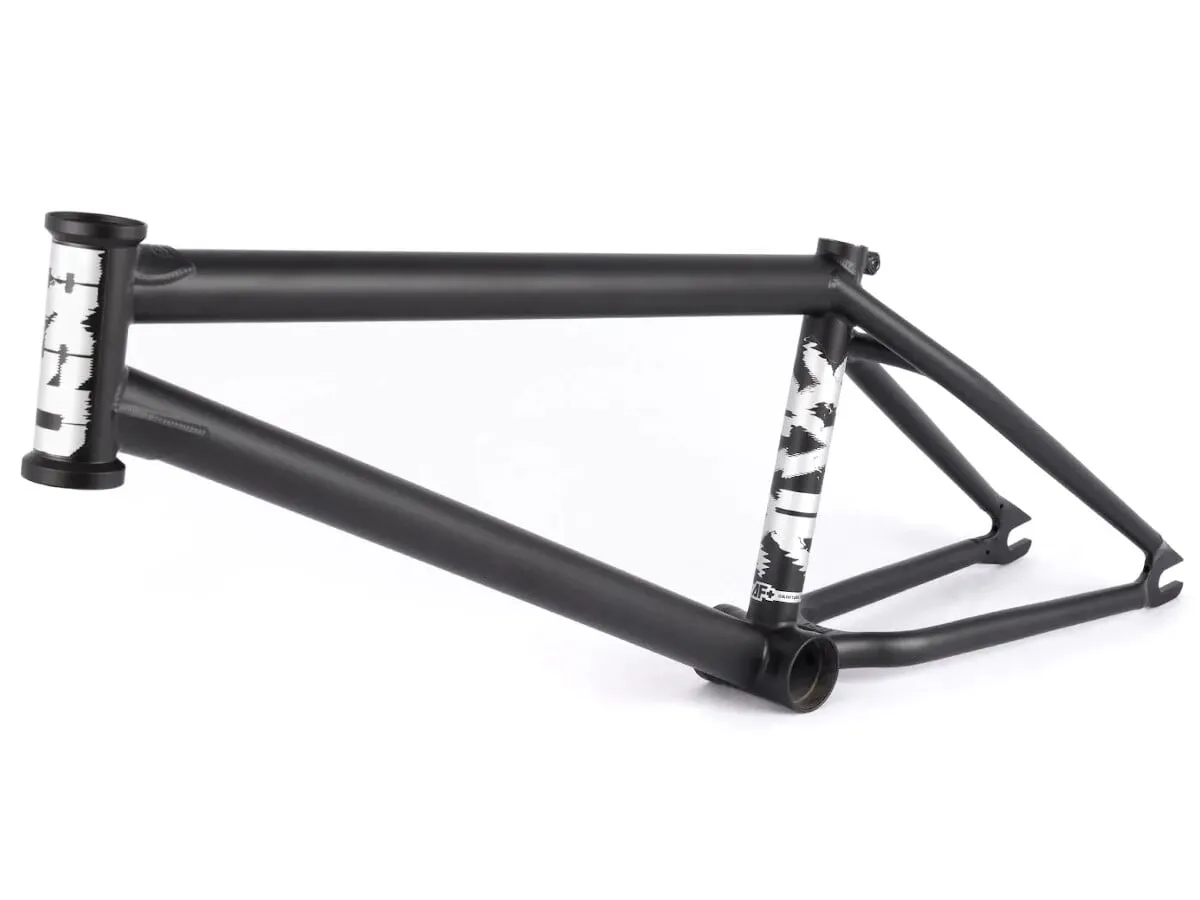

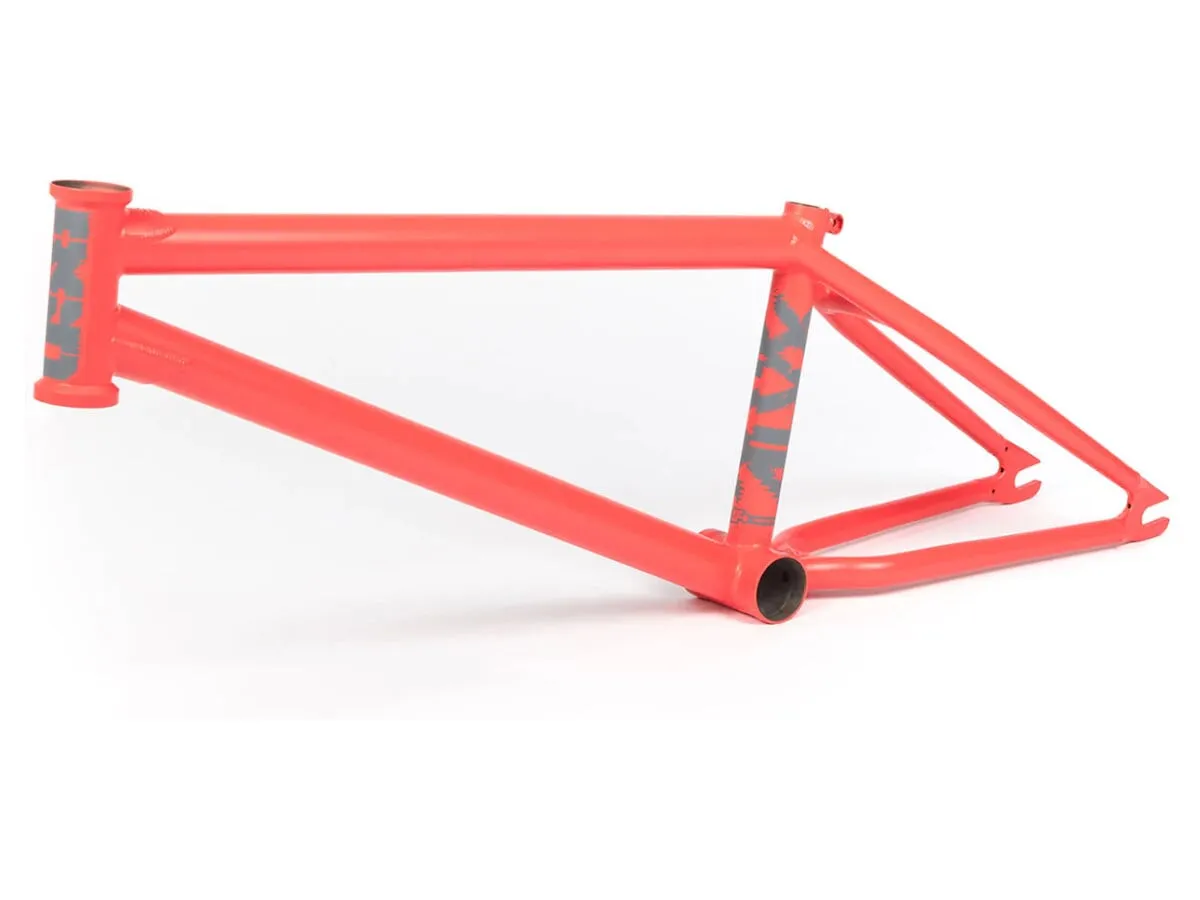

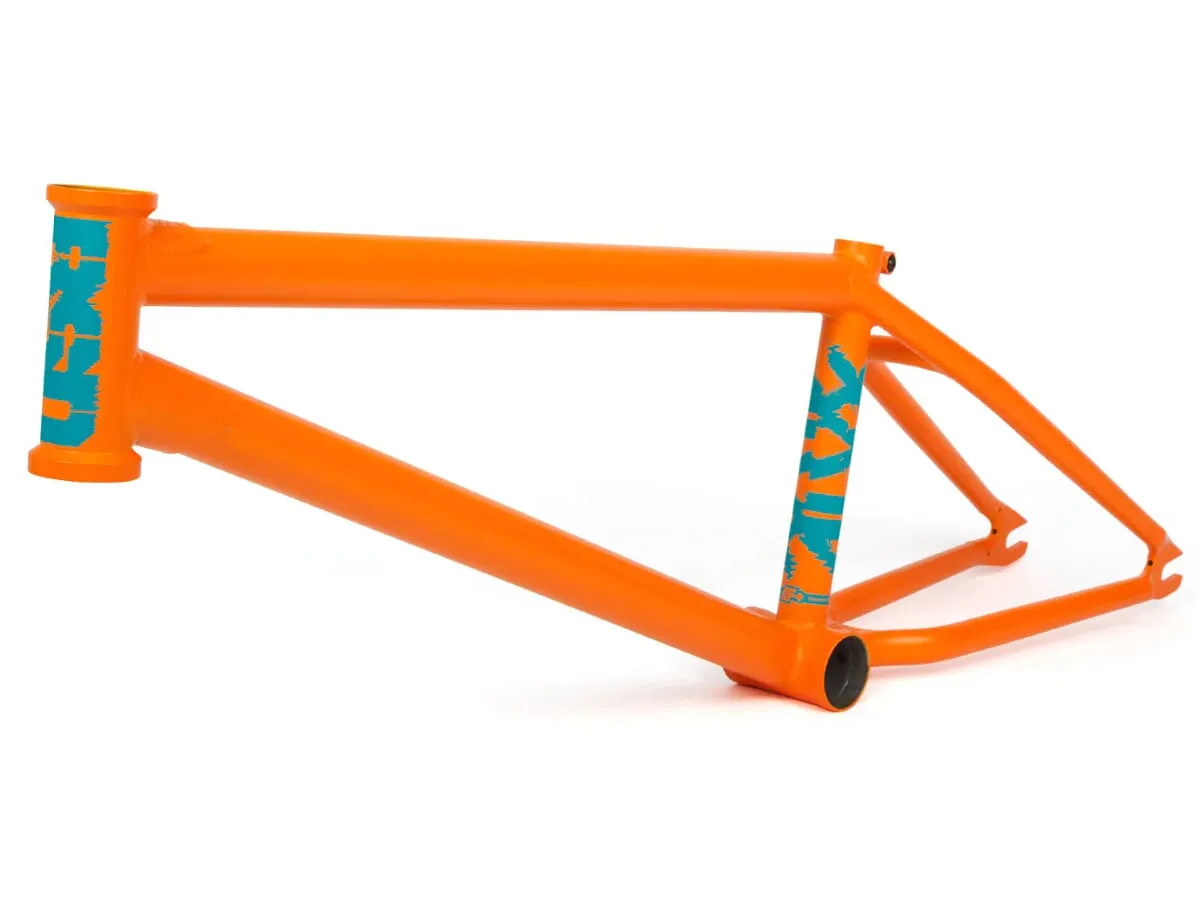

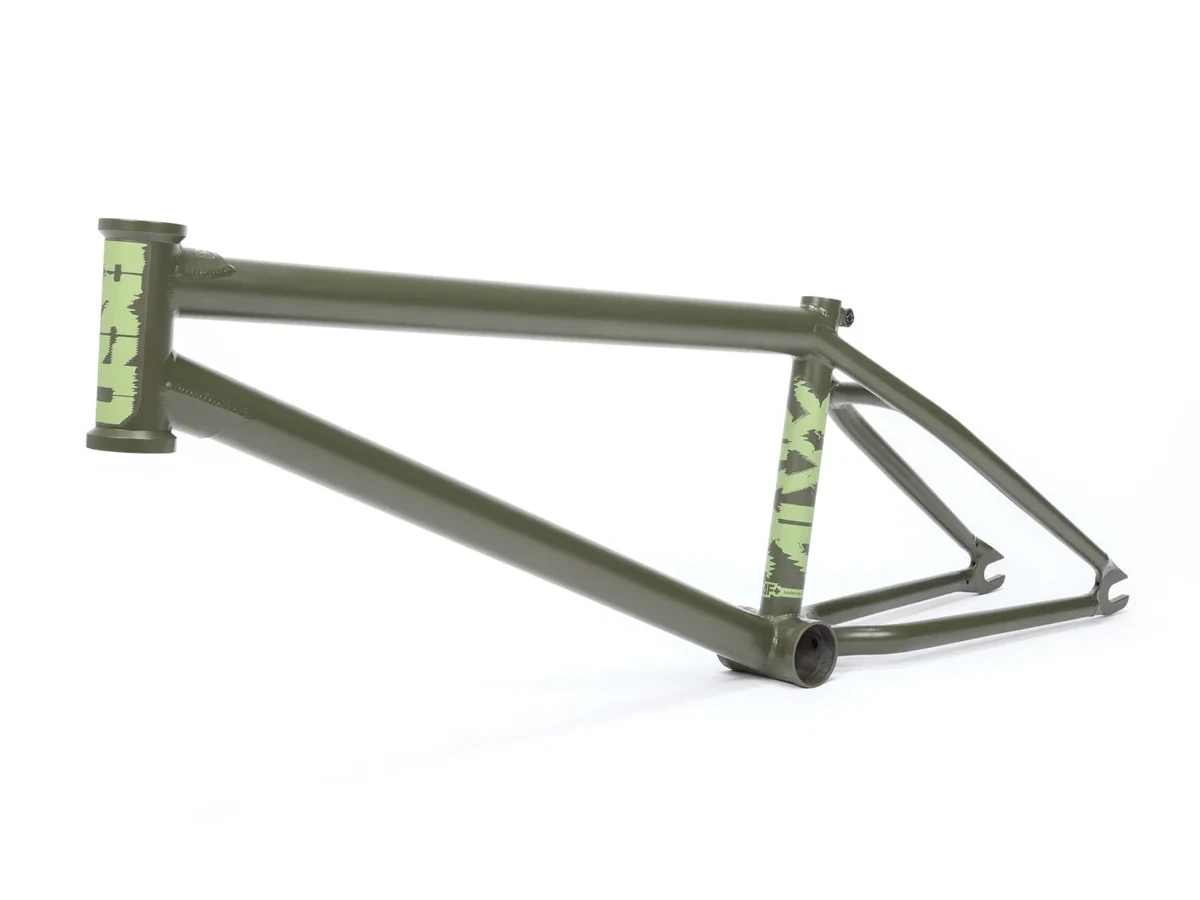

The BSD "ALVX AF+" BMX Frame is the Signature BMX frame of Alex Donnachie, comes with new invest cast chainstay yoke and has a very short and modern rear end (12.5"). The BSD "ALVX AF+" BMX Frame is made for brakeless riding, has no U-brake sockets and is equipped with 5mm thick dropouts with integrated chain tensioners.
Facts: BSD "ALVX AF+" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, invest cast chainstay
- Geometry:
Top Tube Length (TT): 20.3", 20.6" or 21.0"
Chainstay Length (CS): 12.5" (31.75cm) - 13" (33cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 8.7" (22.01cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No

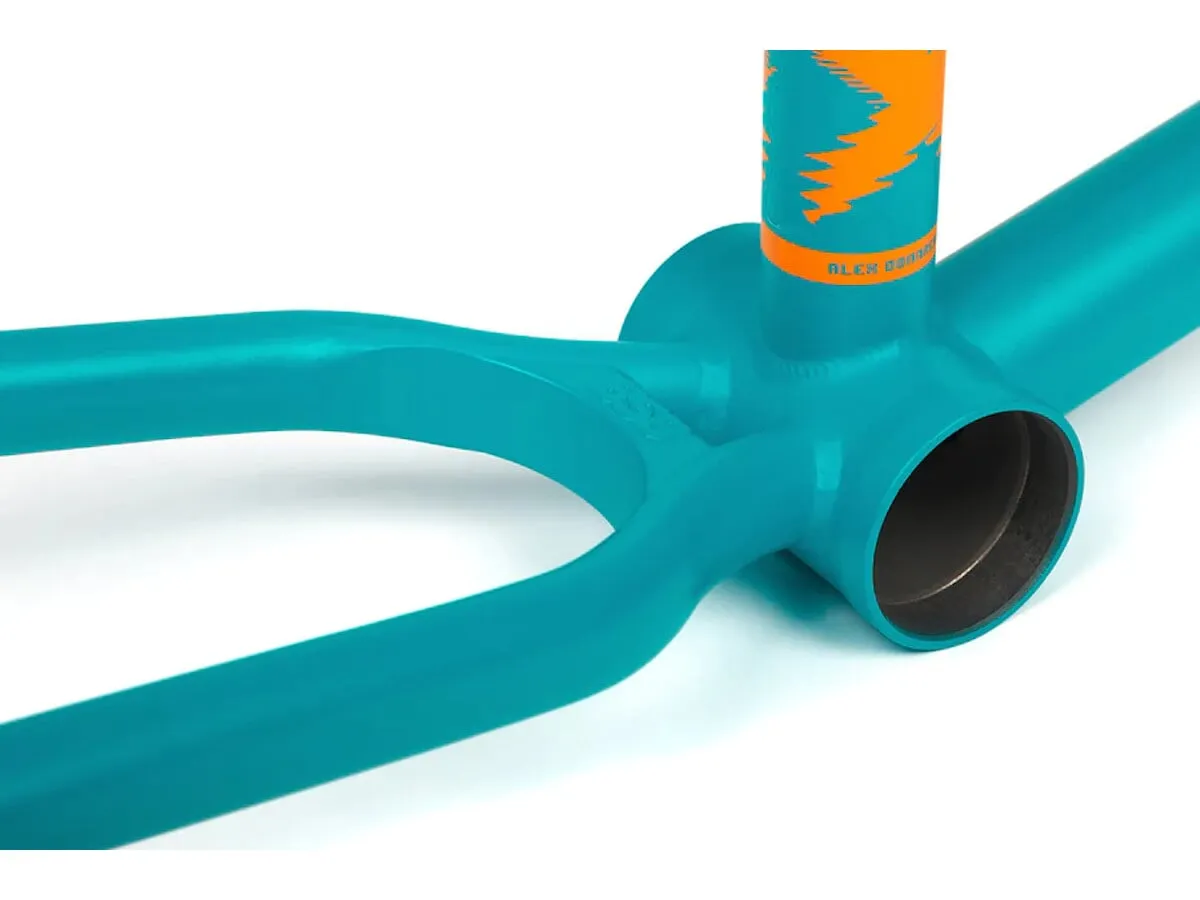

- Features: Alex Donnachie Signature frame, wide rear end for fat 2.4" tires, invest cast chainstay yoke
- Model Year: 2022
