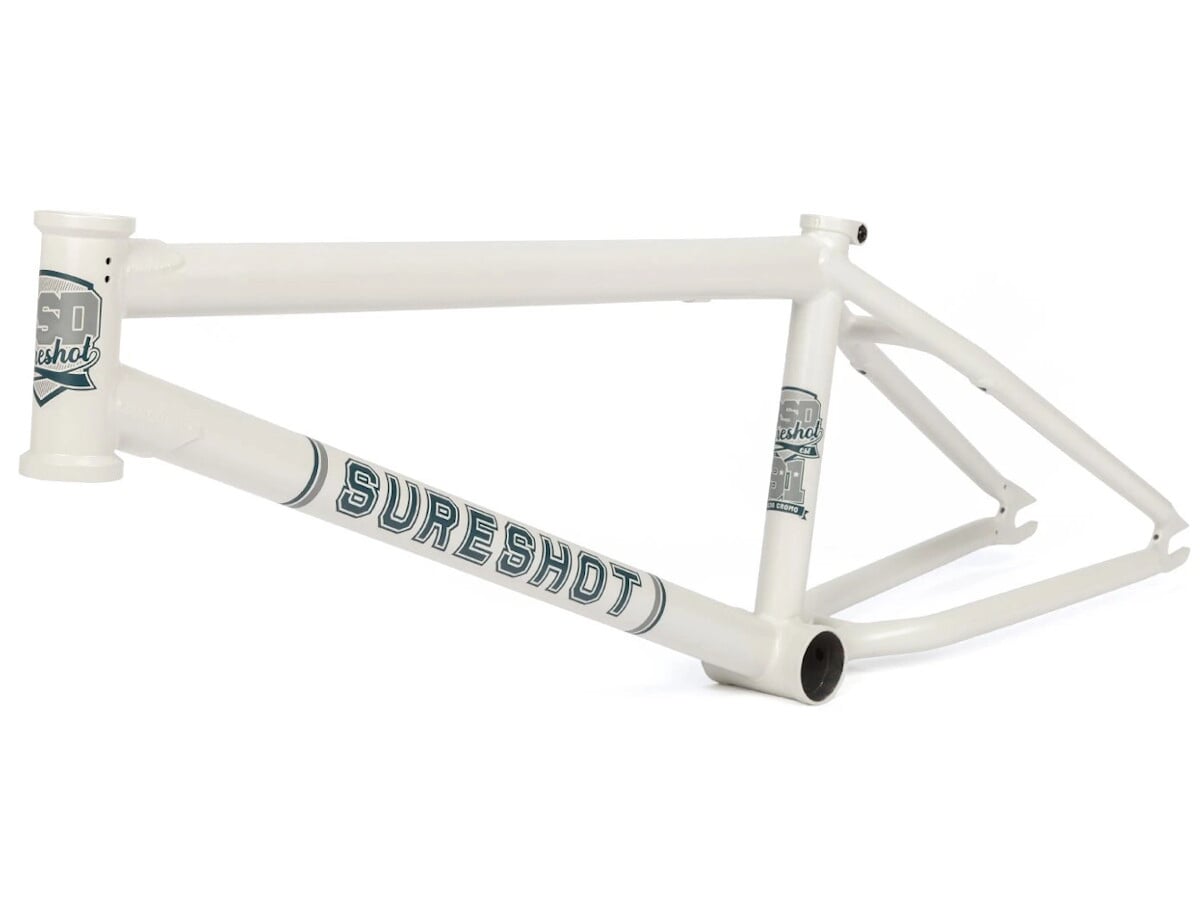

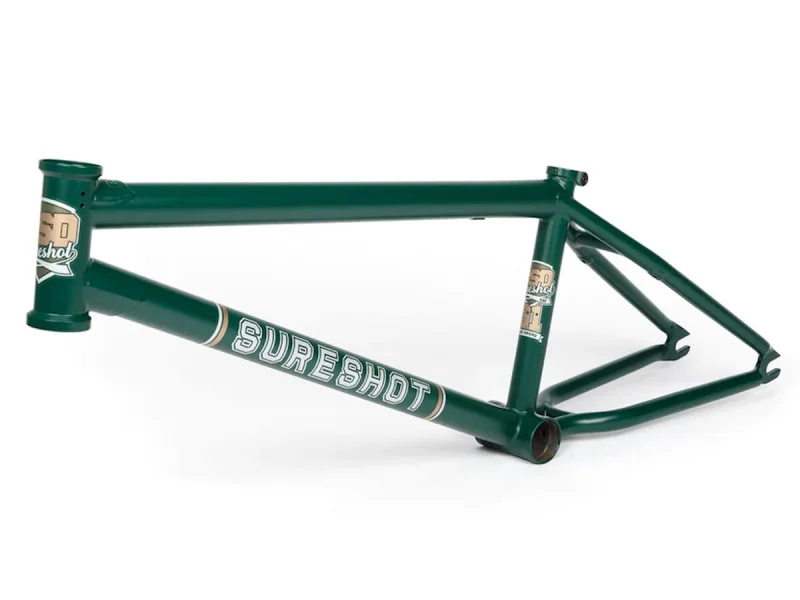

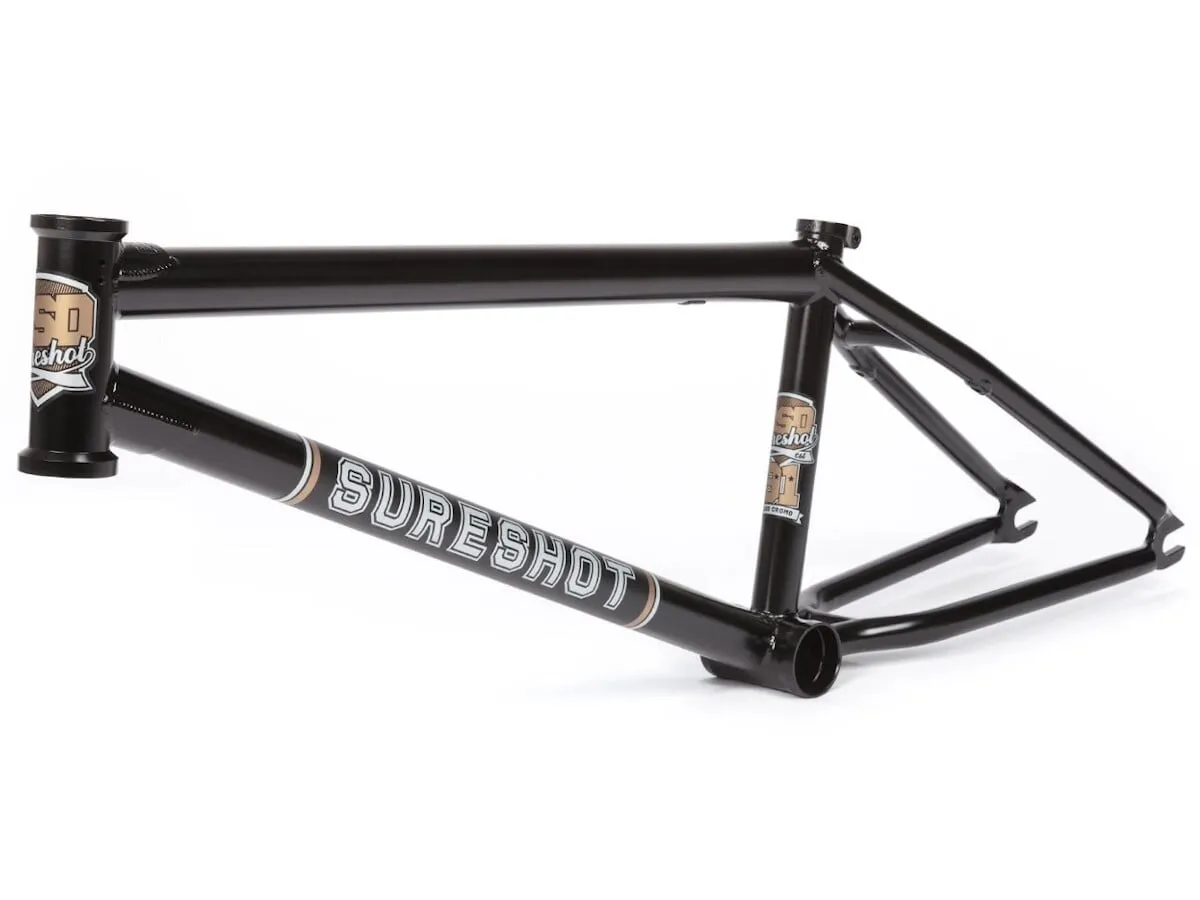

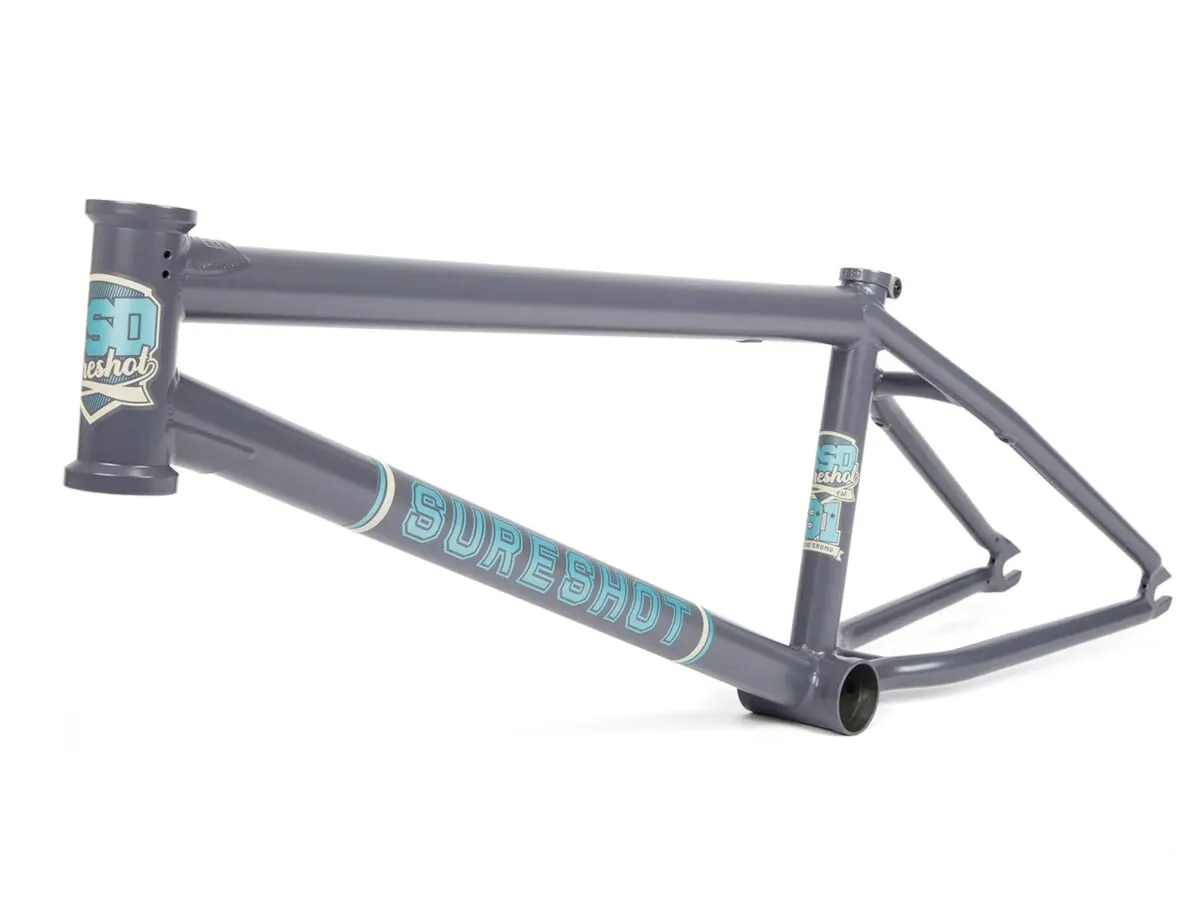

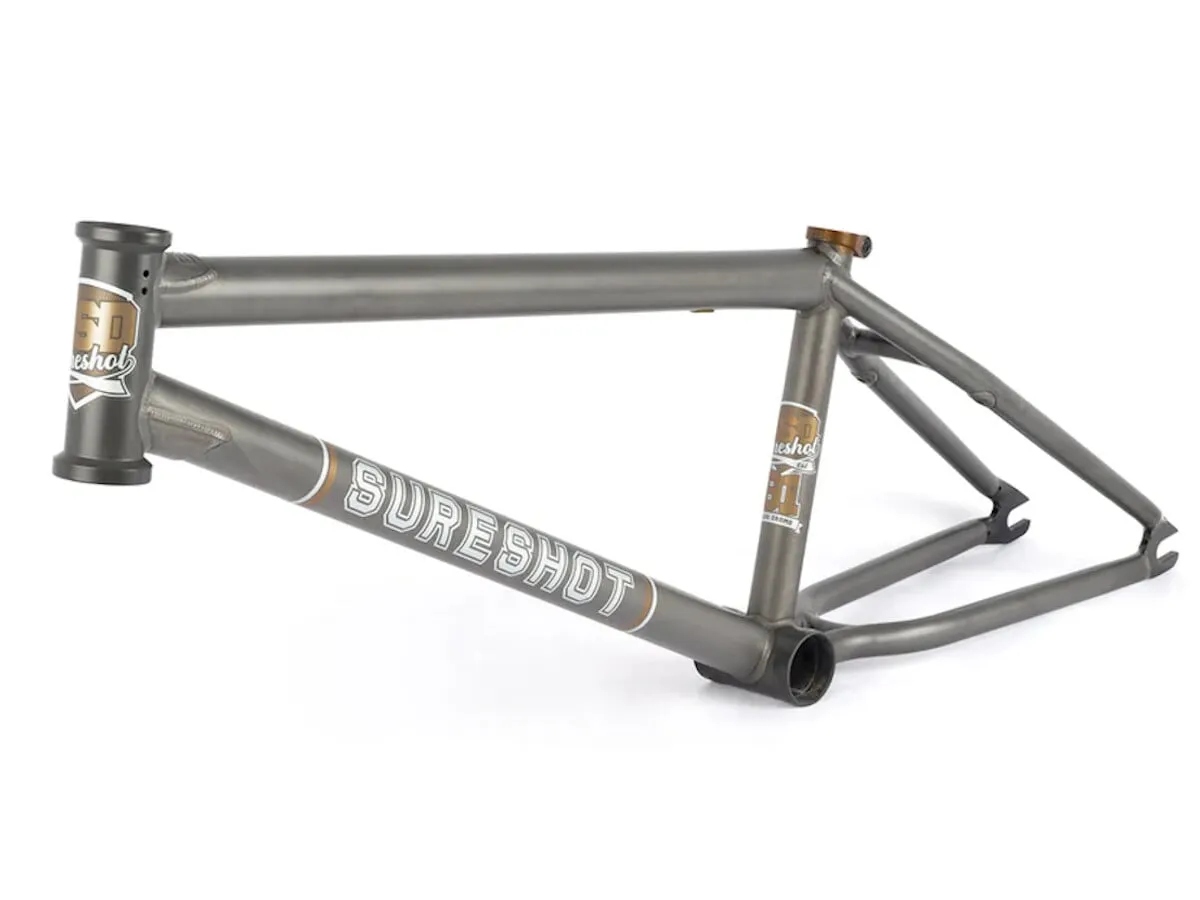

BSD "Sureshot" BMX Frame
-
Weight : 2.26kg / 4.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20311
The BSD "Sureshot" BMX Frame is designed with a ramp/park/trails geometry. Utilizing a low BB, longer rear end, mellower head angle and removable brake lugs, this frame is a true all rounder. The BSD "Sureshot" BMX Frame is made from best quality, 100% Sanko Japanese seamless 4130 CrMo and 7mm thick dropouts with built in chain tensiners.
Facts: BSD "Sureshot" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, integrated headset, invest cast seatstay bridge
- Geometry:
Top Tube Length (TT): 21.0", 21.3" or 21.7"
Chainstay Length (CS): 13.4" (34.04cm) - 13.9" (35.31cm)
Head Tube Angle (HA): 74.75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: wide rear end for fat 2.4" tires
