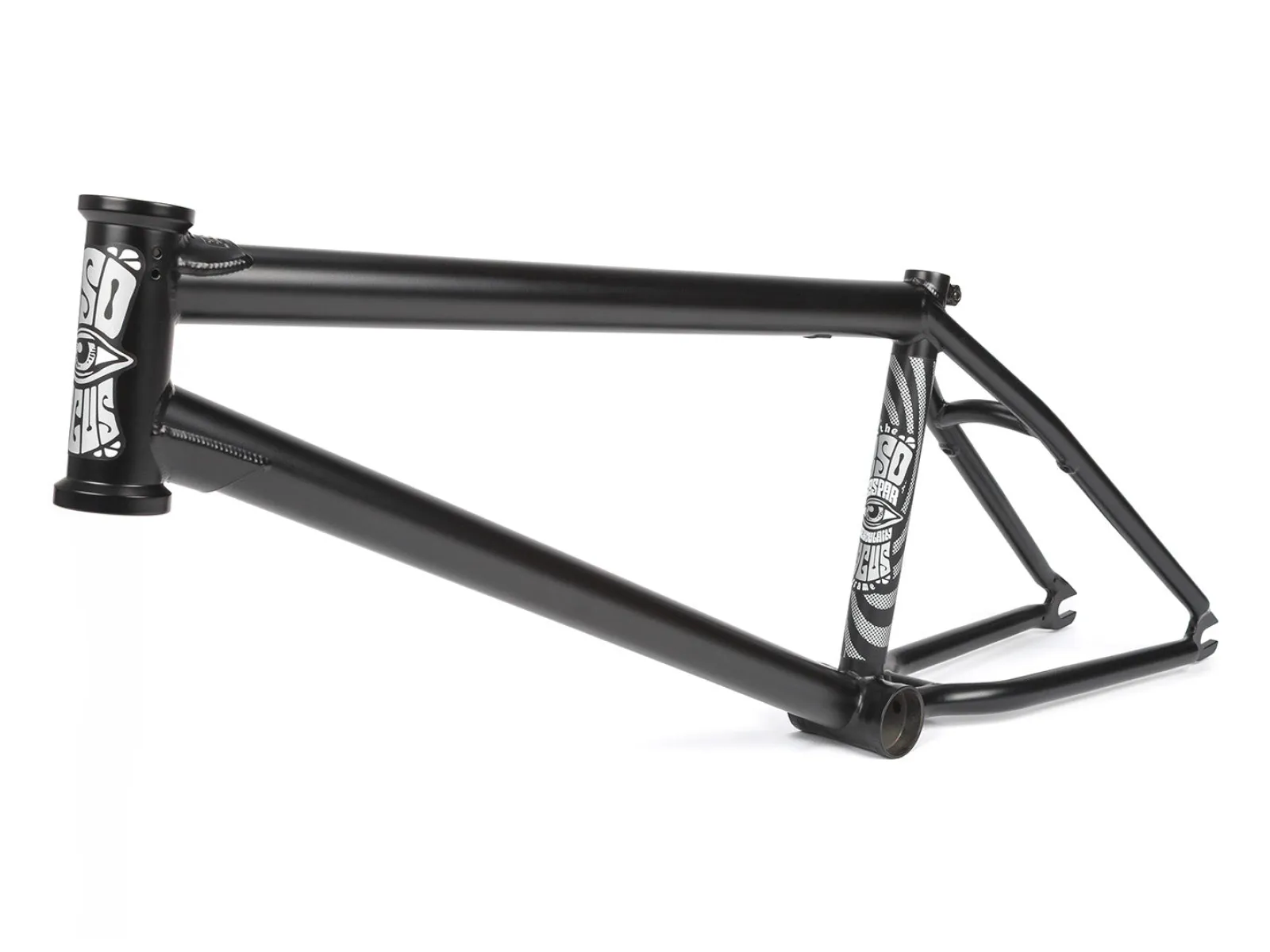

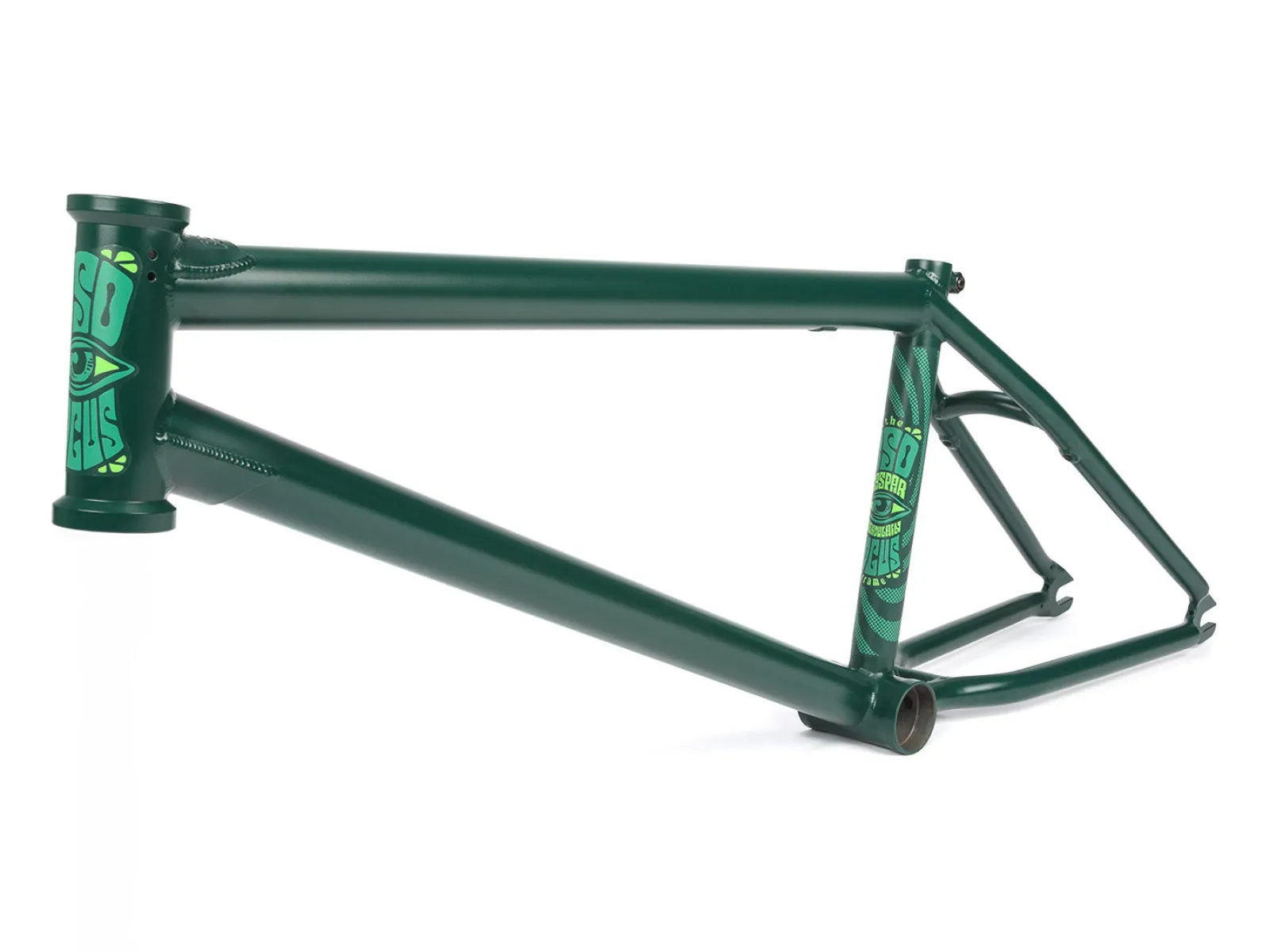

BSD "Focus" BMX Frame
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29499
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
BSD "Focus" BMX Frame
is the Signature BMX frame of Gaspar Guendulain.
The
BSD "Focus" BMX Frame
comes with new investment cast chainstays, dropouts, and seat clamp.
The geometry combines a long rear end (13.5" - 14") and a steep 75.2° head tube angle, making it ideal for fast and technical street riding.
Facts: BSD "Focus" BMX Frame
- Wheel Size: 20"
- Material:
- 100% Sanko Japanese seamless 4130 CrMo
- Top tube and down tube gussets
- Integrated headset
- Investment cast chainstays, dropouts, and seat clamp - Geometry:
- Top Tube Length (TT): 20.8", 21.0" or 21.2"
- Chainstay Length (CS): 13.5" (34.29cm) - 14" (35.56cm)
- Head Tube Length: 4.84" (12.30cm)
- Head Tube Angle (HA): 75.2°
- Seat Tube Angle (SA): 72°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 10" (25.4cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts:
- Investment cast
- 7mm thick
- 14mm slots - Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features:
- Gaspar Guendulain’s Signature frame
- Wide rear end for fat 2.4" tires - Model Year: 2026
