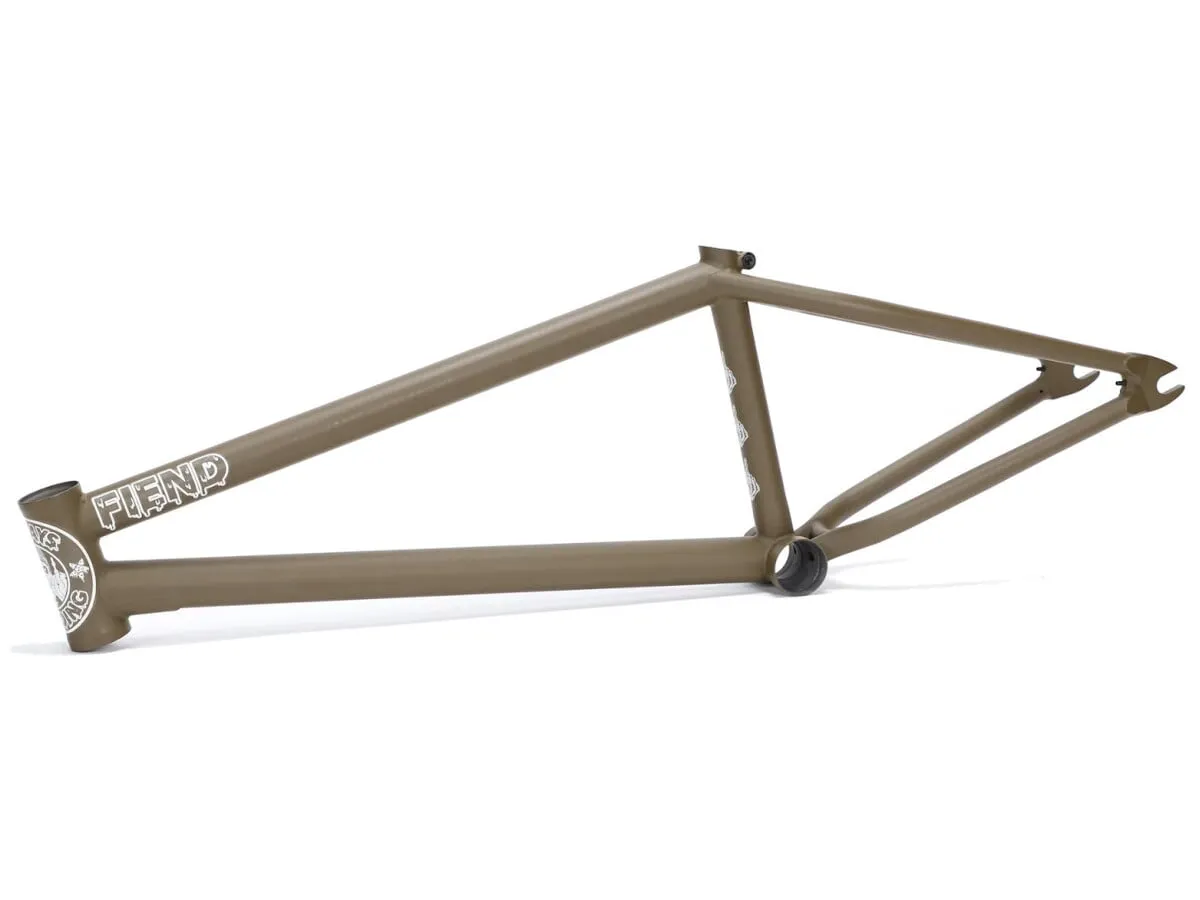

Fiend BMX "Reynolds V3" BMX Frame

336.09 EUR

Color | Top Tube Length
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight (in kg): 2.27
  • Weight (in lbs): 5.00
  • Packaging Unit: 1 Piece
  • Product ID (PID): 24740

This Fiend BMX "Reynolds V3" BMX Frame is Garrett Renyolds signature frame and was in accordance to his wishes and his riding style for top modern and technical Pro level street riding designed and manufactured. Of course this Fiend BMX "Reynolds V3" BMX Frame is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.5° degrees head tube paired with a medium length 12.75" inch rear end and a 11.625" inch low bottom bracket make this high quality Street frame very maneuverable. This Frame has no brake mounts.

Facts: Fiend BMX "Reynolds V3" BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, heat treated, internally top tube and externally down tube gusset, butted tubes, tappered chainstays, integrated headseat (heat treated), integrated seatclamp, integrated chaintensioners, without brake sockets, Mid BB (heat treated)
  • Geometry:
    Top Tube Length (TT): 20.5", 20.75" or 21.0"
    Chainstay Length (CS): 12.75" (32.39cm) - 13.2" (33.53cm)
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 71°
    Bottom Bracket Height: 11.625" (29.53cm)
    Standover Height (SO): 9" (22.86cm)
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: Investment cast, 6.5mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brake Type: without (brakeless)
  • Brakemounts: without
  • Brakemounts included with delivery: No
  • Gyro compatible: No
  • Features: Garrett Reynolds Signature frame, wide rear end for fat 2.4" tires
  • Model Year: 2023
