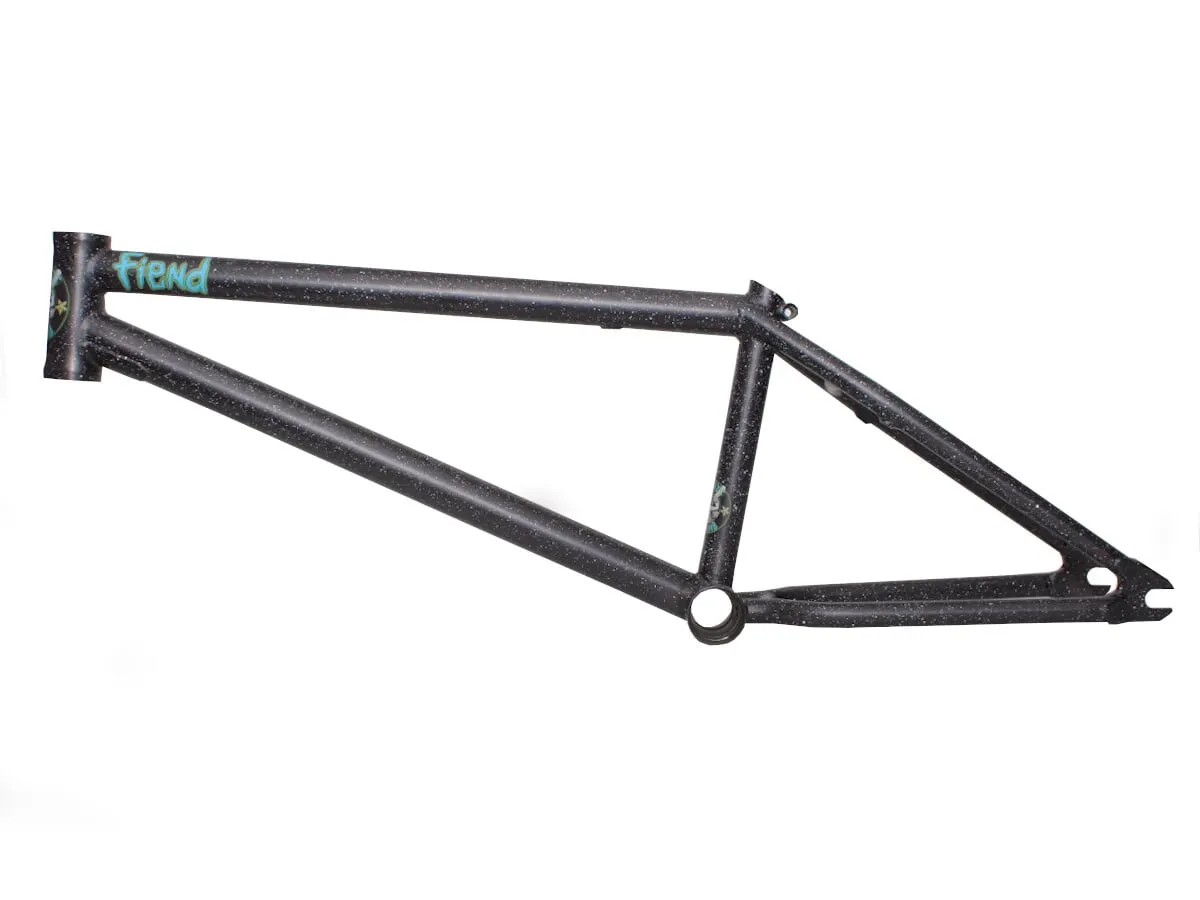

Fiend BMX "Reynolds V2" BMX Frame - With Brake Mounts
This Fiend BMX "Reynolds V2" BMX Frame - With Brake Mounts is Garrett Renyolds signature frame and was in accordance to his wishes and his riding style for top modern and technical Pro level street riding designed and manufactured. Of course this Fiend BMX "Reynolds V2" BMX Frame - With Brake Mounts is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.5° degrees head tube paired with a 11.625" inch low bottom bracket make this high quality Street frame very maneuverable. This Frame has removable brake mounts.
Facts: Fiend BMX "Reynolds V2" BMX Frame - With Brake Mounts
- Wheel Size: 20"
- Material: 100% 4130 CrMo, heat treated, internally top tube and externally down tube gusset, butted tubes, tappered chainstays, integrated headseat (heat treated), integrated seatclamp, integrated chaintensioners, with removable brake sockets, Mid BB (heat treated)
- Geometry:
Top Tube Length (TT): 20.75"
Chainstay Length (CS): 13" (33cm) - 13.4" (34.04cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.625" (29.53cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 8mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Garrett Renyolds Signature frame, wide rear end for fat 2.4" tires
