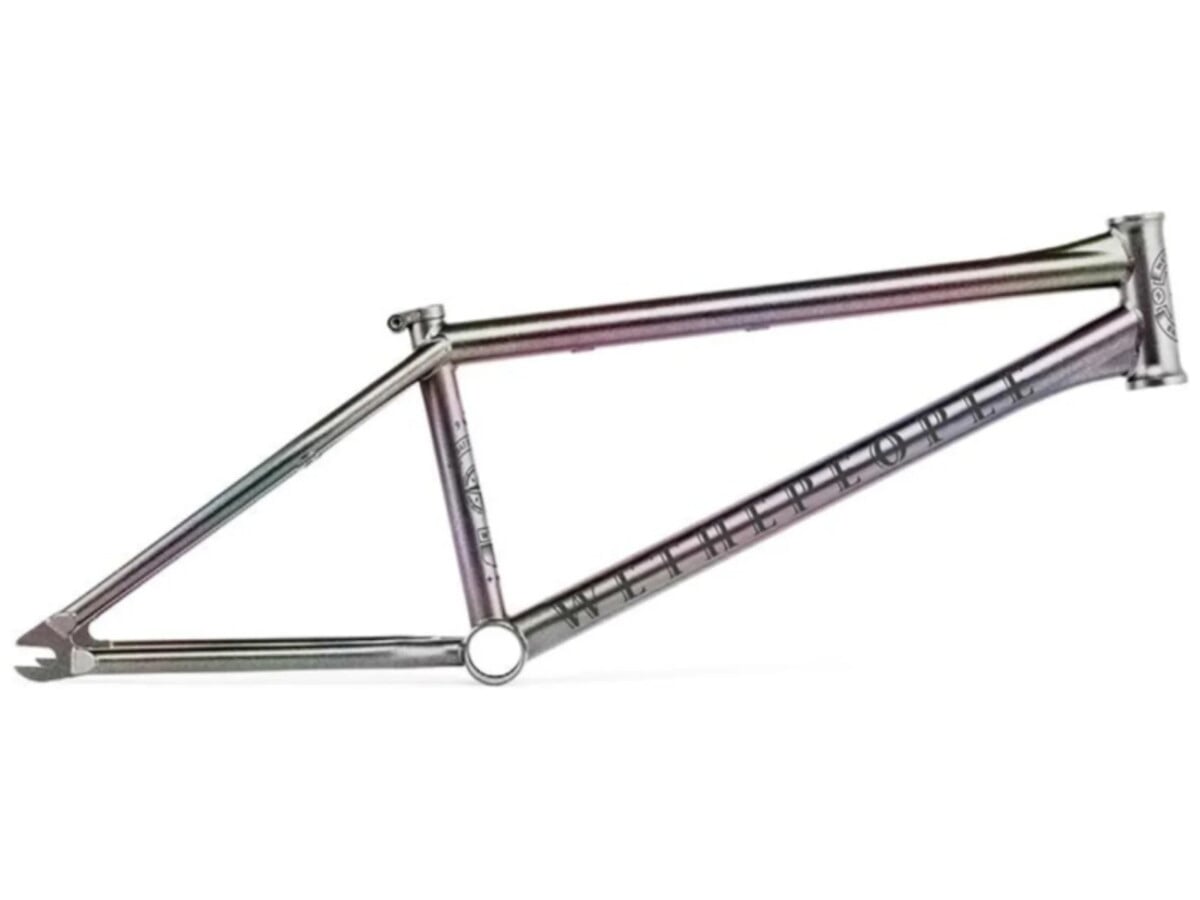

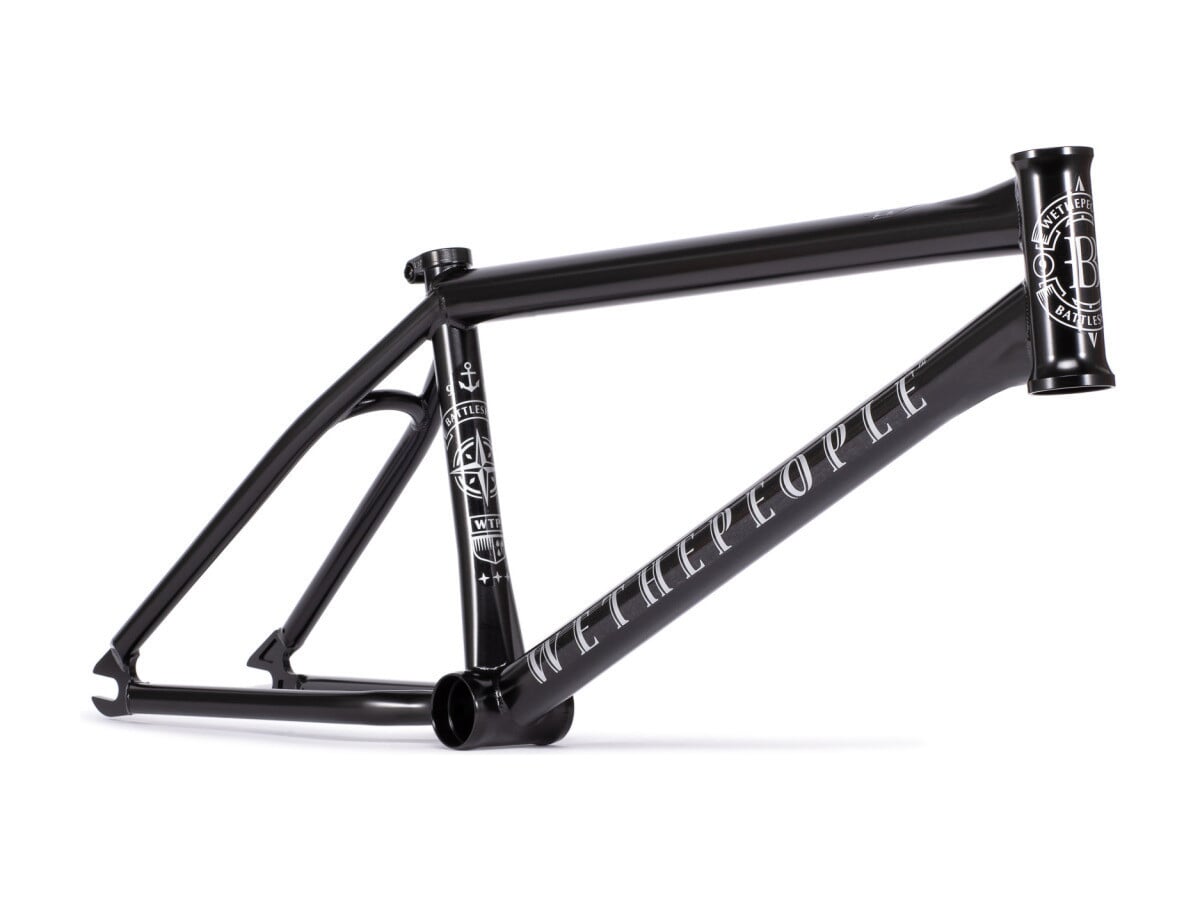

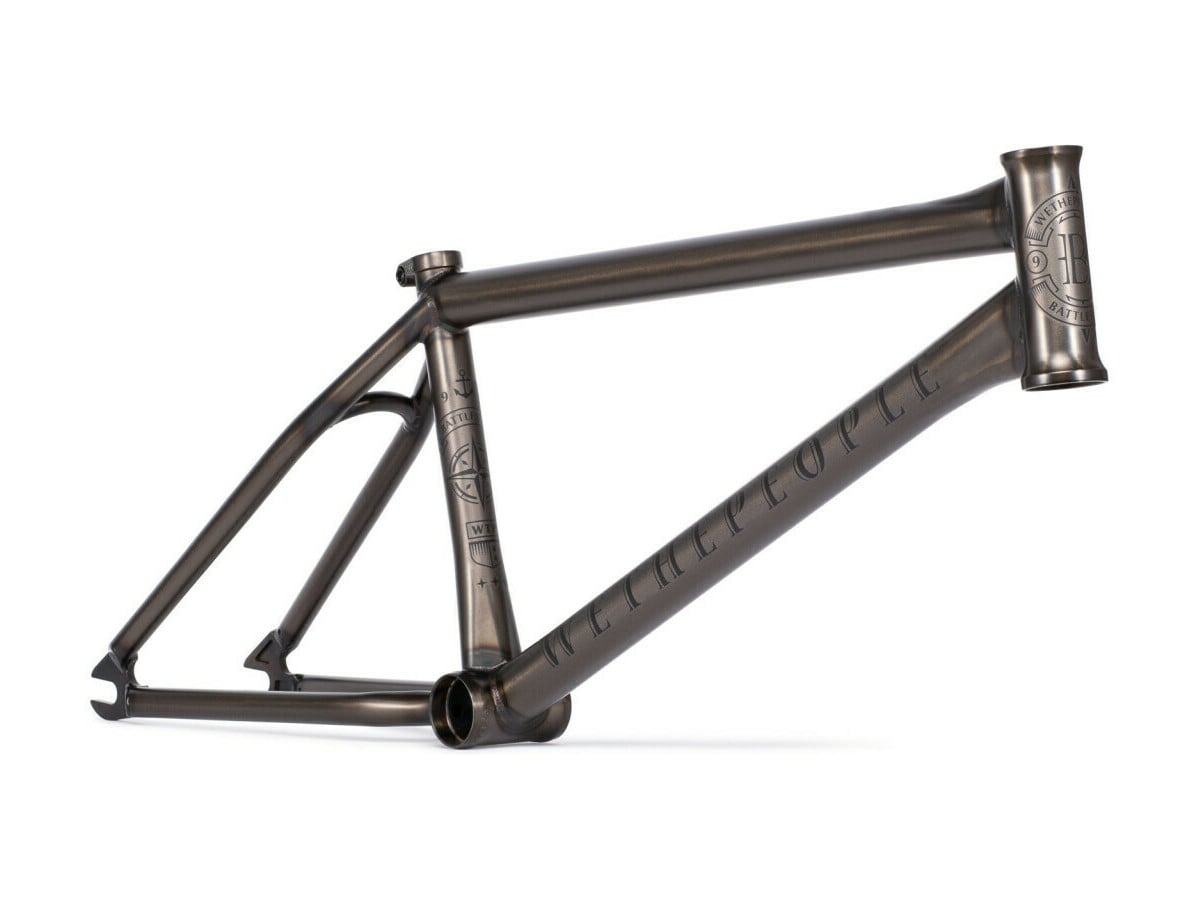

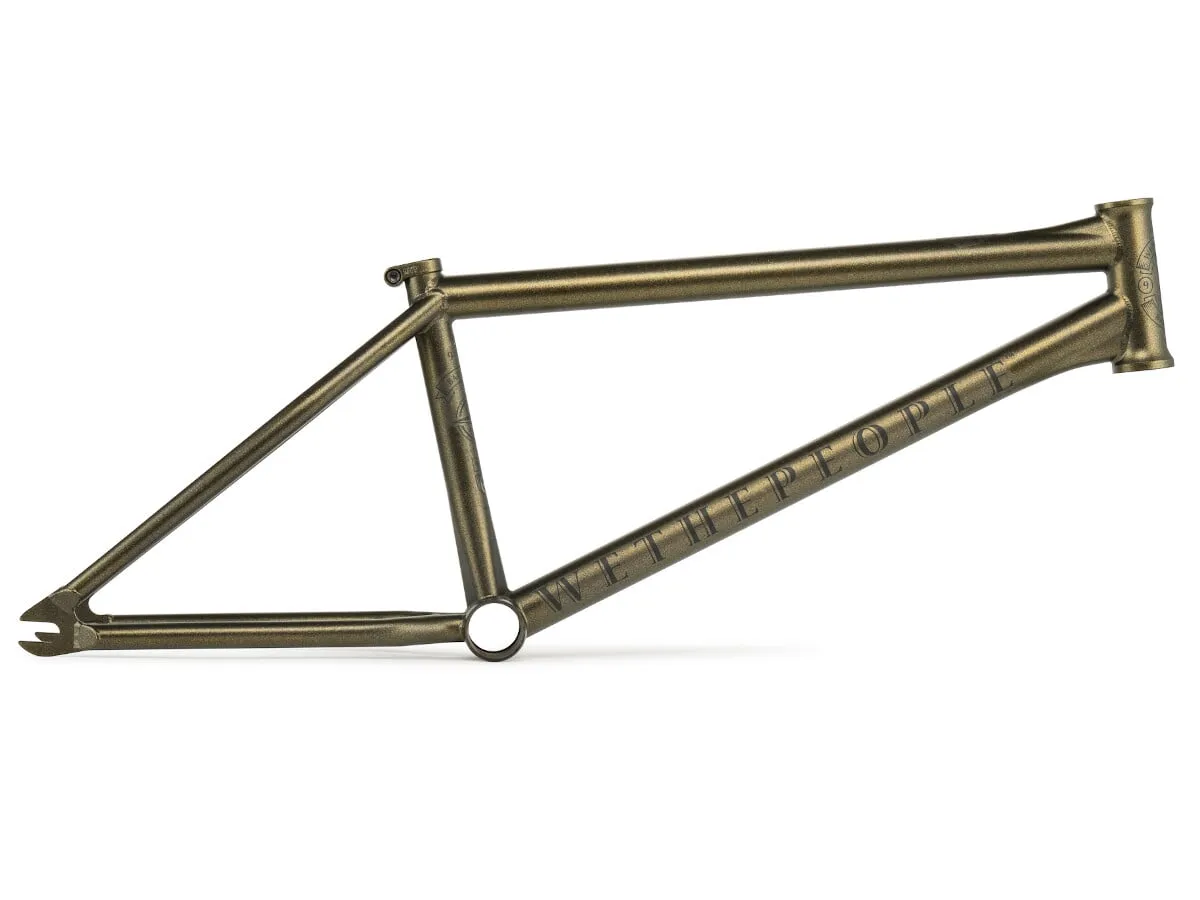

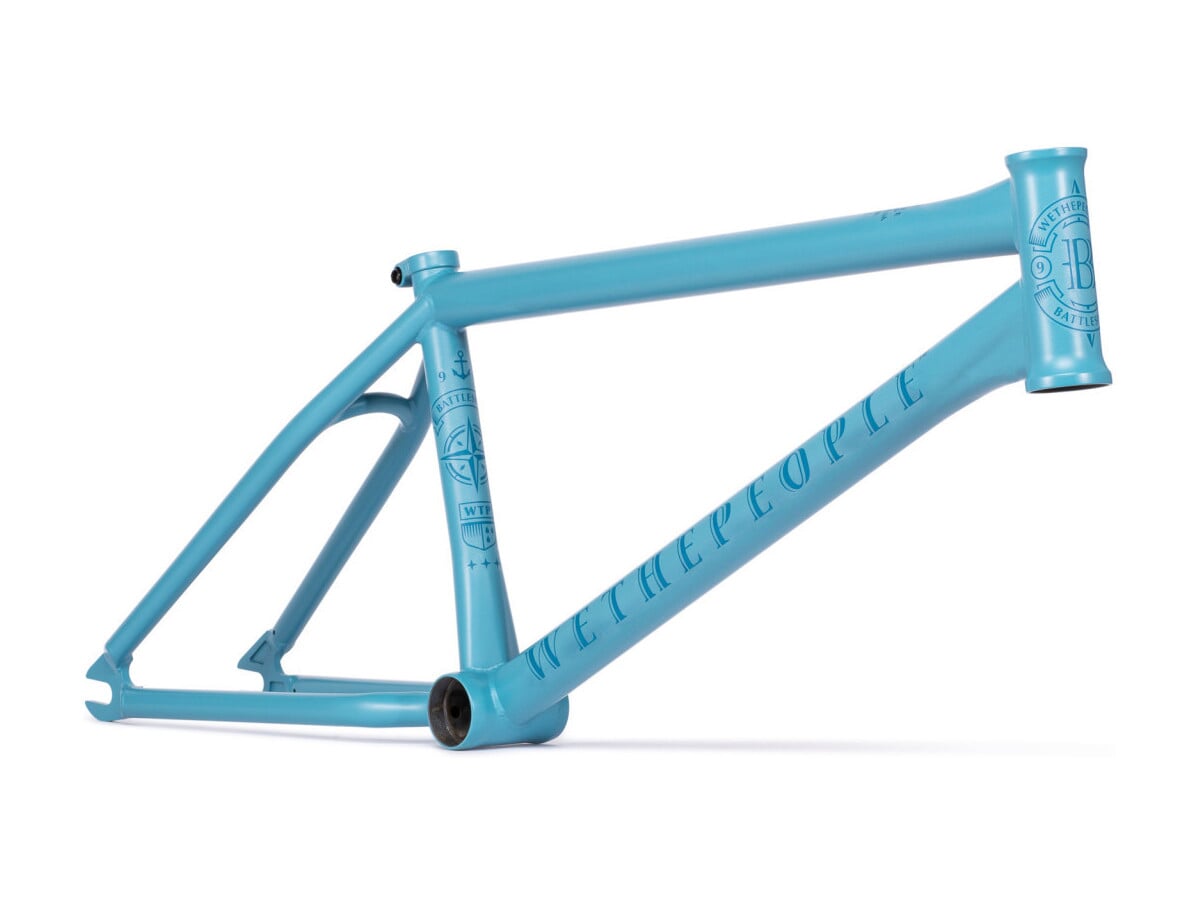

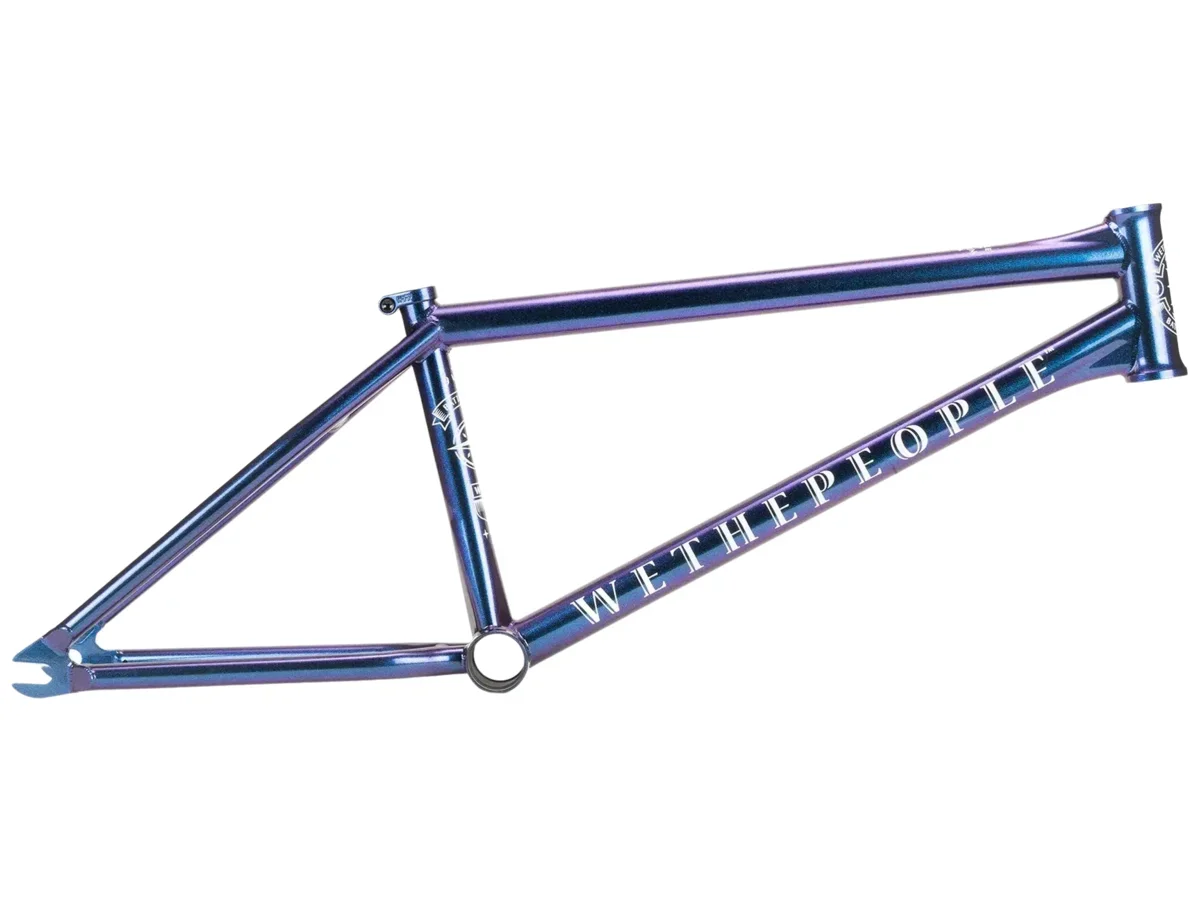

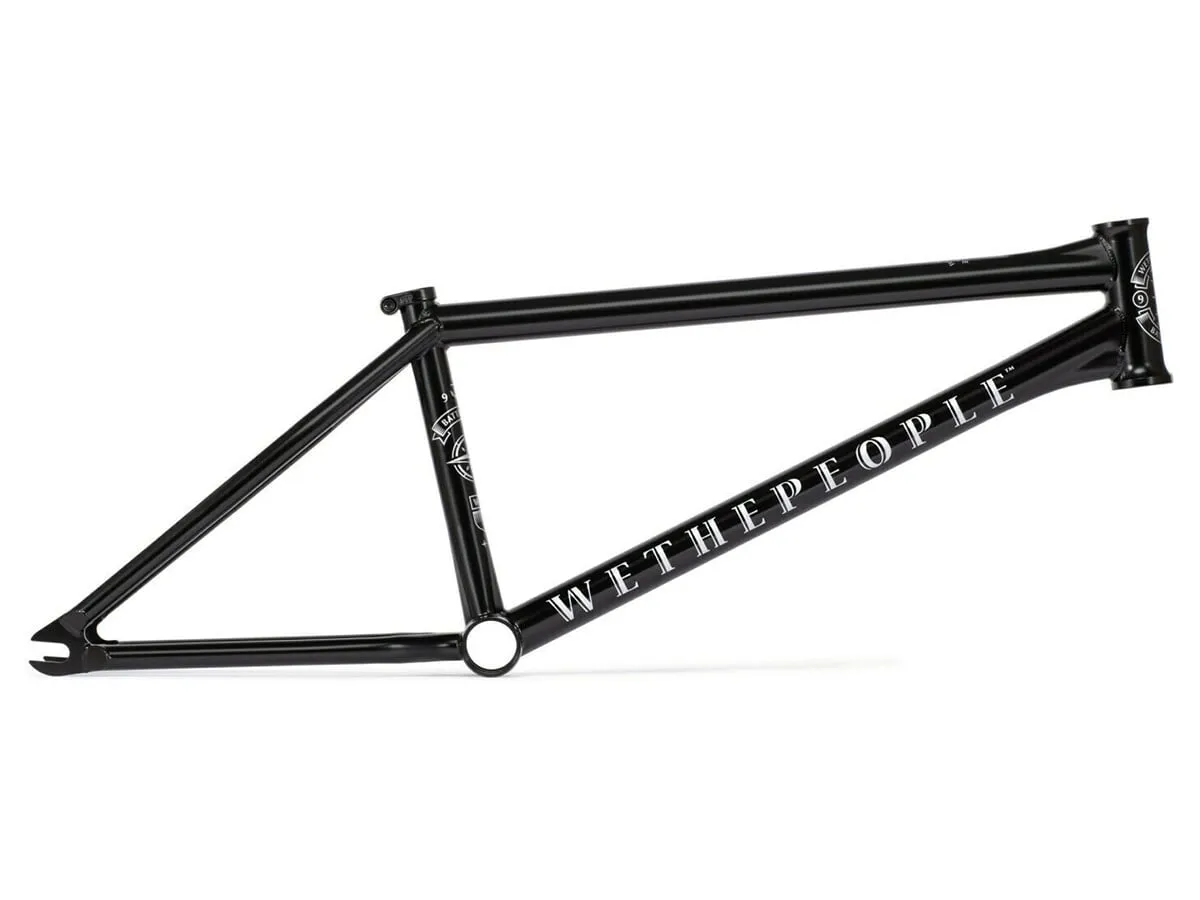

wethepeople "Battleship Magnum" BMX Frame
- Weight : 2.33kg / 5.14lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 20550
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/wethepeople-battleship-magnum-bmx-frame-p-20550
Printed: 11/15/2026
Printed: 11/15/2026
The
wethepeople "Battleship Magnum" BMX Frame
comes with some new features like the hydroformed top tube and down tube gussets, new shape dropouts for perfect hubguard/peg fit and a short rear for modern techical BMX street riding. The specialty of the
wethepeople "Battleship Magnum" BMX Frame
is a taller standover with 9.75" and the new hydroformed seat tube, which creates an optimal connection to the bottom bracket housing and also generates more stiffness in the area of the bottom bracket.
Furthermore the
wethepeople "Battleship Magnum" BMX Frame
includes a integrated seat clamp, wider rear triangle for for a 2.5" tire and has now brake hardware holes (brakeless).
Facts: wethepeople "Battleship Magnum" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 Japanese CrMo, hydroformed top tube and down tube gussets, hydroformed seat tube, butted tubes, integrated headset, integrated seatclamp
- Geometry:
- Top Tube Length (TT): 21.0"
- Chainstay Length (CS): 12.7" (32.26cm) - 13.25" (33.65cm)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 9.75" (24.77cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Laser Cut, 6mm thick, 14mm slots, new shape for perfect hubguard/peg fit
- Chain Tensioners: without
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: wide rear end for fat 2.5" tires, hydroformed top and down tube for the strongest possible connection to the headtube, hydroformed seat tube for optimal connection to the bottom bracket shell, taller 127mm extended headtube for less spacers with an uncut fork
- Model Year: 2021
