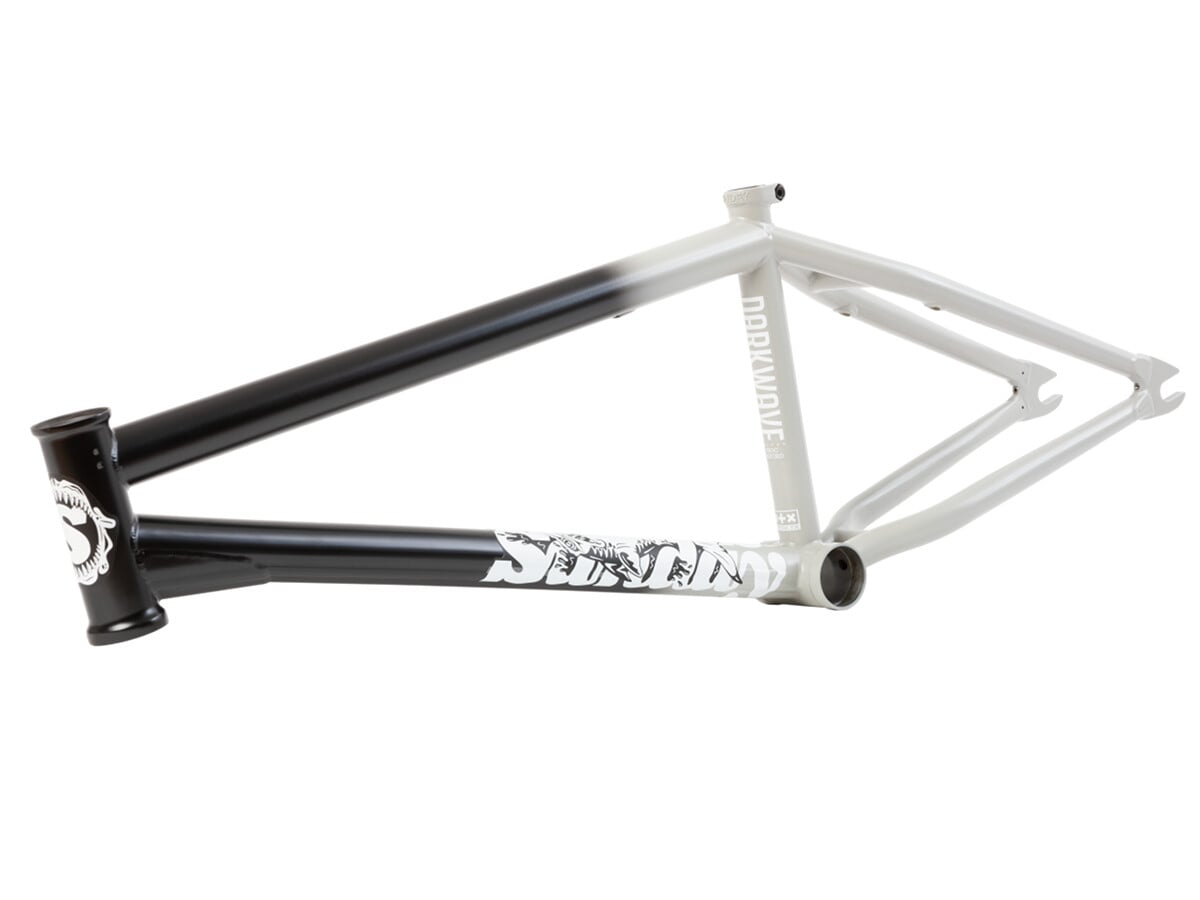

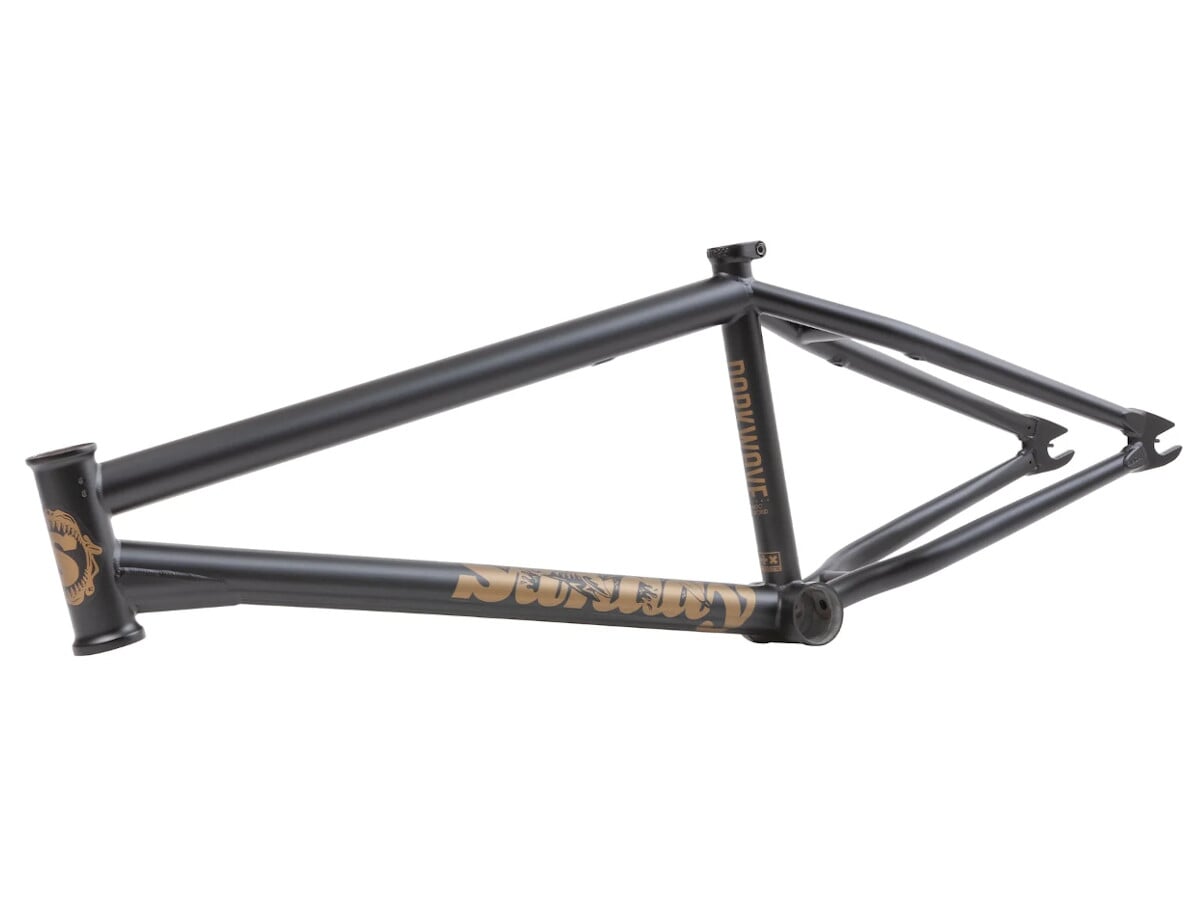

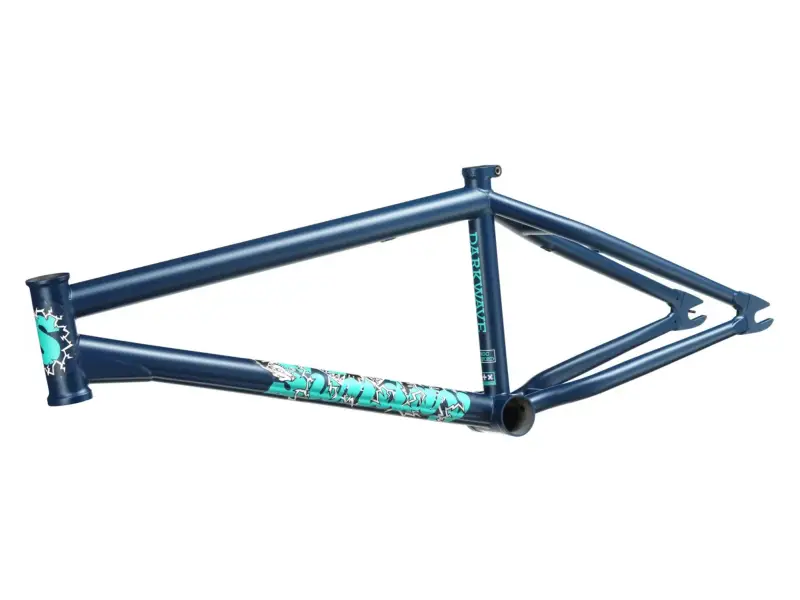

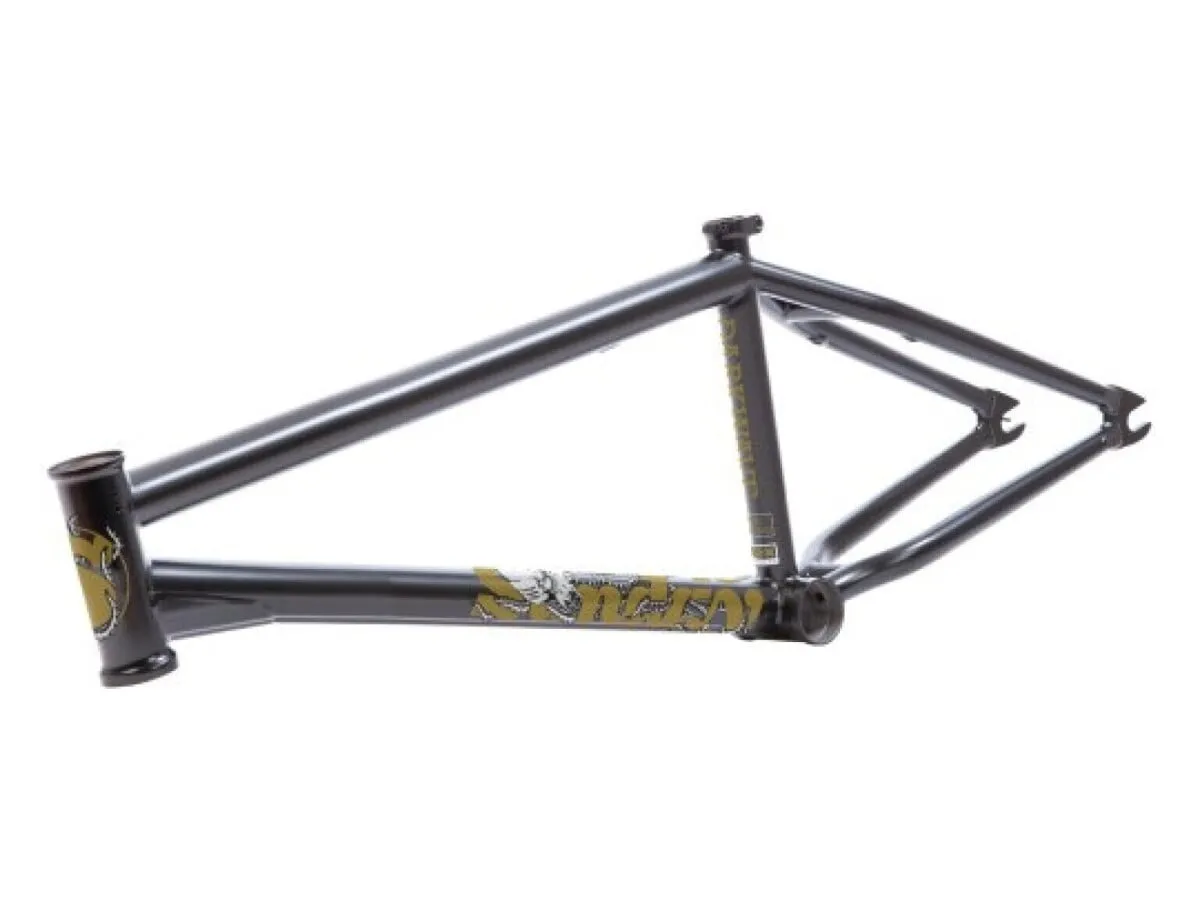

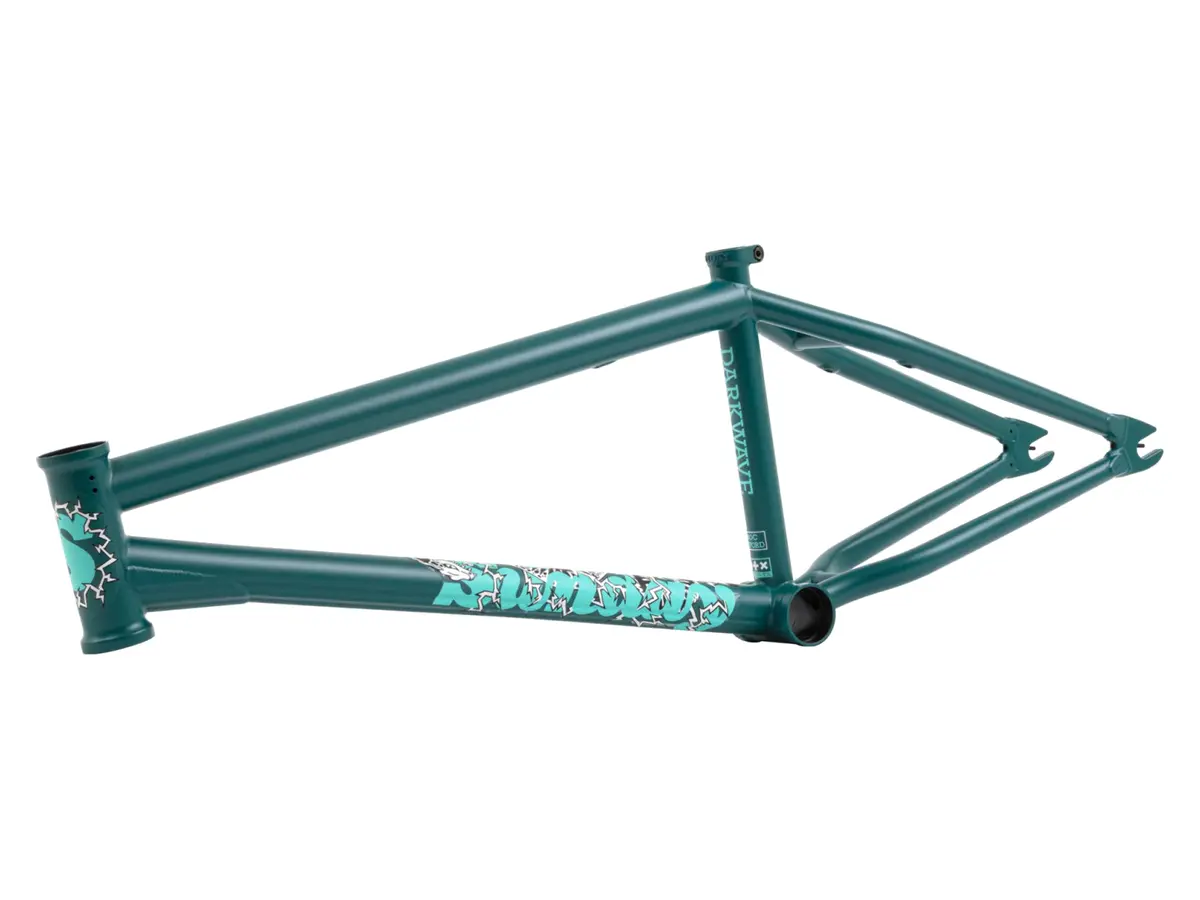

Sunday Bikes "Darkwave" BMX Frame
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 19508
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Sunday Bikes "Darkwave" BMX Frame
is the signature frame of Broc Raiford which was designed after his preferences.
The
Sunday Bikes "Darkwave" BMX Frame
comes with a solid rear end of 13.25" (slammed) and a headtube angle of 75.25°.
The
8mm hollow dropouts have built-in chain tensioners, so to set up the right chain tension and the straight position of your rear wheel will be very easy.
Facts: Sunday Bikes "Darkwave" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, 41 Thermal heat treating, butted tubes, tapered chainstays, integrated headset, waved downtube
- Geometry:
- Top Tube Length (TT): 21.0"
- Chainstay Length (CS): 13.25" (33.65cm)abc - 13.5" (34.29cm)
- Head Tube Angle (HA): 75.25°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.75" (29.85cm)
- Standover Height (SO): 9.25" (23.49cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: hollow 8mm thick dropouts, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Features:Broc Raiford Signature frame, wide rear end for fat 2.5" tires
- Model Year: 2025
