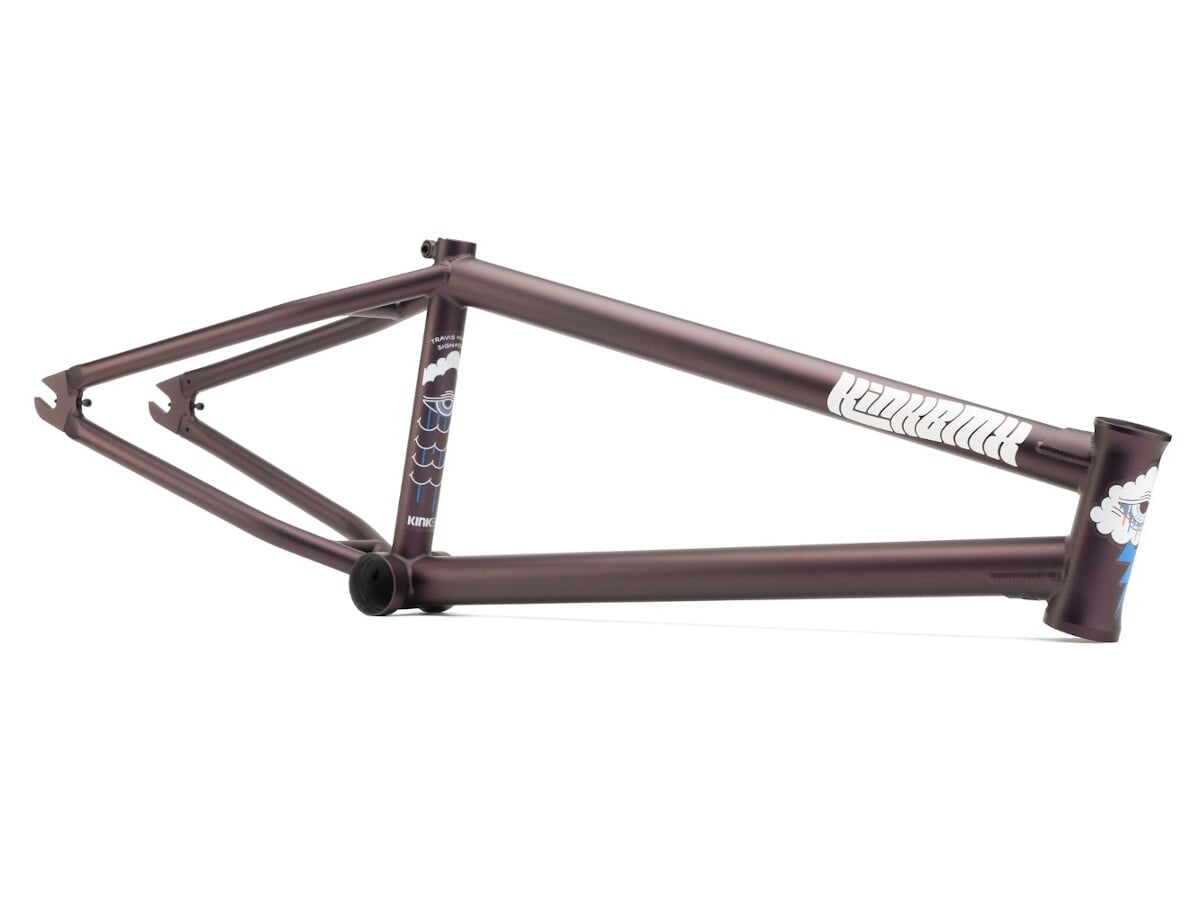

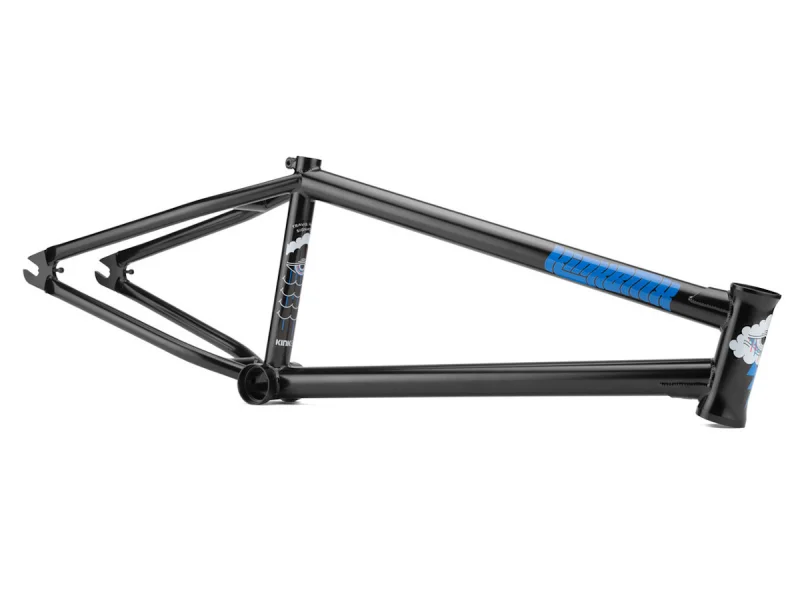

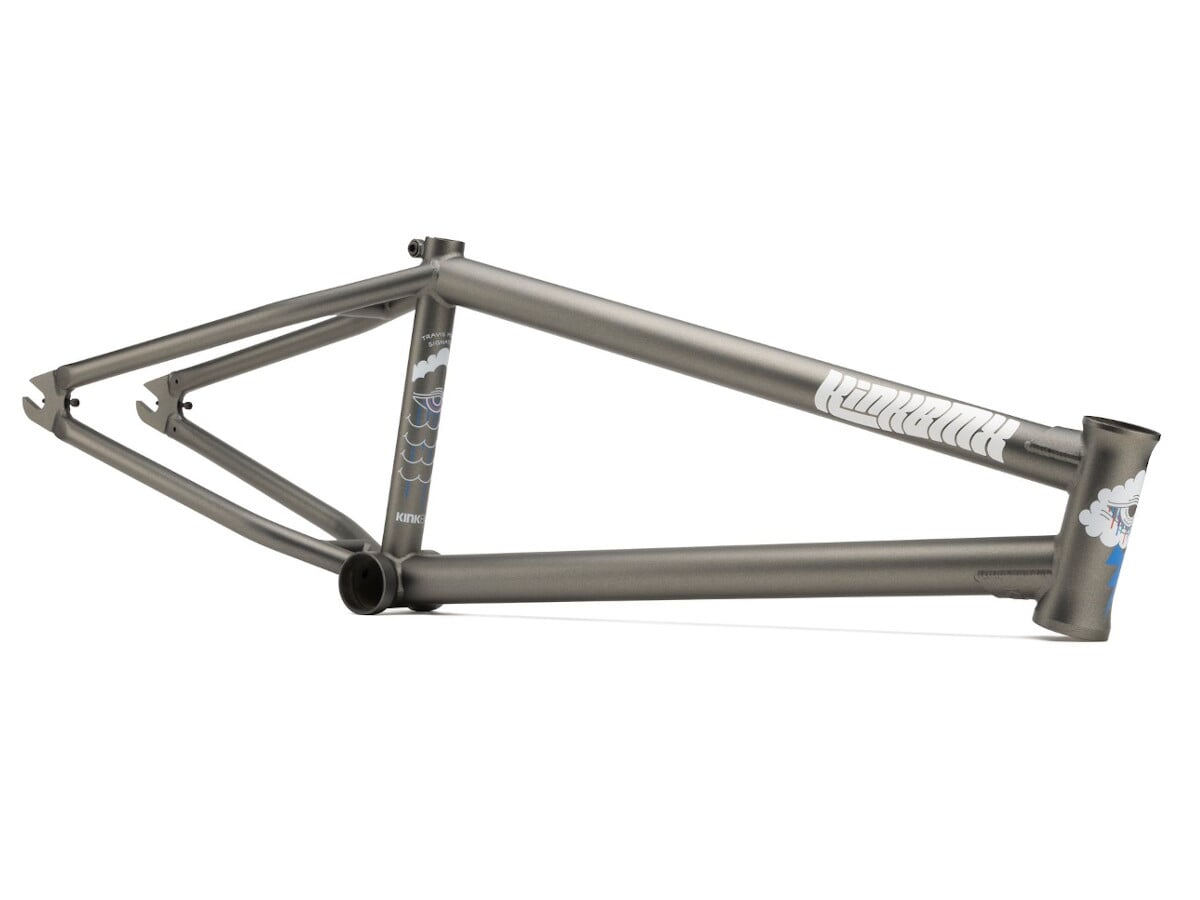

Kink Bikes "Cloud" BMX Frame
- Weight (in kg): 2.38
- Weight (in lbs): 5.25
- Packaging Unit: 1 Piece
- Product ID (PID): 19246
The Kink Bikes "Cloud" BMX Frame is Travis Hughes signature frame. The Kink Bikes "Cloud" BMX Frame was designed after Travis' preferances and comes with a steeper 75.5-degree headtube which is responsive. The moderate 13.5" chainstay length makes the frame feel solid.
Facts: Kink Bikes "Cloud" BMX Frame
- Wheel Size: 20"

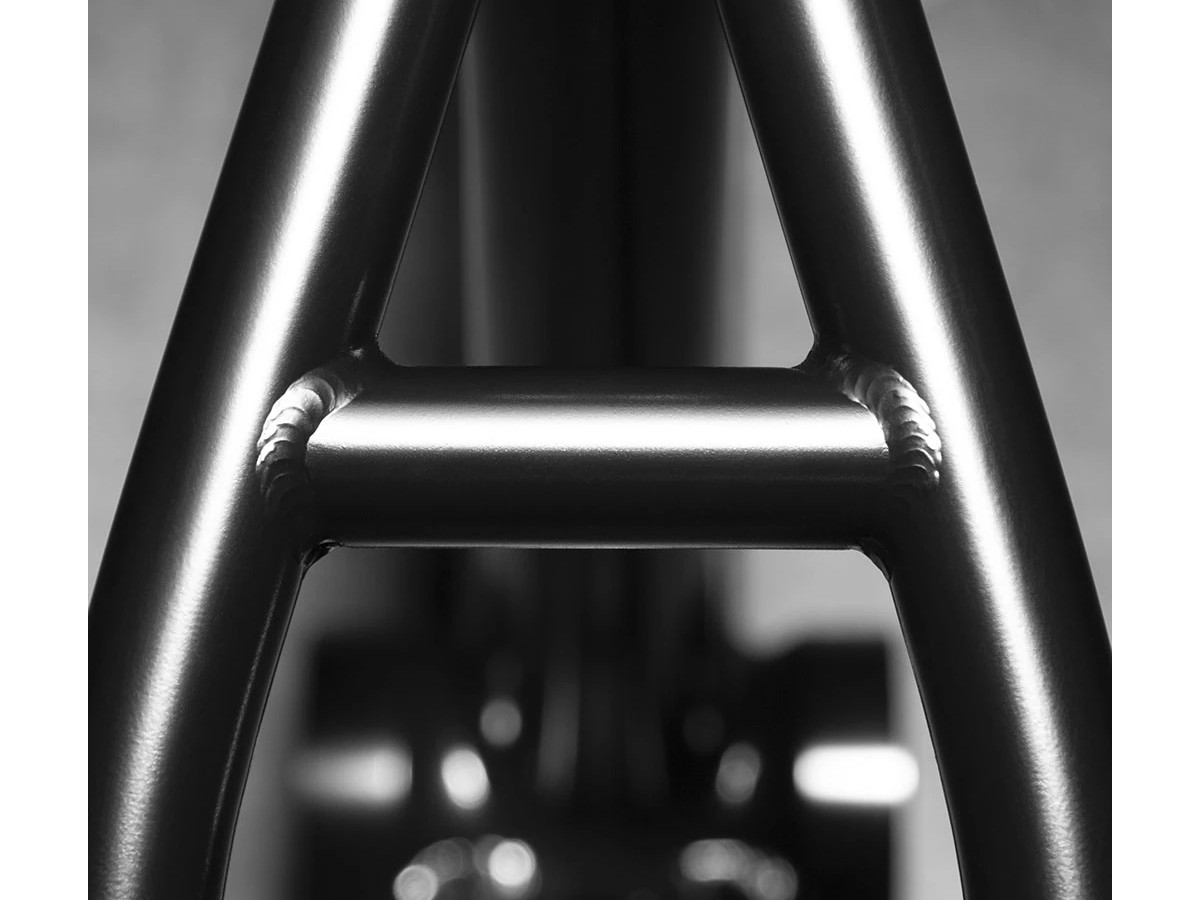

- Material: 100% Seamless Sanko 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
Top Tube Length (TT): 20.5", 20.75", 21.0" or 21.25"
Chainstay Length (CS): 13.5" (34.29cm) - 13.8" (35.05cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.65" (29.59cm)
Standover Height (SO): 8.75" (22.22cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

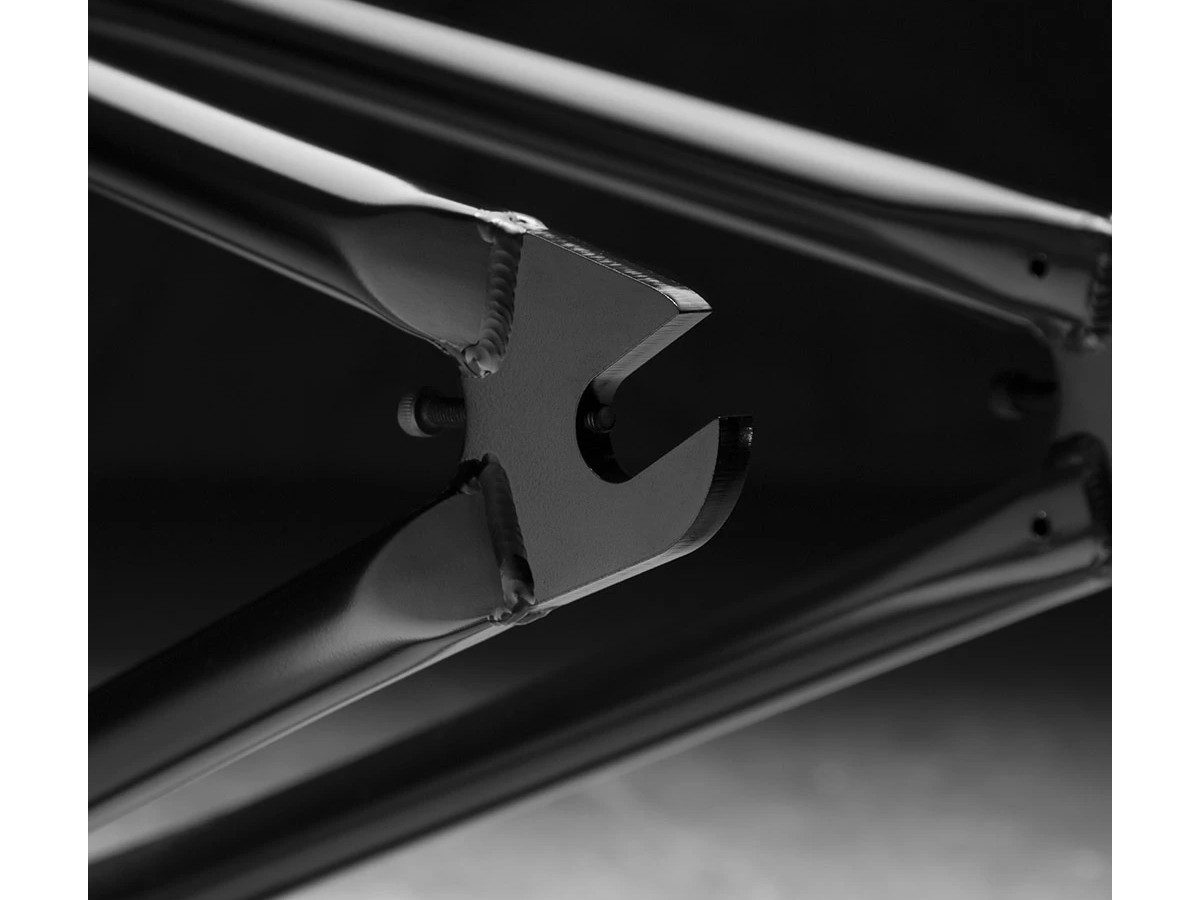

- Dropouts: Investment cast, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Travis Hughes signature, Wide rear end for fat 2.5" tires
- Model Year: 2021
