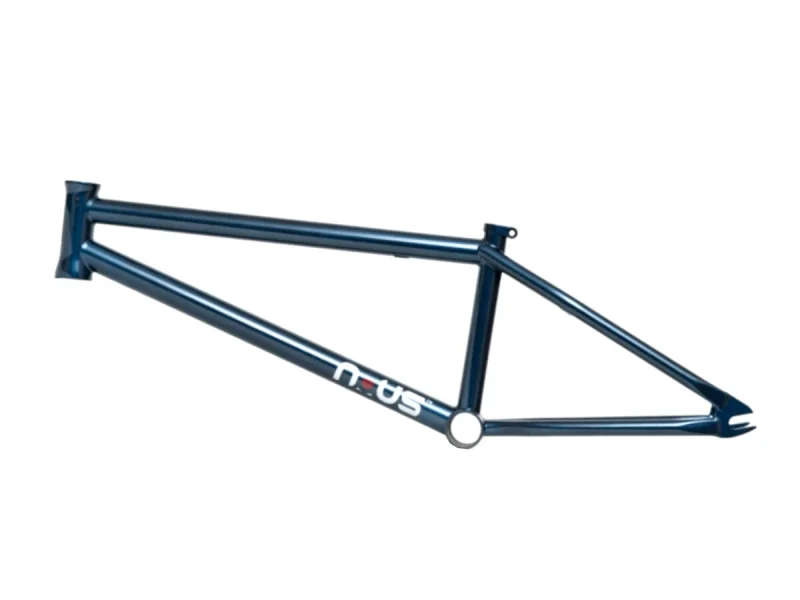

Nous BMX "Date V4" BMX Frame
-
Weight : 2kg / 4.41lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28568
The Nous BMX "Date V4" BMX Frame is a fusion of BMX Flatland and BMX Street geometry. A short top tube, combined with a higher bottom bracket, giving the frame a visual resemblance to a street frame. Designed in Japan by BMX Flatland professionals, the Nous BMX "Date V4" BMX Frame blends classic design with modern technology, including 6mm thick dropouts and ample clearance for wider rear tires.
Facts: Nous BMX "Date V4" BMX Frame
- Wheel Size: 20"
- Material: 100% japanese 4130 CrMo, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 19.3" or 19.9"
Chainstay Length (CS): 12.5" (31.75cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 8.2" (20.83cm) - Seat Clamp: without
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Model Year: 2025
