Terrible One "Ruben Alcantara V3" BMX Frame
-
Weight : 2.25kg / 4.96lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 14601
Everybody who knows how Ruben Alcantara is using his bike, should imagine that this
Terrible One "Ruben Alcantara V3" BMX Frame
is a very high quality build frame. The
Terrible One "Ruben Alcantara V3" BMX Frame

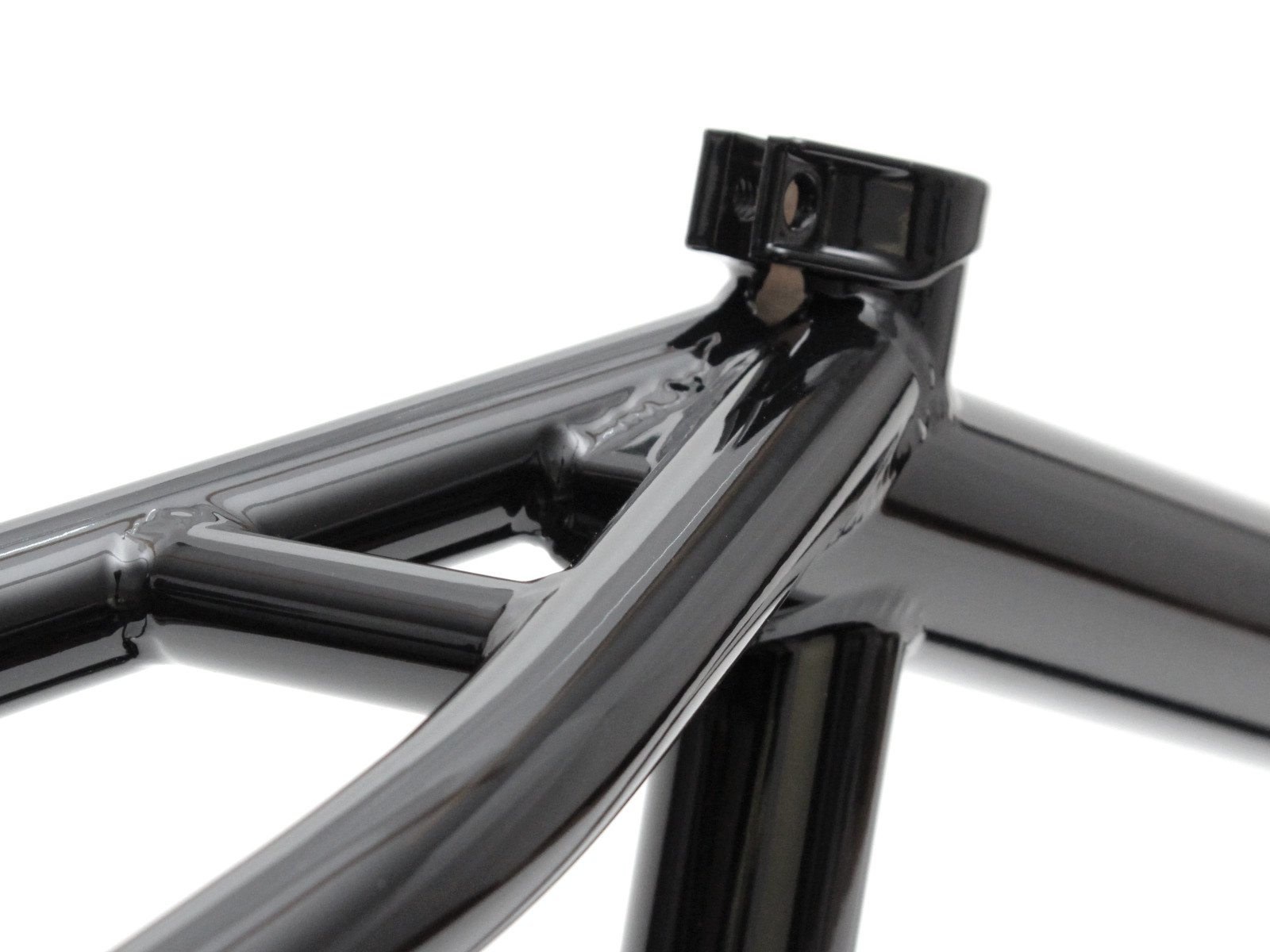

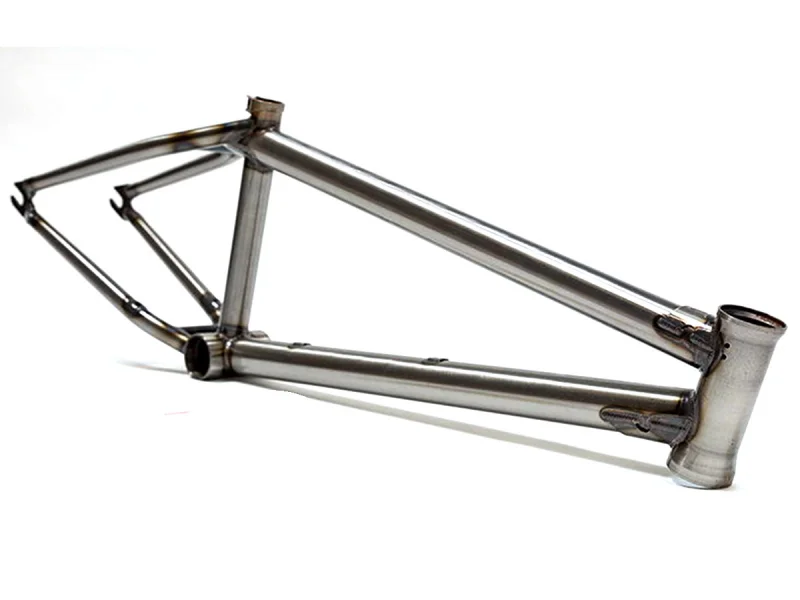

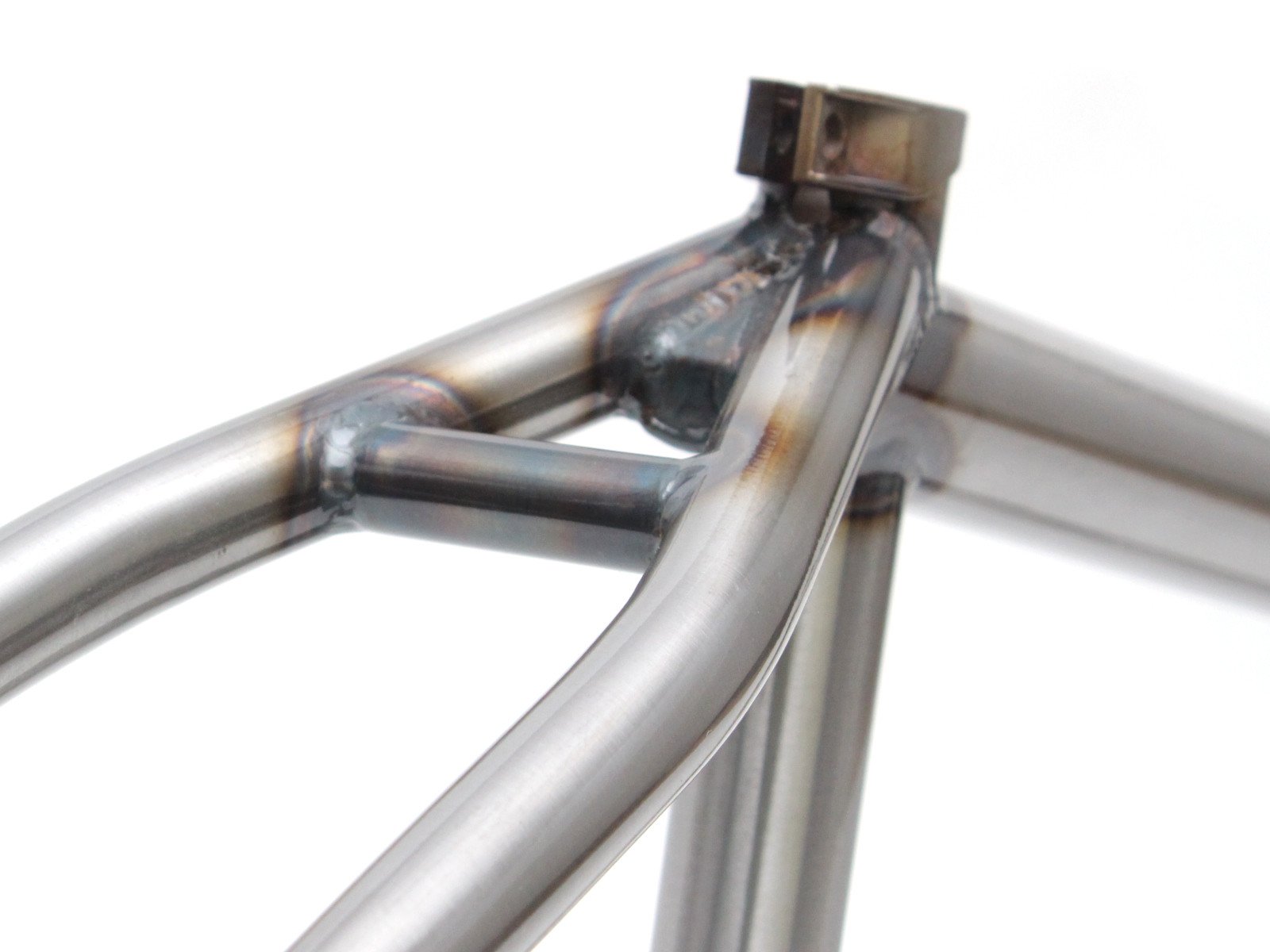

is made from high quality 4130 CrMo, comes with top- and downtube guesset and removable brake hardware at the chainstays.
Note: removable brakehardware is not included with delivery
Facts: Terrible One "Ruben Alcantara V3" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset, brake mounts at chainstay
- Geometry:
Top Tube Length (TT): 20.75", 21.0" or 21.25"
Chainstay Length (CS): 13.25" (33.65cm)abc - #94#
Head Tube Angle (HA): 74°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.75" (29.85cm)
Standover Height (SO): 8.5" (21.59cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 4mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Ruben Alcantara Signature frame, includes a frame sticker set
- Model Year: 2020
