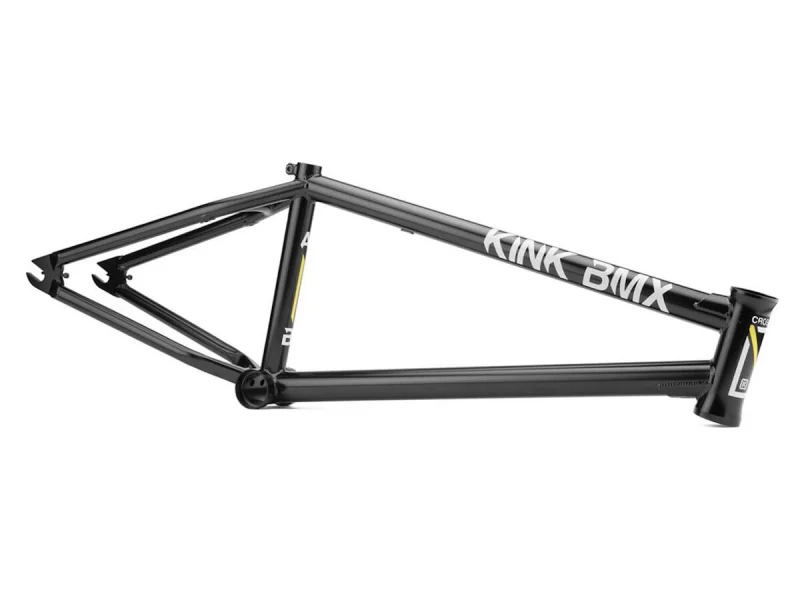

Kink Bikes "Crosscut" BMX Frame
- Weight (in kg): 2.21
- Weight (in lbs): 4.87
- Packaging Unit: 1 Piece
- Product ID (PID): 20077
The Kink Bikes "Crosscut" BMX Frame comes with a modern and responsible geometry featuring a short rear end of 12.5" paird with a headtube angle of 75.5°. The Kink Bikes "Crosscut" BMX Frame keeps the classic look with a standover of 9.25".
Facts: Kink Bikes "Crosscut" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, integrated seatclamp
- Geometry:
Top Tube Length (TT): 20.75", 21.0" or 21.25"
Chainstay Length (CS): 12.5" (31.75cm) - 12.8" (32.51cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 9.25" (23.49cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Wide rear end for fat 2.5" tires, Investment Cast Chainstay Yoke
- Model Year: 2021
